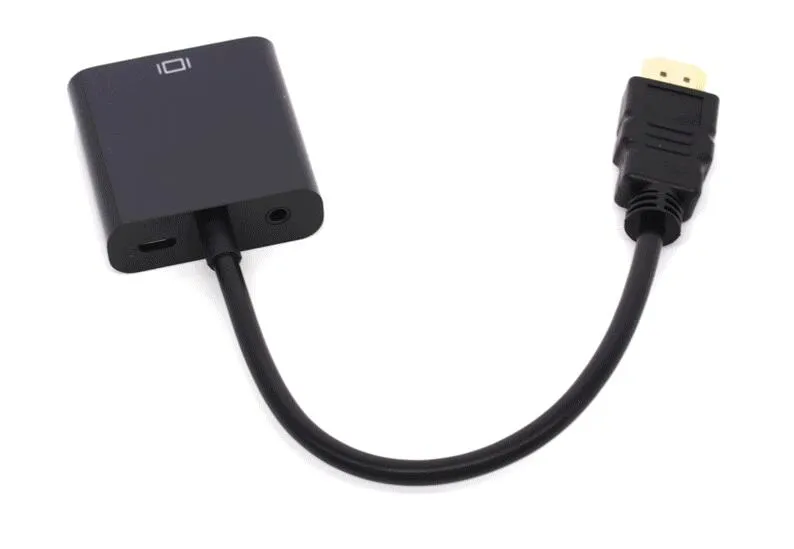

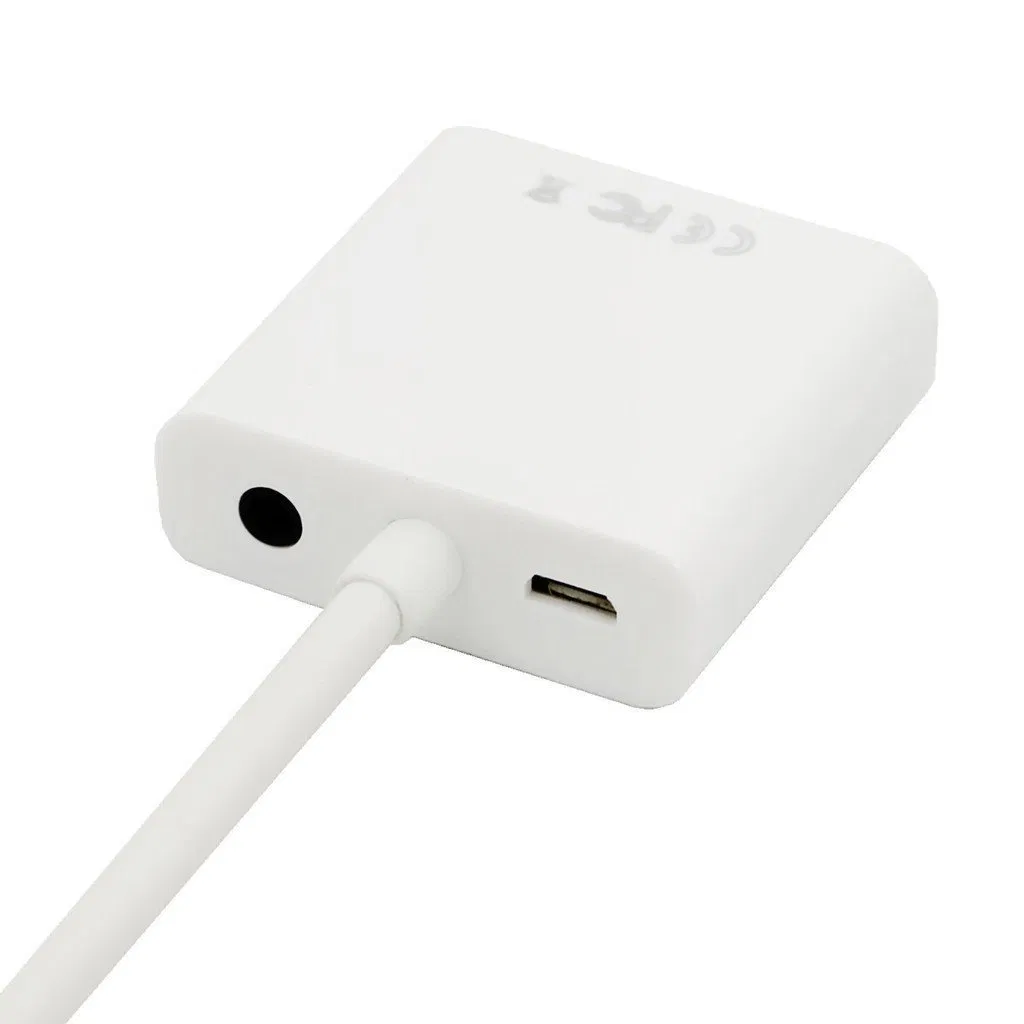

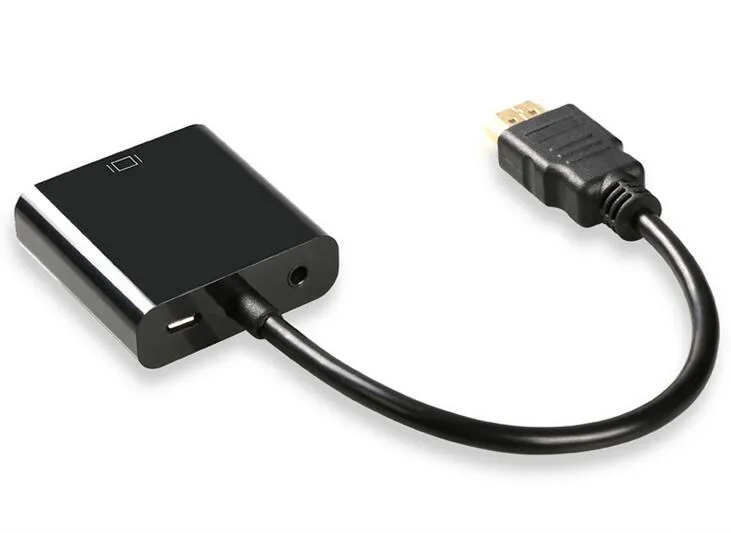

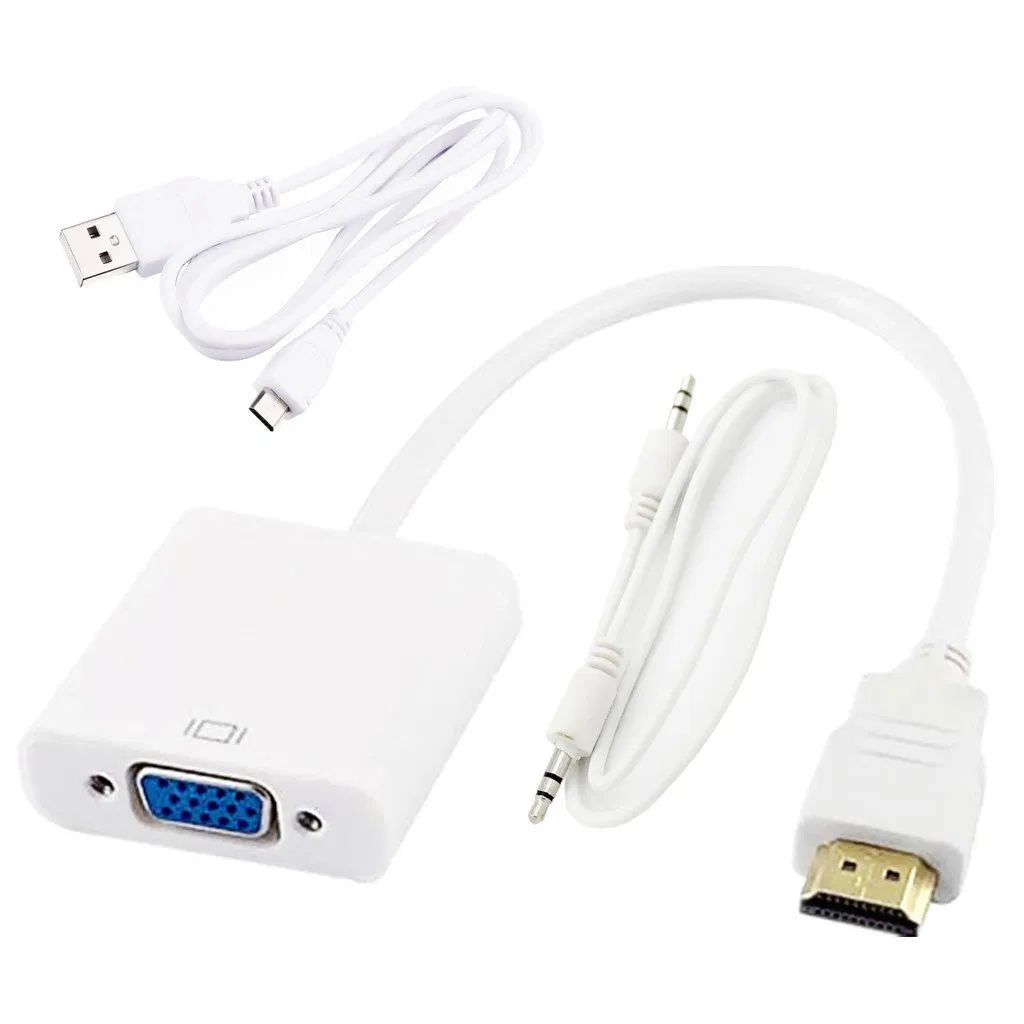

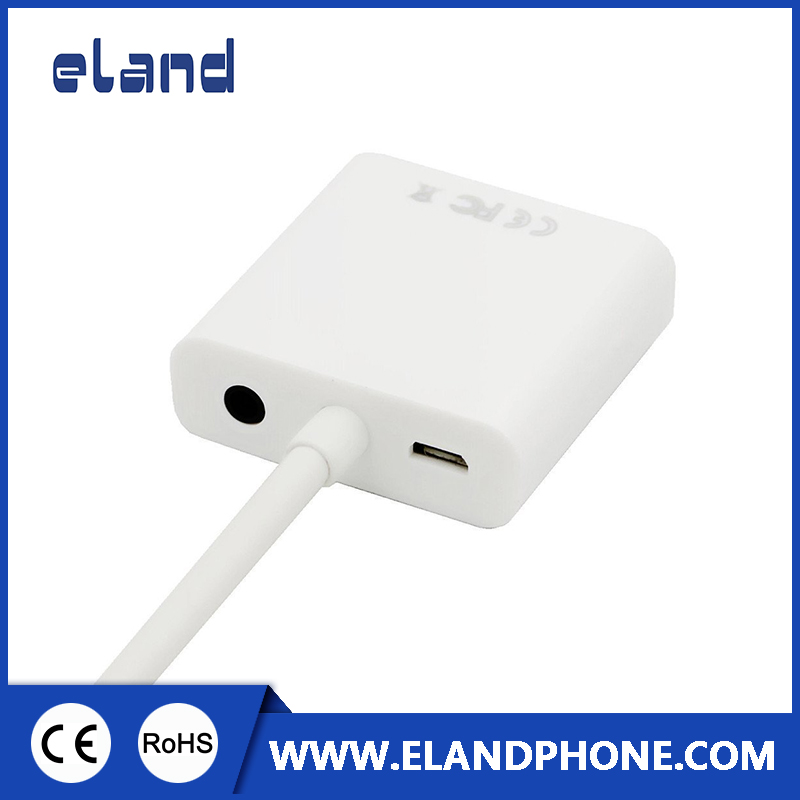

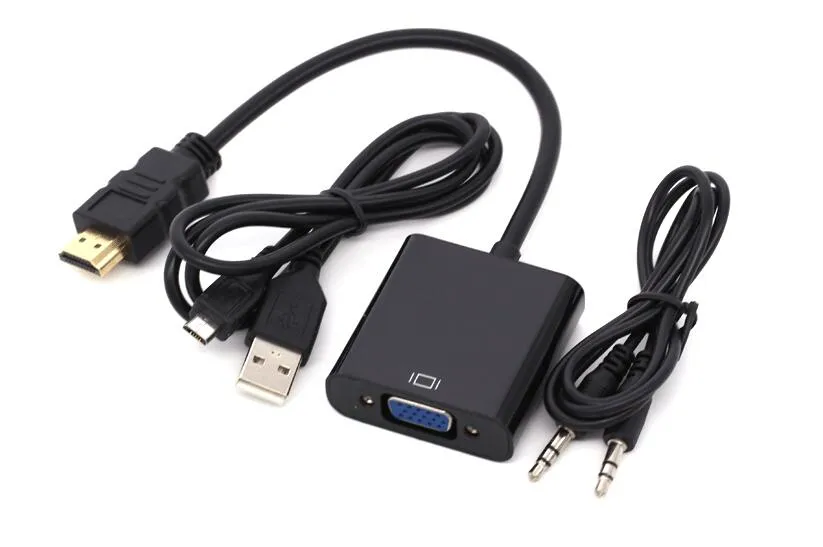

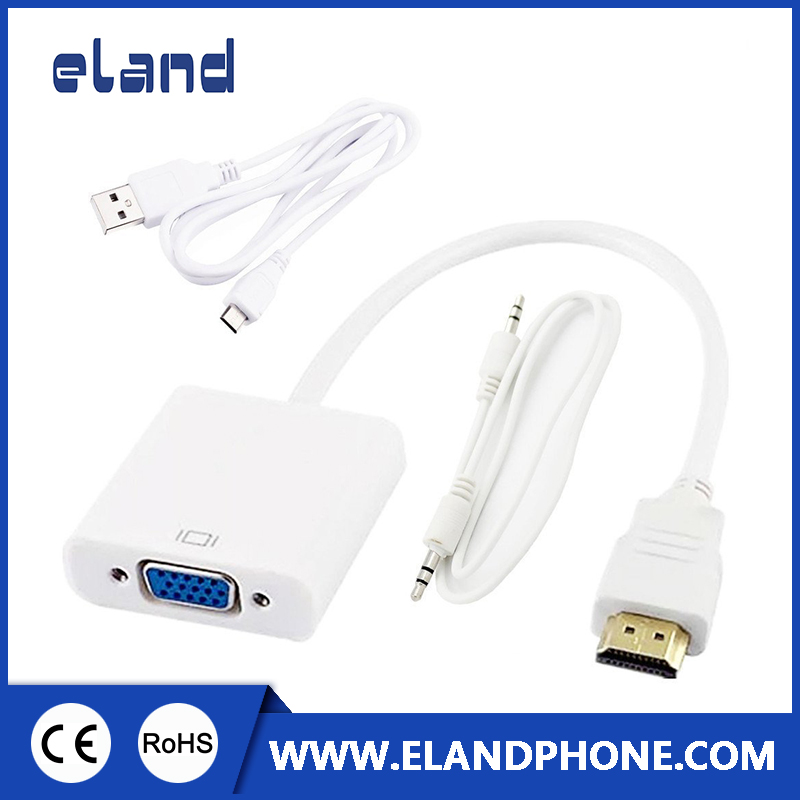

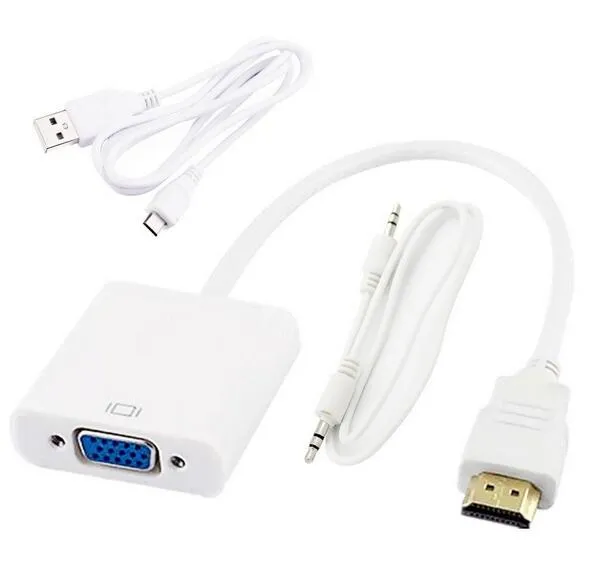

HDMI to VGA Converte with Audio and Power Supply, HDMI to VGA

Introduction:

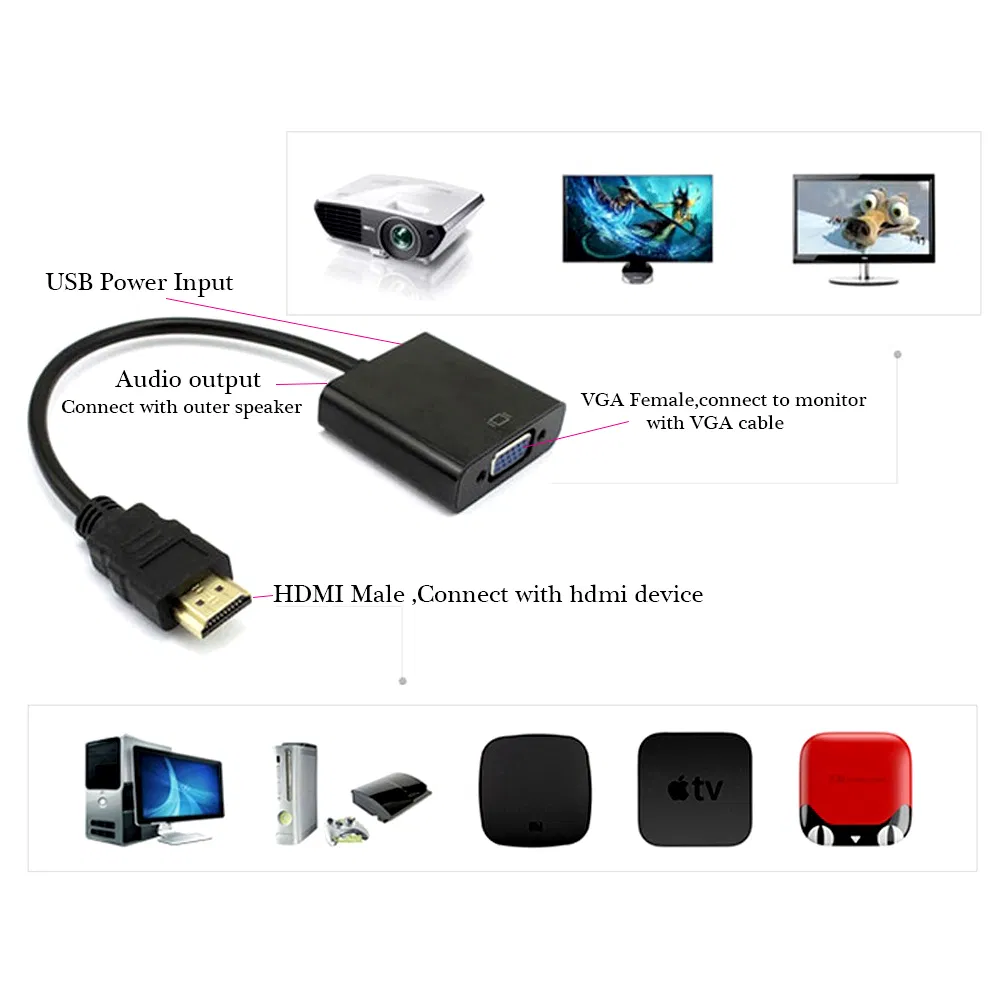

HDMI to VGA +AUDIO cable converts digital HDMI signal to 1 way VGA and 1 way 3.5mm AUDIO signal output. It allows you to connect the HDMI output from DVD or else Video equipments to the HD-15 VGA input of the tranditional monitors. Its high bandwith capability supports a wide range of PC and HDTV resolutions.

Features

1. Professional HDMI inputs with IC
2. All inputs can be scaled to output resolution as below:
800x600@60Hz, 1024x768@60Hz, 1360x768@60Hz, 1440x900@60Hz, 1280x1024@60Hz, 1680x1050@60Hz, 1600x1200@60Hz, 1920x1080@60Hz, 1920x1200@60Hz,
3. Vertical temporal filter(VT) removes jaggy and other de-interlacing artifacts from normal video.
4. Built-in DCTI/DLTI circuit for color/luminance transient improvement.
5. OSD menu with adjustable VGA output resolution.

Specification

1. Input: HDMI type A connector.
2. Compliant with HDMI1.3

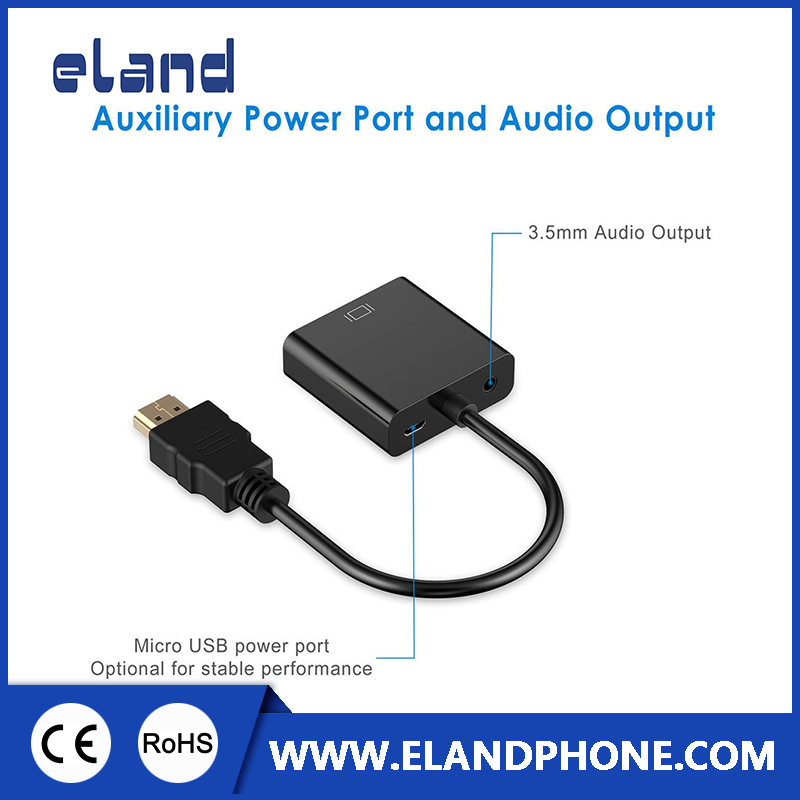

3. Output: VGA female port(HD-15), 3.5mm audio female port
4. Output signal:
VGA: 0.7 Vp-p 75 ohm
H+V: 3 to 5 Vp-p
AUDIO ouput
5. Operation frequency: Up to 165MHz
6. Length: 25CM

Input resolution:

480I@60, 576I@50, 480P@60, 576P@50, 720P@60, 720P@50, 1080I@60, 1080I@50, 1080P@60, 1080P@50, 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz.
6. Output resolution:
800x600@60Hz, 1024x768@60Hz, 1360x768@60Hz, 1440x900@60Hz, 1280x1024@60Hz, 1680x1050@60Hz, 1600x1200@60Hz, 1920x1080@60Hz, 1920x1200@60Hz,
