9 AWG 10 AWG 12 AWG Thermocouple Medical Measuring Colorful Bright K Type Thermocouple Enamelled Wire
Manufacturer of Thermocouple Alloy Wire Type K/E/J/T/N/L&Cabel 0.5mm type K Product Description Type K has a better resistance to oxidation than other types of thermocouple (except type N) and is particularly recommended for oxidizing or inert atmospheres.It should not be used without protection......
Send Inquiry
Product Description

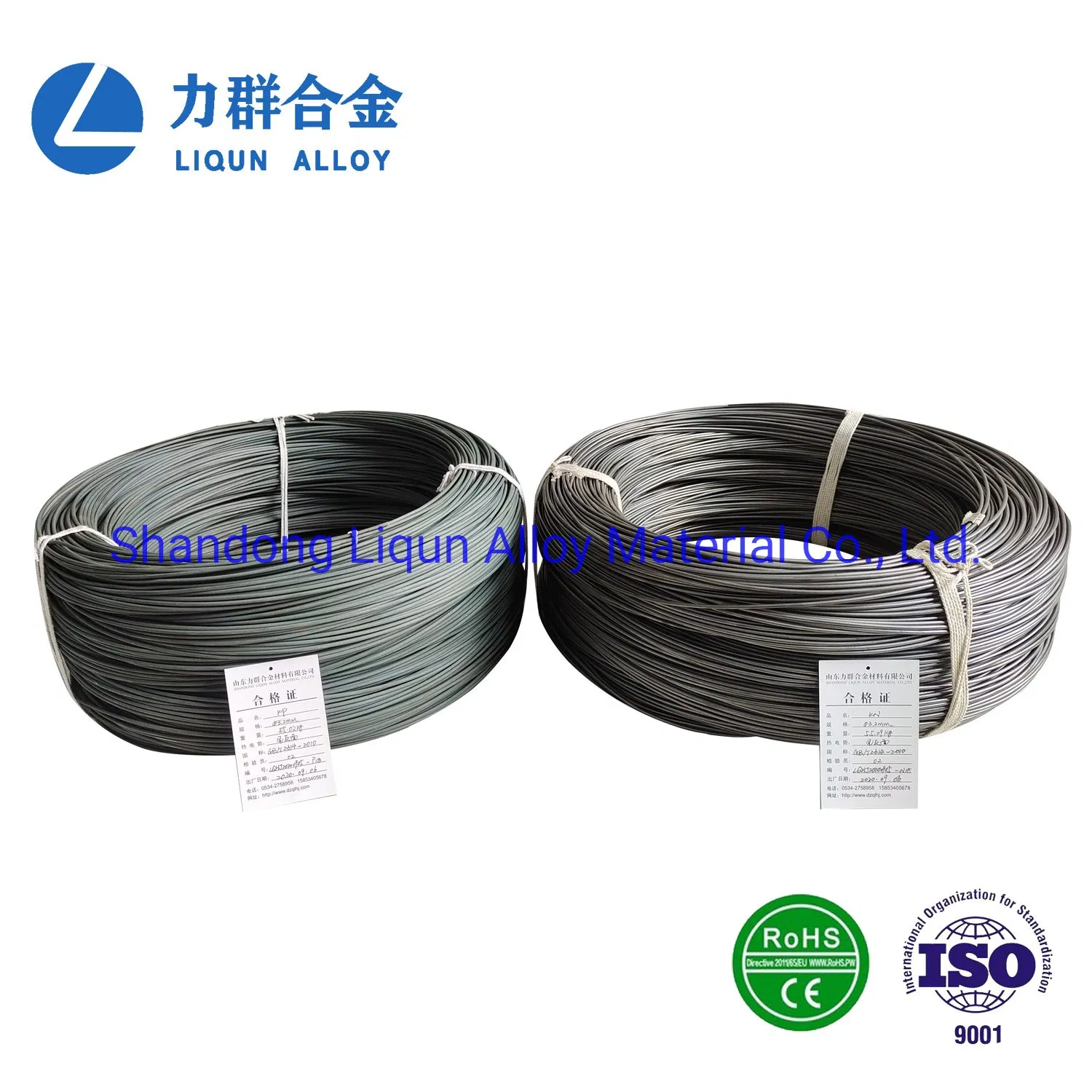

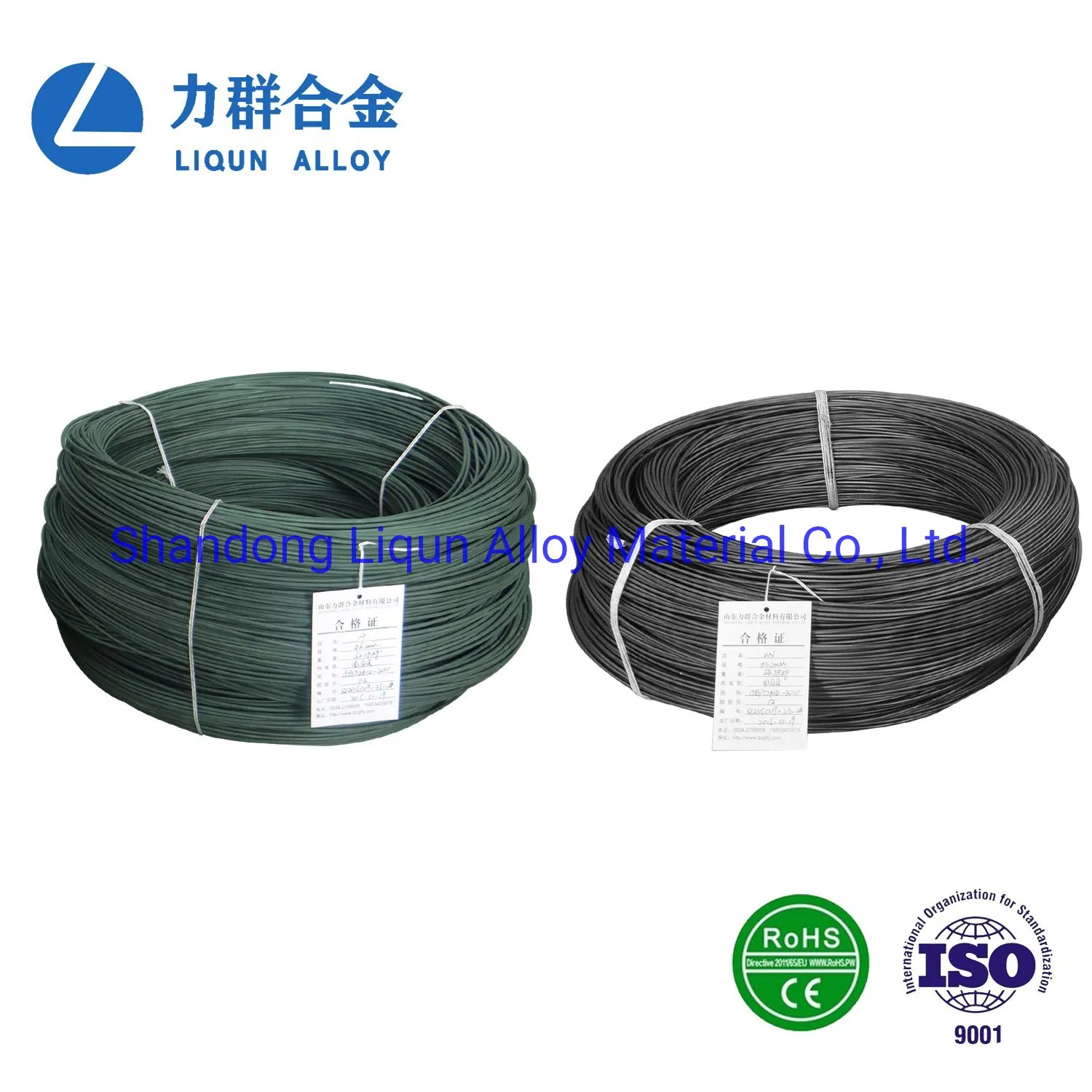

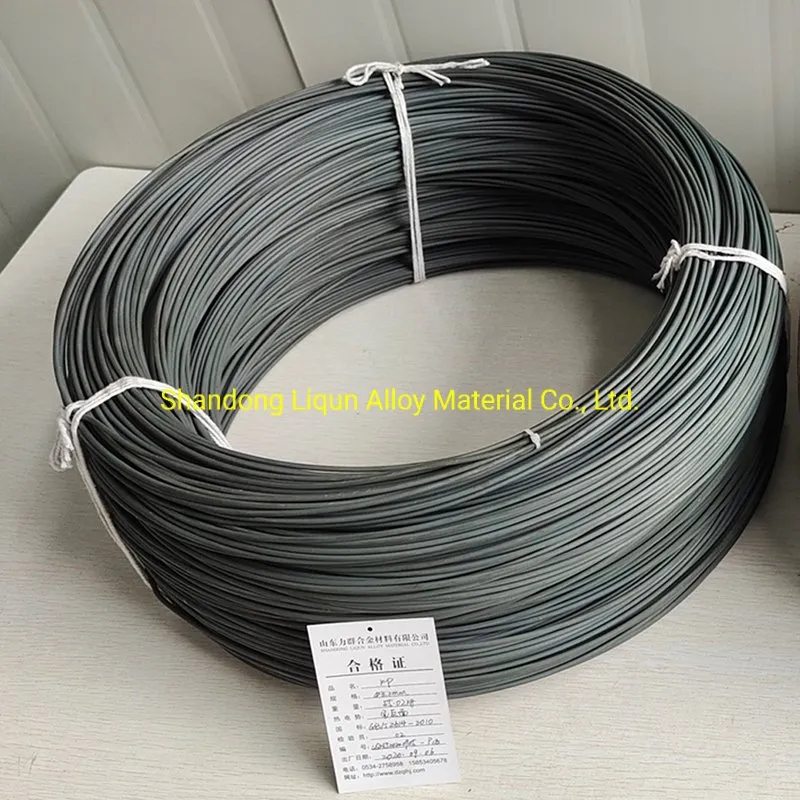

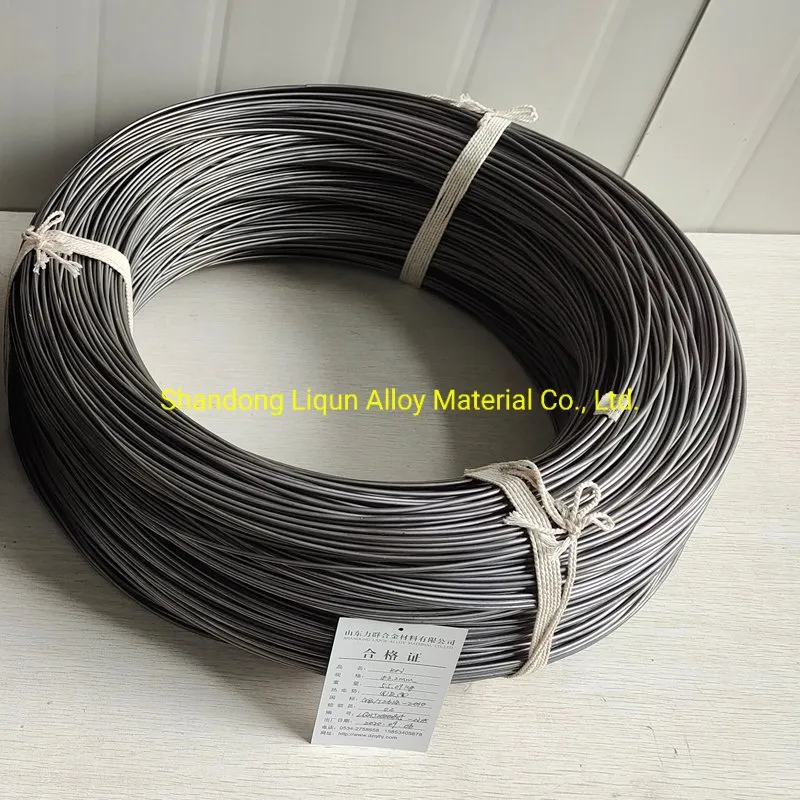

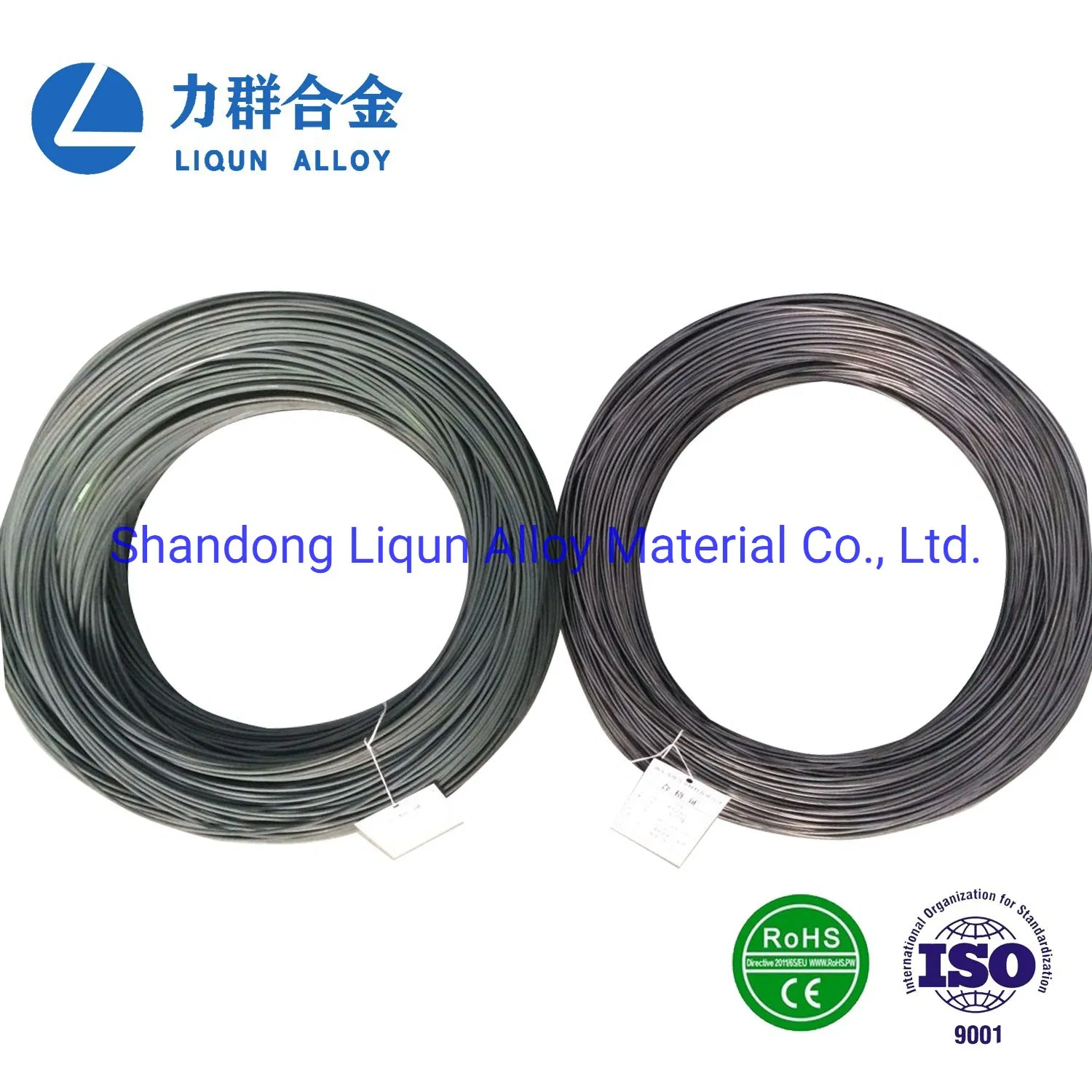

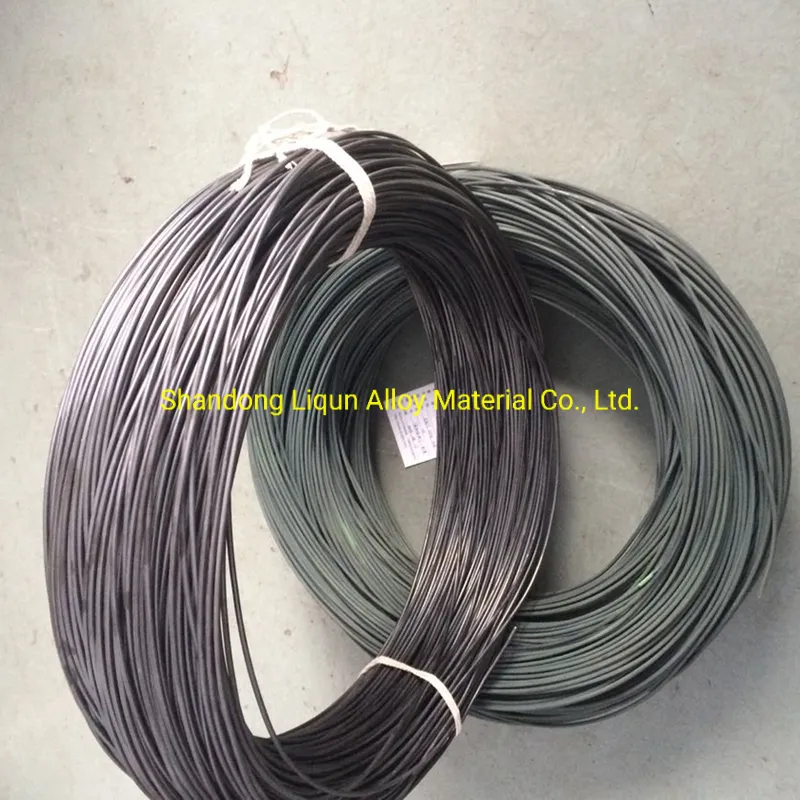

Manufacturer of Thermocouple Alloy Wire Type K/E/J/T/N/L&Cabel 0.5mm type K
Type K has a better resistance to oxidation than other types of thermocouple (except type N) and is particularly recommended for oxidizing or inert atmospheres.It should not be used without protection in sulphurous atmospheres, in reducing atmospheres or a long time in a vacuum.Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.
1.Chemical composition and mechanical properties
| Product | Chemical Composition/% | Density (g/cm3) | Melting point (ºC) | Resistivity (μΩ.cm) | Tensile Strength (Mpa) | ||
| Ni | Cr | Si | |||||
| KP(+) Nickel Chrome | 90 | 10 | - | 8.7 | 1427 | 70 | >490 |
| KN(-) Nickel Silicon | 97 | - | 3 | 8.6 | 1399 | 29 | >390 |
2.Maximum operating temperatures
| Alloy wire Dia/mm | The long-term operating temperatures/°C | The short-term operating temperatures/°C |
| 0.3 | 700 | 800 |
| 0.5 | 800 | 900 |
| 0.8,1.0 | 900 | 1000 |
| 1.2,1.6 | 1000 | 1100 |
| 2.0,2.5 | 1100 | 1200 |
| 3.2 | 1200 | 1300 |
3.Couple KP/KN EMF reference table (μV)
| Operating temperatures/°C | Nominal value of thermoelectric EMF | Level I | |
| Tolerance | Range of EMF | ||
| 100 | 4 096 | ±46 | 4 050-4 142 |
| 200 | 8 138 | ±44 | 8 094-8 182 |
| 300 | 12 209 | ±50 | 12 159-12 259 |
| 400 | 16 397 | ±68 | 16 329-16 465 |
| 500 | 20 644 | ±85 | 20 559-20 729 |
| 600 | 24 905 | ±102 | 24 803-25 007 |
| 700 | 29 129 | ±117 | 29 012-29 246 |
| 800 | 33 275 | ±131 | 33 144-33 406 |
| 900 | 37 326 | ±144 | 37 182-37 470 |
| 1000 | 41 276 | ±156 | 41 120-41 432 |
| 1100 | 45 119 | ±167 | 44 952-45 286 |
| 1200 | 48 838 | - | - |
| 1300 | 52 410 | - | - |
Our production as per norm GB/T 2614-2010,ASTME230,IEC6584.For further information or special request, please contact us.

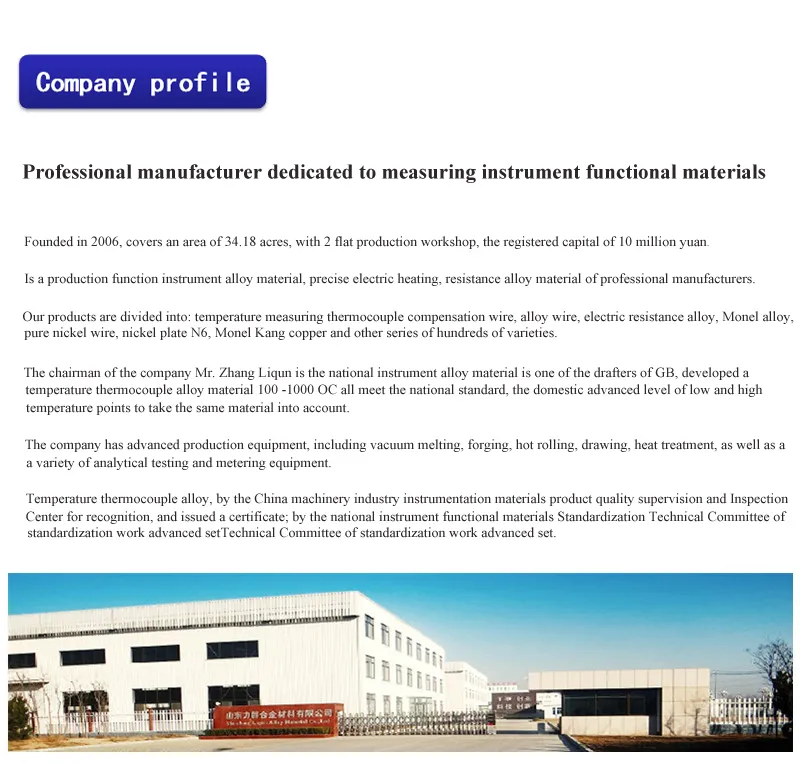

Q1.What is the nature of the company?
A: We are a production enterprise, our company has its own factory.
Q2. What is the MOQ of an order of your company?
A: Our company's MOQ is 100 kg for each type of product.
Q3.Can I get a sample before mass production ?
A: Sample is free,the shipping cost of the sample is paid by the customer .
Q4.How long is the mass production cycle of product?
A:We will end the production within 15-20 days after receiving the deposit.
Q5.What payment method does your company support?
A: We can accept T/T, L/C ,you can choose the one which the most convenient or most effective for you .
