Product Description

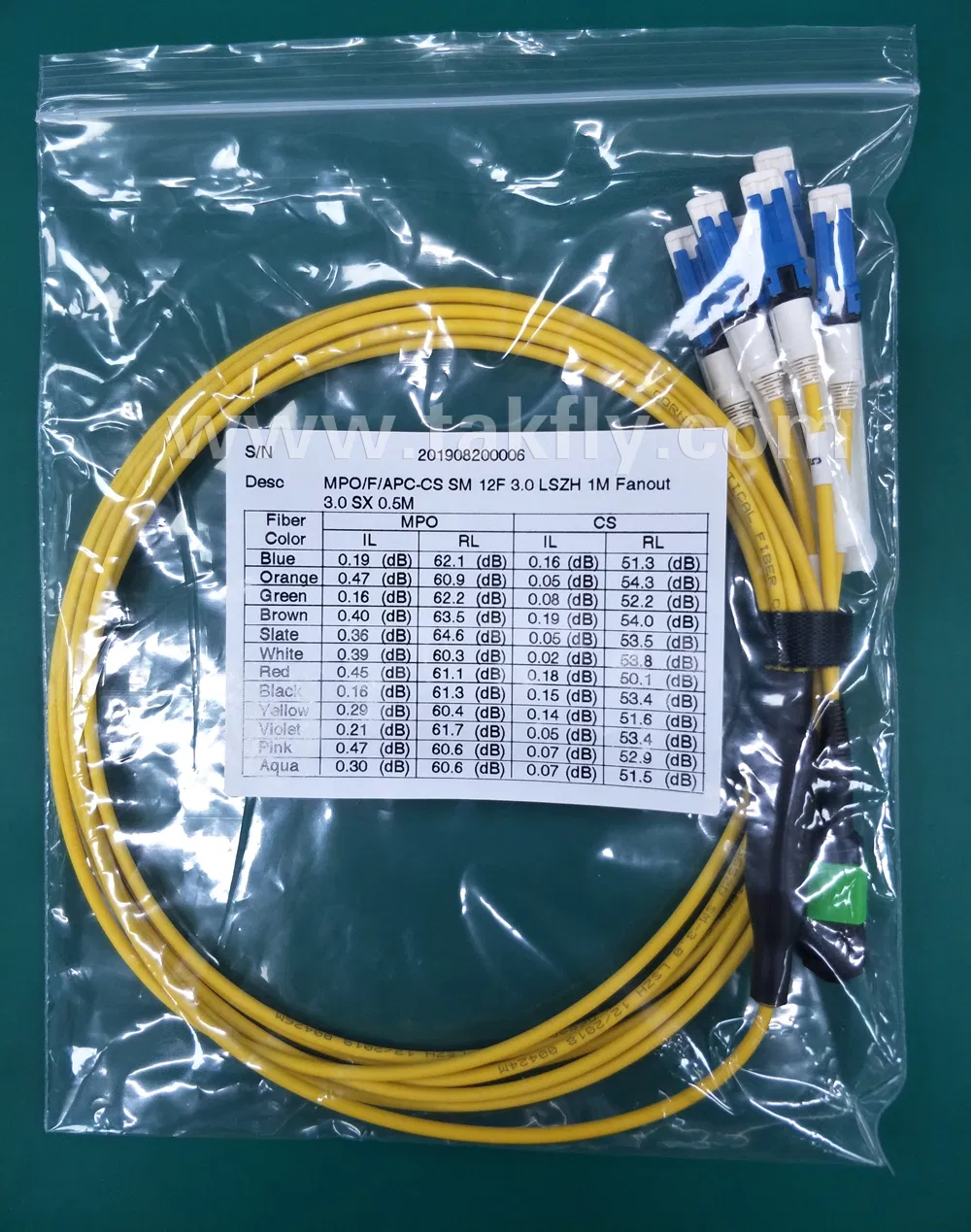

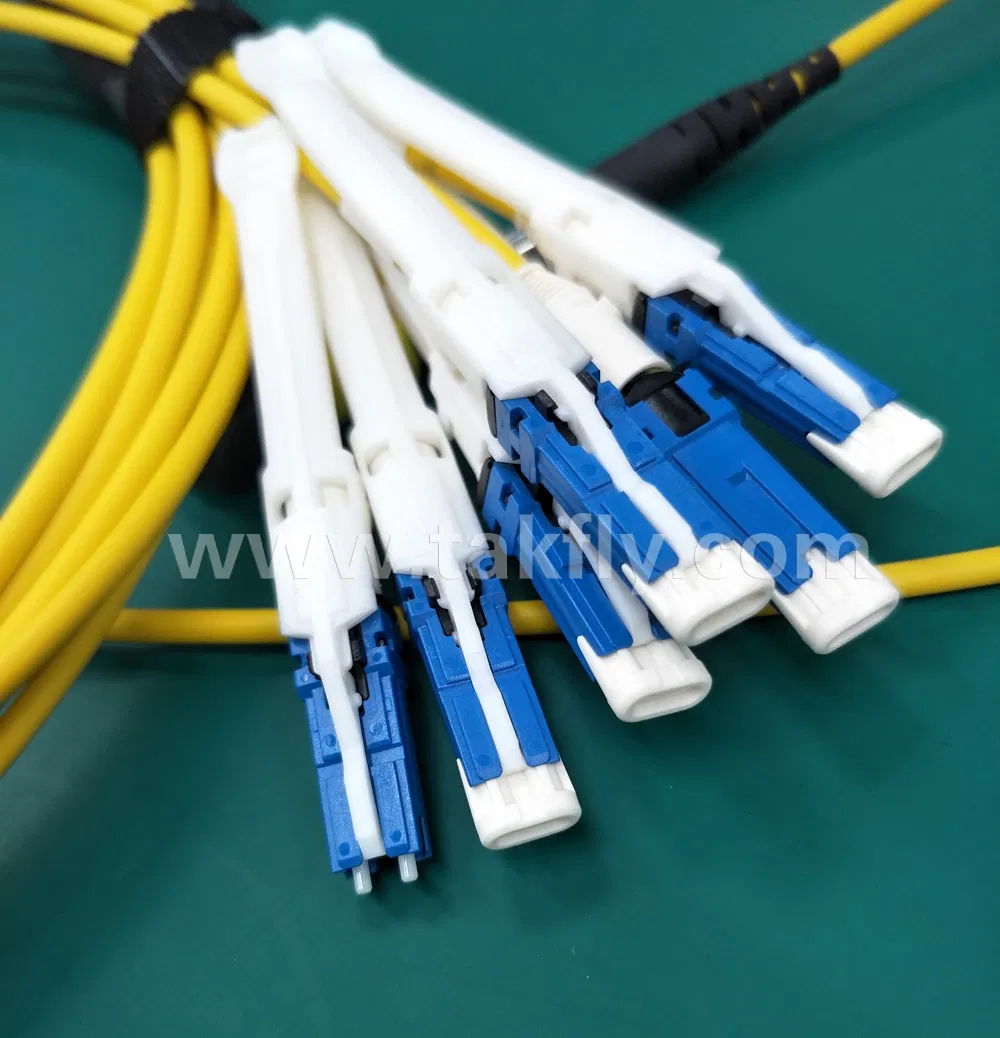

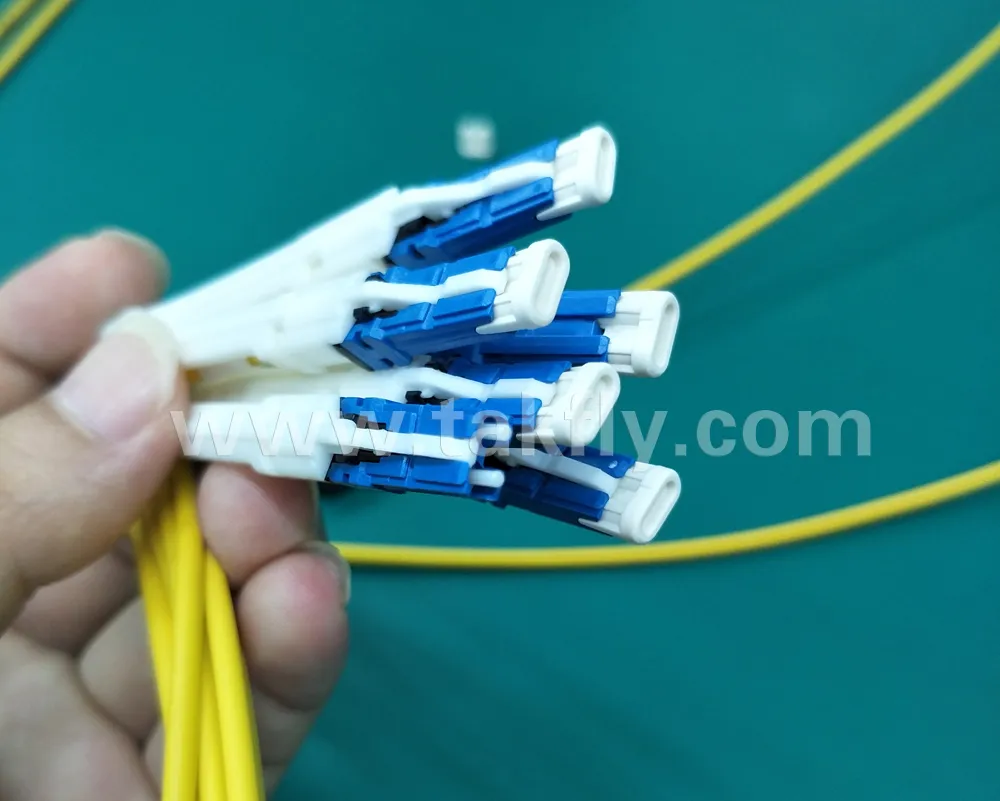

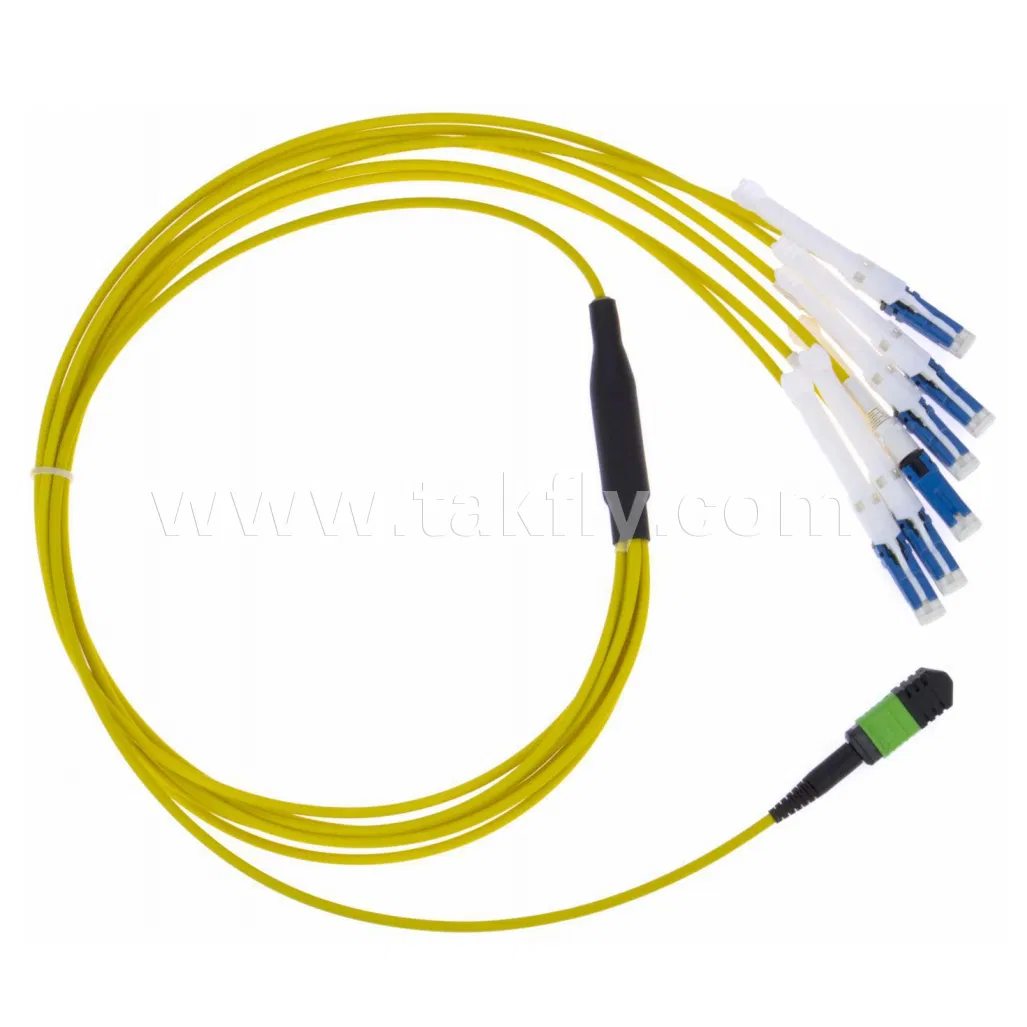

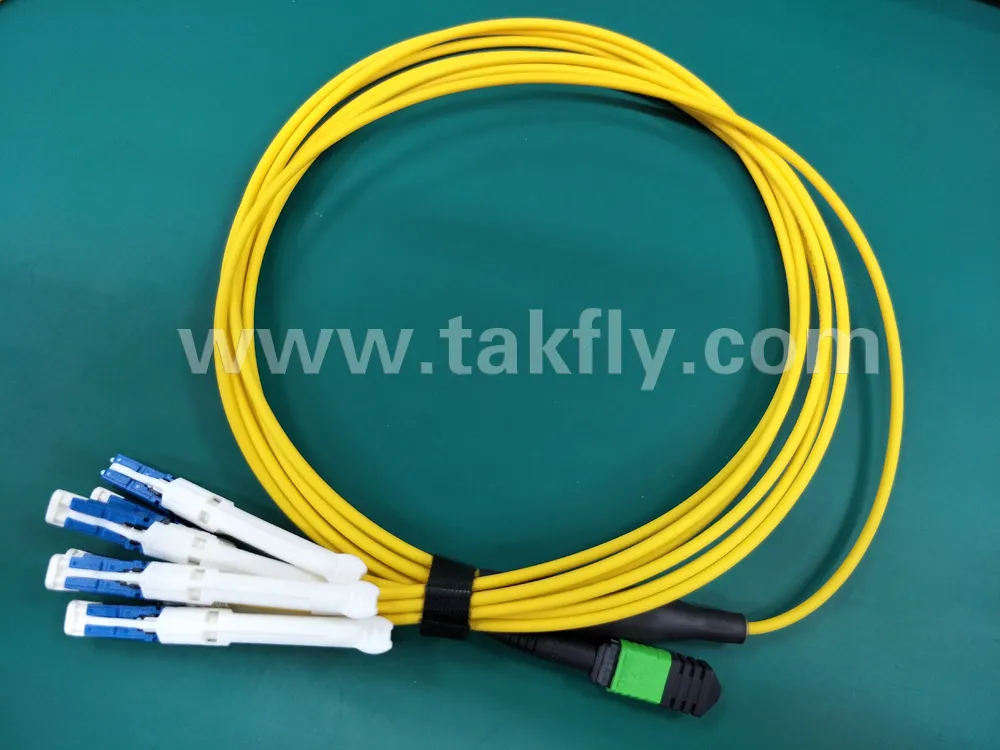

8F 12F 16F 24F OS2 MPO-CS Breakout Cables
Application:
> Asynchronous Transmission Mode(ATM)
> Gigabit Ethernet
> Active Deviced/Transceiver Interface
> CATV, Video and Multimedia
> Telecommunication Networks
> Parallel optical interconnect between PC Cards and patch panels
> Interconnection for O/E modules
> Industrial & Military
> Optical Switch interframe connections
Feature:
Feature:
> Precision molded MT ferrule
> High precision guide pins for exact alignment
> Compact design, up to 4,8,12,24 fibers
> IEC 61754-7 Compliant
> EIA/TIA-604-5 Compliant
Specification:
| Item | CS | MPO/MTP | |
End face type | UPC and APC | PC and APC | |
Fiber type | SM(G652,G655,G657);MM(OM1-OM5) | ||
Core number | 8,12,24 | ||
Cable Diameter | 2.0,3.0 | Mini Round cable:Max4.5mm; Ribbon cable:Max3.0*5.0mm | |
Insertion loss(dB) | ≤ 0.3 | Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) | |
Return loss(Min) | UPC SM:40dB APC SM:60 dB PC MM:25 dB | SM: APC:60dB | MM: PC:20dB |
Test Wavelength(nm) | SM:1310/1550 MM:850/1300 | ||
Repeatability | ≤ 0.1dB | ||
Durability | ≤ 0.2dB | ||
Interchangeability | ≤ 0.2dB | ||
Operating Temperature | -20ºC~70ºC | ||
Storage Temperature | -40ºC~80ºC | ||
Outer Sheath Material | PVC,LSZH | ||
Bending radius (Static/Dynamic) | 10D/20D | ||
Length | Customized | ||
