11kv Copper XLPE insulated insulation power cable

Application: These products apply for power transmission and distribution line at AC rated voltage up to 46kV.

Applicable standards: IEC60502, BS6622, SANS1339, AS/NZS1429.1, DIN VDE 0276-626, NFC 33-226, IEC60840, ICEA S-93-639. ICEA S-94-649

Production Scope:
a) National standard

Rated Voltage (kV)		3.6/6	6/6	6/10	8.7/10	8.7/15	12/20	18/20	18/30	21/35	26/35
Core Number		1core or 3cores
Cross-section mm²	1C	25-800			35-800
	3C	25-400			35-400

b) IEC/BS/DIN /GB standard

Rated Voltage (kV)

3.6/6

3.8/6.6

6/10

6.6/11

8.7/15

12/20

12.7/22

15/20

15/25

18/30

19/33

20.8/36

Core Number

1core or 3cores

Cross-section
mm²

1C

25-800

35-800

3C

25-400

35-400

c) ICEA standard

Rated Voltage (V)		5001-8000	8001-15000	15001-25000	25001-28000	28001-35000	35000-46000
Core Number		1Core 3Core
Cross-section AWG orkcmil	1C	6AWG~ 1600kcmil	2AWG~ 1600kcmil	1AWG~1600kcmil		2AWG~ 1600kcmil	1/0AWG~ 1600kcmil
Cross-section AWG orkcmil	3C	6AWG~800kcmil	2AWG~800kcmil	1AWG~800kcmil		2AWG~800kcmil	4/0AWG~ 800kcmil

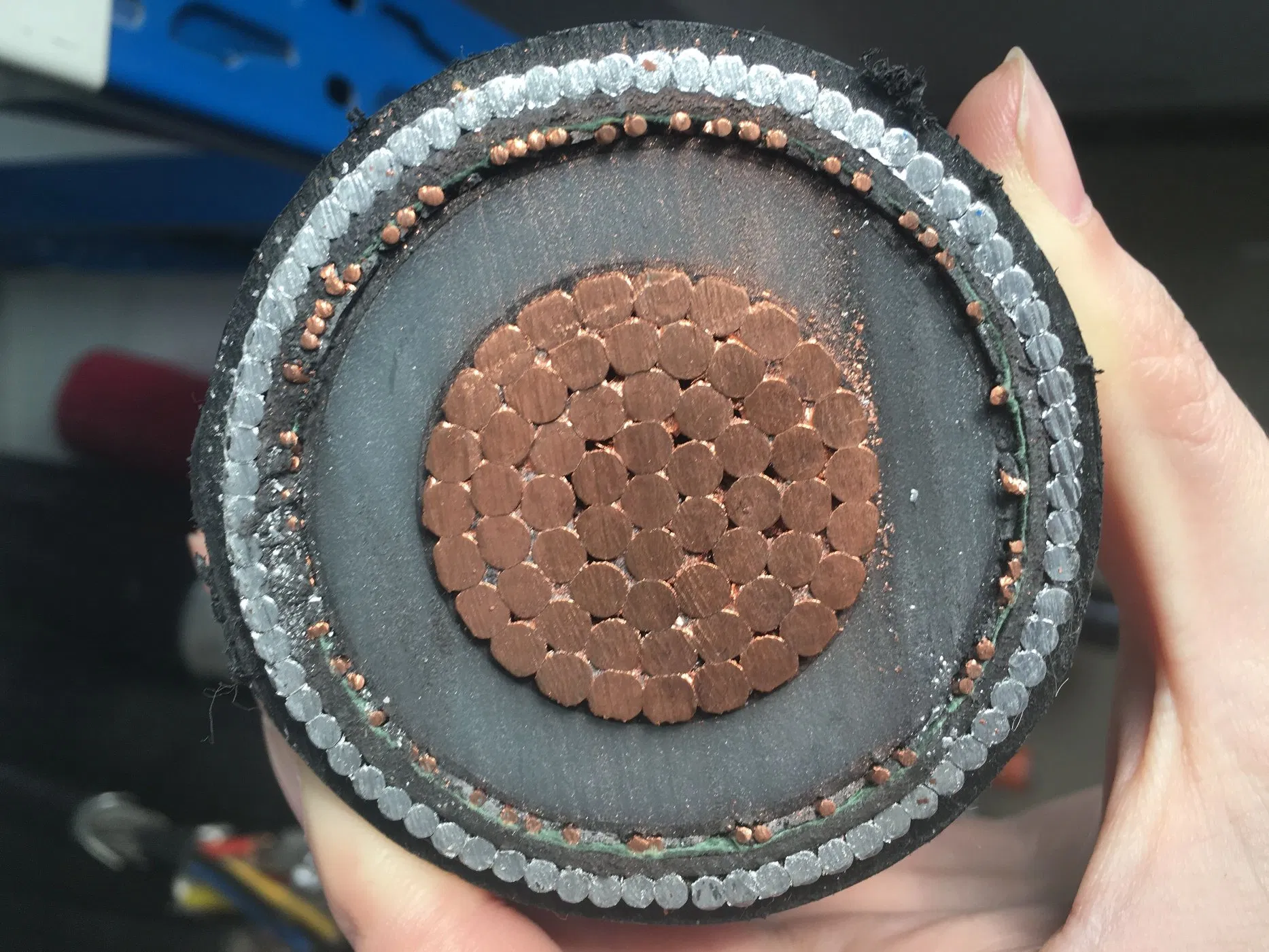

Construction:
Conductor:IEC60228 class 1 class 2  bear copper/Aluminum etc
Conductor Screen: Semi-conducting compound
Insulation:  XLPE
Insulation Screen: Semi-conducting compound
Core:    1core or 3cores
Shield: Copper wire/ Copper tape/AL-Plastic tape
Inner Sheath( optional): PVC/ PE/ LSZH
Armoured ( optional): Galvanized steel wire/Aluminum wire/Two layers of Aluminum tapegap-wrapped /Two layers of steel tape gap-wrapped / Galvanized steel interlocked armour/Aluminum alloy interlocked armour
Outer Sheath: PVC/ PE/ LSZH

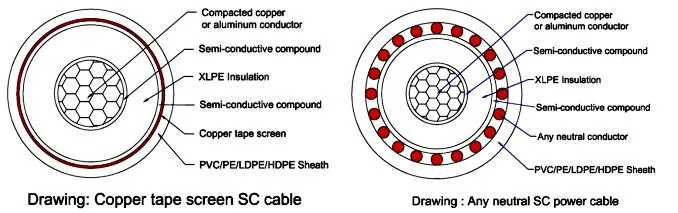

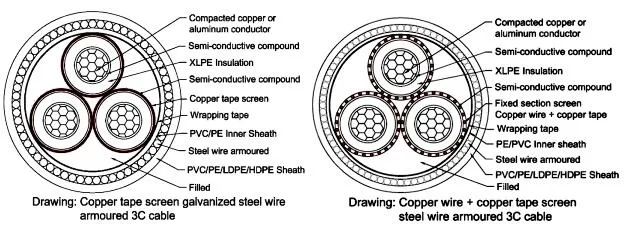

Cable Drawing

11kv Copper XLPE Insulated Insulation Power Cable
