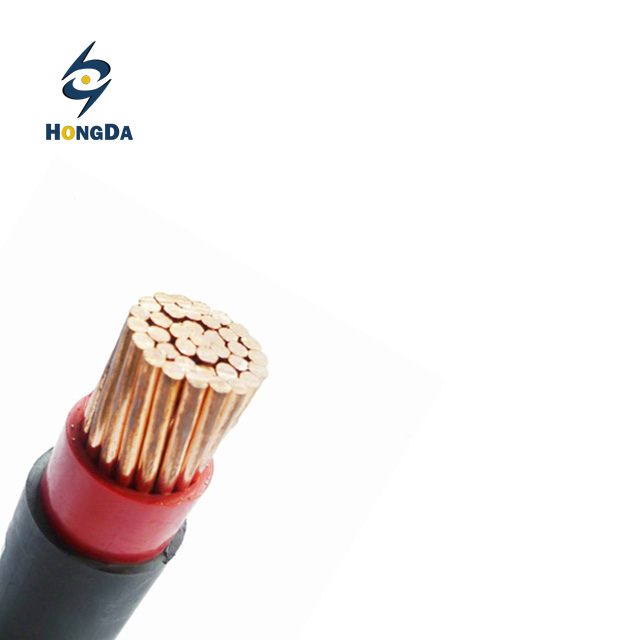

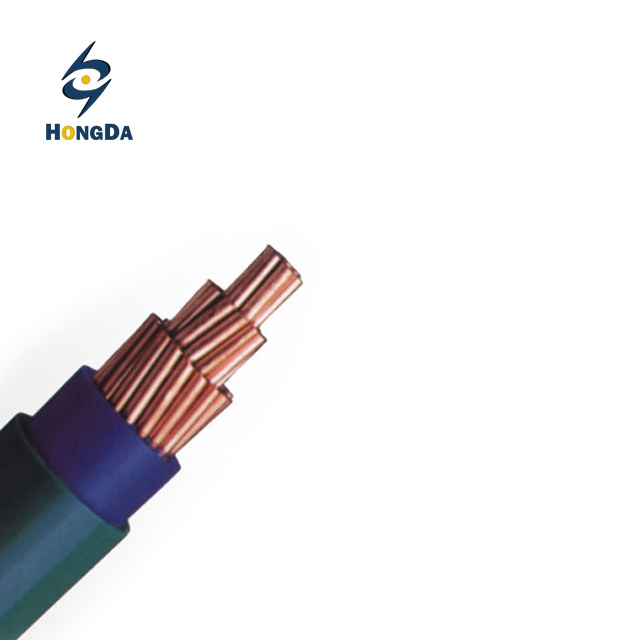

1kv Yjv Power Cable 70mm Single Core Electrical Cable
Three core, CU or AL conductor, XLPE insulated, Steel wire Armored, PVC sheathed Power Cable1 Main Application XLPE(Cross linked polyethylene) insulated cable functions well for electricity transmission and distribution lines for its excellent electrical and physical properties, including the adva......
Send Inquiry
Product Description
Three core, CU or AL conductor, XLPE insulated, Steel wire Armored, PVC sheathed Power Cable
1 Main Application
XLPE(Cross linked polyethylene) insulated cable functions well for electricity transmission and distribution lines for its excellent electrical and physical properties, including the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties.
2 Standards
GB/12706-2008, IEC60502,IEC 60228,IEC60332 BS 5467,BS 6622 , IS 1554 , IS 7098and ICEA S-66-524 etc.
3 Product Type
| Chinese Type(General Type) | Description | Application | |
| Cu | Al | ||
| YJV (CU/XLPE/PVC) | YJLV (AL/XLPE/PVC) | Cu conductor(Al conductor)XLPE insulated PVC sheathed power cable | Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces. |
| YJY (CU/XLPE/PE) | YJLY (AL/XLPE/PE) | Cu conductor(Al conductor)XLPE insulated PE sheathed power cable | |
| YJV22 (CU/XLPE/STA/PVC) | YJLV22 (AL/XLPE/STA/PVC) | Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PVC sheathed power cable | For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
| YJV23 (CU/XLPE/STA/PE) | YJLV23 (AL/XLPE/STA/PE) | Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PE sheathed power cable | |
| YJV62 (CU/XLPE/ATA/PVC) | YJLV62 (AL/XLPE/ATA/PVC) | Cu conductor(Al conductor)XLPE insulated double of aluminium-tape armored PVC sheathed power cable | |
| YJV32 (CU/XLPE/SWA/PVC) | YJLV32 (AL/XLPE/SWA/PVC) | Cu conductor(Al conductor)XLPE insulated steel-wire armored PVC sheathed power cable | For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force |
| YJV33 (CU/XLPE/SWA/PE) | YJLV33 (AL/XLPE/SWA/PE) | Cu conductor(Al conductor)XLPE insulated steel-wire armored PE sheathed power cable | |
| YJV72 (CU/XLPE/AWA/PVC) | YJLV72 (AL/XLPE/AWA/PVC) | Cu conductor(Al conductor)XLPE insulated aluminium-wire armored PE sheathed power cable | |

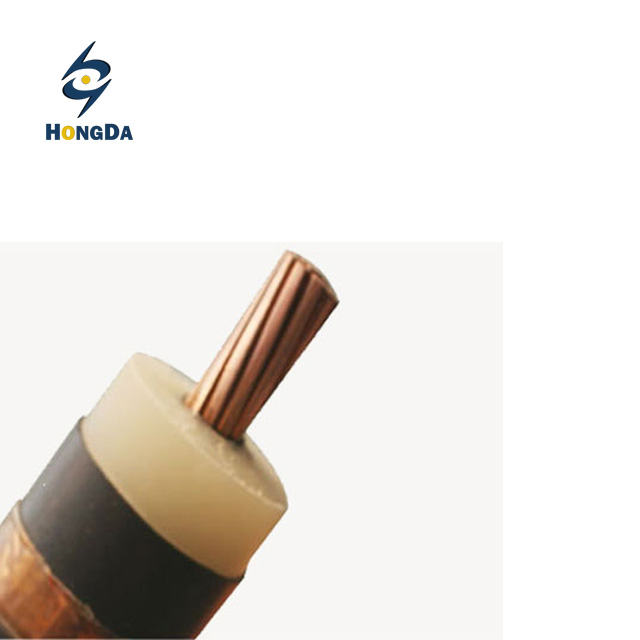

5 Construction
5.1 XLPE insulated Power Cables for rated voltages up to and including 0.6/1kV
Conductor shaped: RE=circular solid, CC=compacted circular stranded, SM=sector shaped stranded
Conductors: Plain circular, compacted or shaped stranded copper or aluminium conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Color identification
1 Core : Red or Black, 2 Cores : Red, Black, 3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black, 5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
*The above identifying can be changed as user requirement
Assembly /Inner Sheath :Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted
Armour: Aluminum/Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Outer Sheath:Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.
Fire Performance of Cable Sheaths
Cables can be supplied with special flame retardant PVC outer sheath to comply With the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, we can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.
| Type | Specification | Outer diameter of conductor | Nominal thickness of insulation | Nominal sheath thickness | Approx.outer diameter of cable | Approx. Weight of cable | Ampacity of cable | ||||
| Air | Soil | ||||||||||
| CU | AL | Cu | Al | Cu | Al | ||||||
| YJV CU/XLPE/PVC YJLV AL/XLPE/PVC | mm2 | mm | mm | mm | mm | kg/km | kg/km | A | A | A | A |
| 1×4 RE | 2.24 | 0.7 | 1.4 | 6.5 | 73.7 | 49.0 | 45 | 35 | 60 | 50 | |
| 1×6 RE | 2.76 | 0.7 | 1.4 | 7.0 | 95.8 | 58.7 | 55 | 45 | 70 | 50 | |
| 1×10 CC | 3.8 | 0.7 | 1.4 | 8.0 | 140.1 | 78.2 | 75 | 60 | 95 | 75 | |
| 1×16 CC | 4.8 | 0.7 | 1.4 | 9.0 | 201.8 | 102.8 | 100 | 80 | 125 | 100 | |
| 1×25 CC | 6.0 | 0.9 | 1.4 | 10.6 | 298.9 | 144.2 | 140 | 115 | 160 | 130 | |
| 1×35 CC | 7.0 | 0.9 | 1.4 | 11.6 | 396.7 | 180.2 | 175 | 140 | 190 | 150 | |
| 1×50 CC | 8.4 | 1.0 | 1.4 | 13.1 | 543.9 | 234.6 | 210 | 170 | 225 | 180 | |
| 1×70 CC | 10.0 | 1.1 | 1.4 | 15.0 | 744.7 | 311.6 | 270 | 215 | 280 | 225 | |
| 1×95 CC | 11.5 | 1.1 | 1.5 | 16.6 | 985.6 | 397.8 | 340 | 275 | 335 | 270 | |
| 1×120 CC | 13.0 | 1.2 | 1.5 | 18.4 | 1233.0 | 490.6 | 400 | 320 | 380 | 305 | |
| 1×150 CC | 14.5 | 1.4 | 1.6 | 20.5 | 1533.8 | 605.8 | 460 | 370 | 425 | 340 | |
| 1×185 CC | 16.2 | 1.6 | 1.6 | 22.7 | 1884.9 | 740.3 | 530 | 415 | 480 | 375 | |
| 1×240 CC | 18.4 | 1.7 | 1.7 | 25.3 | 2418.0 | 933.1 | 625 | 490 | 555 | 435 | |
| 1×300 CC | 20.5 | 1.8 | 1.8 | 27.7 | 2996.5 | 1140.4 | 720 | 565 | 630 | 495 | |
| 1×400 CC | 23.5 | 2.0 | 1.9 | 31.4 | 3962.3 | 1487.5 | 815 | 640 | 705 | 555 | |
| 1×500 CC | 26.5 | 2.2 | 2.0 | 35.0 | 4933.0 | 1839.5 | 855 | 680 | 765 | 595 | |
| 1×630 CC | 30.0 | 2.4 | 2.2 | 39.1 | 6188.8 | 2291.0 | 980 | 790 | 860 | 680 | |
