25kv 600A T Deadbreak Connector 70mm2 12/20kv

Anhuang specialized in Deadbreak Connector ,we supply high quality Dead break Connector.

Implementation Of Standards:

Separable insulated connector system for distribution systems above; ANSI / IEEE Std386-2006600V

Exposed semiconductor jackets for high - voltage cable splices and separable insulated connectors;

Extruded insulated power cables and their accessories with rated voltages above 1 kV (Um = 1.2 kV) to 30 kV (Um - 35 kV);

Test methods for accessories for power cables with rated voltages from 6 kV (Um =7.2 kV) to 30 kV (Um = 35 kV);

Extruded insulated power cables and their accessories with rated voltages from 1 kV(Um = 1.2 kV) to 35 kV (Um = 40.5 kV).

Insulation coordination of high - voltage transmission and distribution equipment GB/T4109-1999

Technical condition of high - voltage bushing;

Gap-free metal - oxide surge arresters;

Power cables with extension cones - Partition sets dimensions of sleeves and separable fittings for Um below 35 kV DIN 47636-7-1990.

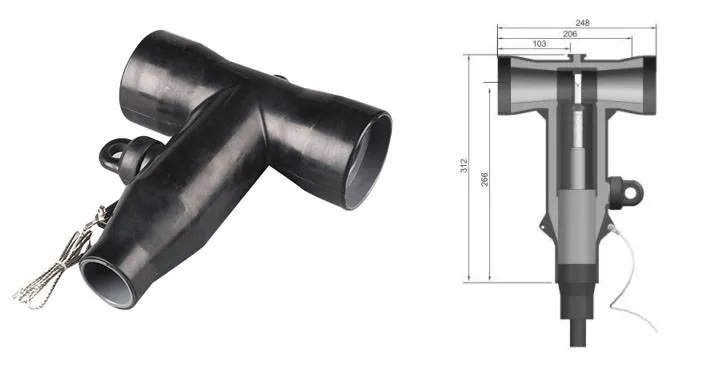

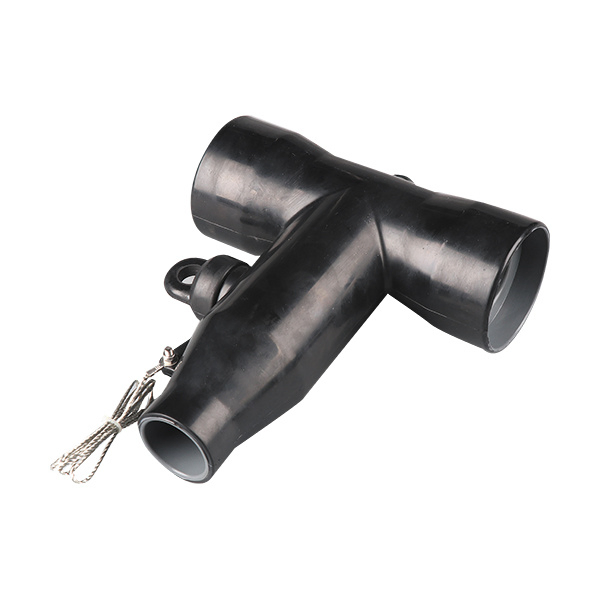

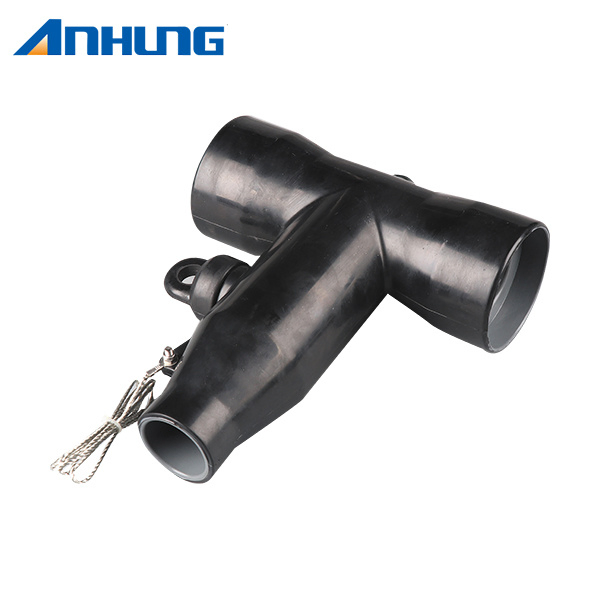

15kV/24kV 600A Class T Deadbreak Connector is used to terminate high voltage underground cable to transformers, switches, switchgear and other apparatus. It is fully shielded, submersible. Our Systems offers an exclusive optional capacitive test point similar to test points on 200A elbow connectors. This allows use of Fault Indicators. T connectors include the T Cable Connector and the load break bushing extender. They also provides a convenient location for a M.O.V.E. arrester or grounding elbow. They available conductor cross section is 25-500m² for 24kV cable.
