China 33kV SAC Aluminum Spaced Aerial Cable TIS 2341-2555

Product Description

Description:

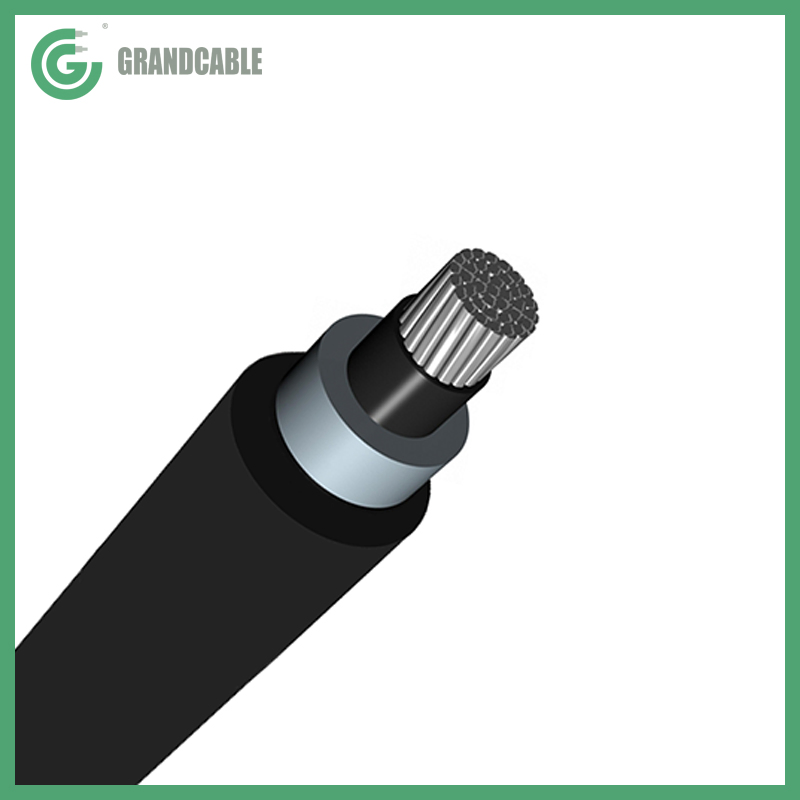

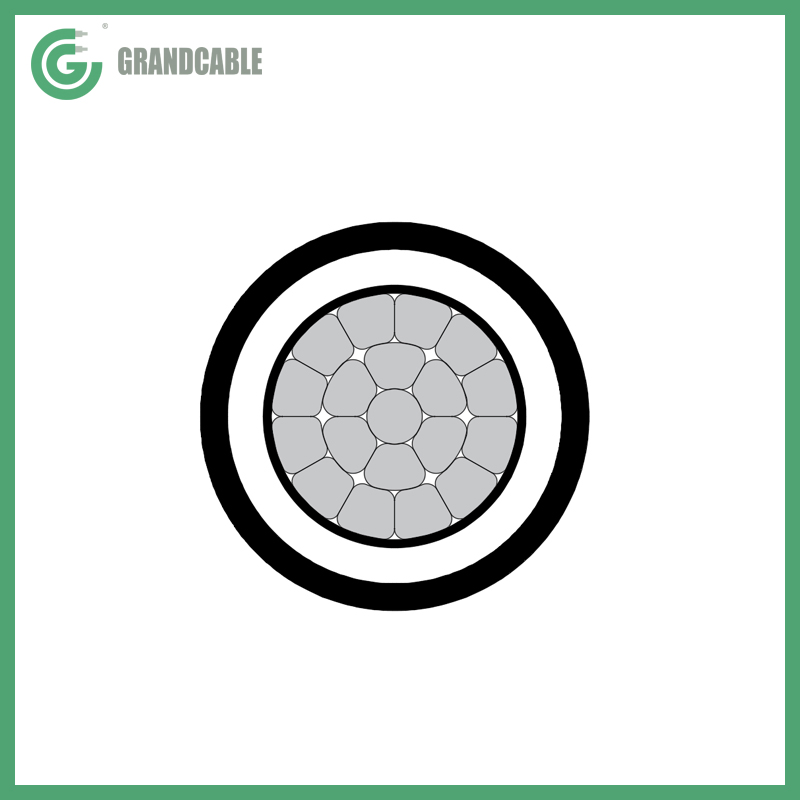

Tree wire or covered open wire consists of the conductor (aluminum, aluminum alloy or ACSR ) and the extruded covering (conductor shield, low density inner layer and protective outer layer). Covering thickness depends on the system voltage. It is designed for full span applications and is supported on polyethylene insulators. We also offer a two layer covered conductor design for 15kV systems that are not subject to heavy tree contact. Covered conductors are available in black or gray depending on visual preference.

Application:

Tree wire designed for systems from 15kV through 46kV. Polyethylene insulators must be used to insure dielectric compatibility with conductor covering. Conductors are supported on crossarms or standoff brackets. Span lengths are limited by the conductor breaking strength and the amount of sag that is permissible.Covered conductors are rated for continuous operation at 75°C.

Applicable Standards:

ICEA S-121-733-2016;ICEA S-66-524
TIS 293;TIS 2341-2555

Dimension Characteristics:

Description		Unit	Data
System Voltage		kV	33
Conductor	Type of conductor	-	Aluminum
	Nominal cross-sectional area	mm²	50	95	120	185
	Stranding	-	Compact Stranded
	Outside diameter ±1%	mm	8.33	11.45	12.95	15.98
	Calculated breaking strength Min.	N	7890	14380	19110	29600
	Volume resistivity of aluminum wire at 20°C Max.	Ω.mm²/m	0.028264
	DC resistance at 20°C Max.	Ω/km	0.592	0.313	0.245	0.161
Conductor Shield	Thickness, not less than Min. Average.	mm mm	0.0635 0.3
Conductor Shield	DC Volume resistivity at 90°C Max.	Ω-cm	50000
Insulation	Thickness	mm	4.445
Jacket	Thickness	mm	3.175
Cable	Overall outside diameter, approx.	mm	24.6	27.7	29.2	32.2
Electrical test Voltage	AC test voltage for 5 minutes	kV	49
Electrical test Voltage	DC test voltage for 5 minutes	kV	125

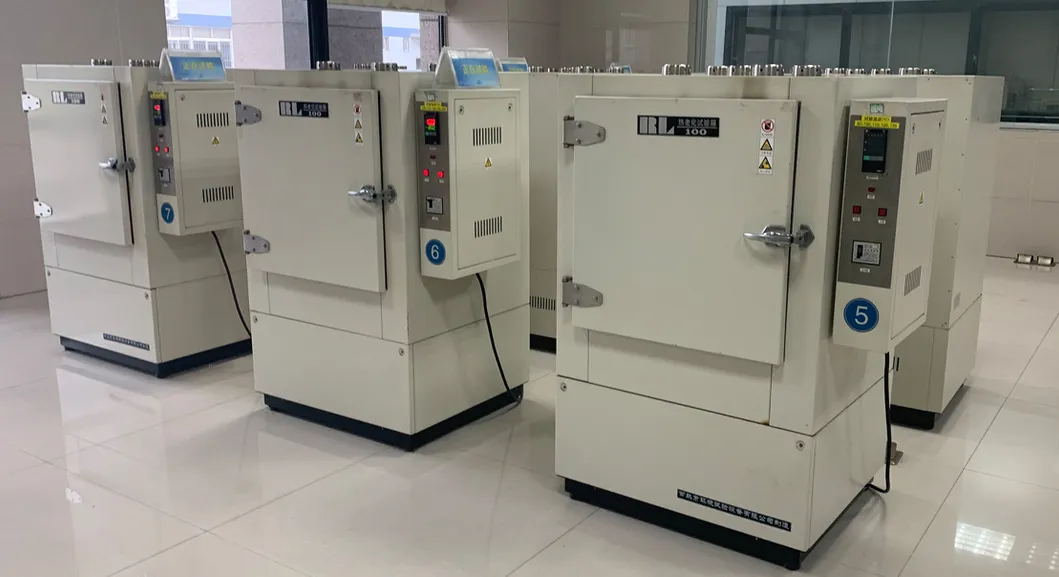

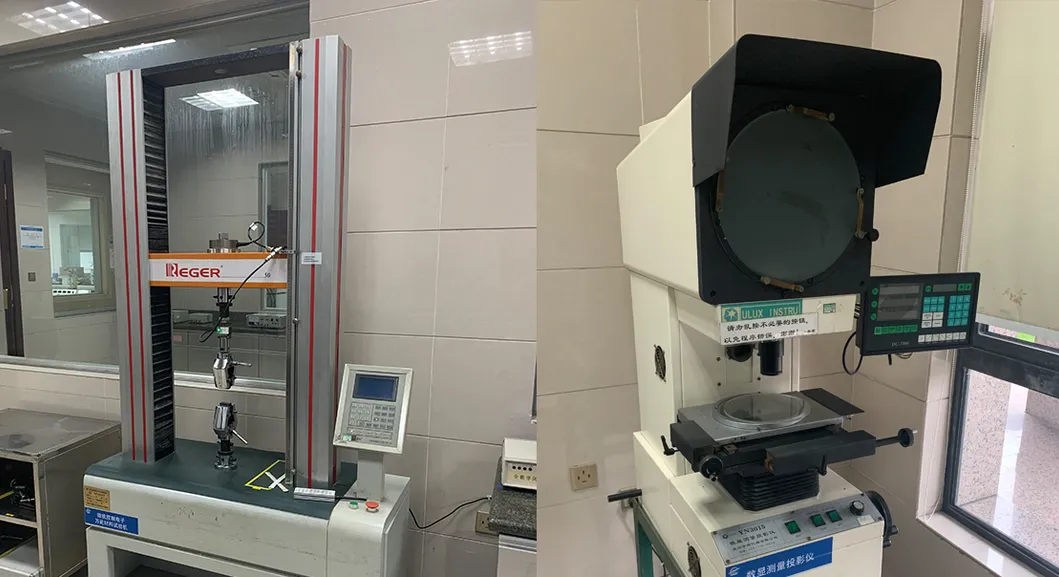

Tesing Facilities:

33kV SAC Aluminum Spaced Aerial Cable TIS 2341-2555

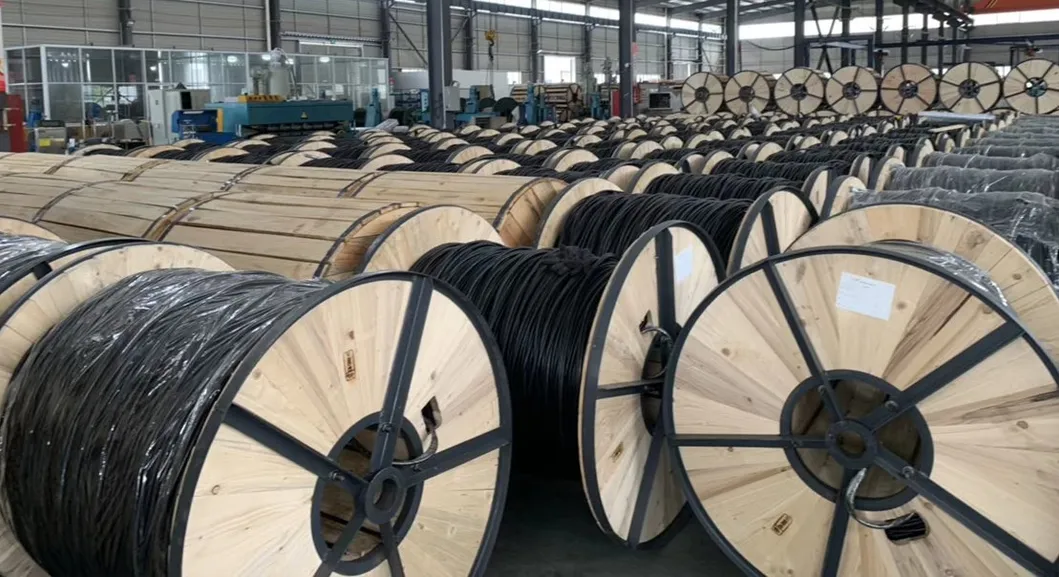

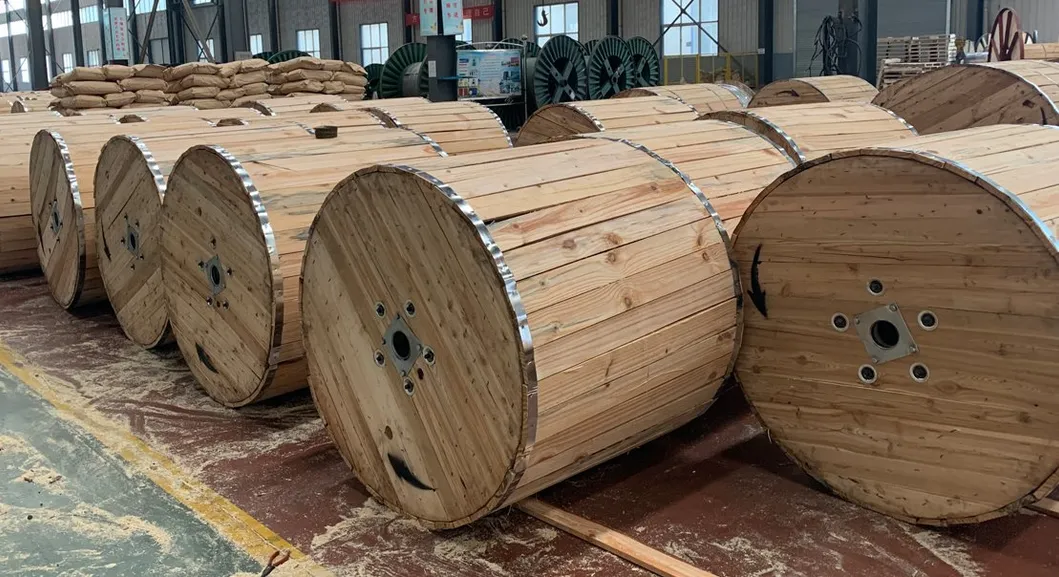

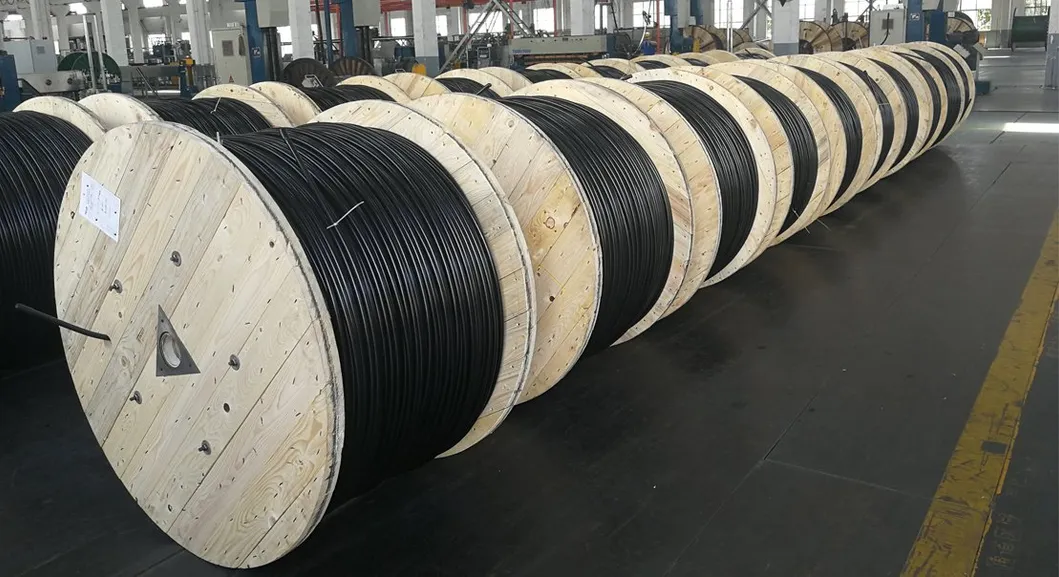

Packaing Photos:

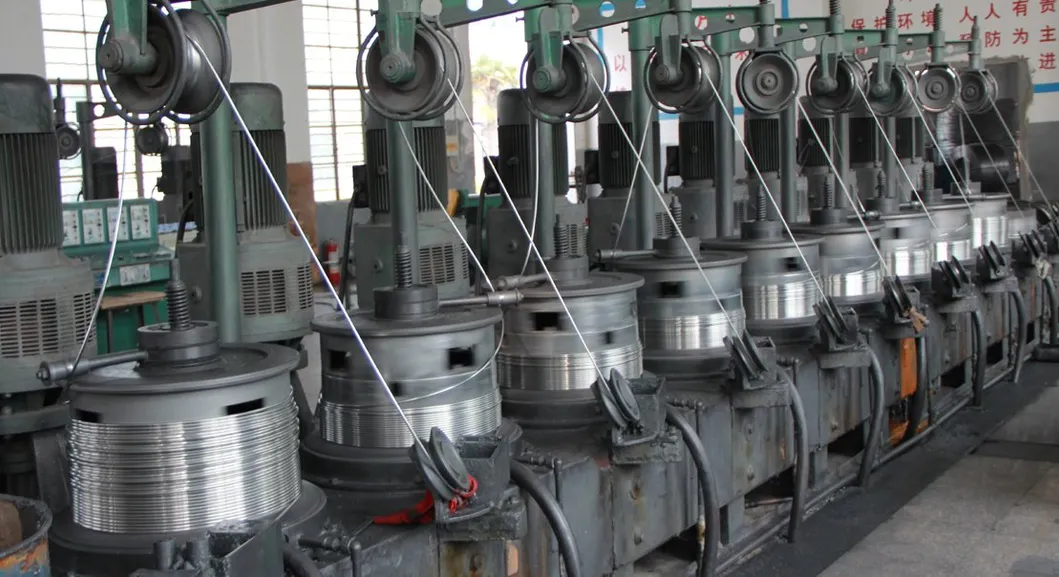

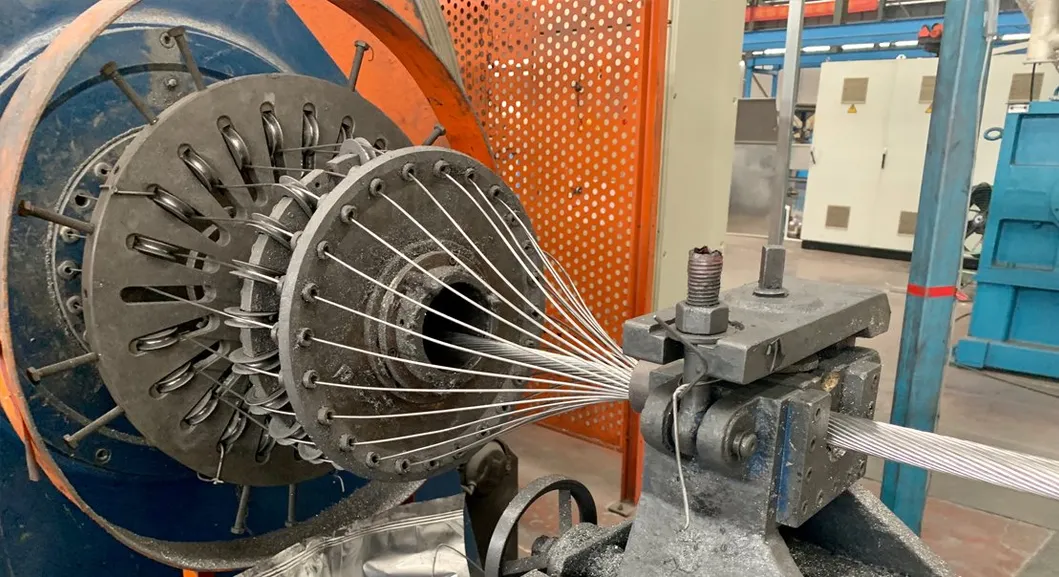

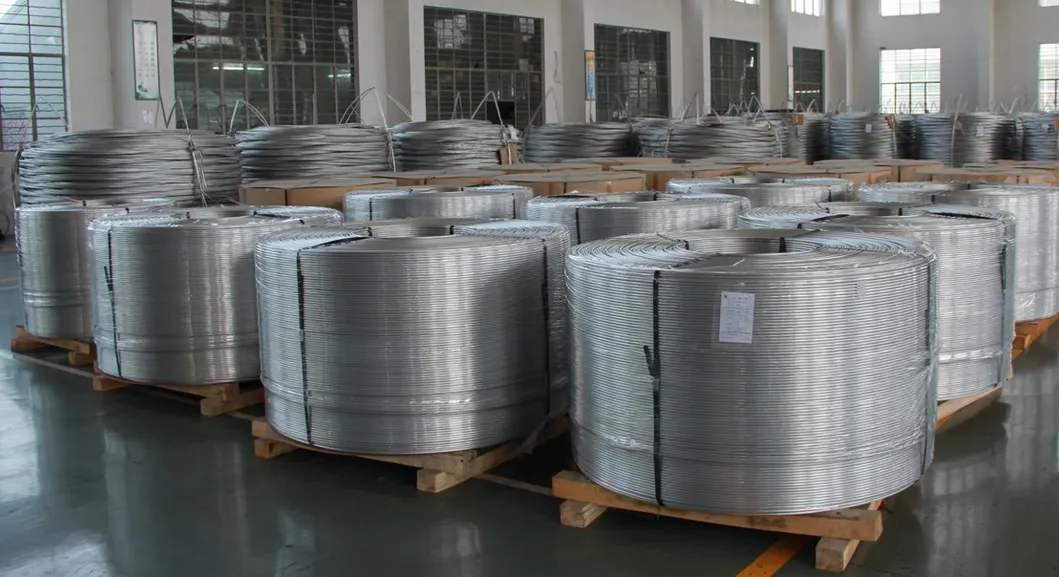

Workshop Views:
