China 33kv XLPE Power Cable Single Core Mv Cable

Product Description

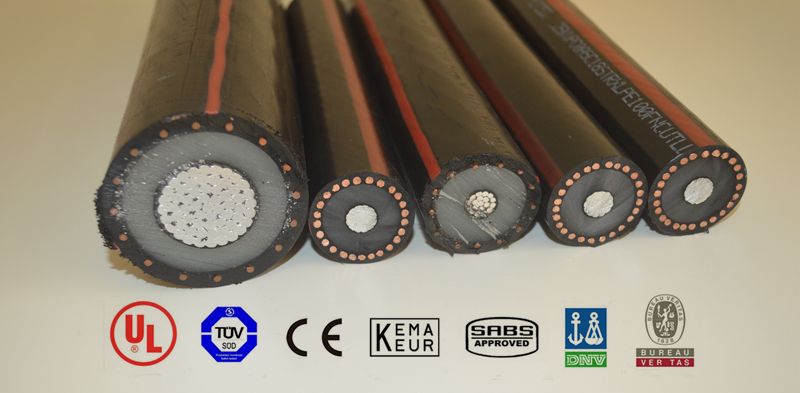

33KV XLPE Power Cable Single Core MV Cable

1. Main Application
URD - TRXLPEMLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight, To be used at 15kV upto 35kV at conductor temperatures not to exceed 90 deg. C for normal operation.

2. SPECIFICATIONS
TRXLPEMLP insulated URD cables meets or exceeds all applicable requirements of thefollowing standards, and guaranteed all cables manufactured and tested under this standards.
- ANSIIICEA S94-649
- AEIC CS-8
- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231

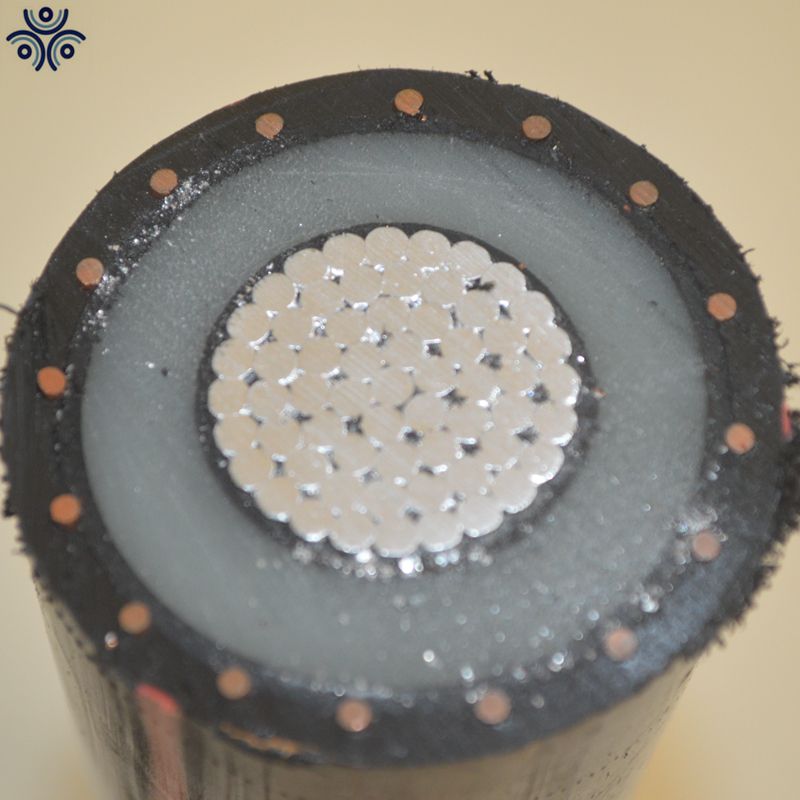

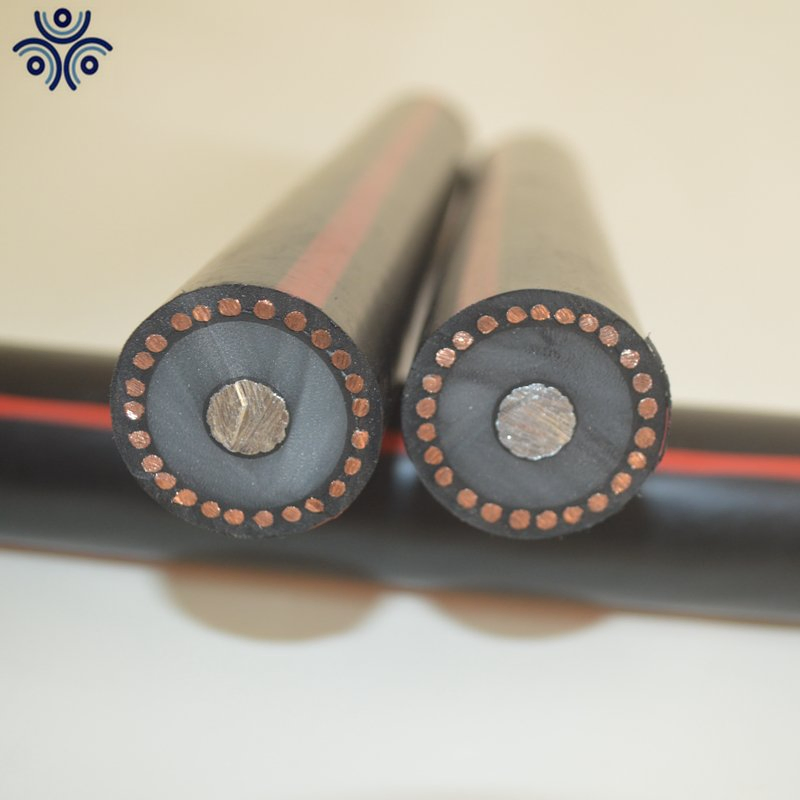

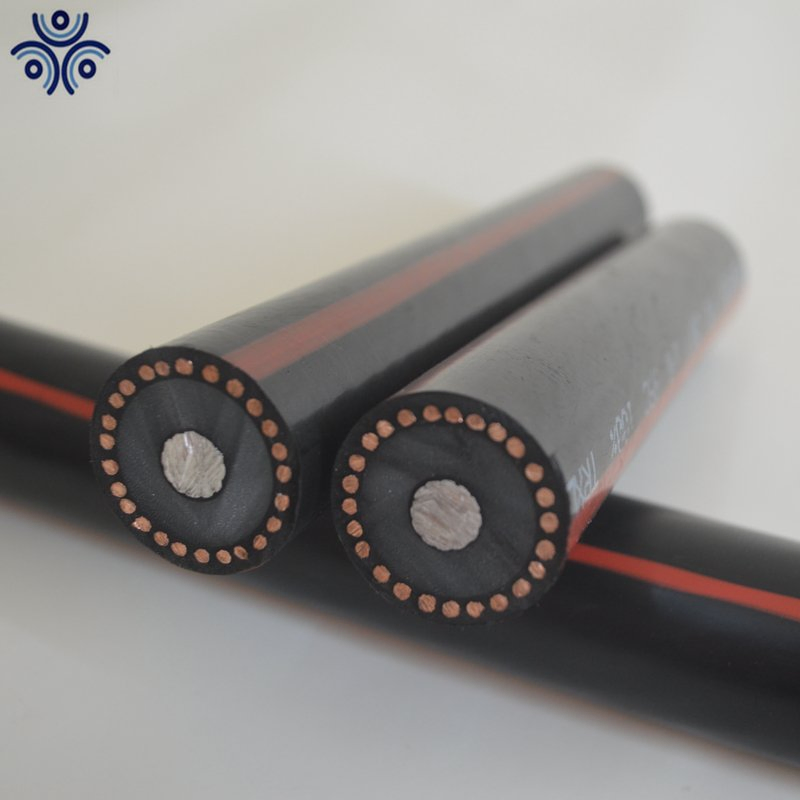

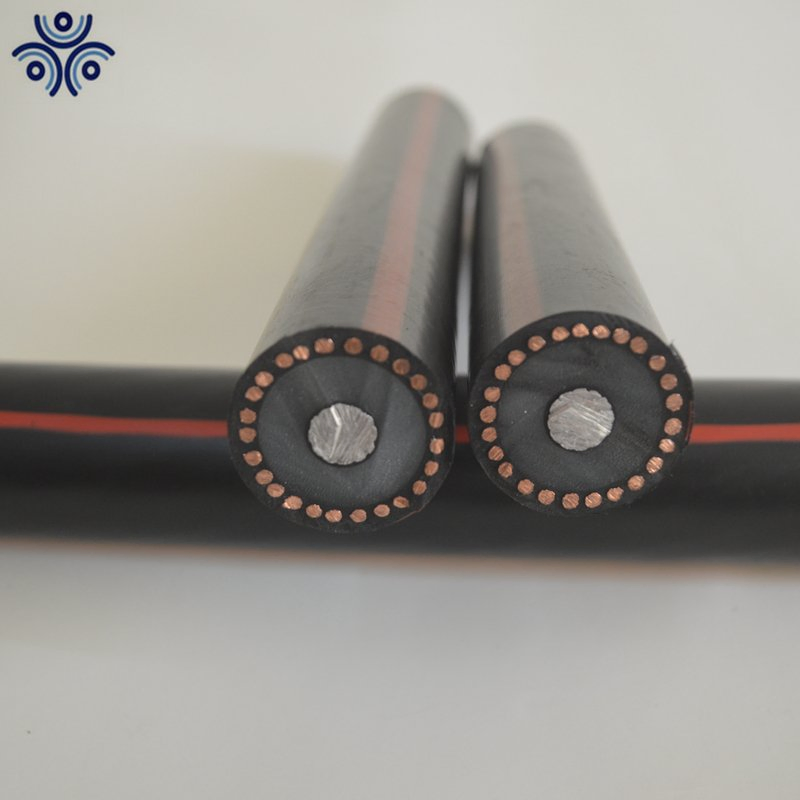

3.CONSTRUCTION
Conductor : Bare aluminium or copper, stranded class B compressed stranding
Conductor Shield :Extruded semi-conducting compound
Insulation : TRXLPE (TreeRetardant XLPE) or XLPE
Insulation Shield : Extruded semi-conducting compound

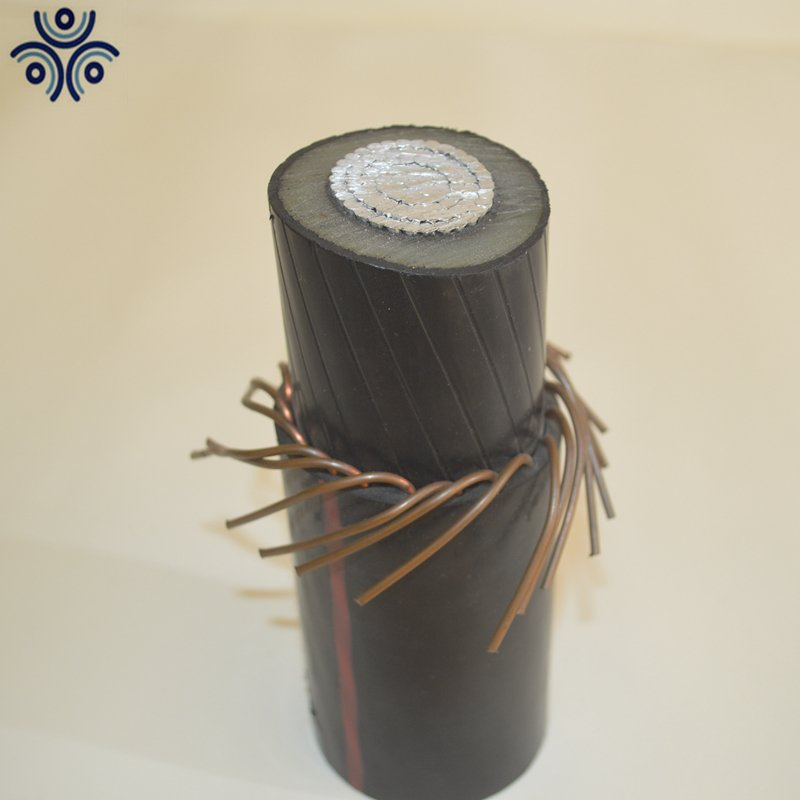

Concentric Neutral : Uncoated copper concentric neutral wires (coated copper are optional)
Encapsulated Jacket : Non-conducting LLDPE embedded jacket with extruded red stripes.
PVC or Semi-conducting jacket are available upon request

Data sheet:

Condctor		Copper Neutral (1/3)		diameter(inch)
AWG orMCM	Stranding	Number of Wires	Size AWG (Solid)	Conductor	Over	Over Insul.	Over Neutral	Over
AWG orMCM	Stranding	Number of Wires	Size AWG (Solid)	Conductor	Insulation	Shield	Wires	Encaps. Jkt.
1/0	19 wire	9	14	0.37	1.12	1.23	1.35	1.46
2/0	19 wire	11	14	0.42	1.17	1.27	1.40	1.50
3/0	19 wire	14	14	0.47	1.22	1.32	1.48	1.59
4/0	19 wire	11	12	0.53	1.28	1.38	1.54	1.71
250	37 wire	13	12	0.57	1.33	1.44	1.64	1.81
350	37 wire	12	10	0.68	1.44	1.54	1.70	1.89
500	37 wire	17	10	0.81	1.57	1.72	1.88	2.04
750	61 wire	25	10	0.99	1.76	1.93	2.11	2.28
1000	61 wire	33	10	1.14	1.92	2.06	2.27	2.43

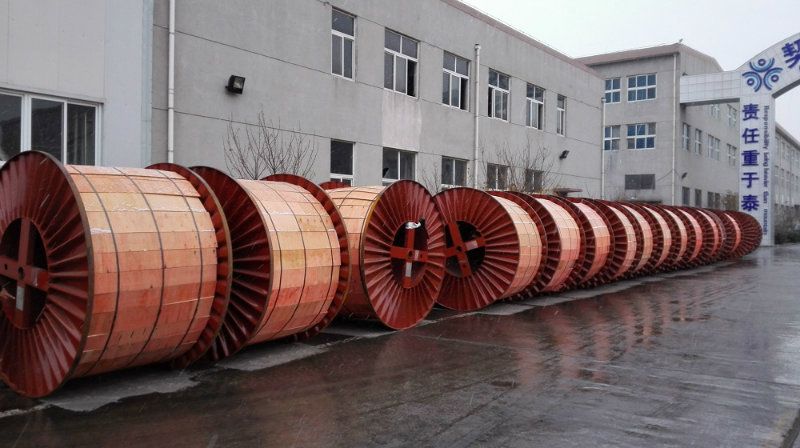

Packing and shipping

Company information

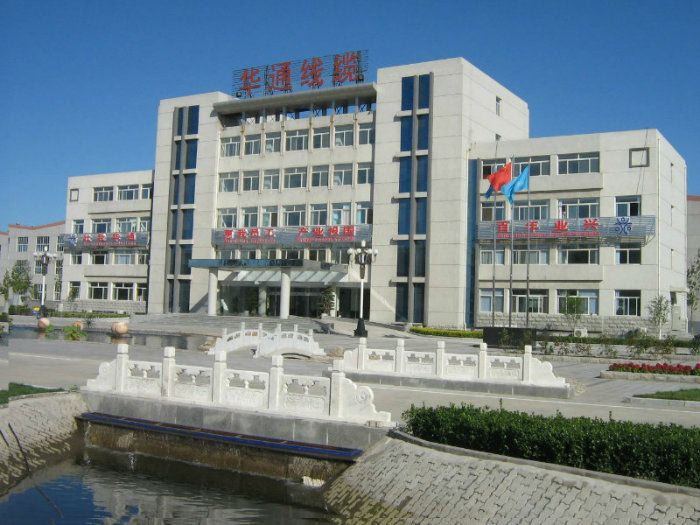

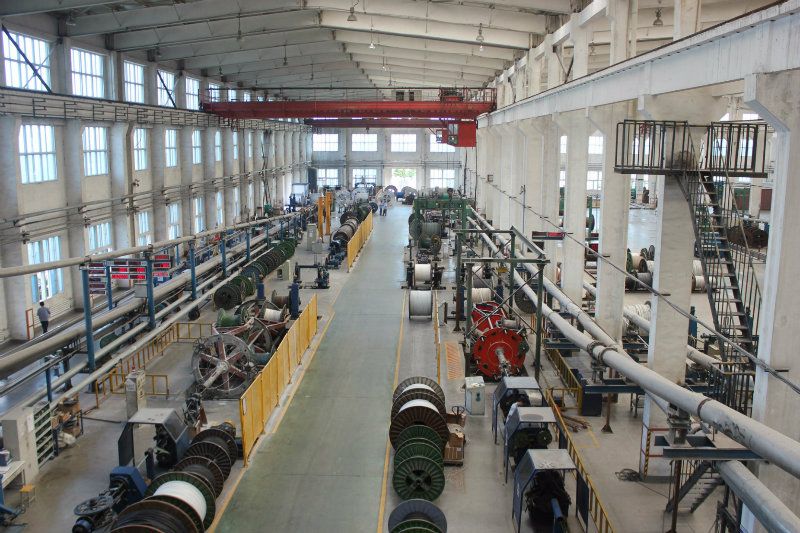

Hebei Huatong Wires&Cables Group Co.,ltd. which founded in1993,covers 15,000 square meters.With 400 sets of manufacturing machines and 200 pieces of equipment available for testing and inspecting,the company's annual manufacturing capacity has reached 450 million US dollars.
The enterprise has adapted international advanced management standards by fully implementing the accreditation of ISO9001 Quality control system, ISO1004 Environment management system, and OHSAS18001 Occupational health and safety management system.
Huatong's products which consist of 15 series of cables and tens of thousands of specifications are widely used in different key national projects and industries .Our products are well liked by domestic and international customers that they have been exported to various countries and areas including the US, Netherlands, Italy, Russia, UK, Australia, Ethiopia, Ghana, Congo, Middle East , and Southeast Asia.

33kv XLPE Power Cable Single Core Mv Cable

FAQ
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.

(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week.
