Product Description

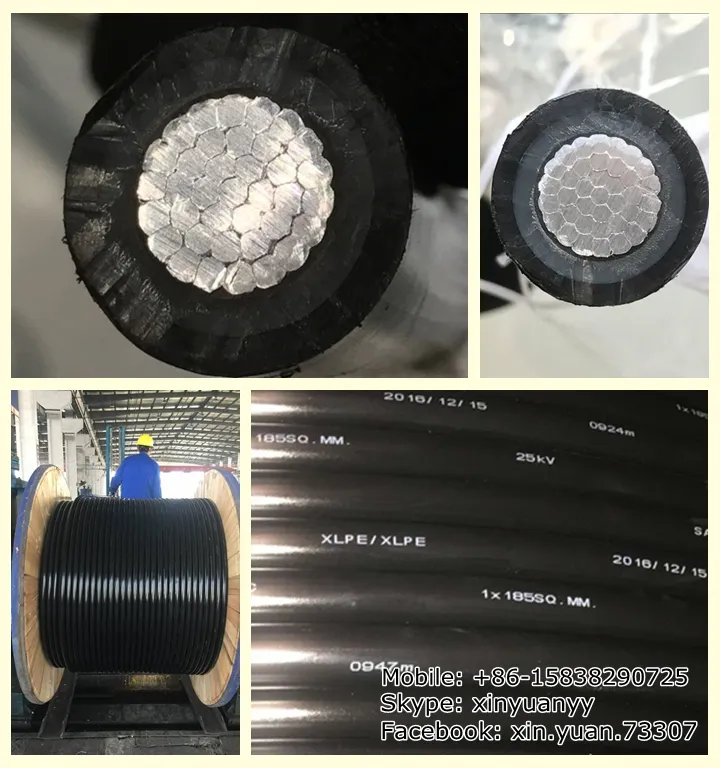

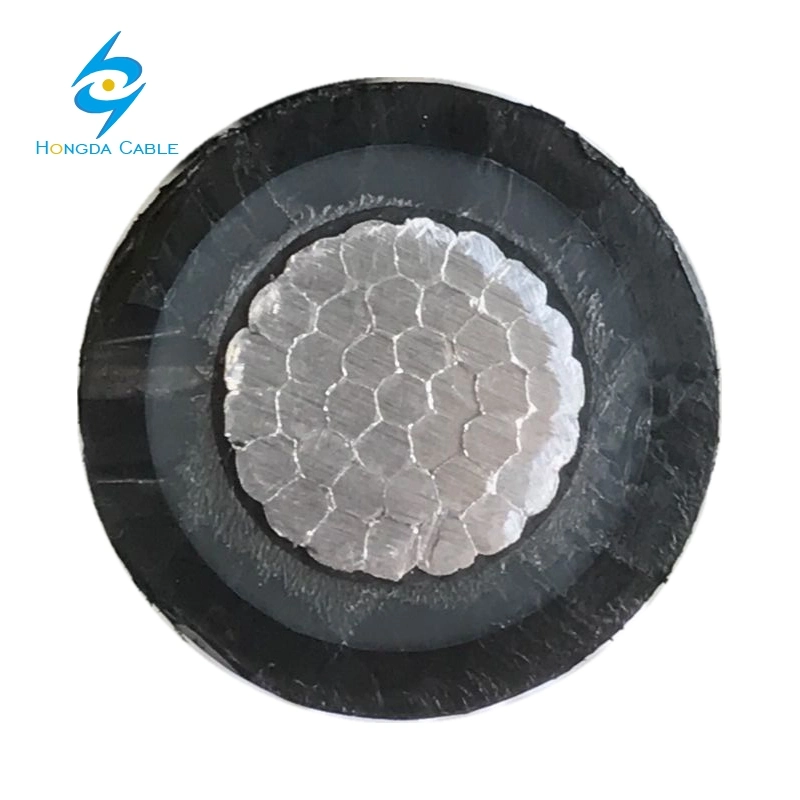

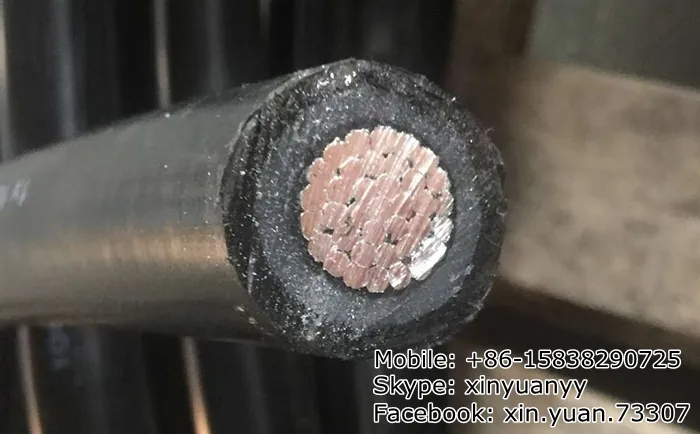

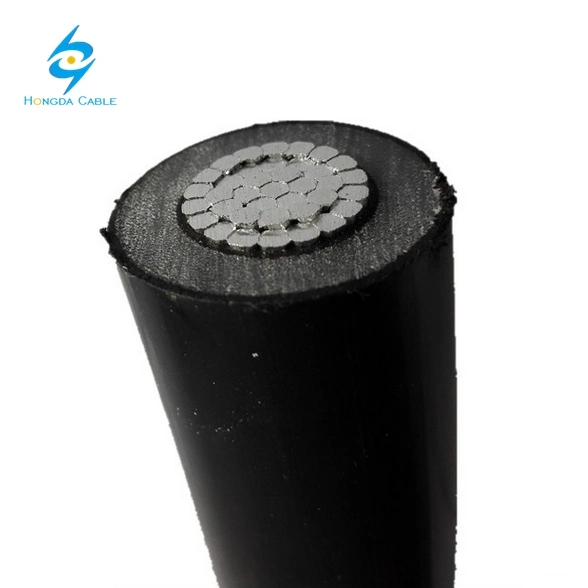

35kv single core aluminum conductor spaced aerial cable - SAC cable

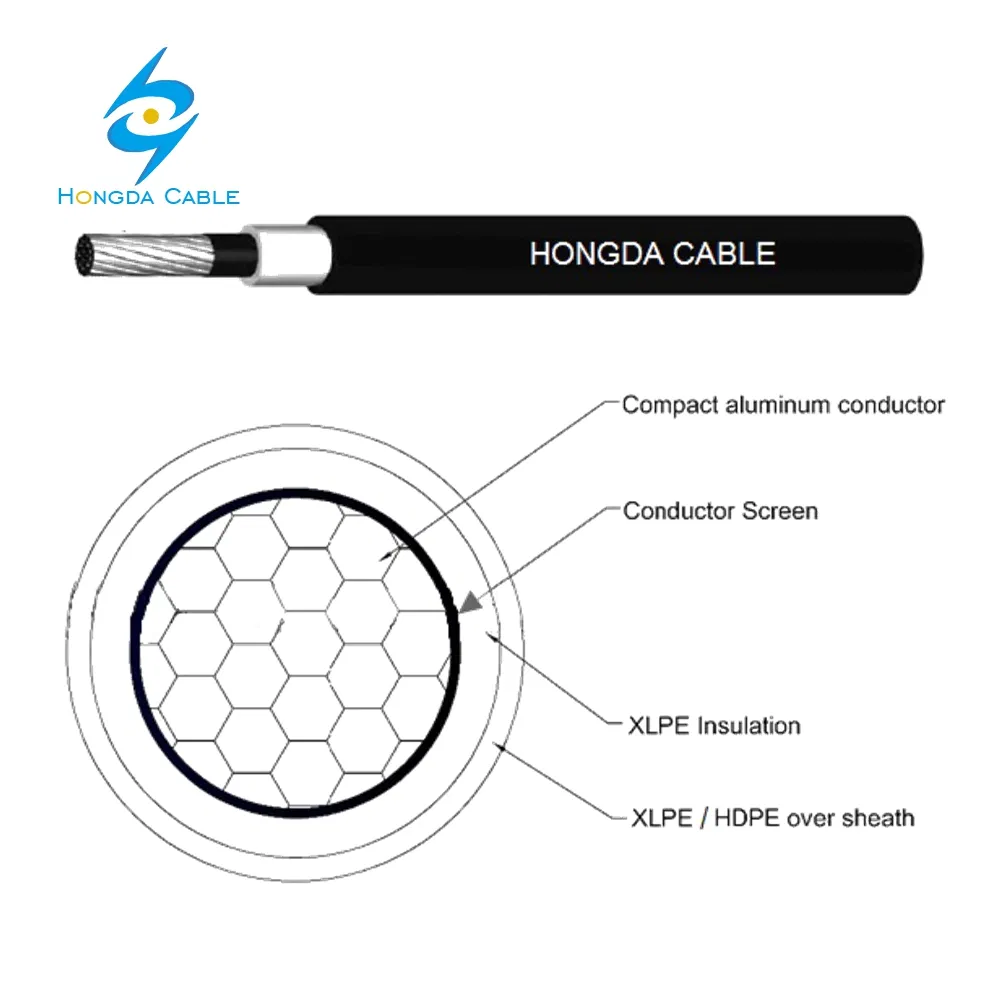

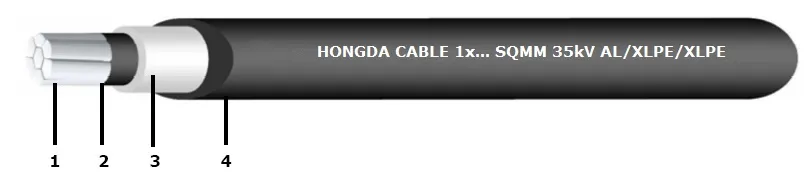

Space Aerial Cable STRUCTURE:

NUMBER OF CORE	Single core SAC Cable
1. CONDUCTOR	Compact stranded hard drawn Aluminum wire Conductor sizes 35 mm2 up to 240 mm2
2. CONDUCTOR SHIELD	Semi conducting cross-linked polyethylene
3. INSULATION	Cross-linked polyethylene Colour : Natural
4. SHEATH	Track resistant cross-linked polyethylene Colour : Black
CLASSIFICATION	Normal operation 90 °C Emergency overload conditions 130 °C Short circuit conditions 250°C Voltage rating 35 Kv.( Phase to Phase )

SAC 35 KV ALUMINIUM STRANDED CONDUCTOR CROSS-LINKED POLYETHYLENE INSULATED AND SHEATHED SPACED AERIAL CABLE

Space Aerial Cable - SAC Cable Specifications:

Nominal Sectional Area	Minimum Number of wire	Diameter of Conductor (approx.)	Thickness of Insulation	Thickness of sheath	Overall Diameter (approx.)	Maximum DC. conductor resistance at 20°C	Allowable ampacities in free air at 40°C ambient	Cable weight (approx.)	Standard packing
mm2	NO	mm	mm	mm	mm	Ω / km	A	kg/km	m
25	7	5.9	4.45	3.18	20.0	1.200	119	380	1000/D
35	7	6.95	4.45	3.18	21.0	0.868	149	490	1000/D
50	7	8.33	4.45	3.18	22.0	0.641	186	530	1000/D
70	18	9.73	4.45	3.18	24.5	0.443	229	630	1000/D
95	18	11.45	4.45	3.18	26.0	0.320	279	750	1000/D
120	18	12.95	4.45	3.18	27.0	0.253	321	850	1000/D
150	18	14.27	4.45	3.18	29.5	0.206	371	960	1000/D
185	34	15.98	4.45	3.18	31.0	0.164	429	1100	1000/D
240	34	18.47	4.45	3.18	33.5	0.125	520	1400	1000/D

Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.

Any problem and inquiry pls contact with Vivian Yuan.
Phone number: +86-15838290725
35kv Single Core Aluminum Conductor Spaced Aerial Cable - Sac Cable
