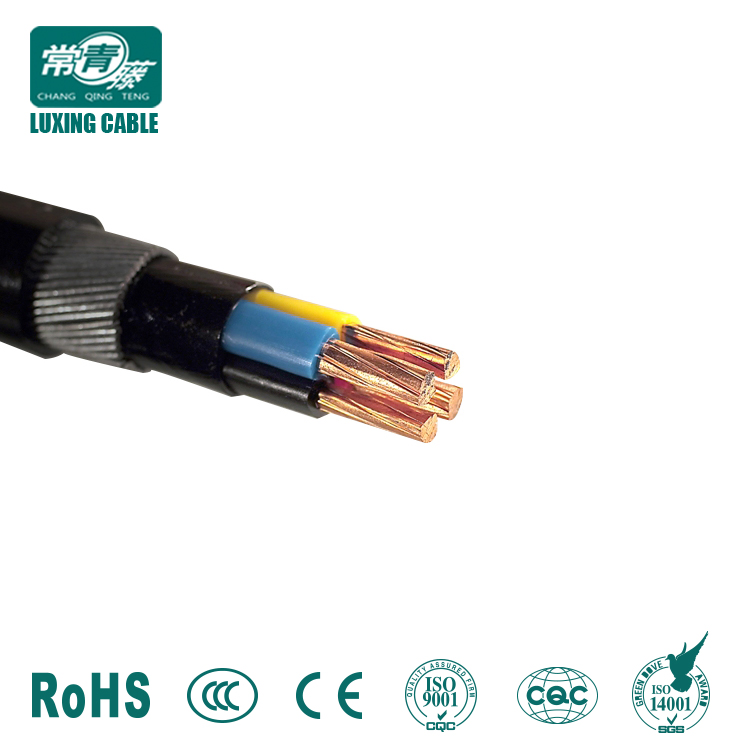

4 Core Swa Armored XLPE Insulated Copper Conductor Low Voltage Cable Wires
ITEM NAME : 4 core SWA Armored XLPE insulated Copper conductor Low Voltage Cable Wires ApplicationTo be laid directly in ground, outdoors, indoors and in cable ducts.Used for infrastruction, high building foundations, power distribution and connection. Construction1 stranded annealed copper2 XLPE i......
Send Inquiry
Product Description
ITEM NAME : 4 core SWA Armored XLPE insulated Copper conductor Low Voltage Cable Wires
Application
To be laid directly in ground, outdoors, indoors and in cable ducts.
Used for infrastruction, high building foundations, power distribution and connection.

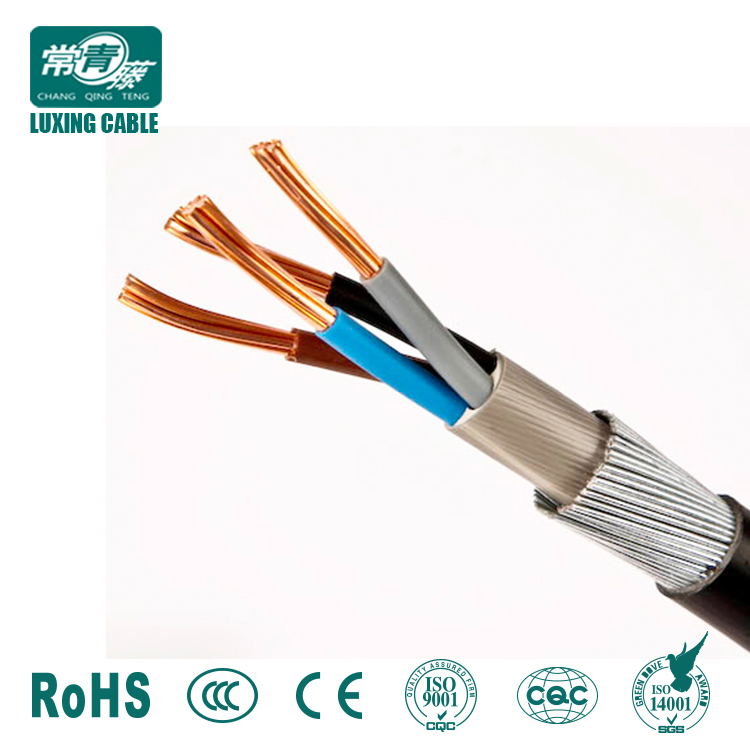

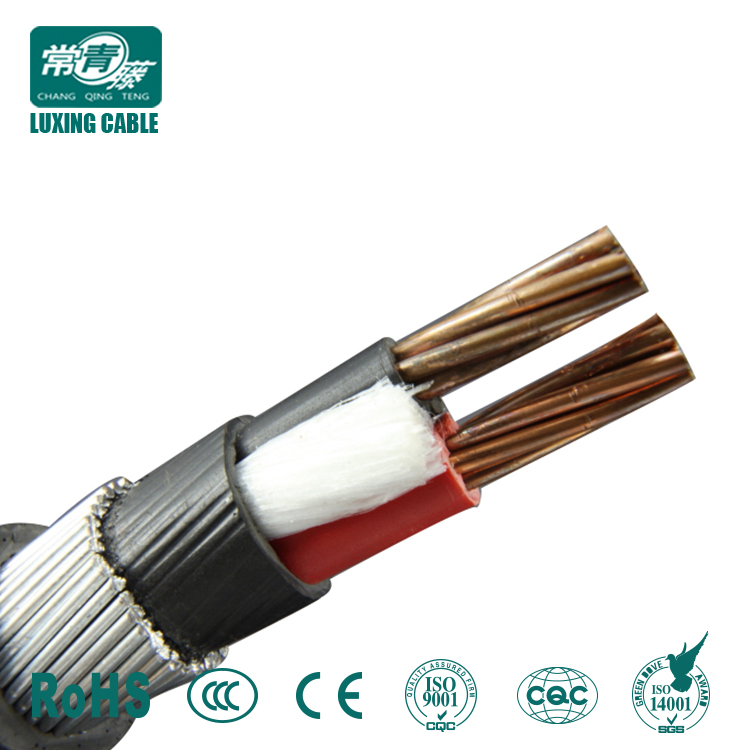

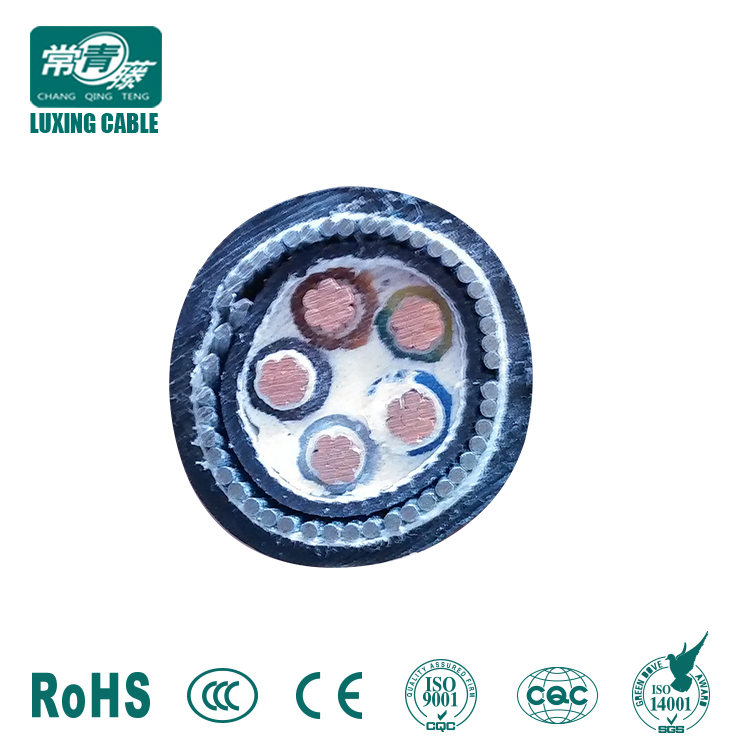

Construction
1 stranded annealed copper
2 XLPE insulation
3 PVC innnear sheath
4 .Galvanized Steel Wire Armour
5. PVC outer sheath
Standards
IEC 60502, 60228, 60332, 60331
DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)
Certificate: CE, Gost, KEMA
Technical data
Rated voltage: 0.6 / 1 kV
Max. Conductor Temp.: normal (90ºC), short circuit no more than 5 s (160ºC when section-area below 300mm2, 140ºC when section-area above 300mm2)
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0ºC
Min. Bending Radius: 15 *(cable O.D)

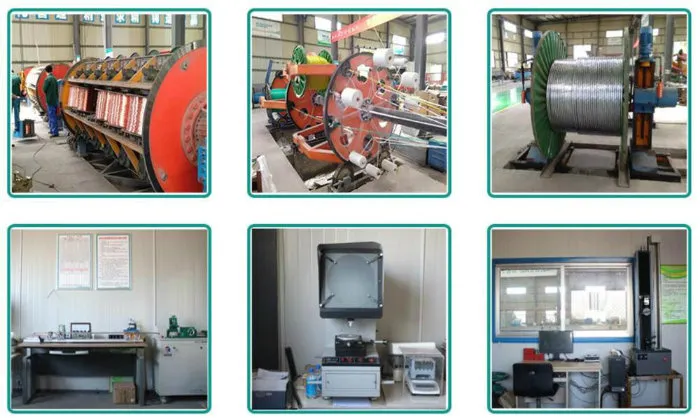

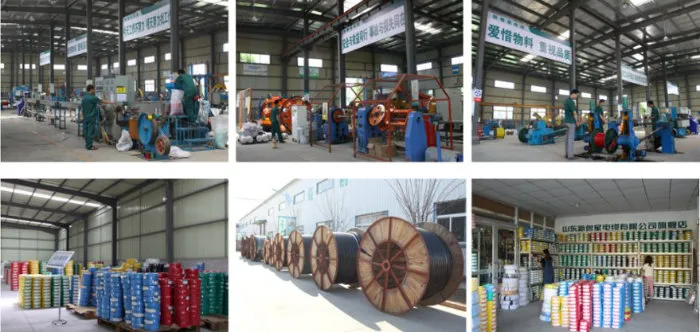

Luxing Factory : our production base
Luxing Cable Mainly Produce
| 300/500V 450/750V electrical wire | AAC conductor |
| 600/1000V PVC insulated cable | AAAC conductor |
| 600/1000V XLPE insulated cable | ACSR conductor |
| 1.8/3KV to 26/35KV power cable | OPGW |
| Armored underground cable | ABC cable |
| Control cable and instrumentation cables | Rubber cable |

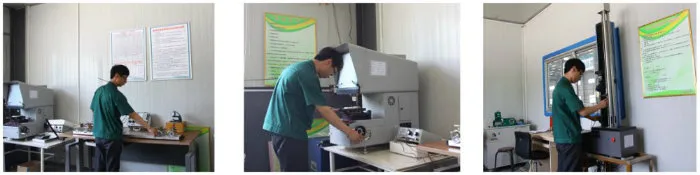

Strict Quality Test
Packaging & Shipping
Why choose us
1.18 years manufacturing experience
2.Professional international trade team
3.Delivery on time
4.Factory low price and high quality based on advanced technology and high work efficiency
