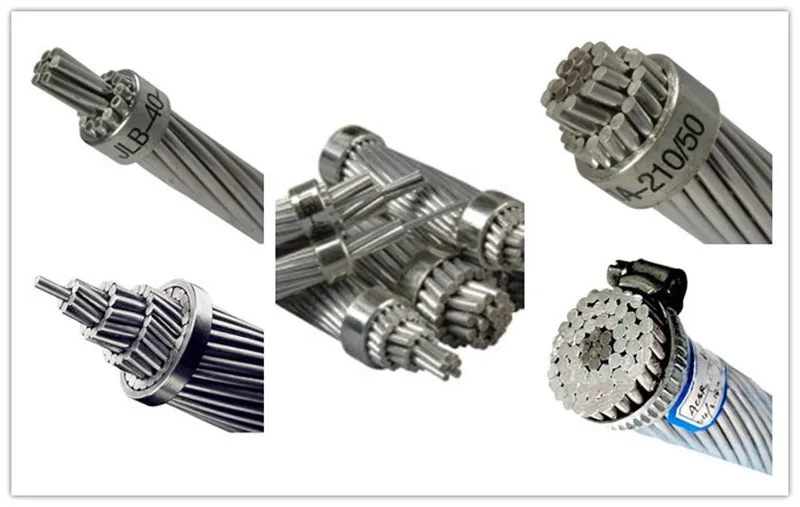

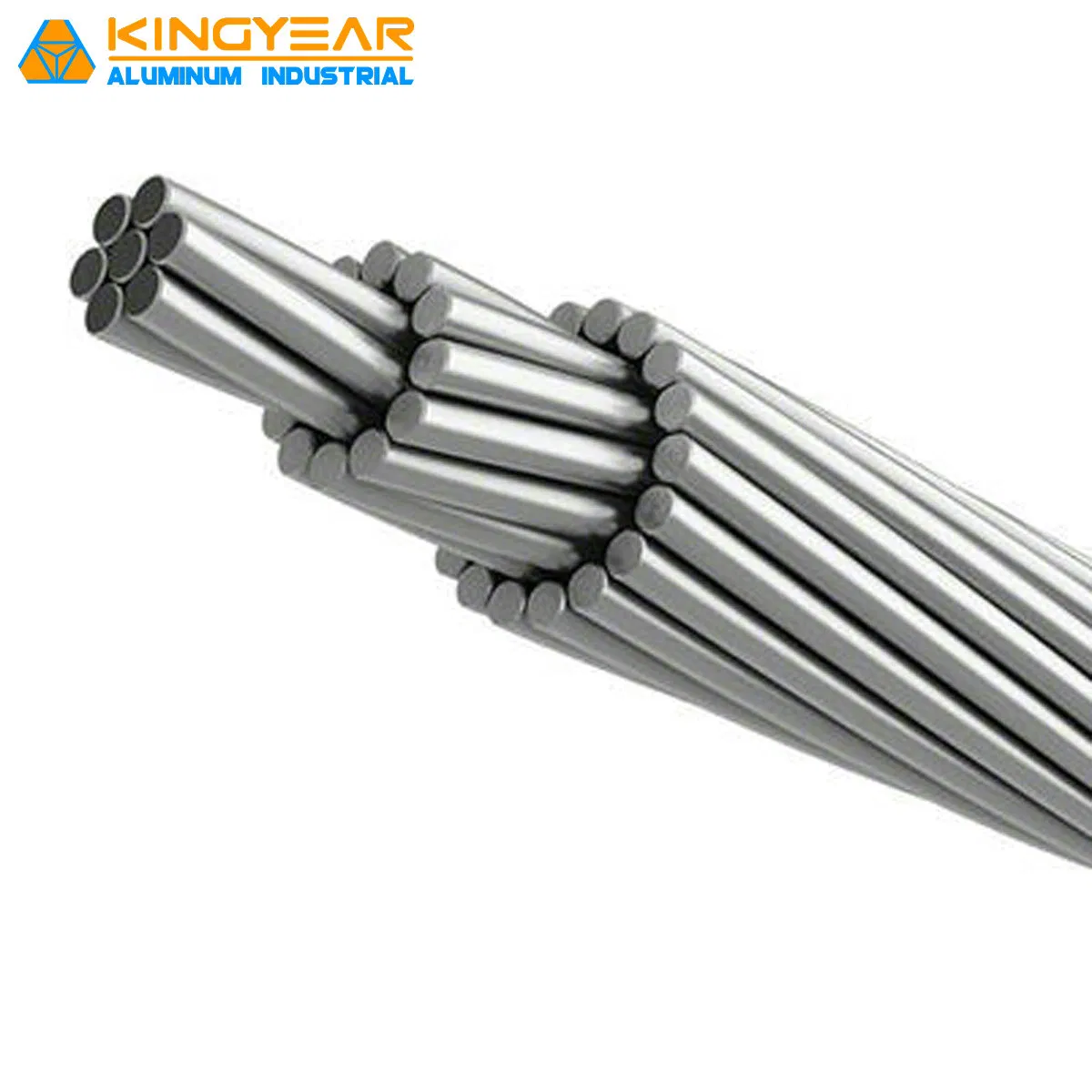

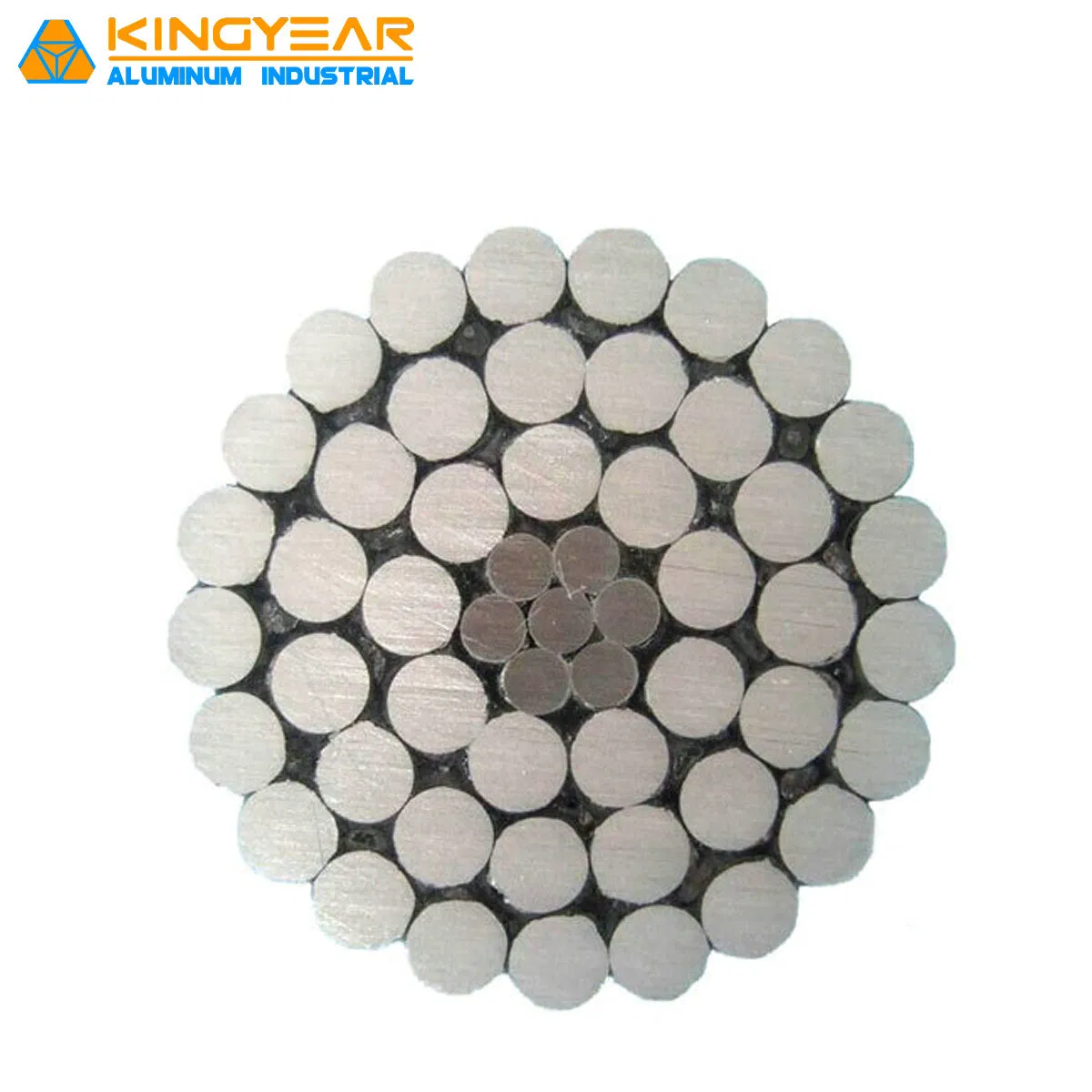

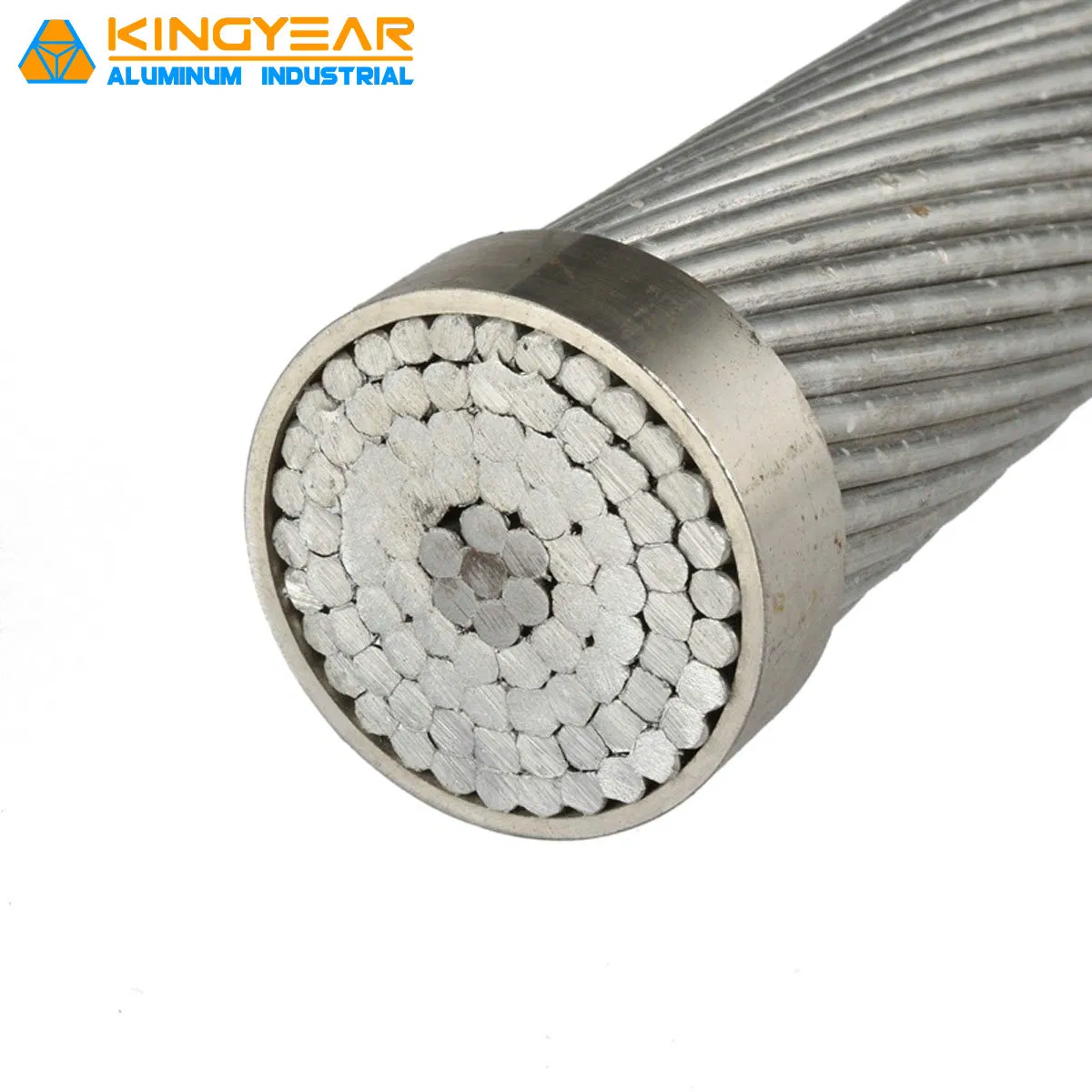

ASTM Aluminum Conductor Aluminum Clad Steel Reinforced Bare Aluminum Conductor ACSR/Aw
ApplicationApplication: Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio, affords better sag characteristics. Aluminum alloy gives AAAC higher resistance to corrosion than ACSR. ACSR c......
Send Inquiry
Product Description
Application
Application: Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio, affords better sag characteristics. Aluminum alloy gives AAAC higher resistance to corrosion than ACSR. ACSR conductors have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist. It used as bare overhead transmission cable and as primary and secondary distribution cable.
Specification
Area:from 10mm2 to 1500mm2 The detailed speicification is as follows.
All Aluminum Alloy stranded conductor according to BS EN50183
Aluminum Clad Steel Strand ASTM B416
Refered Standards
(1). IEC 61089: Round wire concentric lay overhead electrical stranded conductors
(2). DIN 48 201-5: All Aluminium Conductors
(3). BS 215-1: Aluminium strander conductors
(4). ASTM B231: Stranded Specification for Concentric-Lay-Stranded Aluminium 1350 Conductors
(5). AS 1531: Conductors-Bare overhead-Aluminium and aluminium alloy
We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, STM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.

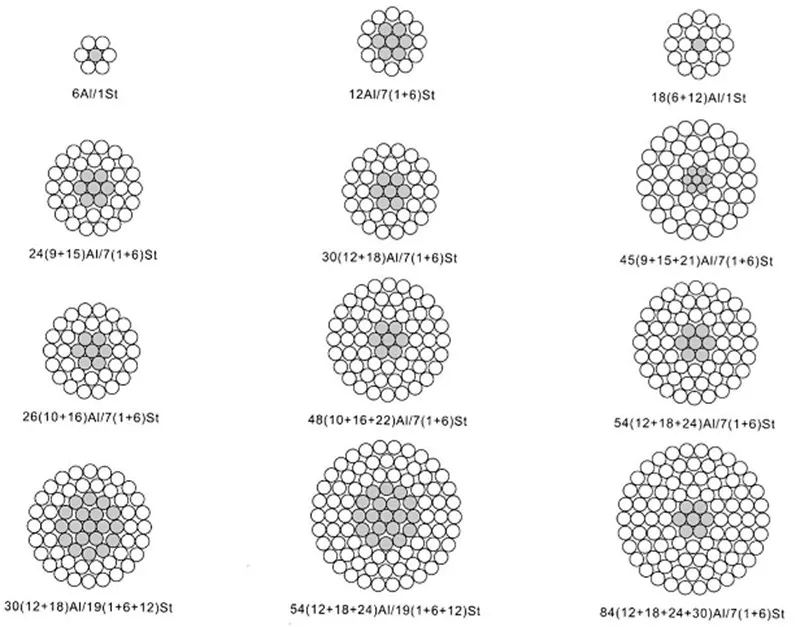

Bare Conductor Types
(1) all aluminum conductor (AAC)
(2) all aluminum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminum conductor aluminum clad steel reinforced(ACSR/AW)
(6) rear earth aluminum conductor steel reinforced(ACSR/RE)
(7) aluminum conductor aluminum alloy reinforced(ACAR)
(8) aluminum conductor steel supported (ACSS)
(9) aluminum conductor carbon core(ACCC)
About Us
We have a professional sales team with each of them has engaged in this job for 10 years, so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!
Our mainly products as follow:
1--pvc insulated electric wire whatever copper conductor,aluminum conductor, CCA(copper clad aluminum), CCS(copper clad steel).
2--pvc and xlpe insulated power cable with or without armor upto 35kv.
3--rubber cable like welding cable, mine cable, EPR cable and so on.
4--aerial bundled cable(ABC cable) up to 10kv.
5--bare conductor like AAC, AAAC, ACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire, PC steel wire and so on.
Packing & Delivery

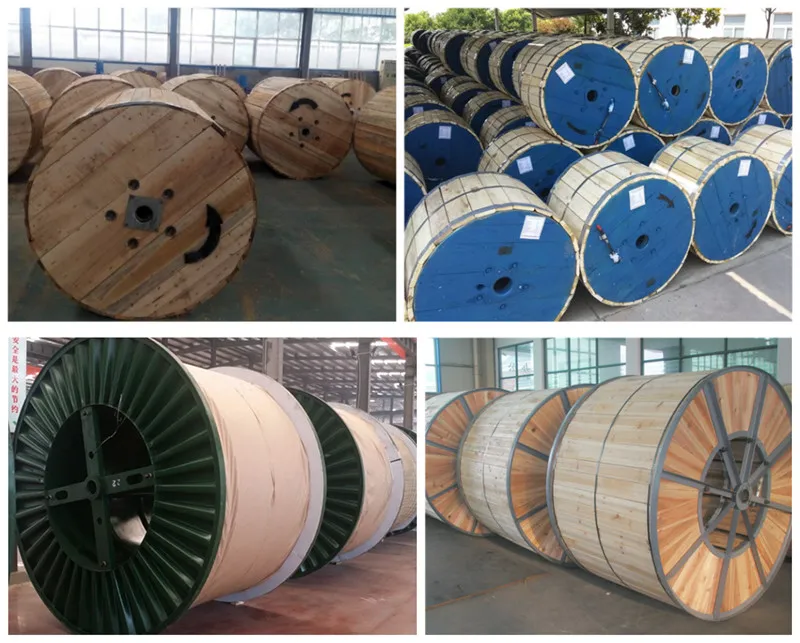

Packing Details : Packing in wooden drum, iron-wooden drum or as customer's requirement.
Delivery Details : 15-25 days after place an order.
Certification
We have obtained CCC, ISO9001, ISO14001 certificates, passed the SGS and BV test.
Our Service:
1.10 years production experience and 10 years export experience .
2.Products certification :ISO,SGS,CE,BV
3.OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback,Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
FAQ
Q:I didn't find the cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
Welcome your inquiry! Any question please feel free to contact me as follows:
Application: Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio, affords better sag characteristics. Aluminum alloy gives AAAC higher resistance to corrosion than ACSR. ACSR conductors have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist. It used as bare overhead transmission cable and as primary and secondary distribution cable.
Specification
Area:from 10mm2 to 1500mm2 The detailed speicification is as follows.
All Aluminum Alloy stranded conductor according to BS EN50183
| Code name | Area | Diameter | Approox. Overall diameter | Weight | Nominal breaking load | Nom. DC resistance at 20 deg. | |
| Wire | Cond. | ||||||
| mm2 | mm | mm | mm | kg/km | kN | ohm/km | |
| BOX | 18.8 | 7 | 1.85 | 5.55 | 51.4 | 5.55 | 1.748 |
| ACACLA | 23.8 | 7 | 2.08 | 6.24 | 64.9 | 7.02 | 1.3828 |
| ALMOND | 30.1 | 7 | 2.34 | 7.02 | 82.2 | 8.88 | 1.0926 |
| CEDAR | 35.5 | 7 | 2.54 | 7.62 | 96.8 | 10.46 | 0.9273 |
| DEODAR | 42.2 | 7 | 2.77 | 8.31 | 115.2 | 12.44 | 0.7797 |
| FIR | 47.8 | 7 | 2.95 | 8.85 | 130.6 | 14.11 | 0.6875 |
| HAZEL | 59.9 | 7 | 3.3 | 9.9 | 163.4 | 17.66 | 0.5494 |
| PLNE | 71.6 | 7 | 3.61 | 10.8 | 195.6 | 21.14 | 0.4591 |
| HOLLY | 84.1 | 7 | 3.91 | 11.7 | 229.5 | 24.79 | 0.3913 |
| WILLOW | 89.7 | 7 | 4.04 | 12.1 | 245 | 26.47 | 0.3665 |
| OAK | 118.9 | 7 | 4.65 | 14 | 324.5 | 35.07 | 0.2767 |
| MULBERRY | 150.9 | 19 | 3.18 | 15.9 | 414.3 | 44.52 | 0.2192 |
| ASH | 180.7 | 19 | 3.48 | 17.4 | 496.1 | 53.31 | 0.183 |
| ELM | 211 | 19 | 3.76 | 18.8 | 579.2 | 62.24 | 0.1568 |
| POPLAR | 239.4 | 37 | 2.87 | 20.1 | 659.4 | 70.61 | 0.1387 |
| SYCAMORE | 303.2 | 37 | 3.23 | 22.6 | 835.2 | 89.4 | 0.1095 |
| UPAS | 362.1 | 37 | 3.53 | 24.7 | 997.5 | 106.82 | 0.0917 |
| YEW | 479 | 37 | 4.06 | 28.4 | 1319.6 | 141.31 | 0.0693 |
| TOTARA | 498.1 | 37 | 4.14 | 29 | 1372.1 | 146.93 | 0.0666 |
| RUBUS | 586.9 | 61 | 3.5 | 31.5 | 1622 | 173.13 | 0.0567 |
| SORBUS | 659.4 | 61 | 3.71 | 33.4 | 1822.5 | 194.53 | 0.0505 |
| ARAUCARIA | 821.1 | 61 | 4.14 | 37.3 | 2269.4 | 242.24 | 0.0406 |
| REDWOOD | 996.2 | 61 | 4.56 | 41 | 2753.2 | 293.88 | 0.0334 |
Aluminum Clad Steel Strand ASTM B416
| Code No. | Area | No.of wires | Diameter | wight | Rated Strength | Max DC.Resistance at 20 degree | |
| mm2 | / | Wire mm | Cond. mm | Kg/Km | KN | Ohm/Km | |
| 3No5AWG | 50.32 | 3 | 4.62 | 9.96 | 334.1 | 54.42 | 1.699 |
| 3No6AWG | 39 | 3 | 4.11 | 8.87 | 265 | 45.74 | 2.142 |
| 3No7AWG | 31.65 | 3 | 3.67 | 7.9 | 210.1 | 38.36 | 2.701 |
| 3No8AWG | 25.1 | 3 | 3.26 | 7.03 | 166.7 | 32.06 | 3.406 |
| 3No9AWG | 19.9 | 3 | 2.91 | 6.26 | 132.2 | 25.43 | 4.294 |
| 3No10AWG | 15.78 | 3 | 2.59 | 5.58 | 104.8 | 20.16 | 5.415 |
| 7No5AWG | 117.4 | 7 | 4.62 | 13.9 | 781.1 | 120.27 | 0.7426 |
| 7No6AWG | 93.1 | 7 | 4.11 | 12.4 | 619.5 | 101.14 | 0.9198 |
| 7No7AWG | 73.87 | 7 | 3.67 | 11 | 494.1 | 84.81 | 1.16 |
| 7No8AWG | 58.56 | 7 | 3.26 | 9.78 | 389.6 | 70.88 | 1.463 |
| 7No9AWG | 46.44 | 7 | 2.91 | 8.71 | 308.9 | 56.2 | 1.844 |
| 7No10AWG | 36.83 | 7 | 2.59 | 7.76 | 245.1 | 44.58 | 2.325 |
| 7No11AWG | 29.21 | 7 | 2.3 | 6.91 | 194.4 | 35.35 | 2.932 |
| 7No12AWG | 23.16 | 7 | 2.05 | 6.16 | 154.2 | 28.03 | 3.697 |
| 19No5AWG | 318.7 | 19 | 4.62 | 23.1 | 2129 | 326.39 | 0.2698 |
| 19No6AWG | 252.7 | 19 | 4.11 | 20.6 | 1688 | 274.55 | 0.3402 |
| 19No7AWG | 200.4 | 19 | 3.67 | 18.3 | 1339 | 230.18 | 0.429 |
| 19No8AWG | 158.9 | 19 | 3.26 | 16.3 | 1062 | 192.41 | 0.5409 |
| 19No9AWG | 126.1 | 19 | 2.91 | 14.5 | 842 | 152.58 | 0.6821 |
| 19No10AWG | 99.96 | 19 | 2.59 | 12.9 | 667.7 | 121 | 0.8601 |
| 37No5AWG | 620.6 | 37 | 4.62 | 32.3 | 4170 | 635.43 | 0.1394 |
| 37No6AWG | 492.2 | 37 | 4.11 | 28.8 | 3307 | 534.85 | 0.1757 |
| 37No7AWG | 390.3 | 37 | 3.67 | 25.7 | 2623 | 448.09 | 0.2216 |
| 37No8AWG | 309.5 | 37 | 3.26 | 22.9 | 2080 | 374.67 | 0.2794 |
| 37No9AWG | 245.5 | 37 | 2.91 | 20.3 | 1649 | 279.11 | 0.3523 |
| 37No10AWG | 194.7 | 37 | 2.59 | 17.9 | 1308 | 235.61 | 0.4443 |
Refered Standards
(1). IEC 61089: Round wire concentric lay overhead electrical stranded conductors
(2). DIN 48 201-5: All Aluminium Conductors
(3). BS 215-1: Aluminium strander conductors
(4). ASTM B231: Stranded Specification for Concentric-Lay-Stranded Aluminium 1350 Conductors
