Conductores De Aleacion De Aluminio ASTM B398, 399 Standard AAAC Flint
Conductores de aleacion de Aluminio ASTM B398,399 Standard AAAC FlintAluminium alloy 6201 wires, concentrically stranded from 7 strands to 91 strands depending upon the size. TECHNICAL DATA OF AAAC Flint NODESCRIPTIONUNIT DATA 1Type/ code name --Flint2Material --Aluminium Alloy3Standards--ASTM B3......
Send Inquiry
Product Description
Conductores de aleacion de Aluminio ASTM B398,399 Standard AAAC Flint

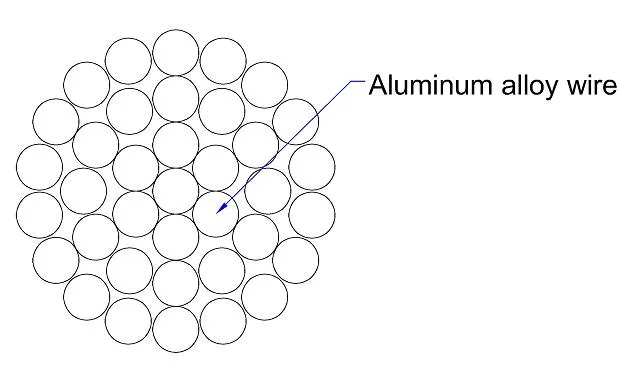

Aluminium alloy 6201 wires, concentrically stranded from 7 strands to 91 strands depending upon the size.
| TECHNICAL DATA OF AAAC Flint | |||
| NO | DESCRIPTION | UNIT | DATA |
| 1 | Type/ code name | -- | Flint |
| 2 | Material | -- | Aluminium Alloy |
| 3 | Standards | -- | ASTM B399,B398 |
| 4 | Cross Section Area | mm2 | 374.5 |
| 5 | Conductor construction | ||
| Wire No. | No.s | 37 | |
| Nominal wire dia. | mm | 3.59 | |
| 6 | Approx. Overall Diameter | mm | 25.13 |
| 7 | Approx. Weight | kg/km | 1032.6 |
| 8 | Min.Breaking Load | kN | 108.21 |
| 9 | Max. D.C. Resistant 20ºC | Ω/km | 0.089 |
