China Electric Power Cable Crane Control Cable System Overhead Crane Cable

Product Description

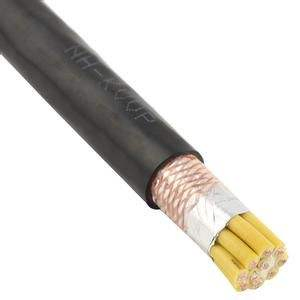

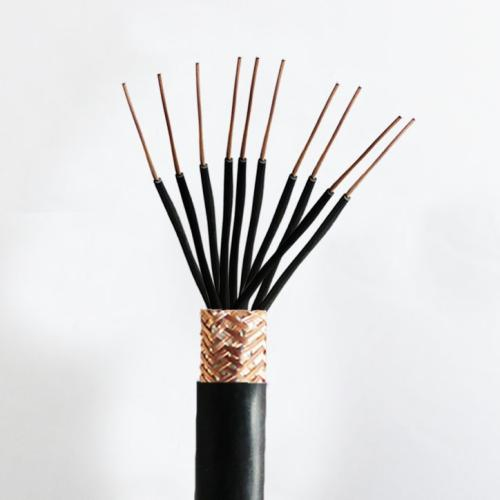

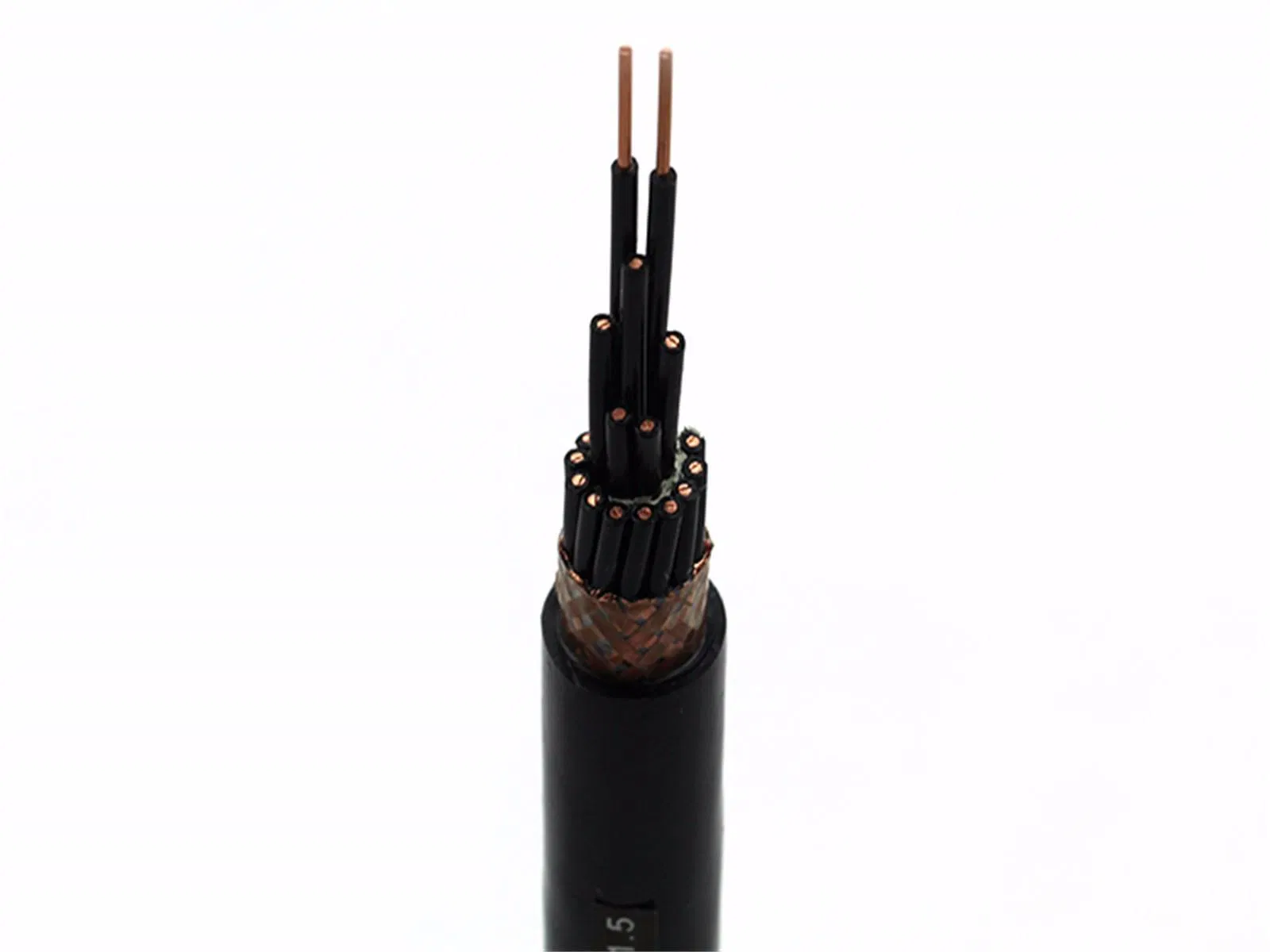

Electric Power Cable Crane Control Cable System Overhead Crane Cable

Type and Name

Type	Name
KVV	Copper conductor PVC insulated PVC sheathed control cable
KVVP2	Copper conductor PVC insulated PVC sheathed copper tape screened control cable
KVV22	Copper conductor PVC insulated PVC sheathed steel tape armored control cable
KVVP2-22	Copper conductor PVC insulated PVC sheathed copper tape screened, steel tape armored control cable
KVVR	Copper conductor PVC insulated PVC sheathed control flexible cable
KVV32	Copper conductor PVC insulated PVC sheathed steel wire armored control cable
KVVP2-32	Copper conductor PVC insulated PVC sheathed copper tape screened steel wire armored control cable
KYJV	Copper conductor XLPE insulated PVC sheathed control cable
KYJVP2	Copper conductor XLPE insulated PVC sheathed copper tape screened control cable
KYJV22	Copper conductor XLPE insulated PVC sheathed steel tape armored control cable
KYJVP2-22	Copper conductor XLPE insulated PVC sheathed copper tape screened steel tape armored control cable
KYJV32	Copper conductor XLPE insulated PVC sheathed steel wire armored control cable
KYJVP2-32	Copper conductor XLPE insulated PVC sheathed copper tape screened steel wire armored control cable

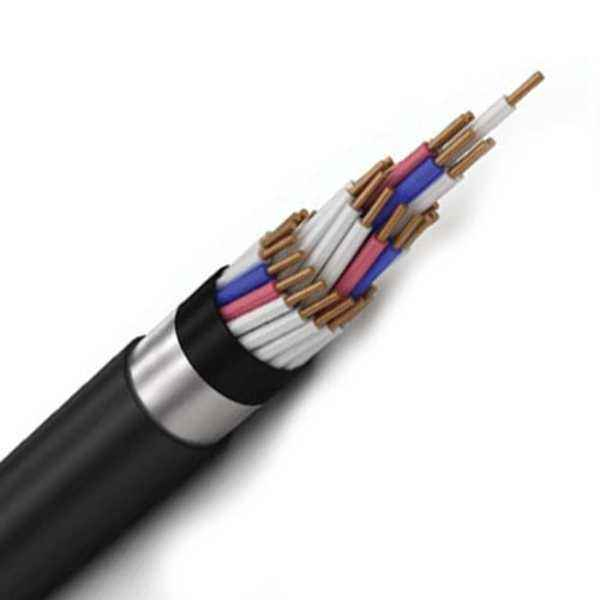

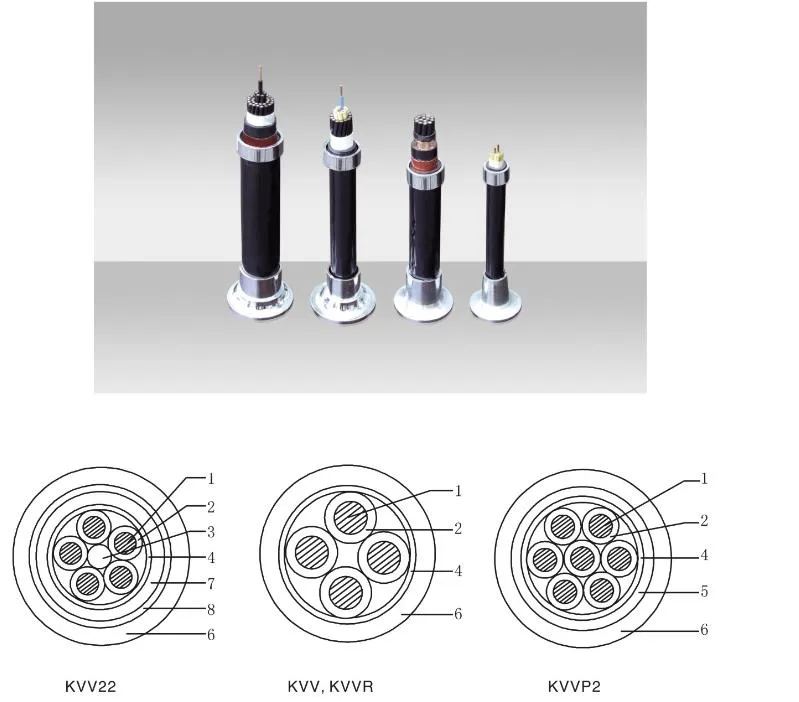

Construction Sketch

1.Conductor

2.Conductor screen (no light type)

3.Filler
4.Wrapping tape
5.Copper tape screen
6.Sheath
7.Extruded or lapped bedding
8.Double steel tape armour

Standards
It is manufactured in accordance with GB/T9330-2008, and the factory can also manufacture the cables in accordance with other standards such as IEC, BS, DIN, etc.

Characteristics and Applications
Plastic insulated control cable are used for connecting electrical equipments. It applies to controlling, monitoring and protective system with A.C. rated voltage U0/U up to and including 450/750V.

The main features of the flame retardant PVC control cable is hard to get fire or that the continuous burning of cables is very limited when it is on fire. It applies to the places with special demands of flame retardant property.

Fire-resistance cable can operate normally for some time when it is burning except that it can transmit electrical power under normal condition. It is used in the places necessary to resist fire.

Main Technical Parameter
KVV, ZC-KVV

Number of cores x Nominal cross-section mm²	Kind of conductor	Reference outside diameter of cable mm	Reference weight of cable kg/km	Max.D.C. resistance at 20ºC Ω/km	Min.insulation resistance at 70ºC MΩ·km
2 x 0.75	1	7.2	61	24.5	0.012
2 x 0.75	2	7.5	65	24.5	0.014
2 x 2.5	1	9.6	124	7.41	0.01
2 x 2.5	2	10.2	135	7.41	0.01
2 x 10	2	15.7	377	1.83	0.0065
5 x 0.75	1	8.7	101	24.5	0.012
5 x 0.75	2	9.1	108	24.5	0.014
5 x 2.5	1	12.7	247	7.41	0.01
5 x 2.5	2	13.4	267	7.41	0.01
5 x 10	2	20.4	769	1.83	0.0065
10 x 0.75	1	11.6	176	24.5	0.012
10 x 0.75	2	12.2	189	24.5	0.014
10 x 2.5	1	17.2	447	7.41	0.01
10 x 2.5	2	18.2	483	7.41	0.01
10 x 10	2	28.4	1452	1.83	0.0065
30 x 0.75	1	17.6	450	24.5	0.012
30 x 0.75	2	18.6	483	24.5	0.014
30 x 2.5	1	26	1167	7.41	0.01
30 x 2.5	2	27.6	1262	7.41	0.01
61 x 0.75	1	23.8	857	24.5	0.012
61 x 0.75	2	25.1	906	24.5	0.014
61 x 2.5	1	36	2320	7.41	0.01
61 x 2.5	2	38.3	2509	7.41	0.01

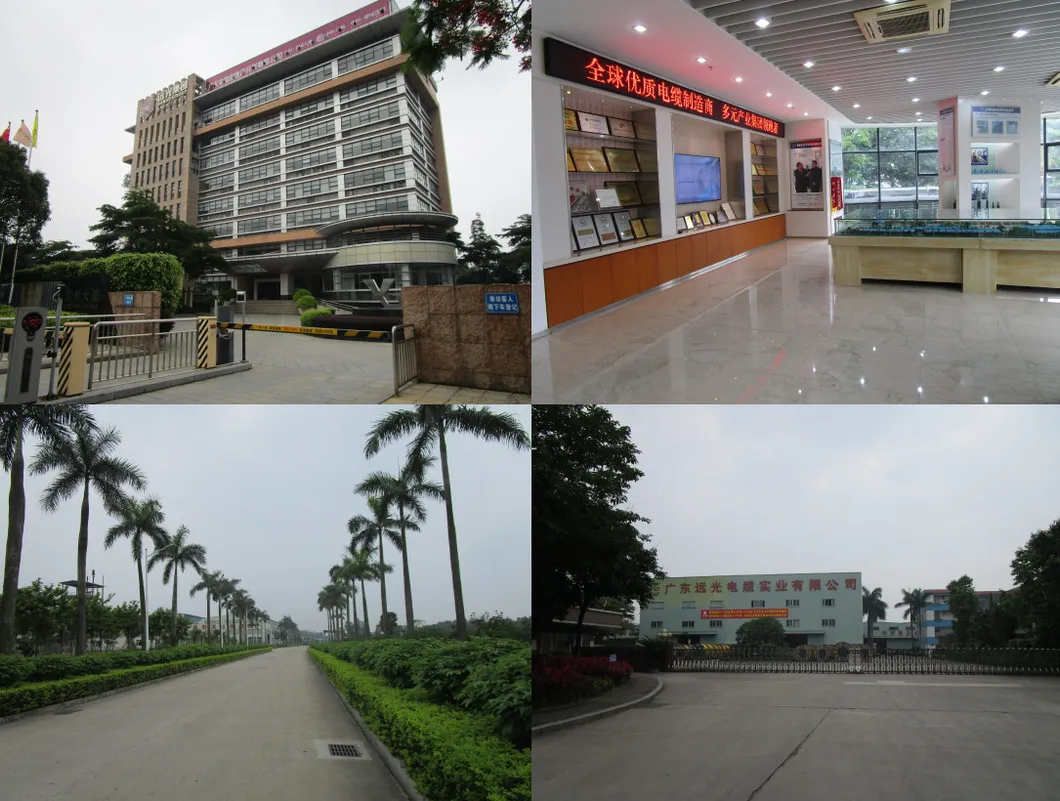

Our company

Established in 1988, Vango Cable is a leading provider in Cable industry. It is located in Qingyuan, Guangdong. we are the main supplier of cable & conductor and special transmission conductor of Natianal Power Grid and China Southern Power Grid. We can manufacture different cables according to the needs of different countries and different standards.

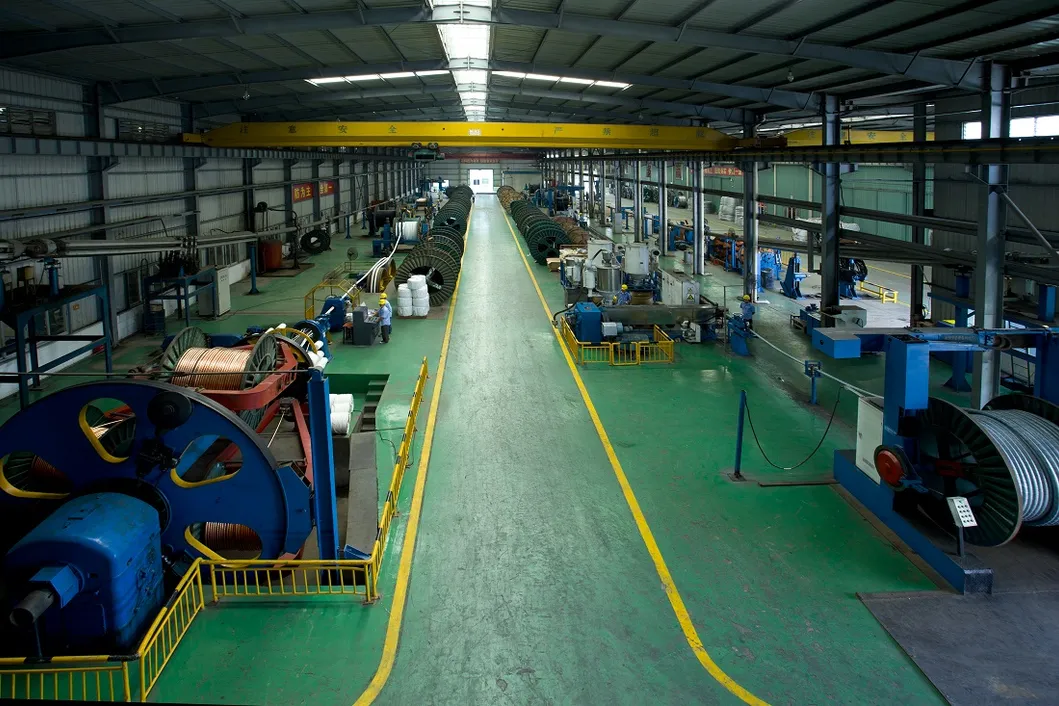

Workshop
Electric Power Cable Crane Control Cable System Overhead Crane Cable

Customers
Electric Power Cable Crane Control Cable System Overhead Crane Cable

Certificates Electric Power Cable Crane Control Cable System Overhead Crane Cable

Why Choose us?

♥ Strict Quality Control System Reliable Qualty Taking The Lead:
In 2001, as the first in the industy, Guangdong Vangou Cable Industy Co., Ltd. passed the certifications of the ISO9001 quality system and metrological system. Its prodution is strictly submitted to such international and national standards as IEC, GB and BS. Its all products have the national production locense; passed the national CCC certification. Its first grade quality wins customer's favor.

♥ First Grade Production Equipment and Environment, High Standaed Makes True Value:
The company is well-equippede. The main manufacturing facilities are Wire-drawing group for Aliminum Alloy and Line Mold which is the second set of China 2010, SIKORA measuring Device, CLY-3/2000 Cabling Machine, LHD-450/13 Sliding Aluminum Drawing Machine, JLK-6+12+18+24/630 Frame-type Strander and CCV-0+3/65+150+90 Triple Extruction Cross-link Production Line etc. which forms the production capacity of super standard cable with rated voltage from 0.6kV to 1000kV.

FAQ:

1. Are you a trading company or manufacture?
We are a wire and cable Manufacturer with 30 years history almostly, our factory located in Qingyuan, Guangdong Province, China.

2. What is your main product?
As one of leading cable manufacturers in China, we are specialized in power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.

3. Can you offer me a free sample?
Yes, sample is free but the freight charge should be borne by you.

4.How is the payment?
T/T, L/C is acceptable.

5. What is the lead time for mass production?
It depends on the order quantity and the season you place the order. Normally within 1 month.

6.Do you accept OEM or ODM?
Yes, we accept OEM and ODM. Your logo and company name can be printed on our products.

7.Do you have after-sale service?
Yes, 12 months warranty.
