High Quality Low Voltage Power Cable for Solar PV System
High Quality Low Voltage Power Cable for Solar PV System1. Construction: Tinned cooper, XLPE insulation, XLPE outer sheath.2. Test Voltage: 6500V, 5min; rated voltage:1000/1800V DC.3. Halogen free and low smoke, Rohs standard. 4. UV resistance.5. Temperature rating:-40°C to 125°C, co......
Send Inquiry
Product Description
1. Construction: Tinned cooper, XLPE insulation, XLPE outer sheath.
2. Test Voltage: 6500V, 5min; rated voltage:1000/1800V DC.
3. Halogen free and low smoke, Rohs standard.
4. UV resistance.
5. Temperature rating:-40°C to 125°C, cold resistance.
6. UL and TUV certification, TUV2Pfg1169-1.
7. Power cable for photovoltaic system.
Parameters
| Single Core | Cross section | Strand design | Conductor diameter | Conductor diameter | Outer diameter |
| mm² | No.x ø(mm) | mm | Ω /km | mm | |
| PV-1*1.5 mm² | 1.5 | 30x ø 0.25 | 1.6 | 13.9 | 4.5 |
| PV-1*2.5 mm² | 2.5 | 48x ø 0.25 | 2.0 | 8.06 | 5.3 |
| PV-1*4.0 mm² | 4.0 | 56x ø 0.3 | 2.6 | 4.97 | 6.2 |
| PV-1*6.0 mm² | 6.0 | 81x ø 0.3 | 3.3 | 3.52 | 7.2 |
| PV-1*10.0 mm² | 10.0 | 200x ø0.25 | 4.4 | 2.12 | 8.3 |
| PV-1*16 mm² | 16.0 | 224x ø 0.3 | 5.2 | 1.95 | 9.5 |
| Twins Core | Cross section | Strand design | Conductor diameter | Conductor diameter | Outer diameter |
| mm² | No.x ø(mm) | mm | Ω /km | mm | |
| PV-2*1.5 mm² | 1.5 | 30x ø 0.25 | 1.6 | 13.9 | 5.80*9.30 |
| PV-2*2.5 mm² | 2.5 | 48x ø 0.25 | 2 | 8.06 | 6.20*9.90 |
| PV-2*4.0 mm² | 4 | 56x ø 0.3 | 2.6 | 4.97 | 6.90*11.30 |
Advantages
1.Electron-beam cross-linked compounds
2.UV, ozone and hydrolysis resistant
3.High temperature resistant, the materials do not melt or flow
4.Good cold flexibility
5.Very long service life > 25 years at 90°C
6.Compatible to all popular connectors

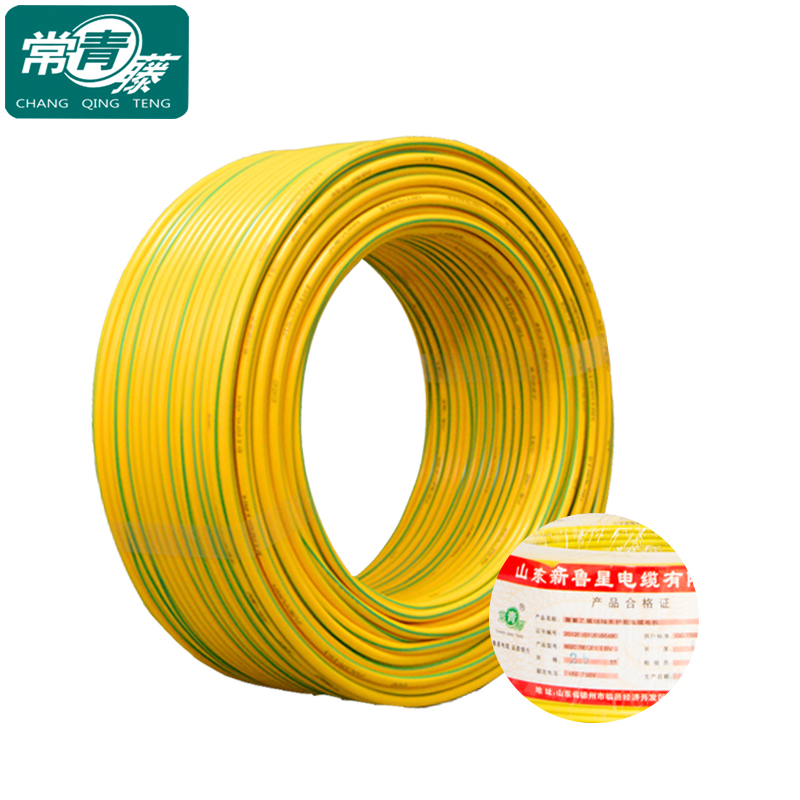

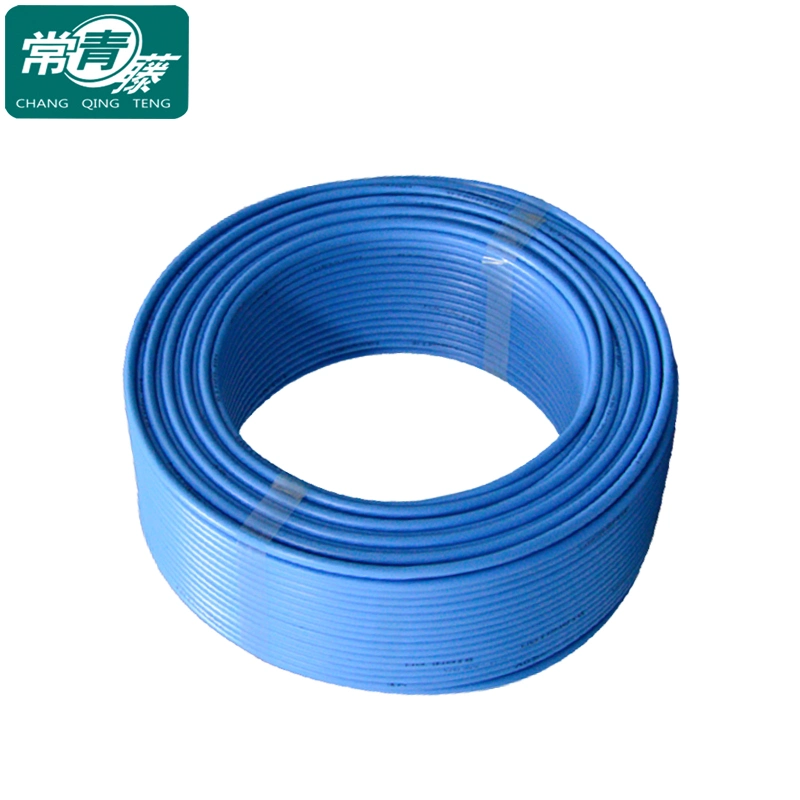

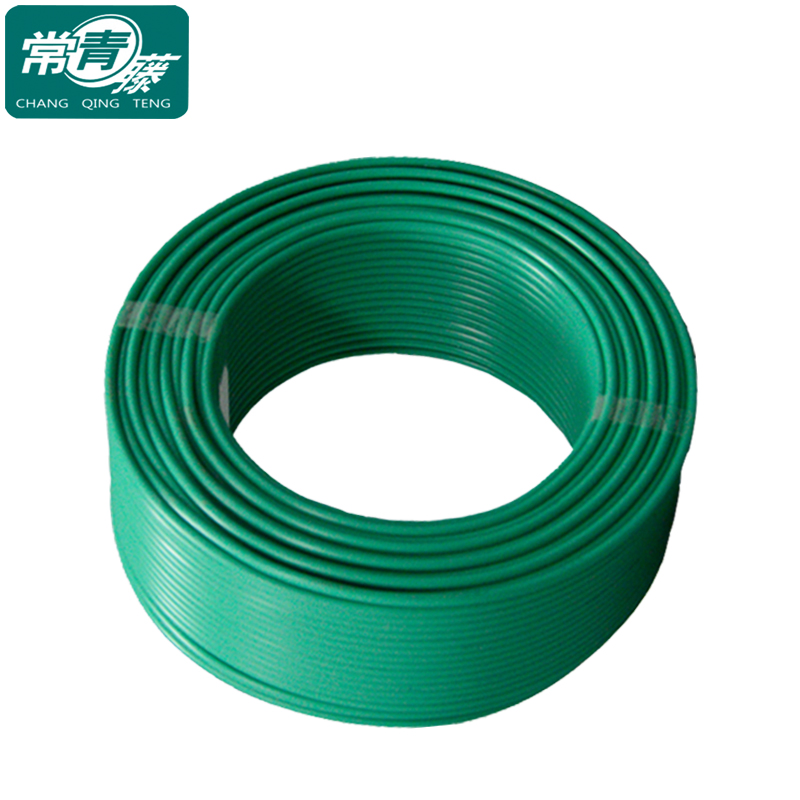

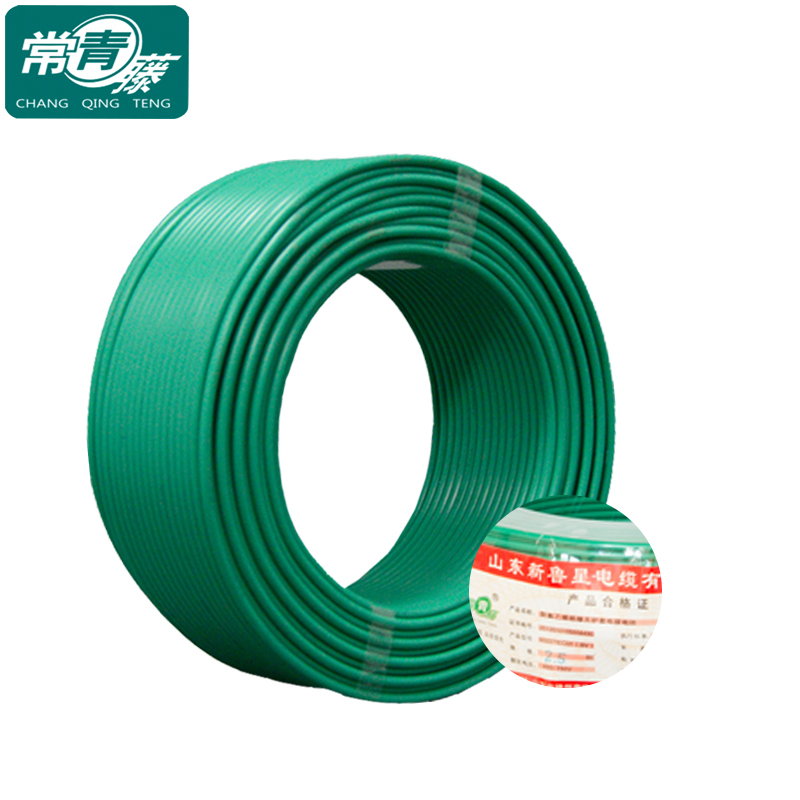

Products Show
Exhibition:
Certificates
Packaging & Shipping

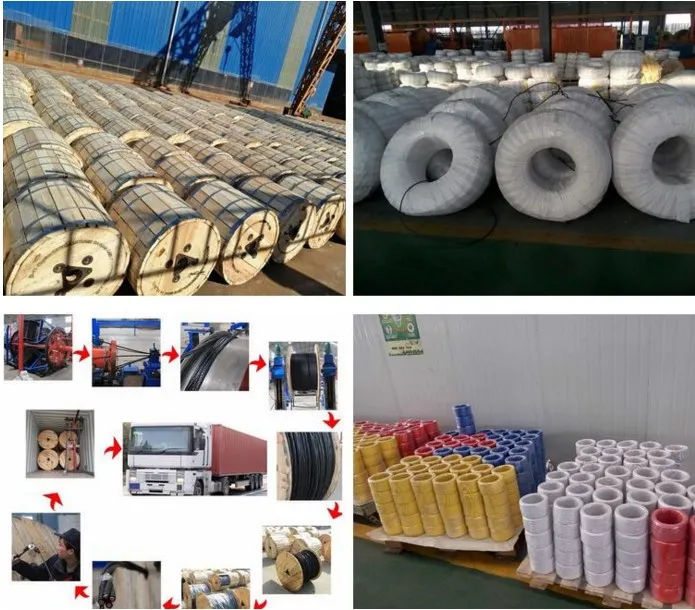

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.The packing material is depended on the weight and size of cable.The good information, manufacture information, and the client's information is firmly printed on each size of drum.
After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.
The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
Shipping Terms | DHL, UPS,FEDEX, TNT, or designated forwarder. |
Payment Terms | T/T, Western Union, or PayPal |
Freight cost | Prepay with goods payment or pay by collected. |
Packaging | Packed in bulk or as request |
Carton Measure | 49*33*23.5cm, 33*30*15cm, 30*30*18cm |
