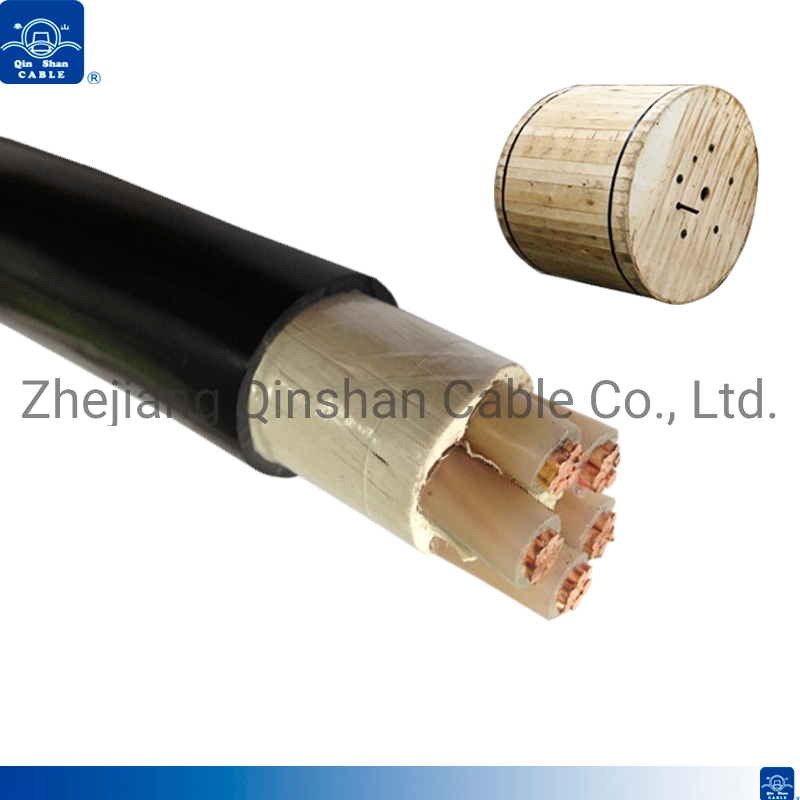

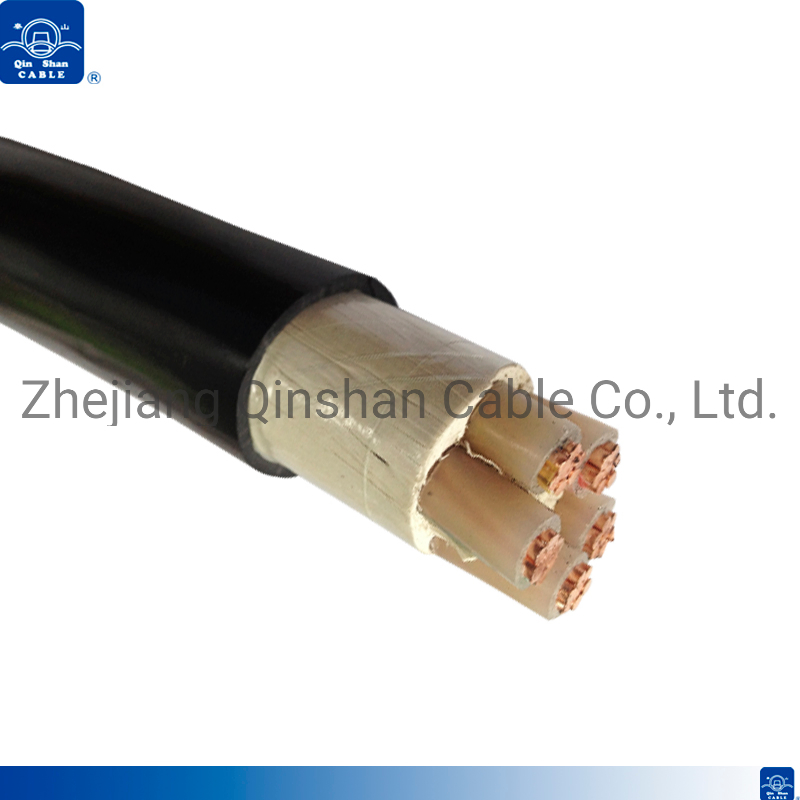

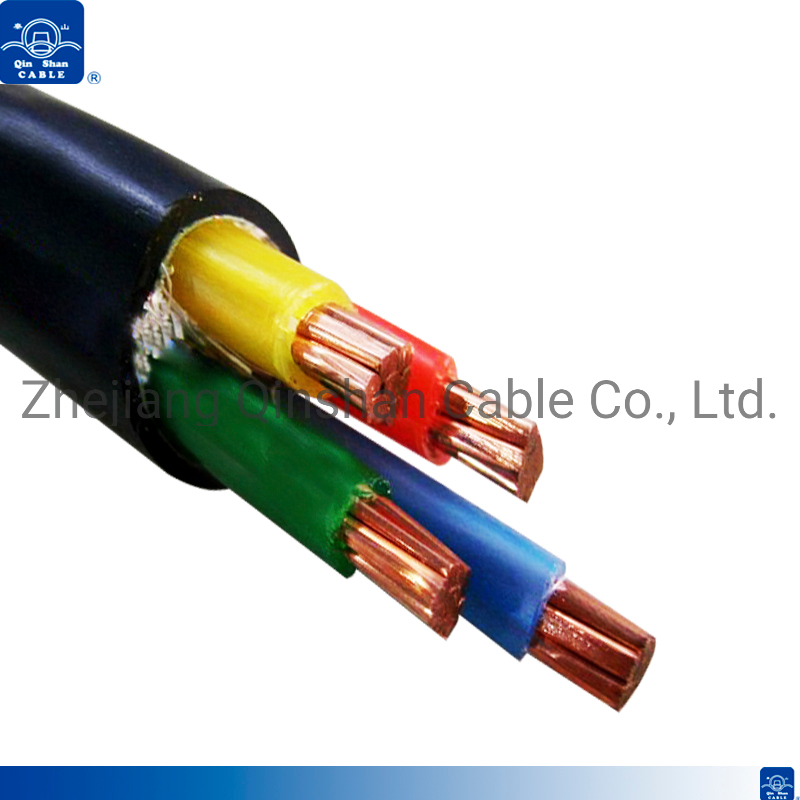

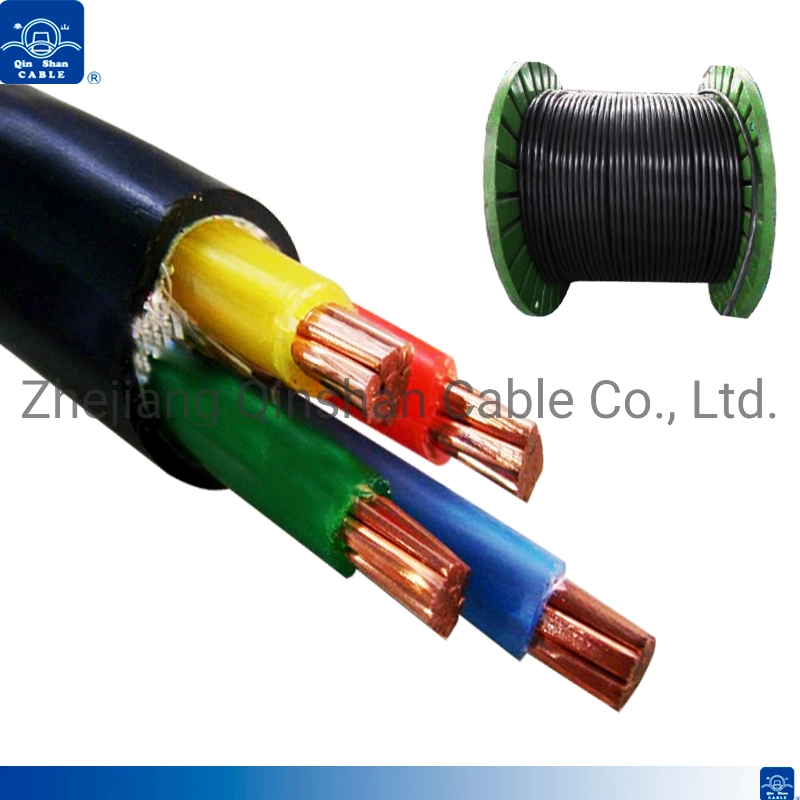

Low Voltage 5X16mm2 XLPE Power Electric Cable with ISO9001 Certificate
Low voltage 5x16mm2 XLPE power electric cable with ISO9001 certificateConstruction :Conductor: Solid & stranded copper wire class1&2 acc.to IEC60228 Solid & stranded Aluminium wireInsulation:XLPE Compound Filler: PVC Compound Sheath:PVC Compound Sheath Color:Wh......
Send Inquiry
Product Description
Low voltage 5x16mm2 XLPE power electric cable with ISO9001 certificate
Construction :
Standard:IEC 60502-1 / VDE 0276 /NT88-22
Fixed installed: -30ºC up to 70ºC
At short circuit of max.5s up to 160ºC
Nominal Voltage : 600/1000V
Min inner bending radius:
Single coe:15D
Multi core:12D
Behaviour in fire:
Flame retardant cable acc.to IEC60332-1
Application:
XLPE power cable for static outdoor application (with protection against direct UV-irradiation), in ground, in water, within facilities, in cable canals, in concrete, in conditions where heavier mechanical loads and specially tensile strains, are not expected. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and in other electric plants, same as for connection of signalling devices in industry, traffic and similar.
Technical Parameters:
Contact Details :
Zhejiang Qinshan Cable Co.,LTD
-------------------------------------------------------------------------------------
Contact Person : Mr .Roy (Foreign Trade Sales Director)
Contact By : Mobile :+86-18658163419
Construction :
- Conductor: Solid & stranded copper wire class1&2 acc.to IEC60228
- Insulation:XLPE Compound
- Filler: PVC Compound
- Sheath:PVC Compound
- Sheath Color:White ,Black,Grey
Standard:IEC 60502-1 / VDE 0276 /NT88-22
Fixed installed: -30ºC up to 70ºC
At short circuit of max.5s up to 160ºC
Nominal Voltage : 600/1000V
Min inner bending radius:
Single coe:15D
Multi core:12D
Behaviour in fire:
Flame retardant cable acc.to IEC60332-1
Application:
XLPE power cable for static outdoor application (with protection against direct UV-irradiation), in ground, in water, within facilities, in cable canals, in concrete, in conditions where heavier mechanical loads and specially tensile strains, are not expected. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and in other electric plants, same as for connection of signalling devices in industry, traffic and similar.
Technical Parameters:
| No.of cores x Nominal section area | Nominal Construction of conductor | Nominal Insulation thickness | Nominal Sheath thickness | Nominal Overall diameter | Nominal Cable weight | Max.Resistance of conductor at 20ºC |
| No.X mm² | No.X mm | mm | mm | mm | kg/km | <=(Ω/km) |
| Four core XPLE Power Cables CU/XLPE/PVC( AL/XLPE/PVC ) | ||||||
| 4x1.5 | 2x 1.38 | 0,7 | 1,8 | 12.1 | 150 | 12,10 |
| 4x2.5 | 7 x 0,67 | 0,7 | 1,8 | 13.2 | 200 | 7,41 |
| 4x4.0 | 7 x 0,85 | 0,7 | 1,8 | 14.9 | 275 | 4,61 |
| 4x6.0 | 7 x 1,04 | 0,7 | 1,8 | 16.1 | 370 | 3,08 |
| 4x10 | 7 x 1,35 | 0,7 | 1,8 | 18.6 | 560 | 1,83 |
| 4x16 | 7 x 1,70 | 0,7 | 1,8 | 20.2 | 795 | 1,150 |
| 4x25 | 7 x 2,14 | 0,9 | 1,8 | 21.8 | 1130 | 0,727 |
| 4x35 | 7 x 2,52 | 0,9 | 1,8 | 24.1 | 1515 | 0,524 |
| 4x50 | 19 x 1,78 | 1,0 | 1,9 | 27.5 | 2010 | 0,387 |
| 4x70 | 19 x 2,14 | 1,1 | 2,0 | 31.7 | 2860 | 0,268 |
| 4x95 | 19 x 2,52 | 1,1 | 2,1 | 35.4 | 3870 | 0,193 |
| 4x120 | 37 x 2,03 | 1,2 | 2,3 | 39.2 | 4850 | 0,153 |
| 4x150 | 37 x 2,25 | 1,4 | 2,4 | 43.8 | 5980 | 0,124 |
| 4x185 | 37 x 2,52 | 1,6 | 2,6 | 48.7 | 7480 | 0,0991 |
| 4x240 | 61 x 2,25 | 1,7 | 2,8 | 54.4 | 9735 | 0,0754 |
| 4x300 | 61 x 2,52 | 1,8 | 3,0 | 59.9 | 12120 | 0,0601 |
