Shenzhen Hanxin 19 Years Fiber Optic Cables ODM Manufactory Supply Outdoor Armored GYXTW Marine Multicore LSZH Cable
Shenzhen Hanxin 19 years fiber optic cables ODM manufactory supply outdoor armored GYXTW marine multicore lszh cableWe are 20 years fiber optic cable manufacturer.Welcome to go to the factory tour!Send message to us can get free samples. Product Description The fibers, 250μm, are positioned ......
Send Inquiry
Product Description
Shenzhen Hanxin 19 years fiber optic cables ODM manufactory supply outdoor armored GYXTW marine multicore lszh cable
We are 20 years fiber optic cable manufacturer.
Welcome to go to the factory tour!
Send message to us can get free samples.

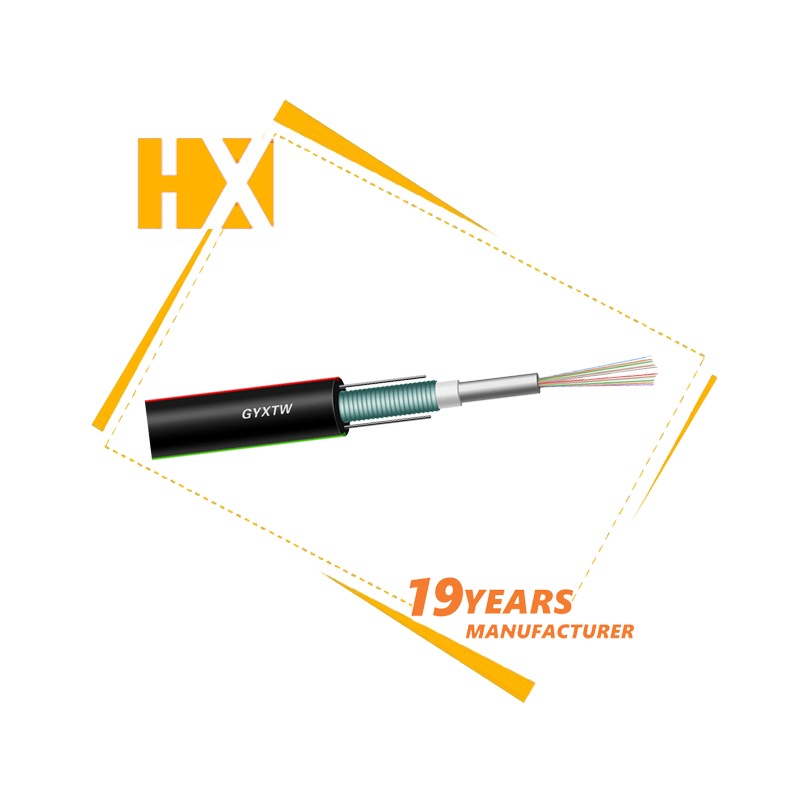

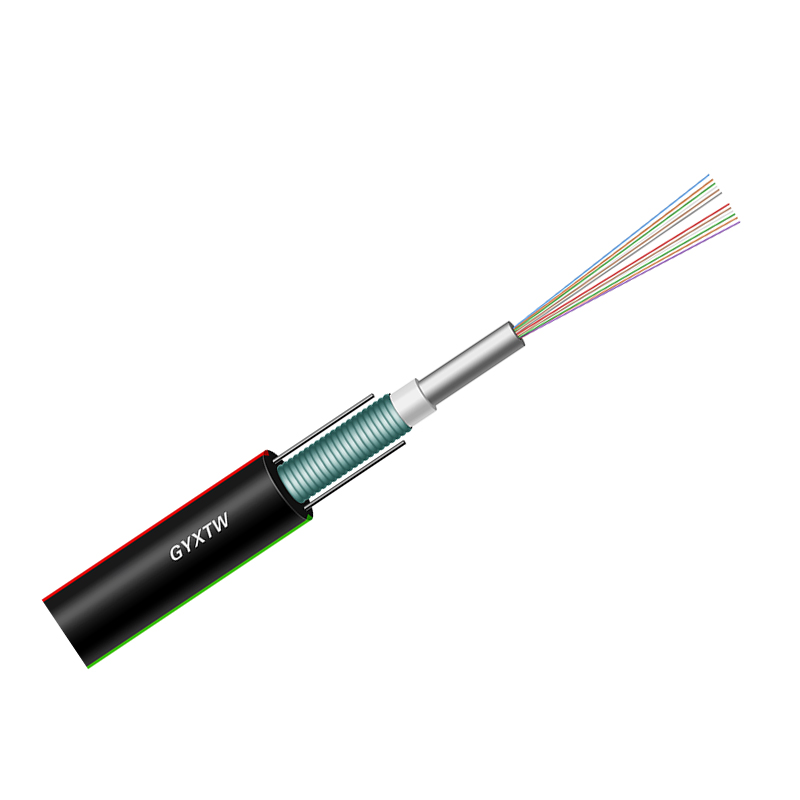

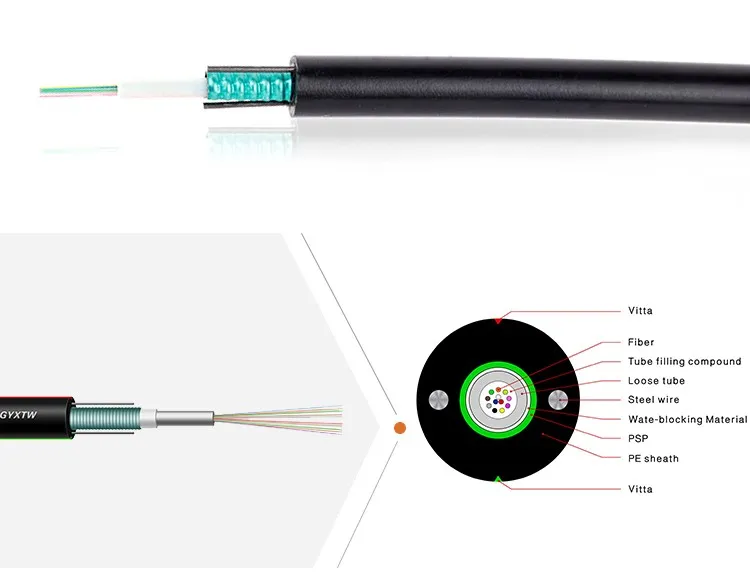

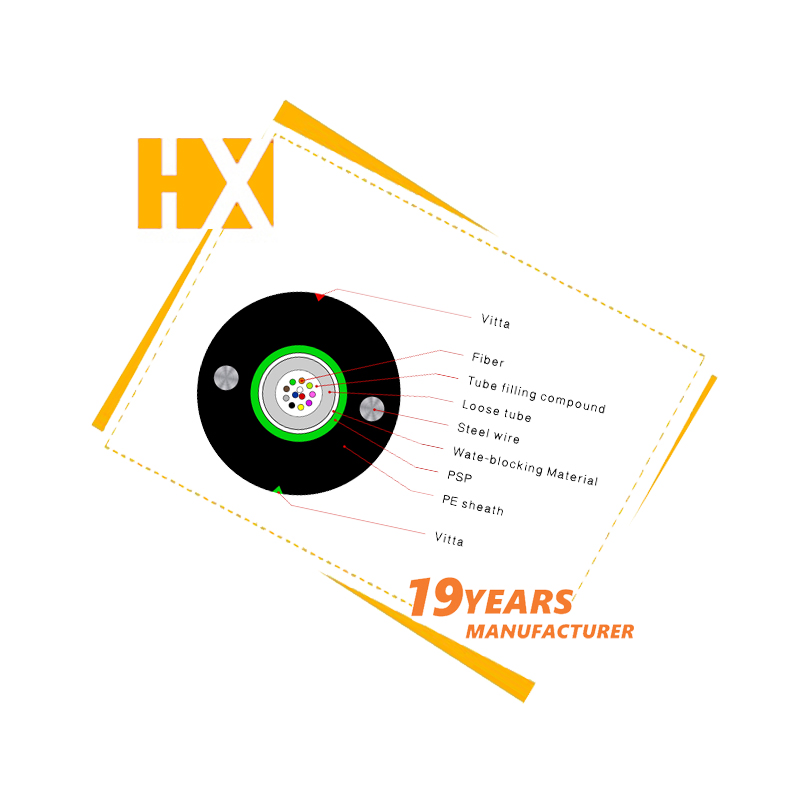

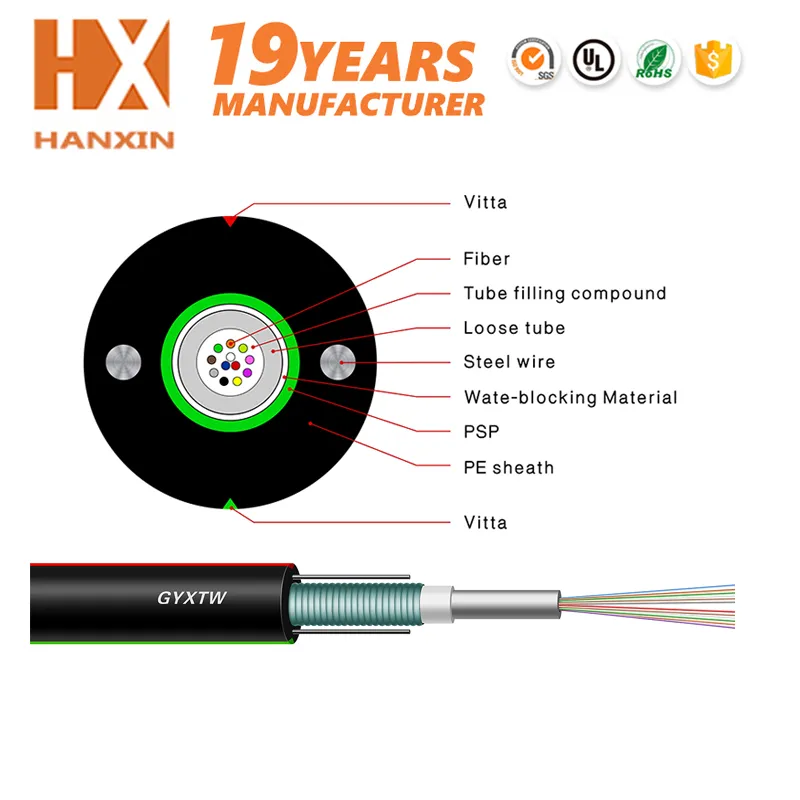

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound.
The tube is wrapped with a layer of corrugated steel tape longitudinally. Between the corrugated
steel tape and the loose tube water-blocking material is applied to keep the cable compact
and watertight. Two parallel steel wires are placed at the two sides of the steel tape.
The cable is completed with PE sheath.
Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· Two parallel steel wires ensure tensile strength
· Small diameter, light weight and friendly installation
| Model Number | GYXTW |
| Type | Coaxial |
| Number of Conductors | 2 |
| Certification | UL ,ROHS,SGS |
| Fiber | SM/MM/OM3/OM4 |
| Fiber Core | 2-24 core |
| Jacket Material | PE /LSZH/PU |
| Laying method | Pipeline/Overhead/Direct bury/Duct |
| keywords | outdoor fiber optic cable |
| Color | Black or customized |
| Fiber brand | Corning, LS, etc |
| Fire Resistant | Yes |
| Armored or not | Corrugated steel tape armored |
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation (+20) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | |||
Standards:
GYXTW cable complies with Standard YD/T 769-2003.
Storage/Operating Temperature: -40°C to + 70°C
Technical Parameters
Cable Type | Fiber Count | Cable Diameter(mm) | Cable Weight kg/km | Tensile Strength Long /Short Term N | Crush Resistance Long/Short Term N /100mm | Bending Radius Static /Dynamic mm |
| GYXTW-2~24 | 2~24 | 8.8 | 90 | 600/1500 | 300/1000 | 15D/30D |
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 19 years' history.
2.What is your fiber brand ?
HANXIN,MECABLE,NECERO, etc
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001, SGS, UL, RoHs.
6.What is your delivery time?
Usually within 2-3 working days

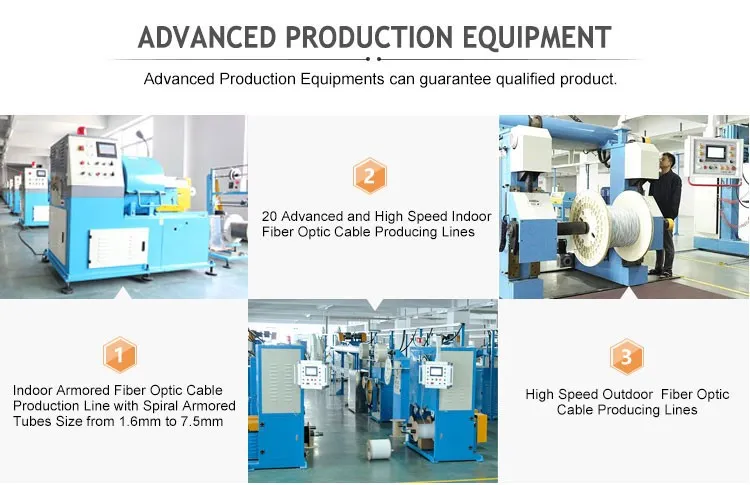

7.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
