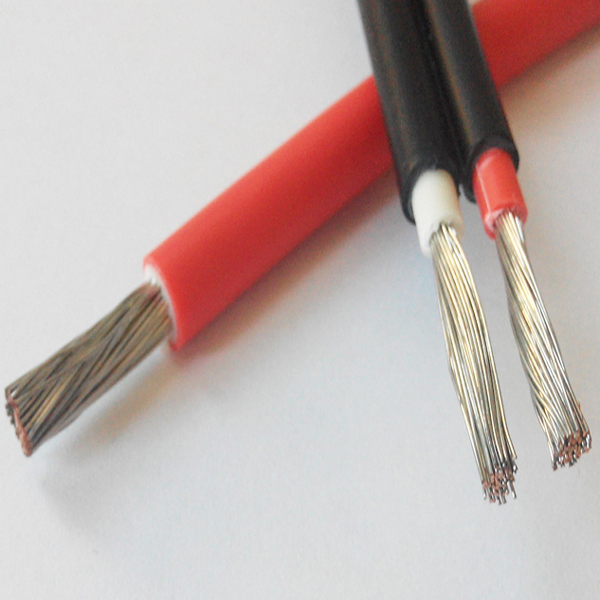

China TUV Certificate Single Core Solar Cables PV1-F PV Cable

Product Description

High Quality TUV Certificaiton Solar Cable
Our Export
kindly note that our solar cable have exported to Germany, America,Canada ,Franch with TUV certification

Solar Cable Information

Item	Performance	Parameter
1	conductor	tinned copper wire
2	insulation	XLPO
3	jacket	XLPO
4	color	black, red, blue...
5	rated voltage	AC: 0.6/1kv; DC:1.8kv
6	working temperature	-40ºC~+90ºC
7	projected lifetime	25years
8	certification	TUV
9	features	Low smoke zero halogen, excellent properties of cold-resistant, UV-resistance, ozone-proof and weather-proof. Flame retardant, resistance to cut marks and penetration.

Single Core Solar Cables Main type specification

Please note that we can make as your requirements

Type	Sectional area (mm2)	Conductor		Insulation		Jacket		Weight(kg/km)
Type	Sectional area (mm2)	No./dia	dia	mm	Dia	mm	Dia	Weight(kg/km)
PV1-F	1.5	30/0.25	1.60	0.75	3.10	0.80	4.70	37.4
PV1-F	2.5	49/0.25	2.10	0.75	4.10	0.80	5.20	64.6
PV1-F	4	52/0.3	2.60	0.75	4.10	0.80	5.70	64.6
PV1-F	6	78/0.3	3.20	0.75	4.70	0.80	6.30	85.6
PV1-F	10	84/0.4	4.70	0.75	6.20	0.80	7.80	142.1
PV1-F	16	126/0.4	5.80	0.75	7.30	0.80	8.90	197.7
PV1-F	25	196/0.4	7.60	0.75	9.10	0.80	8.90	197.7

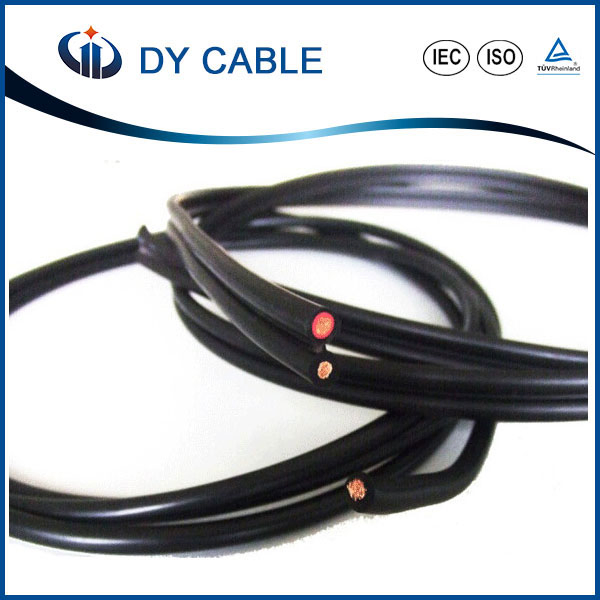

Double Core Solar Cables Main type specification

Type	Sectional area (mm2)	Conductor		Insulation		Jacket		Weight(kg/km)
Type	Sectional area (mm2)	No./Dia	Outer dia	Thickness	Dia	Thickness	Dia	Weight(kg/km)
PV1-F/Round	2x1.5	30/0.25	1.60	0.75	3.10	1.00	8.20	98.6
PV1-F/Round	2x2.5	49/0.25	2.10	0.75	3.60	1.00	9.20	131.2
PV1-F/Round	2x4	52/0.3	2.60	0.75	4.10	1.00	10.20	171.0
PV1-F/Round	2x6	78/03	3.20	0.75	4.70	1.00	11.40	225.8
PV1-F/Flat	2x1.5	30/0.25	1.60	0.75	3.10	0.80	4.7x9.5	76.2
PV1-F/Flat	2x2.5	49/0.25	2.10	0.75	3.60	0.80	5.2x10.5	100.4
PV1-F/Flat	2x4	52/0.3	2.60	0.75	4.10	0.80	5.7x11.5	130.7
PV1-F/Flar	2x6	78/0.3	3.20	0.75	4.70	0.80	6.3x12.7	172.7

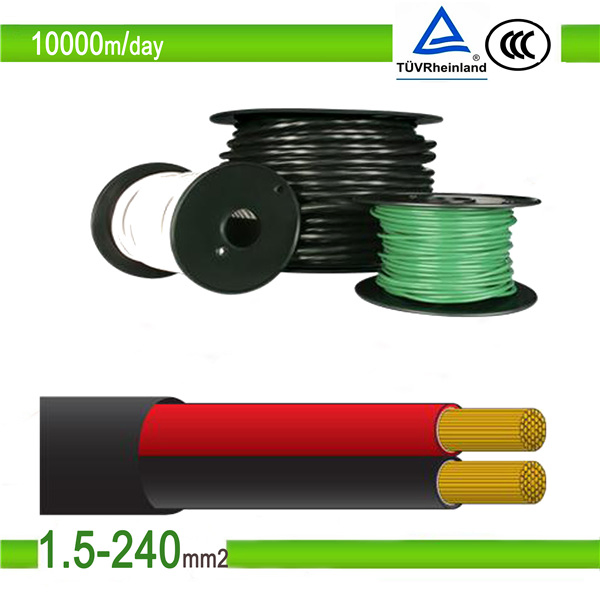

About Package

simple roll, plastic drum/reel, wooden pallet/box, cartons or customized as your requirement

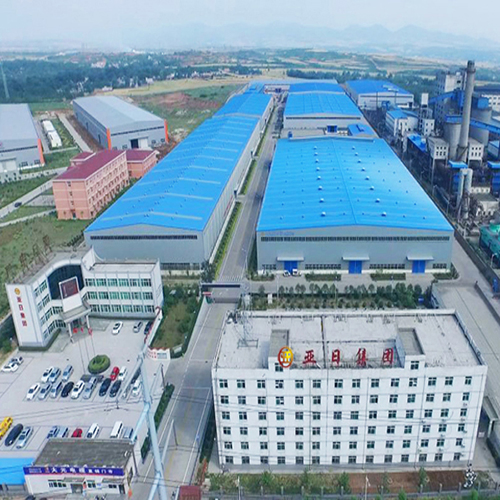

About Asian Sun Group(Dayuan Cable)

1: Group with seven sub-companies

2: Factory about 200,081 square meters;

3: 800 staffs and 40 engineers, 11 production lines;

4: production capacity: 100,000m/day.

Our Products
Mainly Electric Cables & Wires, 300 Varieties, 2000Kinds Specifications

No	Products Name
1	electrical wires, power cables, control cables
2	solar cables
3	aerial cables
4	all aluminum conductor(AAC)
5	aluminum conductor steel reinforced wire(ACSR)
6	all aluminum alloy conductor(AAAC)

Our service
1)  Inquiries are answered within 12 hours and OEM is welcome.

2)  11 production lines, experienced QC to control the quality of kinds of cables.

3)  CCC Certificated, and can provide CE, RoHS and SGS certificates before exporting.

4)  Grown from a small factory with annual turnover of $50,000,to over$50,000,000 during 10years.\

5)  Ship your order immediately after contracted. We ship worldwide.

6)  800 staffs and 40 engineers, we all glad to provide you best service.

Welcome You Visit Our Factory!

Please Contact Us

Zach Sun

Department sale manager
International Trade Department
Luoyang Asian Sun Industrial Group Co., Ltd
=================================
Tel: +86-379-69991587
Mobile: + 86-18336783860
Web: http://dycable.en.made-in-china.com
Alibaba Showroom: http://dycable.en.made-in-china.com
=================================
