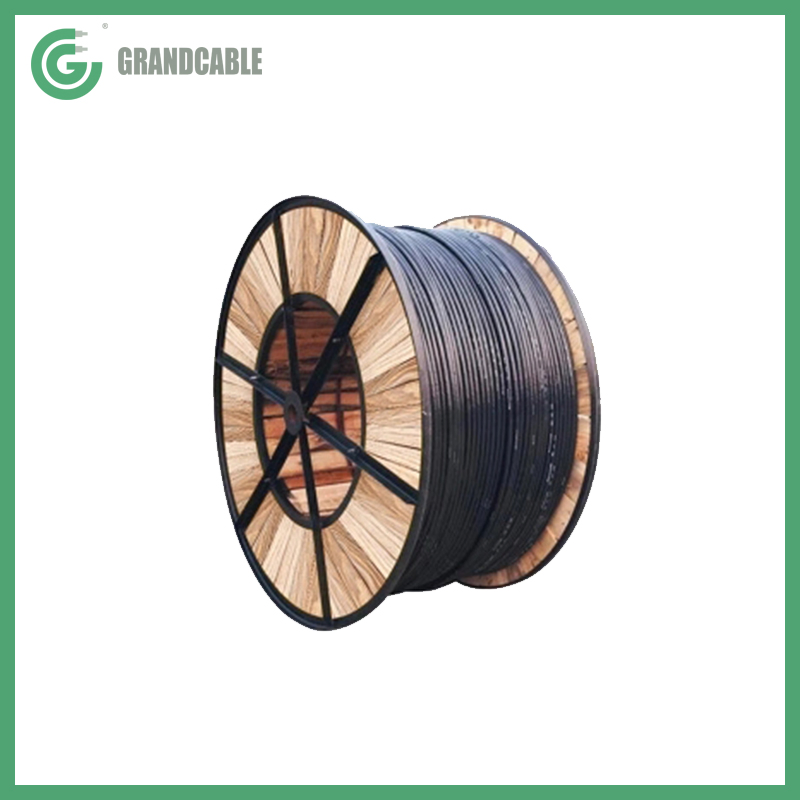

U- 1000 R2V 5X2.5mm2 XLPE Insulated UV-PVC Sheathed 0.6/1kV LV Power Cable electrique
ApplicationThese U-1000 R2V cables with XLPE insulation and PVC outer sheath can be used in all low voltage power installations. Multiconductors cables are adapted to remote control and telecontrol installations.It could be installed outside without protection (UV resistance, AN3 according to NF C 1......
Send Inquiry
Product Description
These U-1000 R2V cables with XLPE insulation and PVC outer sheath can be used in all low voltage power installations. Multiconductors cables are adapted to remote control and telecontrol installations.It could be installed outside without protection (UV resistance, AN3 according to NF C 15-100)
Installation
These cables can be fixed on cable trays, within conduits or fixed to walls, installed outside. They also can be buried directly with extra mechanical protection.
Standards
International IEC 60502-1
National XP C 32-321
Characteristics
| Construction Characteristics | |
| Conductor Material | Bare copper |
| Insulation | XLPE |
| Outer sheath | PVC |
| Lead free | Yes |
| Electrical Characteristics | |
| Rated Voltage Uo/U (Um) | 0.6/ 1 (1.2) kV |
| Usage characteristics | |
| Operating temperature, range | -25 .. 60 °C |
| Flame retardant | C2, NF C 32-070 |
| Water proof | Intermittent |
| Chemical resistance | Accidental |
| U.V resistance | AN3 |
Dimension Characteristics
Four Cores
| Cross section | Voltage drop, 3 conductors | Max. outer diam. | Perm. current rating open air | Perm. current rating burried | Approx. weight |
| mm2 | V/A.km | mm | A | A | kg/km |
| 1.5 | 21.5 | 13.0 | 22 | 26 | 200 |
| 2.5 | 13.2 | 14.5 | 30 | 36 | 275 |
| 4 | 8.2 | 16.0 | 40 | 46 | 365 |
| 6 | 5.5 | 17.5 | 52 | 58 | 490 |
| 10 | 3.3 | 20.0 | 71 | 79 | 725 |
| 16 | 2.1 | 23.0 | 96 | 100 | 1060 |
| 25 | 1.37 | 28.0 | 127 | 141 | 1610 |
| 35 | 1.0 | 30.5 | 157 | 174 | 2210 |
| 50 | 0.76 | 34.0 | 190 | 204 | 2930 |
| 70 | 0.54 | 43.0 | 242 | 252 | 4150 |
| 95 | 0.15 | 47.0 | 293 | 302 | 5540 |

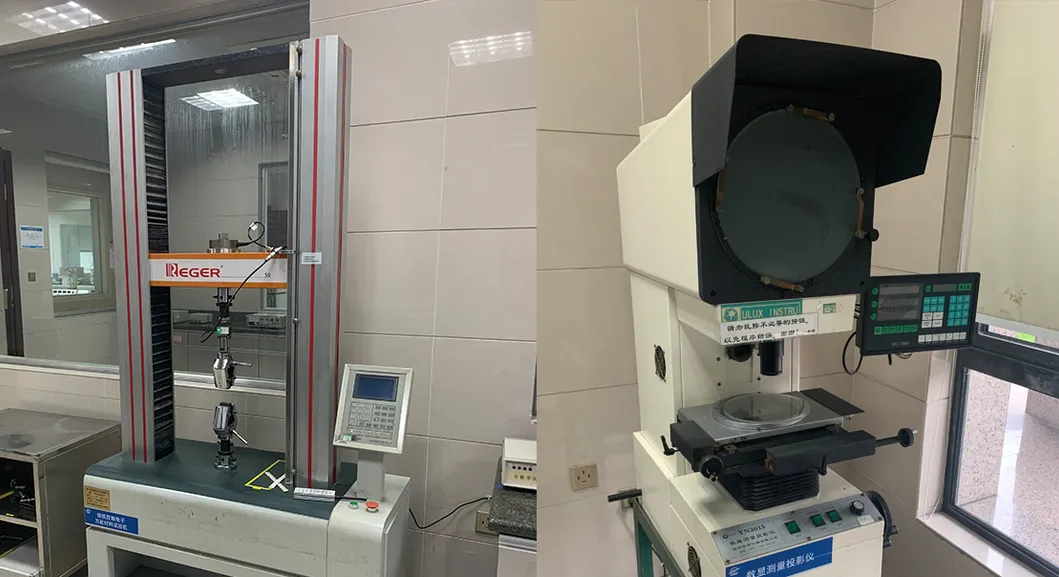

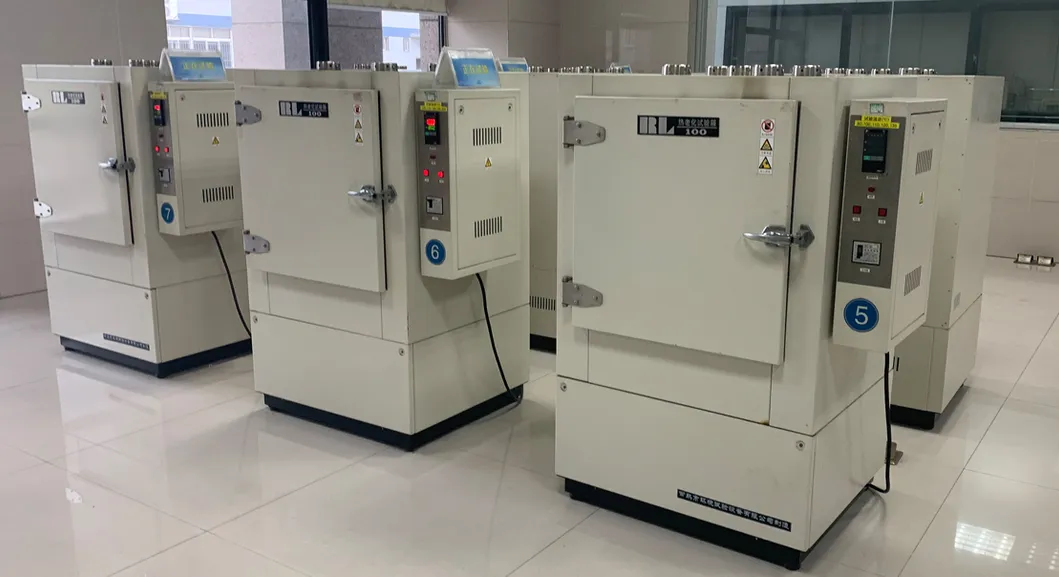

Testing Facilities:

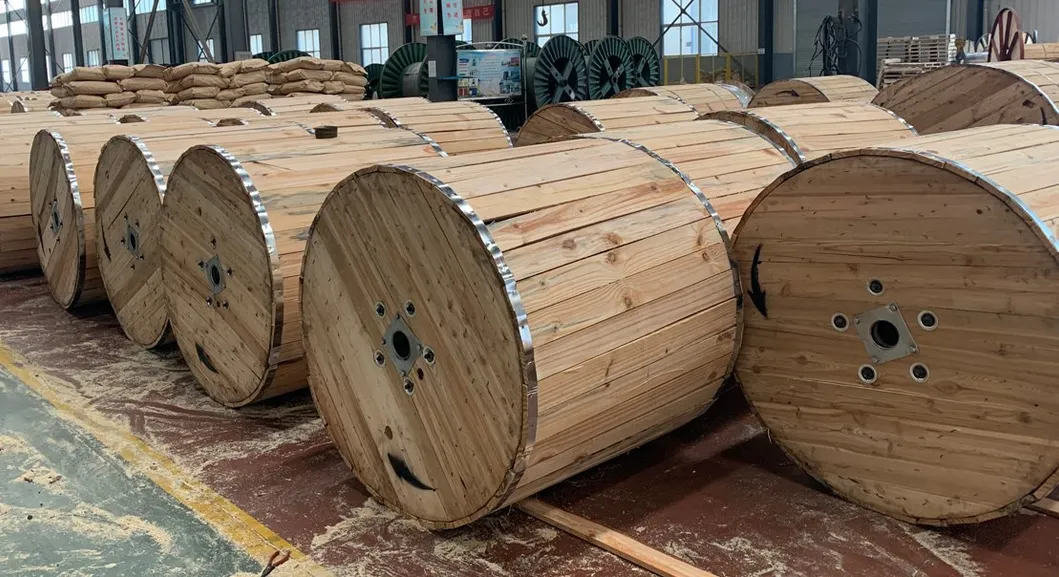

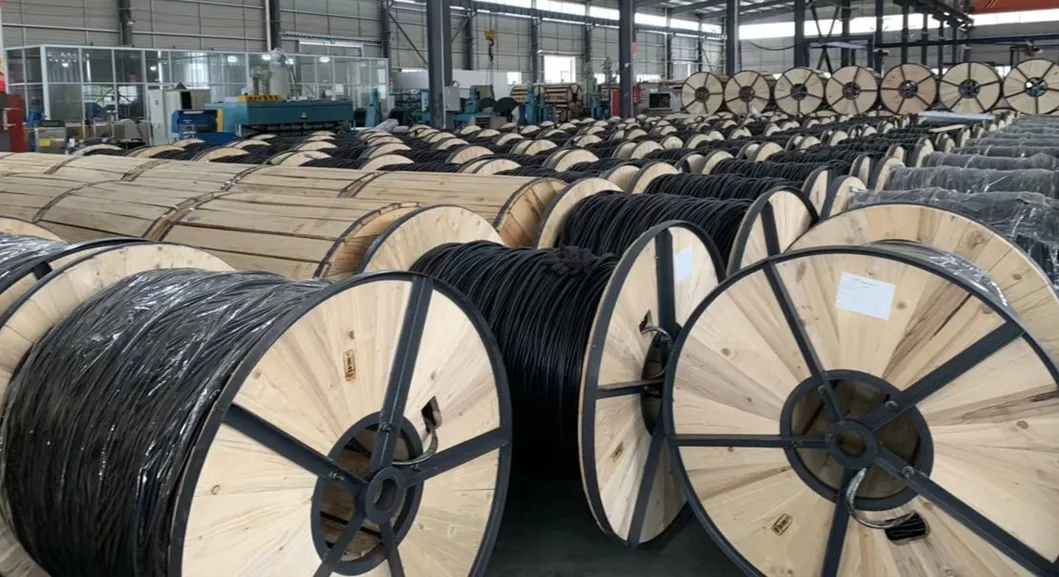

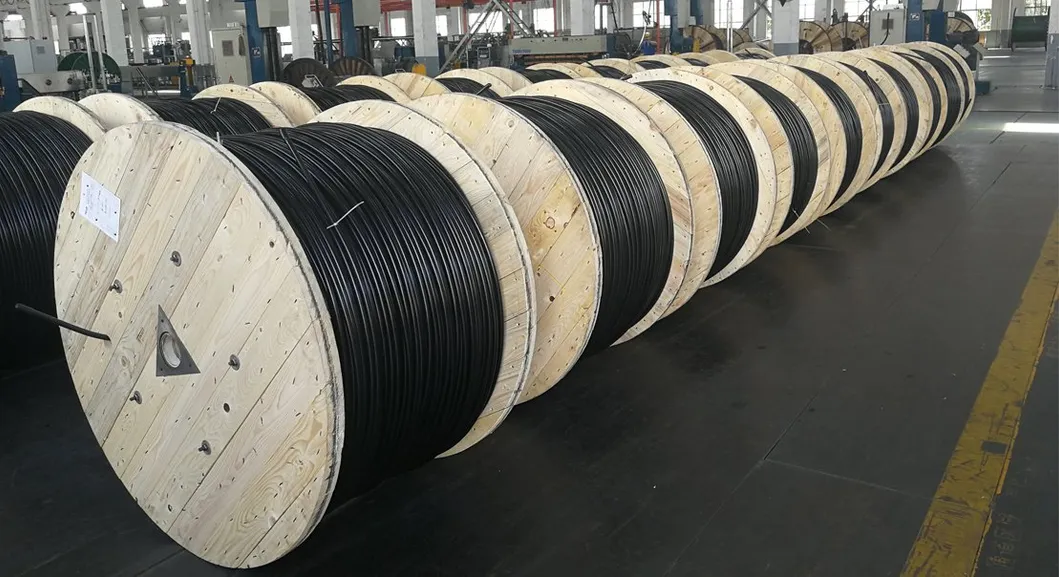

Packaing Photos:

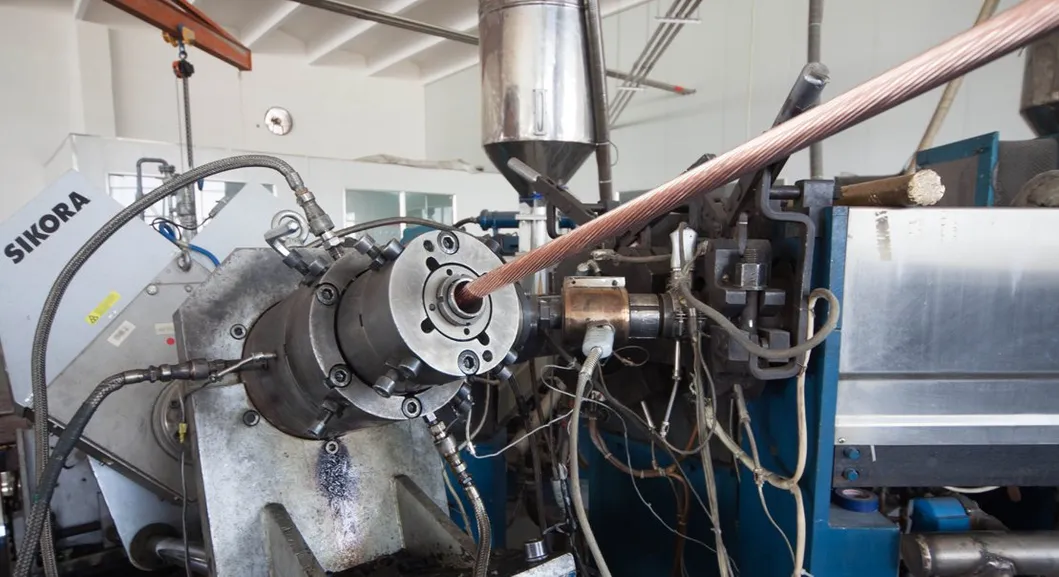

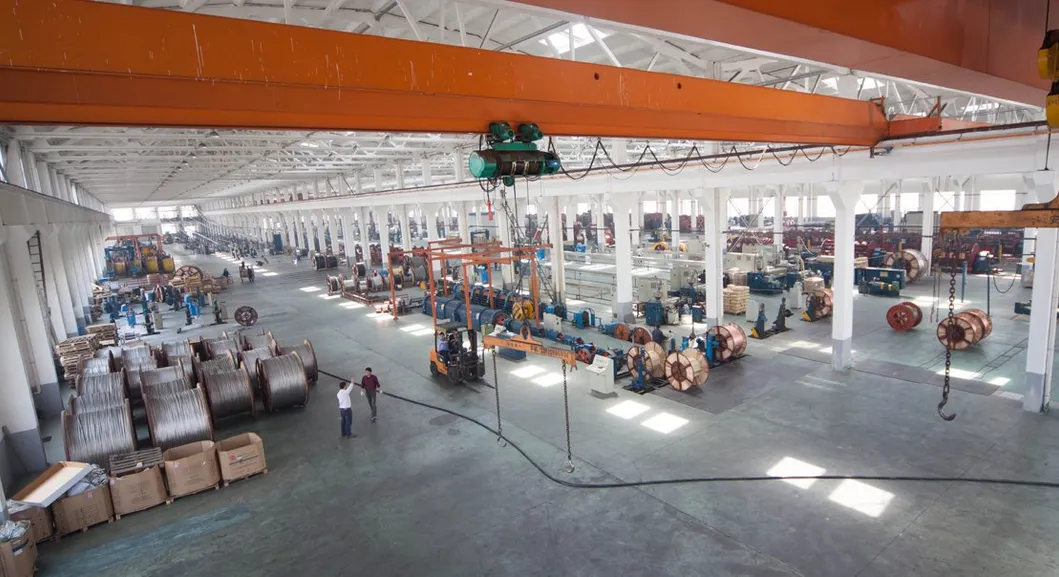

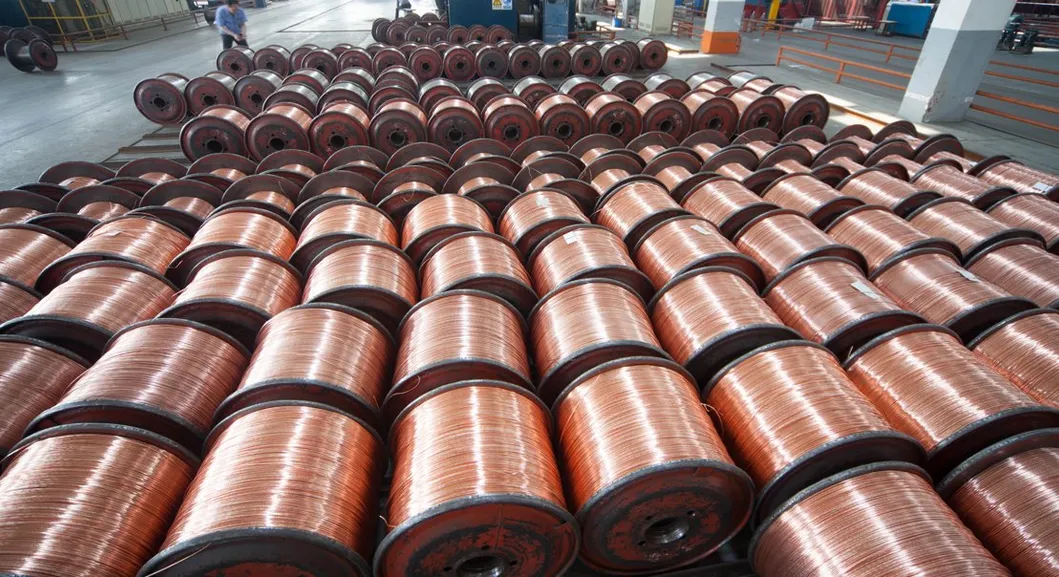

Workshop Views:
About us:
Jiangsu Grand Cable Co., Ltd. was founded in 2002 with a registered capital of 308.88 million CNY(equivalent to 44.13 million USD). The company is located at Section B, Guanlin Industrial ConcentratedArea, Yixing, Wuxi City, Jiangsu 214251, P.R. China, covering an area of 130,000 squaremeters .It owns total assets of 100 million CNY and more than 500 staff members. The annualproduction capacity reaches 2.5 billion CNY .It is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises of Jiangsu Province, the Private Technology Enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System,ISO14001 Environment Management System Certificate and OHSAS 18001 Occupational Health and Safety Management System Certificate.With more than 300 sets of first-class domestic and imported manufacture and test equipment,Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables(LV/MV/EHV), Special Cables.
FAQ:
Q: How long does it take get my inquiry replied?
A: Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you in 1-3 days. It depends on the technical parameters and requirements of the cable. We will give you a reasonable and accurate quote.
Q: Can I get samples before placing the order?
A: You will get a sample for free if we have the storage of that cable.
Q: What's the MOQ of your product?
A: The MOQ of our most product is 1000 meters. But if there's any exceptional situation, we can make some negotiations.
Fore More Information, Please do feel free to contact us!
