China UL 1072 15kv 4/0AWG 100% Insulation Tr-XLPE Insulation Urd Cable

Product Description

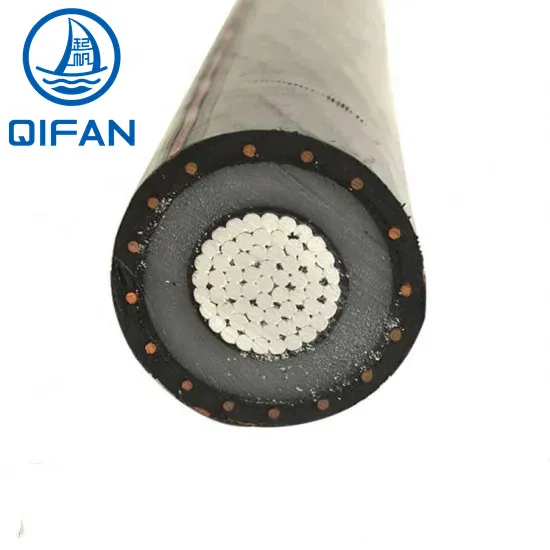

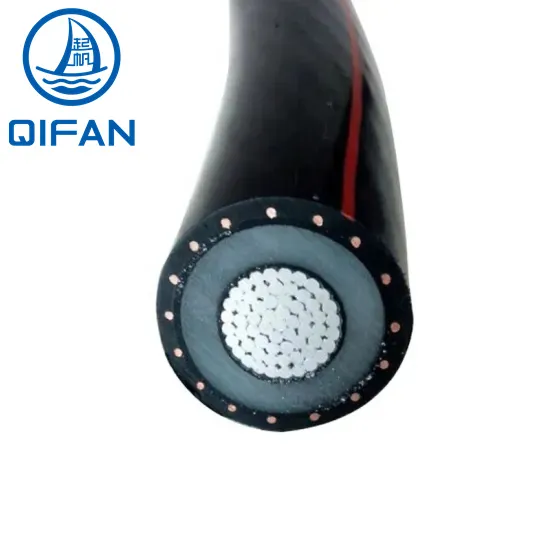

UL 1072 standard 133% 100 % insulation TR-XLPE insulation PVC sheath URD cable

APPLICATIONS

URD - TRXLPE XLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight, To be used at 15kV upto 35kV at conductor temperatures not to exceed 90 deg. C for normal operation.

SPECIFICATIONS

TRXLPE XLPE insulated URD cables meets or exceeds all applicable requirements of thefollowing standards, and guaranteed all cables manufactured and tested under this standards.

- ANSIIICEA S94-649

- AEIC CS-8

- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231

CONSTRUCTION

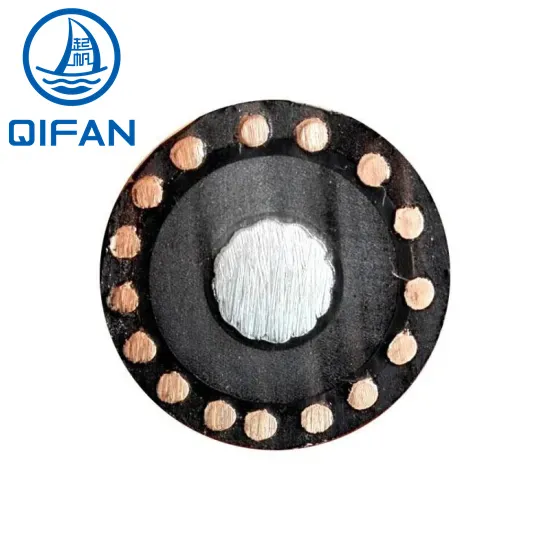

Conductor : Bare aluminium or copper, stranded class B compressed stranding

Conductor Shield :Extruded semi-conducting compound

Insulation : TRXLP (TreeRetardant XLPE) or XLPE

Insulation Shield : Extruded semi-conducting compound

Concentric Neutral : Uncoated copper concentric neutral wires (coated copper are optional)

Encapsulated Jacket : Non-conducting LLDPE embedded jacket with extruded red stripes.

PVC or Semi-conducting jacket are available upon request

MAXIMUM CONDUCTOR TEMPERATURE

Normal continuous at 90 ºC, Overload at 130 ºC and Short circuit at 250 ºC

FEATURES & BENEFITS, OPTIONS

- Triple extruded construction by dry curing process guarantees excellent quality of cables

- TRXLPE insulation offers proven superior life span than conventional XLPE cables

- Triplex type is optional, it brings you saving installation cost

- Strand-filled conductor & Water-blocking jacket is available upon request

15kV 133% IL Data sheet:

Condctor		Copper Neutral (1/3)		diameter(inch)						Weight (Pounds)
AWG orMCM	Stranding	Number of Wires	Size AWG (Solid)	Conductor	Over	Over Insul.	Over Neutral	Over	Conductor	Concentric	Total No	Total With Jacket
AWG orMCM	Stranding	Number of Wires	Size AWG (Solid)	Conductor	Insulation	Shield	Wires	Jkt.	Conductor	Neutral	Jacket	Total With Jacket
1/0	19 wire	9	14	0.37	1.12	1.23	1.35	1.46	325.8	119.2	659	4926
2/0	19 wire	11	14	0.42	1.17	1.27	1.40	1.50	410.9	146.3	775	808
3/0	19 wire	14	14	0.47	1.22	1.32	1.48	1.59	518.1	185.9	900	923
4/0	19 wire	11	12	0.53	1.28	1.38	1.54	1.71	653.3	228.0	1110	1055
250	37 wire	13	12	0.57	1.33	1.44	1.64	1.81	771.9	282.1	1330	1292
350	37 wire	12	10	0.68	1.44	1.54	1.70	1.89	1081	398.0	1633	1519
500	37 wire	17	10	0.81	1.57	1.72	1.88	2.04	1544	543.5	2002	1886
750	61 wire	25	10	0.99	1.76	1.93	2.11	2.28	2316	801.5	2650	2289
1000	61 wire	33	10	1.14	1.92	2.06	2.27	2.43	3088	1058	3847	2960
