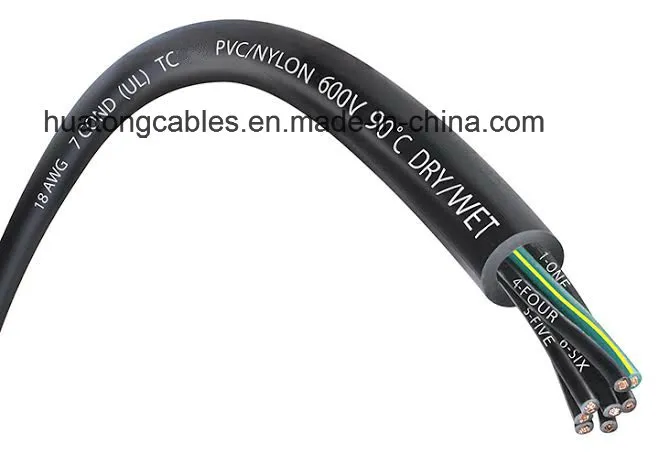

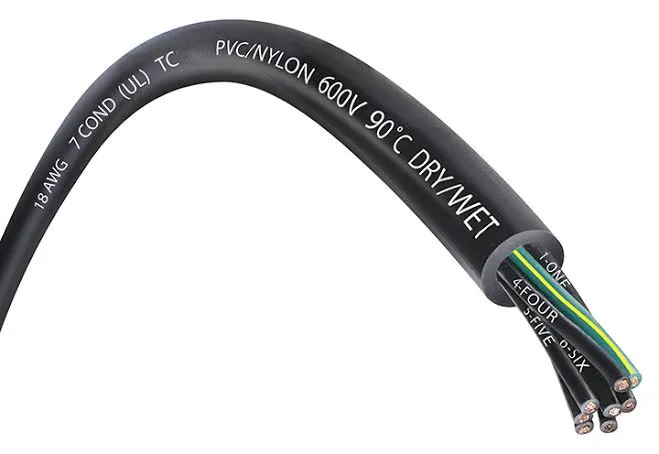

UL Listed UL 1277 Power and Control Tray Cable/Tc Cable

XHHW Tray Cable (XLP/PVC)
-40°C to 90°C Control Cable
Type XHHW-2 Conductors

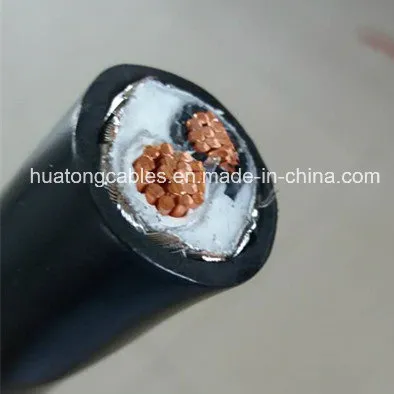

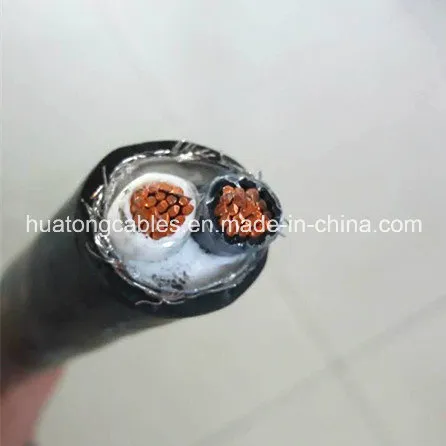

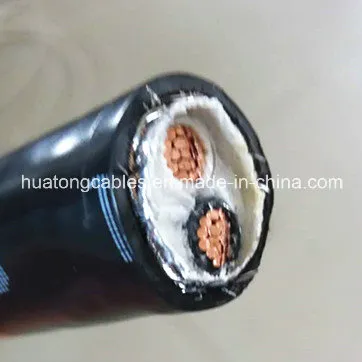

XHHW Tray Cable (XLP/PVC) Construction:

Conductor: 18 AWG - 2 AWG Class B Stranded Bare Copper (per ASTM B-3 and B-8)
Insulation: Flame-Retardant Cross-Linked Polyethylene (XLP)
Jacket: Black sunlight and moisture resistant Polyvinyl Chloride (PVC)
Shield: 100% coverage, aluminum/polyester foil shield or copper tape


XHHW Tray Cable (XLP/PVC) Features:

Rated 90°C wet or dry
Sunlight and weather resistant
Excellent abrasion and chemical resistance
Oil resistant I jacket


XHHW Tray Cable (XLP/PVC) Applications:

Constructions of 3 or more conductors are permitted by NEC for TC-ER (exposed run)
Approved for Class I Division 2 hazardous locations
Designed for use in conduit, cable tray or direct burial
Ideal for use in control, power lighting and telemetering applications where a heat and electrically stable insulation is required


XHHW Tray Cable (XLP/PVC) Approvals:

UL 1277 Type TC, UL 1685 and UL 44 XHHW-2 rated
ICEA S-95-658 (NEMA WC70)
Passes FT4 Test

1.22 years production experience and 13 years export experience .

2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc

3. OEM service available based on official & legal authorization.

4.Strict quality control system.

5.Rapid delivery and feedback  Faster lead time than our competitors.

6.Excellent quality with reasonable price.

7. Strong technical support (technical data, drawing, etc.)

8.Professional teamwork service for you actively.

9.Stock available, Free sample is available.
