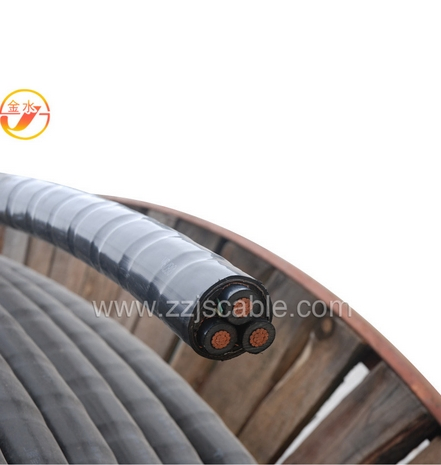

0.6/1kv Overhead Insulated Triplex Aerial Cable 2X2AWG+ 1X2AWG

    0.6/1KV Overhead Insulated Triplex Aerial Cable 2x2AWG+1X2AWG

Applications of triplex aerial cable

Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service

for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed

75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.

Specification of triplex aerial cable

service drop cable meets or exceeds the following ASTM specifications:

· B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.

· B-231 Aluminum Conductors, Concentric-Lay-Stranded.

· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).

· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.

· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire

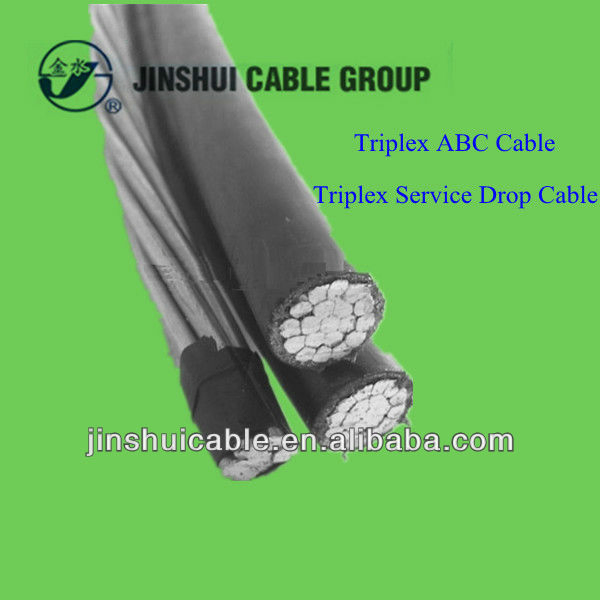

Construction of triplex aerial cable

Conductors are concentrically stranded, compressed 1350 H-19 aluminum. Insulated with either polyethylene or

crosslinked polyethylene (XLP). Neutral messengers are concentrically stranded 6201, AAC, or ACSR.

Teachnical Data

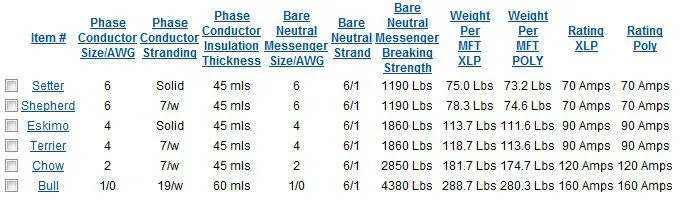

Duplex service drop cable with ACSR Neutral Conductor

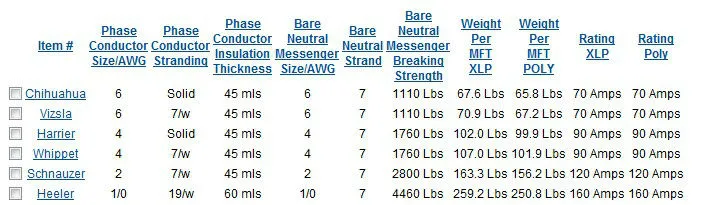

  Duplex service drop cable with AAAC Neutral Conductor

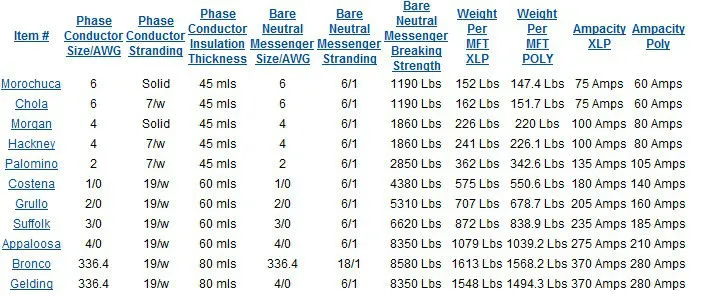

Triplex service drop cable with ACSR Neutral Conductor

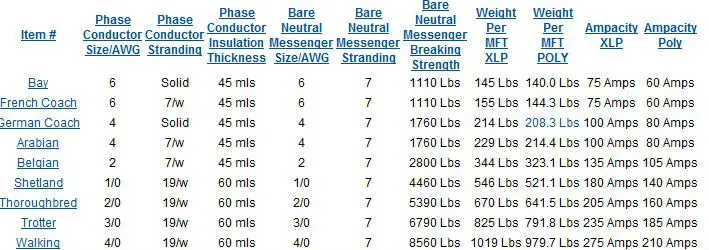

Triplex service drop cable with AAAC Neutral Conductor

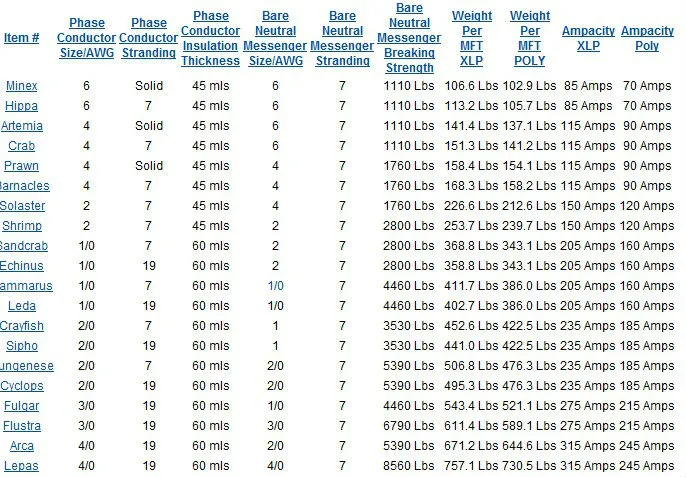

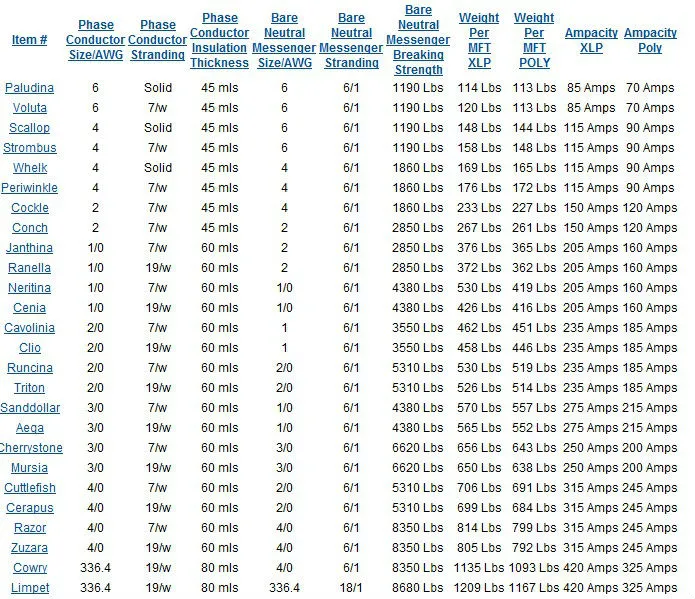

Quadruplex service drop cable with ACSR Neutral Conductor

Quadruplex service drop cable with AAAC Neutral Conductor
