Arc-Welding Cable, Welding Machine Cable, Flexible Cu/Epr, 600 V (ICEA S-75-381/NEMA WC 58/CAN/CSA C22.2 No. 96/UL 1581 )

Product Description

Arc-Welding Cable, Welding Machine Cable, Flexible CU/EPR, 600 V (ICEA S-75-381/NEMA WC 58/CAN/CSA C22.2 No. 96/UL 1581)
Applications
These cables are designed for use as flexible welding leads connecting the electrode holder to the welding machine in the secondary circuit of electric arc welding systems.

Standards
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96
UL 1581

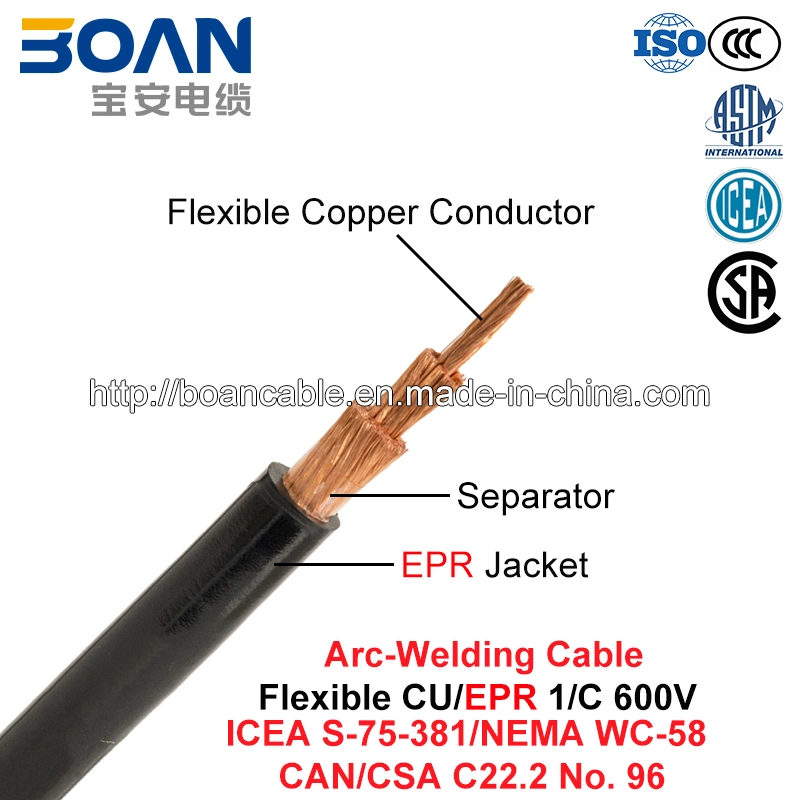

Construction
Conductors: Class K/M stranded annealed copper conductor.
Jacket: Heavy-duty/medium-duty Ethylene Propylene Rubber (EPR).

Options
Other jacket materials such as NR/CSP/PCP/NBR/PVC are available upon request.
Heavy-duty, two-layer jacket with reinforcement between the two layers can be offered as an option.

Mechanical and Thermal Properties
Minimum Bending Radius: 6×OD
Maximum Conductor Operating Temperature: +90ºC

Constructon	No. of Strands	Nominal Insulaton Thickness	Nominal Overall Diameter	Nominal Weight	Ampacity
No. of cores×AWG/kcmil	-	inch	inch	lbs/kf	A
1×6	259	0.060	0.37	124	125
1×4	420	0.060	0.42	180	182
1×2	665	0.060	0.49	268	271
1×1	836	0.080	0.53	319	360
1×1/0	1045	0.080	0.59	415	444
1×2/0	1330	0.080	0.64	508	535
1×3/0	1672	0.080	0.70	628	667
1×4/0	2107	0.080	0.81	775	809
1×250	2499	0.095	0.88	934	1048
1×350	3458	0.095	1.01	1267	1396
1×500	5054	0.095	1.18	1801	1973
