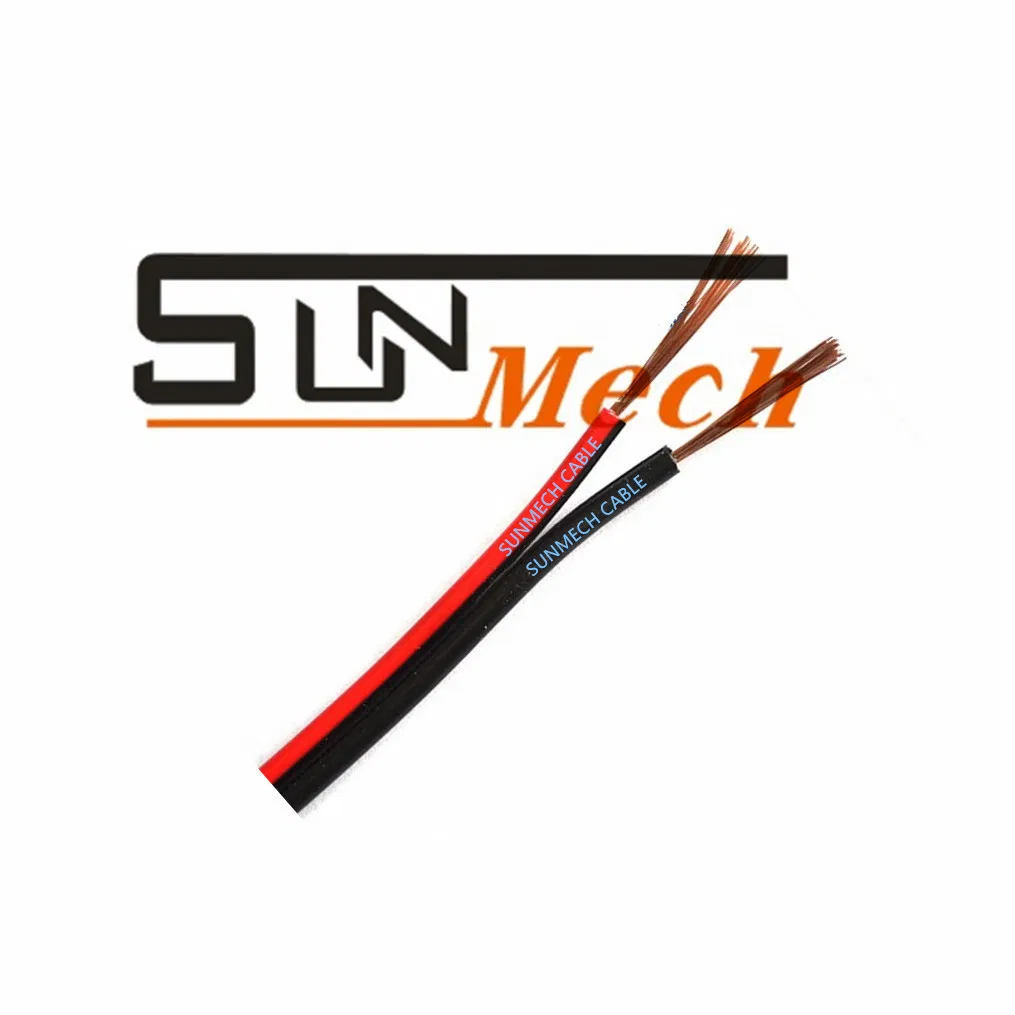

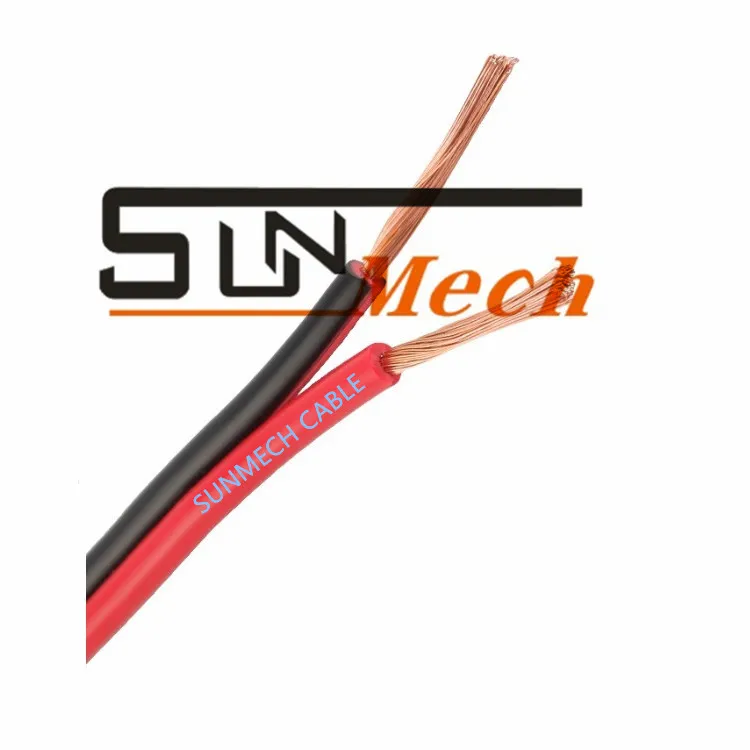

2 Core 14AWG Transparent OFC Speake Cable Speaker Wire
Terms:1.OEM is welcomed2.ISO/CE/ETL/ROHS/UL/SONCAP and other certifications are available3.Competitive price and high quality offered.4. Best service for you! Basic Info:1. Name: : Copper Speaker Cable/ Speaker Wire Speaker Cable for bus/home theater2. Structure: Conduct---pure ......
Send Inquiry
Product Description
Terms:
1.OEM is welcomed
2.ISO/CE/ETL/ROHS/UL/SONCAP and other certifications are available
3.Competitive price and high quality offered.
4. Best service for you!
Basic Info:
1. Name: : Copper Speaker Cable/ Speaker Wire
Speaker Cable for bus/home theater
2. Structure:
Conduct---pure copper/copper clad copper/copper clad aluminum
Insulation---transparent pvc/red golden/colorful/red&black
3. Size:
According to Standard/Sample/Customer's request.
4. The material of the inner conductor and outer sheath materials in accordance with customer requirements.
Speaker cable Standard Data
Model | Material | Diameter(mm) | Amount | Area | OD(mm) | Length | Color | ||
10AWG | OFC/CCA | 0.127 | 250 | 2.827 | 5.0*10 | 100M/Roll | As your required | ||
12AWG | OFC/CCA | 0.127 | 200 | 2.262 | 4.5*9 | 100M/Roll | |||
14AWG | OFC/CCA | 0.127 | 150 | 1.697 | 4.0*8 | 100M/Roll | |||
16AWG | OFC/CCA | 0.127 | 100 | 1.131 | 3.5*7 | 100M/Roll | |||
18AWG | OFC/CCA | 0.127 | 50 | 0.565 | 3.0*6 | 100M/Roll | |||
Remark | All of above Material are up to the International Standard OFC 99.998% Purity. | ||||||||

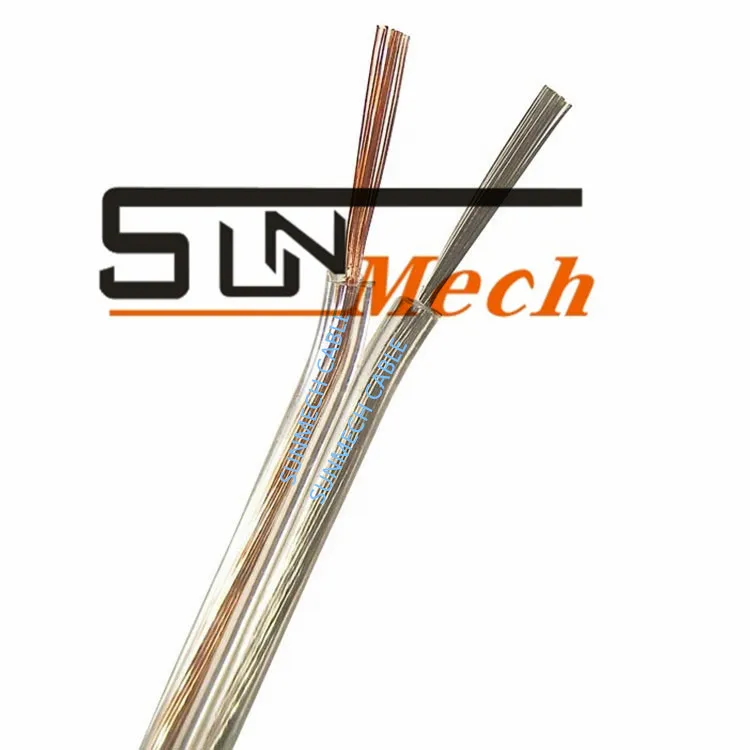

TRANSPARENT SPEAKER CABLE(BC/TC/CCA/CCS)
28AWG 2x7/0.12, OD: 1.6x3.2
26AWG 2x7/0.16, OD: 1.7x3.4
24AWG 2x11/0.16, OD: 1.8x3.6
22AWG 2x17/0.16, OD: 2.0x4.0
20AWG 2x26/0.16, OD: 2.2x4.4
Specification | Product Description |
0.35 Square | 2CX20/0.15mm O.D:2.0X4.0 PVC |
0.5 Square | 2CX28/0.15mm O.D:2.2X.4.4 PVC |
0.75 Square | 2CX42/0.15mm O.D:2.4X4.8 PVC |
1.0 Square | 2CX57/0.15mm O.D:3.0X6.0 PVC |
1.5 Square | 2CX85/0.15mm O.D:3.6X7.2 PVC |
2.5 Square | 2CX7X20/0.15mm O.D:4.2X8.4 PVC |
4.0 Square | 2CX7X32/0.15mm O.D:5.0X10.0 PVC |
6.0 Square | 2CX7X48/0.15mm O.D:5.5X11.0 PVC |
