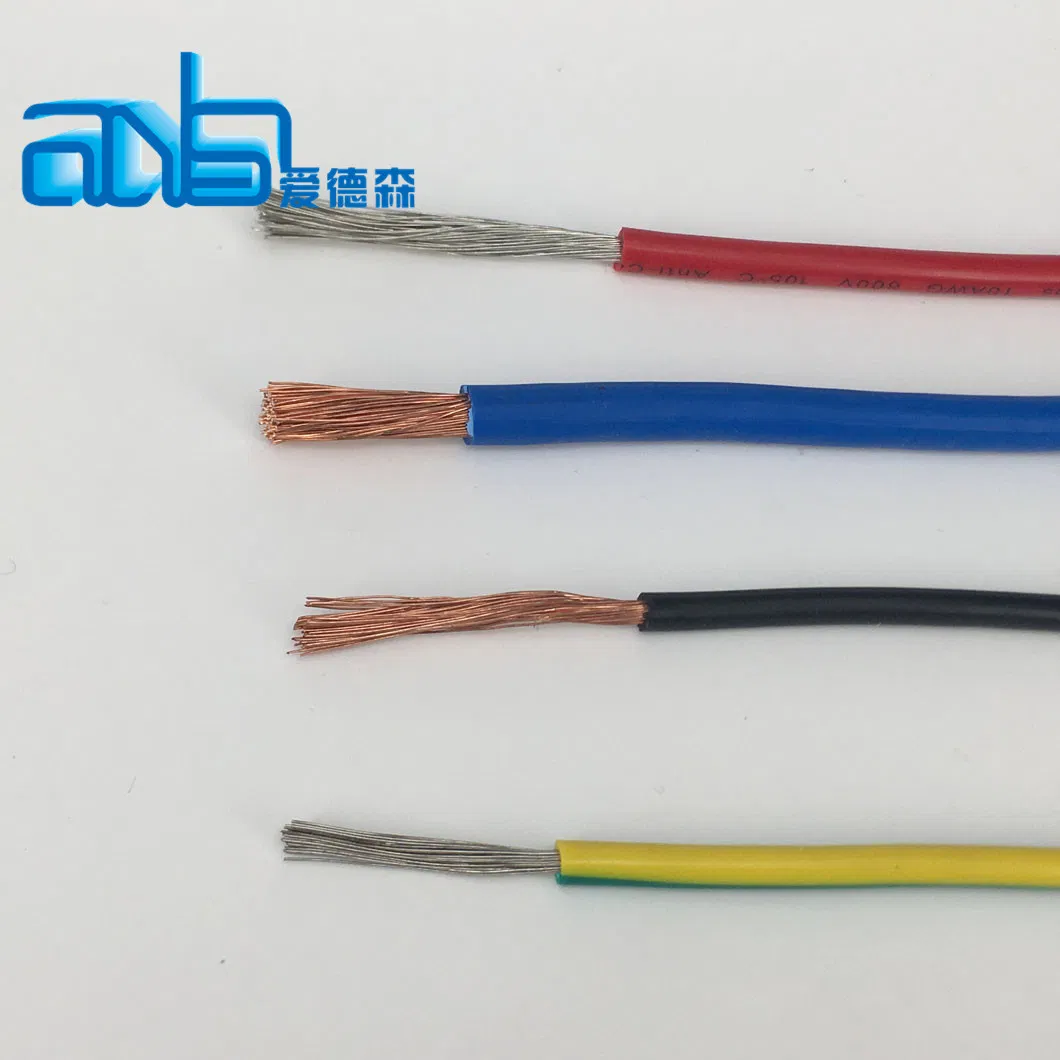

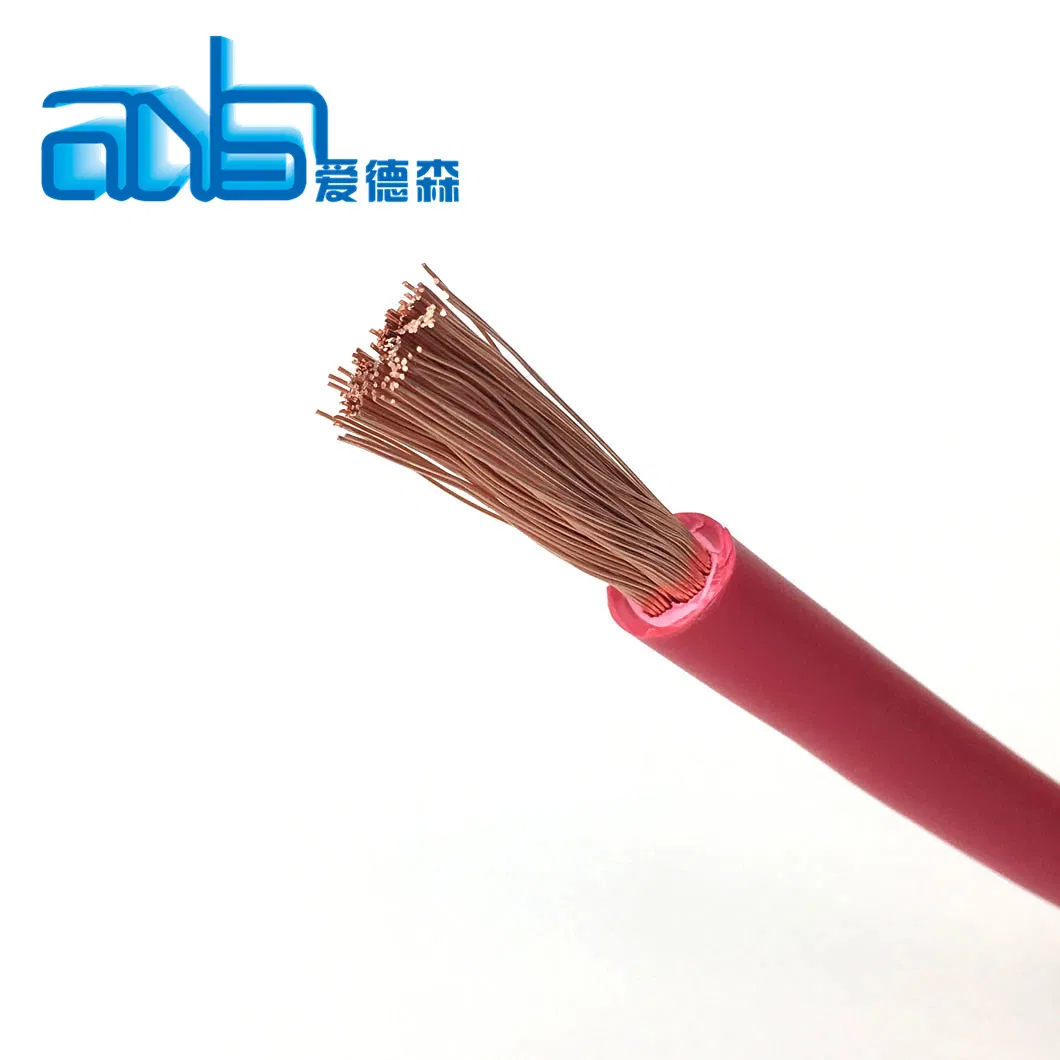

22AWG 24AWG 26AWG Stranded Cable AWG UL1571 Wire
PRODUCT DESCRIPTION ConductorSolid or stranded , tinned or bare copper conductor 50AWGMinInsulationPVC insulationRated Temperature80ºCRated voltage30VInsulationExtruded PVCJacketOptional. Same as coveringMarkingGeneral.StandardUL758,UL1581TestVW-1 Horizontal flame TestCertificateUL ROHSCo......
Send Inquiry
Product Description
PRODUCT DESCRIPTION
| Conductor | Solid or stranded , tinned or bare copper conductor 50AWGMin |
| Insulation | PVC insulation |
| Rated Temperature | 80ºC |
| Rated voltage | 30V |
| Insulation | Extruded PVC |
| Jacket | Optional. Same as covering |
| Marking | General. |
| Standard | UL758,UL1581 |
| Test | VW-1 Horizontal flame Test |
| Certificate | UL ROHS |

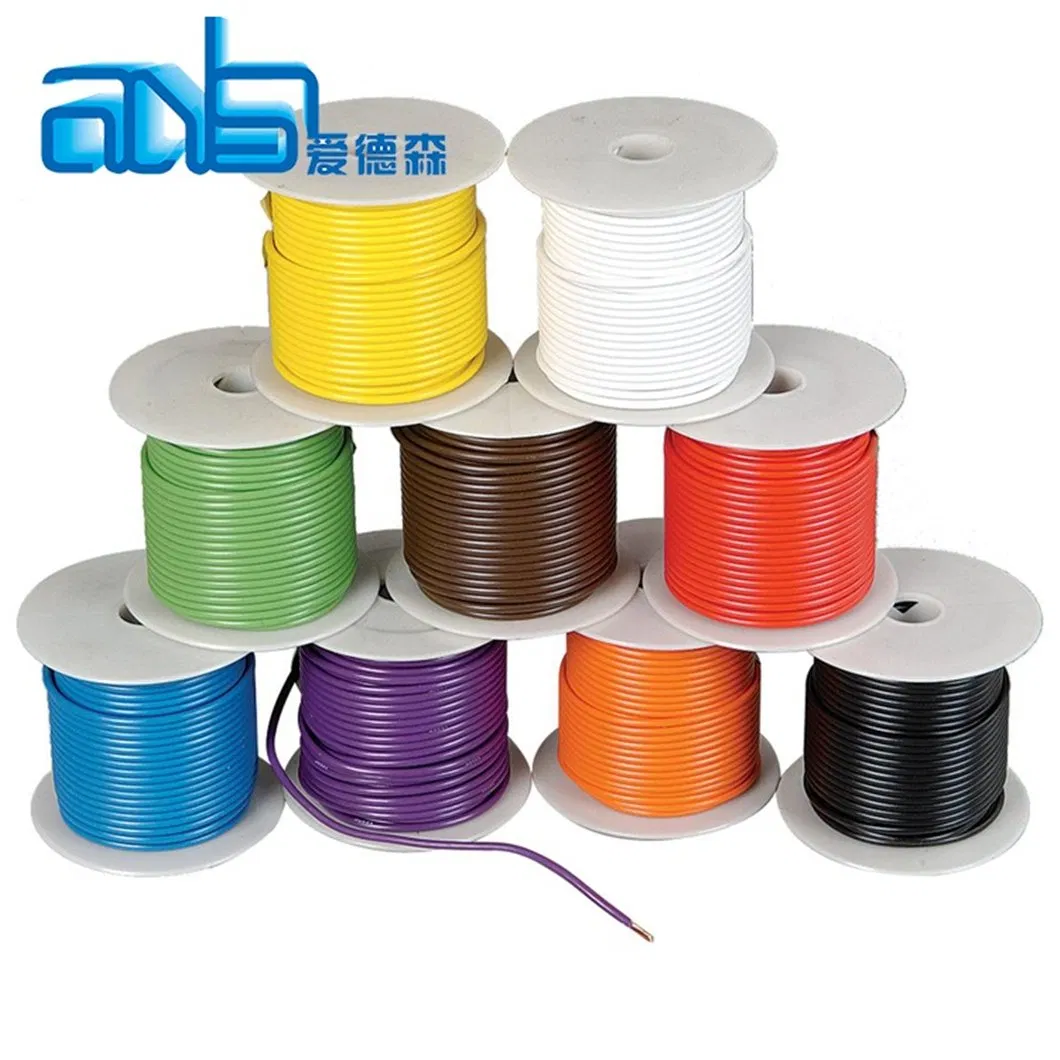

| Color | White, blue, red, black,yellow,green,yellow-green and etc. |
| Application | Internal Wiring of Class 2 Circuits in electronic equipment. |

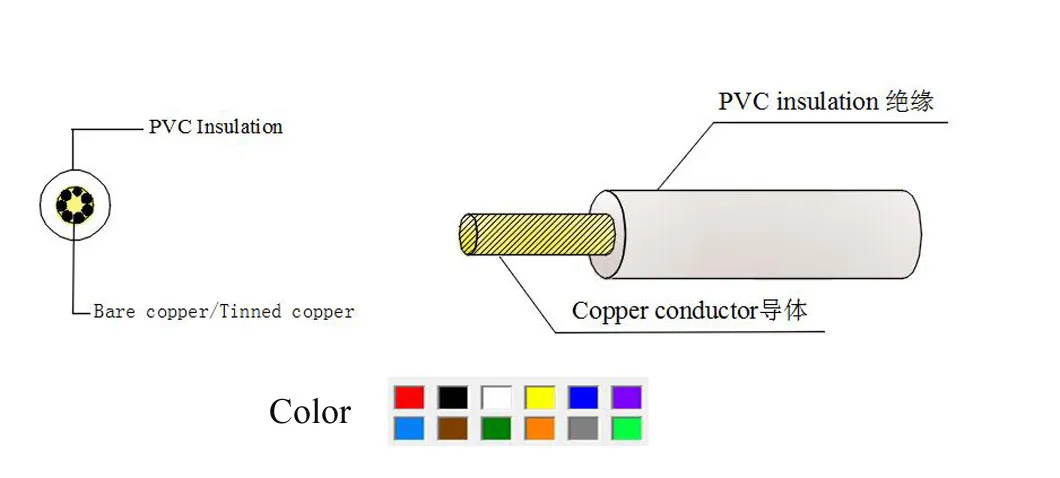

CABLE CONSTRUCTION
| UL TYPE | Gauge (AWG) | Construction (no/mm) | conductor OD (mm) | insulation thickness (mm) | wire O.D (mm) | Max Cond. resistance (Ω/kft ,20ºC | Wrap | Jacket | standard pup-up | ||
| Construction (No./no./mm) | Thickness (mm) | OD (mm) | FT /ROLL | METER /ROLL | |||||||
| 1571 | 36 | 7/0.05 | 0.15 | 0.15 | 0.45 | 1549 | - | - | - | 2000 | 610 |
| 34 | 7/0.063 | 0.19 | 0.15 | 0.5 | 966 | - | - | - | |||
| 32 | 7/0.08 | 0.24 | 0.18 | 0.6 | 596 | - | - | - | |||
| 30 | 1/0.254 | 0.25 | 0.2 | 0.65 | 361 | - | - | - | |||
| 7/0.1 | 0.3 | 0.2 | 0.7 | 381 | - | - | - | ||||
| 28 | 1/0.32 | 0.32 | 0.19 | 0.7 | 227 | - | - | - | |||
| 7/0.127 | 0.38 | 0.26 | 0.9 | 239 | - | - | - | ||||
| 7/0.127 OS-1 | 0.38 | 0.26 | 0.9 | 239 | - | - | - | ||||
| 26 | 1/0.404 | 0.4 | 0.25 | 0.9 | 143 | - | - | - | |||
| 7/0.16 | 0.48 | 0.26 | 1 | 150 | - | - | - | ||||
| 7/0.16 OS-1 | 0.48 | 0.26 | 1 | 150 | - | - | - | ||||
| 24 | 1/0.511 | 0.51 | 0.24 | 1 | 89.3 | - | - | - | |||
| 11/0.16 | 0.61 | 0.25 | 1.1 | 94.2 | - | - | - | ||||
| 7/0.2 OS-1 | 0.6 | 0.25 | 1.1 | 94.2 | - | - | - | ||||
| 22 | 1/0.643 | 0.64 | 0.25 | 1.15 | 56.4 | - | - | - | |||
| 17/0.16 | 0.76 | 0.27 | 1.3 | 59.4 | - | - | - | ||||
| 7/0.254 OS-1 | 0.76 | 0.27 | 1.3 | 59.4 | - | - | - | ||||
| 20 | 26/0.16 | 0.94 | 0.28 | 1.5 | 36.7 | - | - | - | |||
| 18 | 41/0.16 | 1.18 | 0.31 | 1.8 | 23.2 | - | - | - | 1000 | 305 | |
| 16 | 26/0.254 | 1.49 | 0.31 | 2.1 | 14.6 | - | - | - | |||

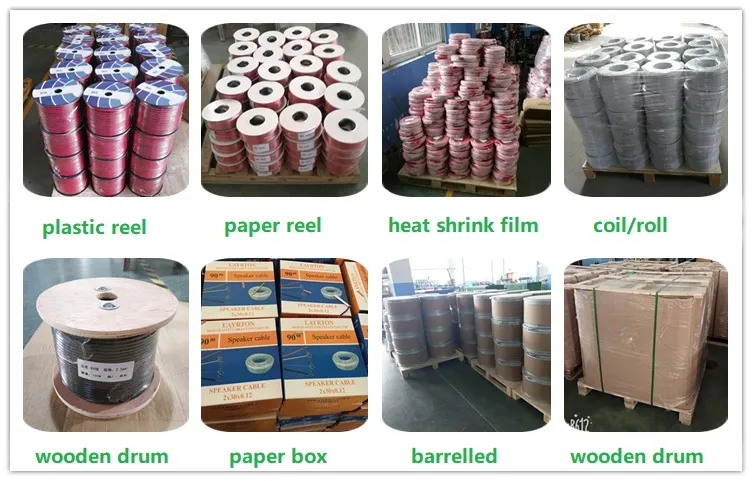

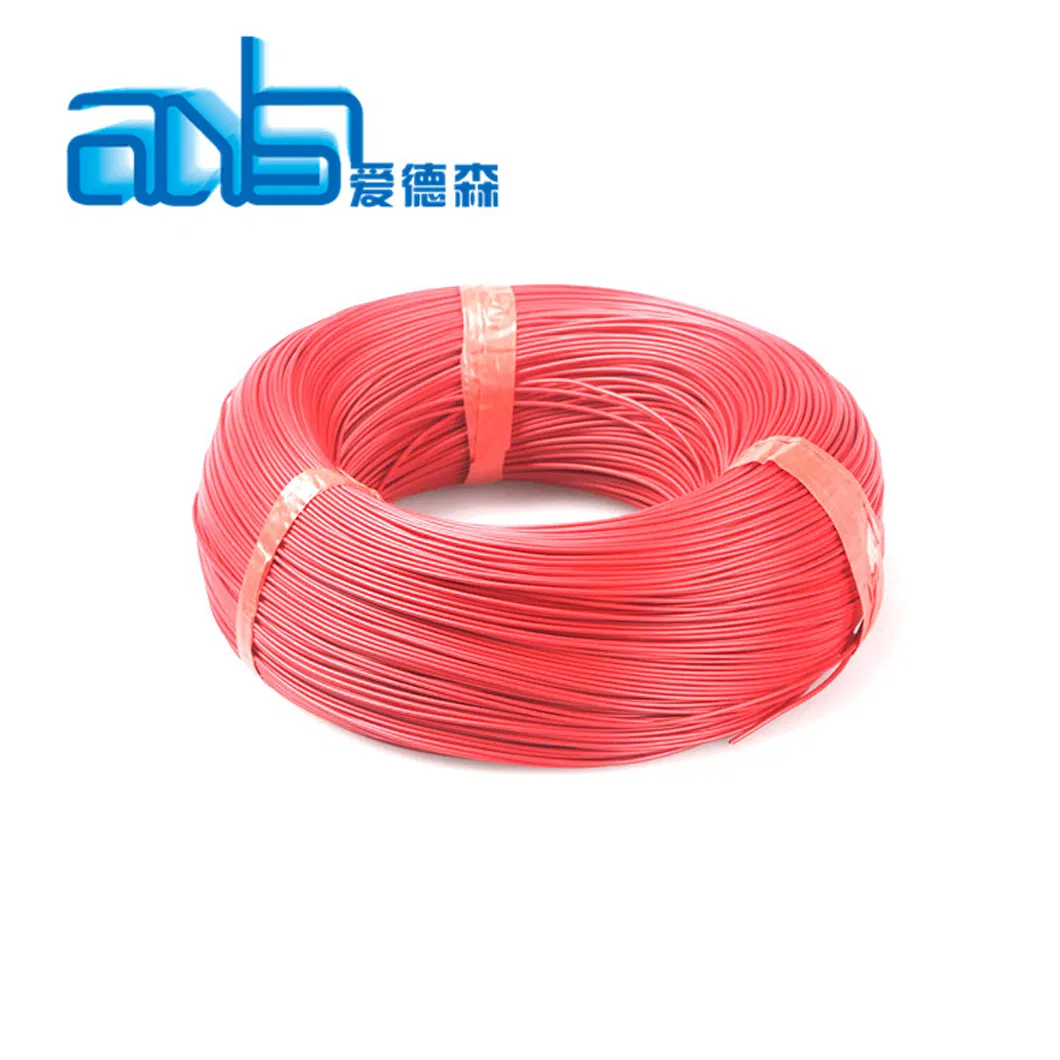

Packing

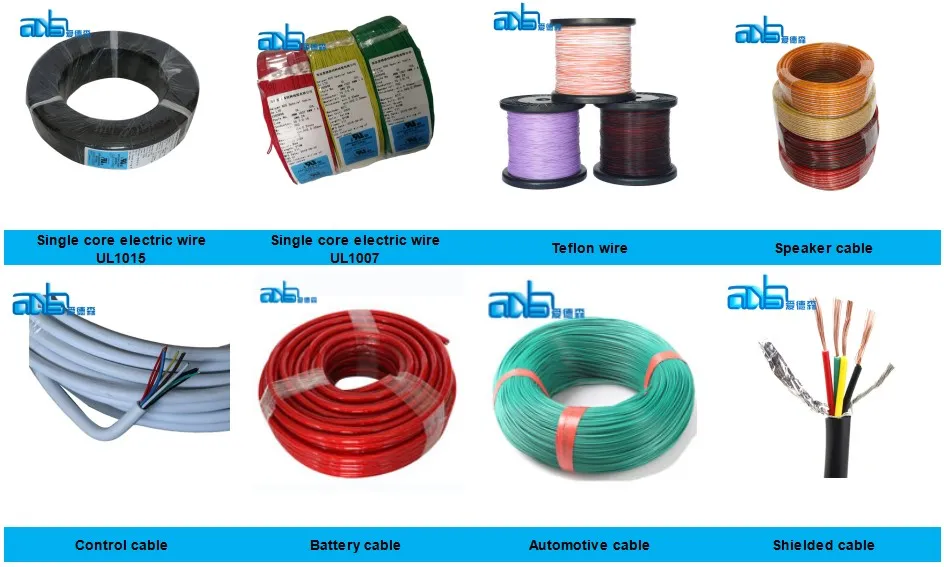

Main Products
Company Introduction
Certificate

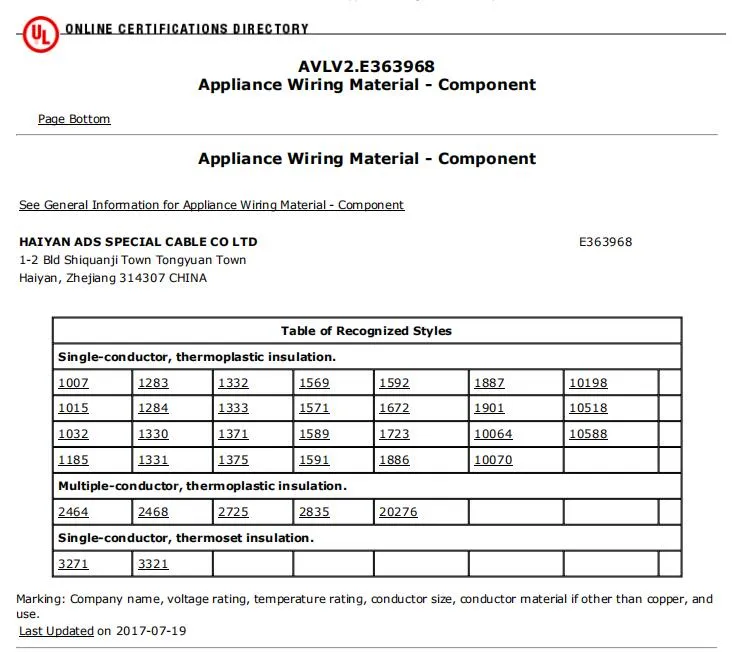

UL Certificate Items
More Test report (Rohs,Reach,Flame Retardant),Pls contact us

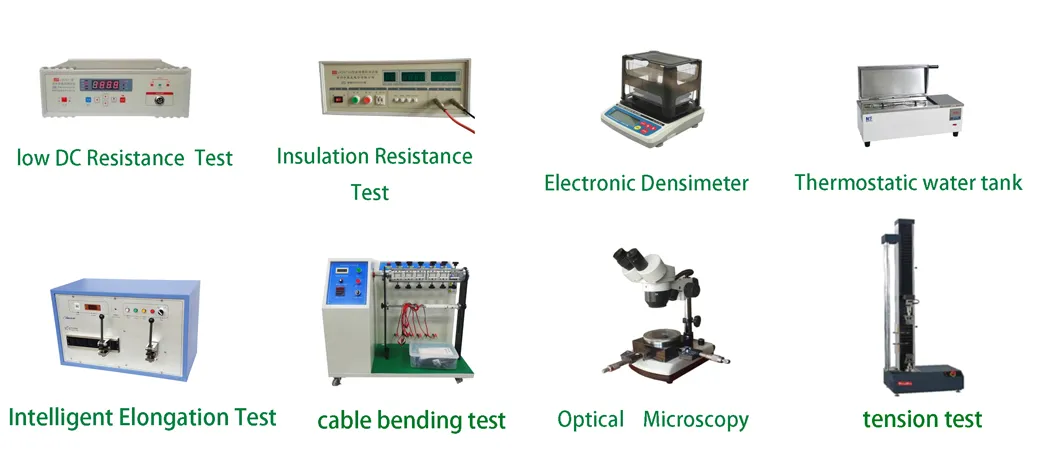

Test Equipment
Production Process
Overseas Exibition
FAQ
Q; Are you factory or trading company?
A: We are factory has more than 10 years manufacturing experiences.
Q: Can I get some samples?
A: Yes, free samples with 10 meters if we have in stock, express fee on you which will be deducted from invoice value after order.
Q: Could I use my own LOGO (OEM) or design on goods?
A: Yes, Customized logo and designing on mass production are workable.
Q: Can I choose the color?
A: Yes, any color as you requirements.
Q: What is the delivery time?
A: Normally,within 2 weeks.But it need check with us when place order.
Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
