China 22AWG Household Appliance Internal Connection Wiring UL1061 Cable

Product Description

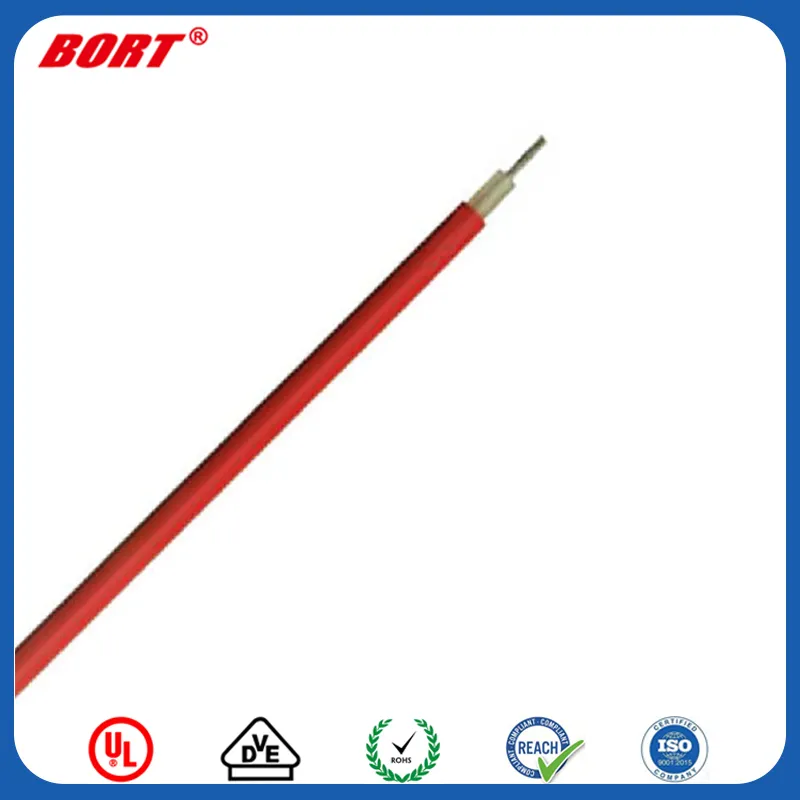

22awg household appliance internal connection wiring ul1061 cable

Product Description:
★ Rated temperature: 80ºC
Rated voltage: 300V
★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2
★ Tinned or bare, stranded or solid copper conductor,30-16 AWG

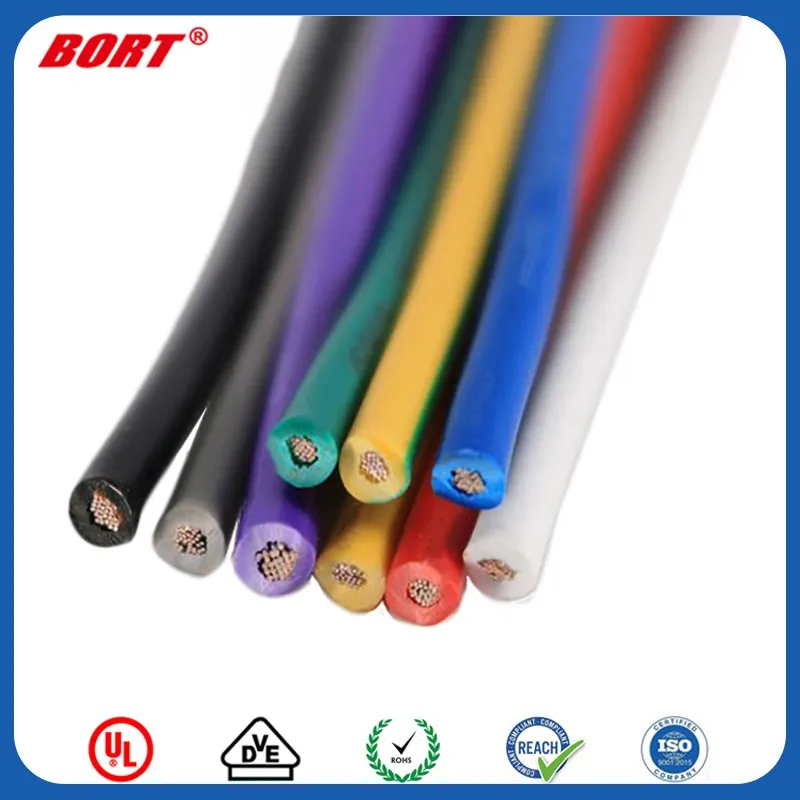

★ Colour-coded lead free SR-PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 & CSA FT1 vertical flame test
★ Application: For internal wiring of electronic and electrical equipment,
protection is required where mechanical damage is possible

Conductor			Insulation		Maximum Resistance at 20ºC Ω/km
AWG	No./mm	Dia. mm	Nom. Thick. mm	Nom.Dia. mm	Maximum Resistance at 20ºC Ω/km
30	7/0.1	0.30	0.26	0.82	354
28	7/0.127	0.38	0.26	0.90	223
26	7/0.16	0.48	0.26	1.00	139
24	11/0.16	0.61	0.27	1.15	88.9
22	17/0.16	0.76	0.26	1.28	57.5
20	26/0.16	0.94	0.26	1.46	34.6
18	41/0.16	1.18	0.26	1.70	23.3
16	26/0.254	1.49	0.26	2.02	15.1
