2AWG 6AWG 4core Thhn Core PVC Sheath Tc Cable
UL1277 Tray control cableConductor: copperinsulation: pvc-free leadinnersheath:Nylon (optional)sheild: Aluminum tap(optional)sheath:pvcvoltage :600vASTM - (All applicable standards)UL 1277 - Electrical Power and Control Tray CablesUL 1581 - Electrical Wires, Cables and Flexible CordsICEA S-58-6......
Send Inquiry
Product Description

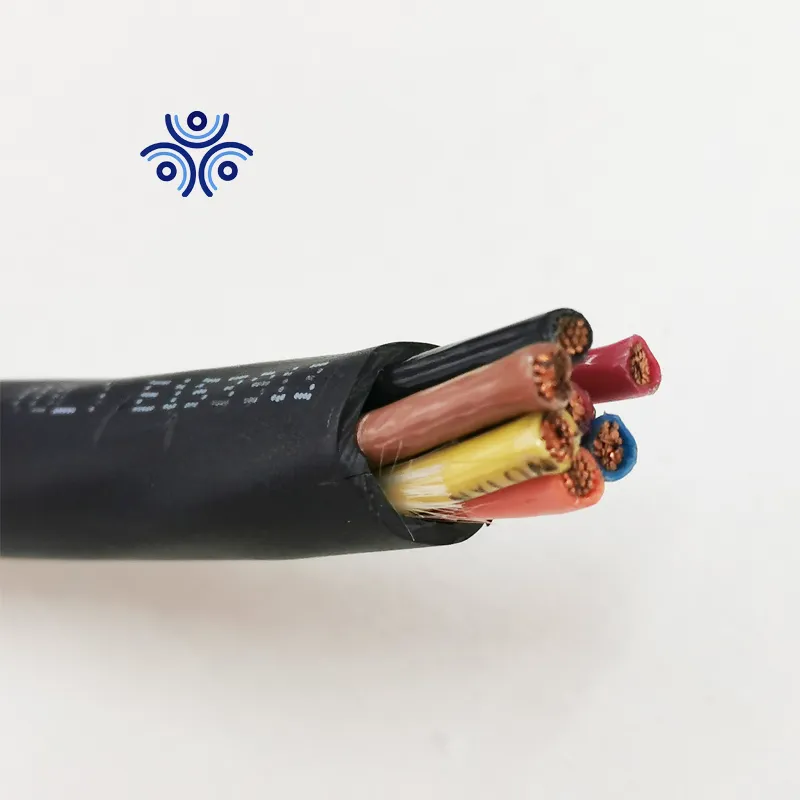

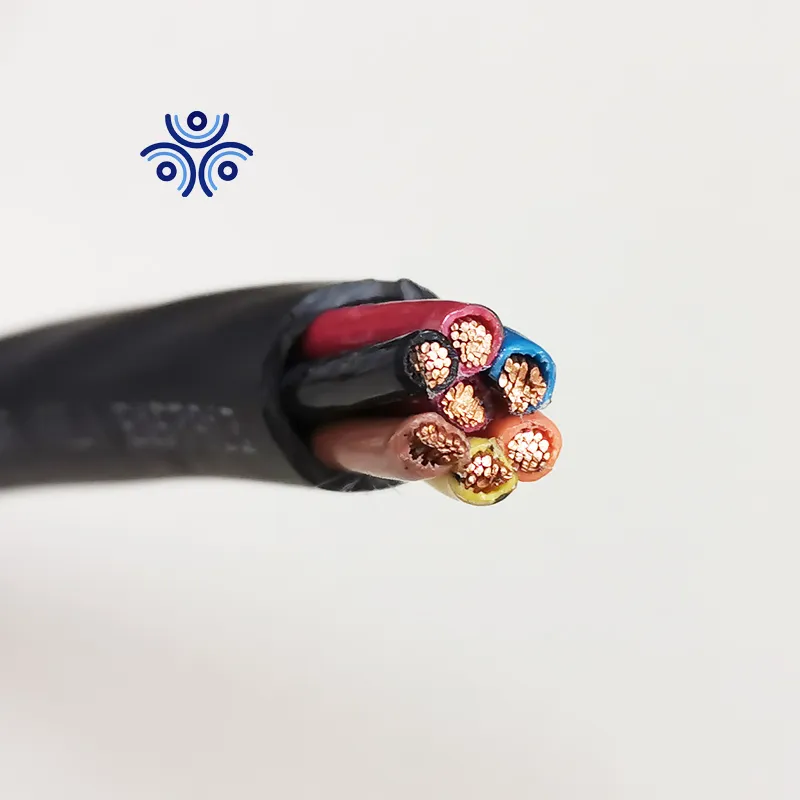

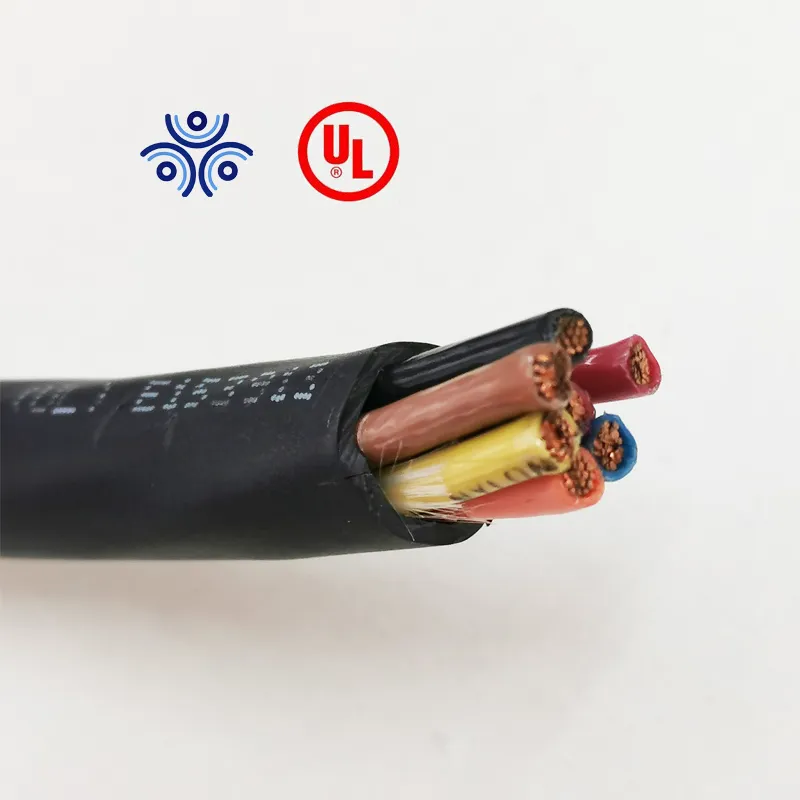

UL1277 Tray control cable
Conductor: copper
insulation: pvc-free lead
innersheath:Nylon (optional)
sheild: Aluminum tap(optional)
sheath:pvc
voltage :600v
ASTM - (All applicable standards)
UL 1277 - Electrical Power and Control Tray Cables
UL 1581 - Electrical Wires, Cables and Flexible Cords
ICEA S-58-679 - Control Cable Conductor Identification.
UL 1685 - UL Flame Exposure Test
ICEA T-30-250 - Vertical Cable Tray Flame Test
ICEA T-29-520 - Vertical Cable Tray Flame Test
IEEE 1202 - Flame Testing of Cables for Use in Cable Tray in Industrial and Commercial Occupancies
Type TC Control Cable is available in sizes 16 AWG through 10 AWG, with multiconductor constructions of 2 through 37 conductors. The product uses Type THHN or THWN conductors in sizes 14 AWG through 10 AWG. Individual conductors are bare annealed copper covered with a polyvinyl chloride (PVC) insulation over which a nylon (polyamide) or UL listed equal jacket is applied. The overall jacket consists of a heat, moisture and sunlight-resistant PVC. Non-halogen jacket is available upon request

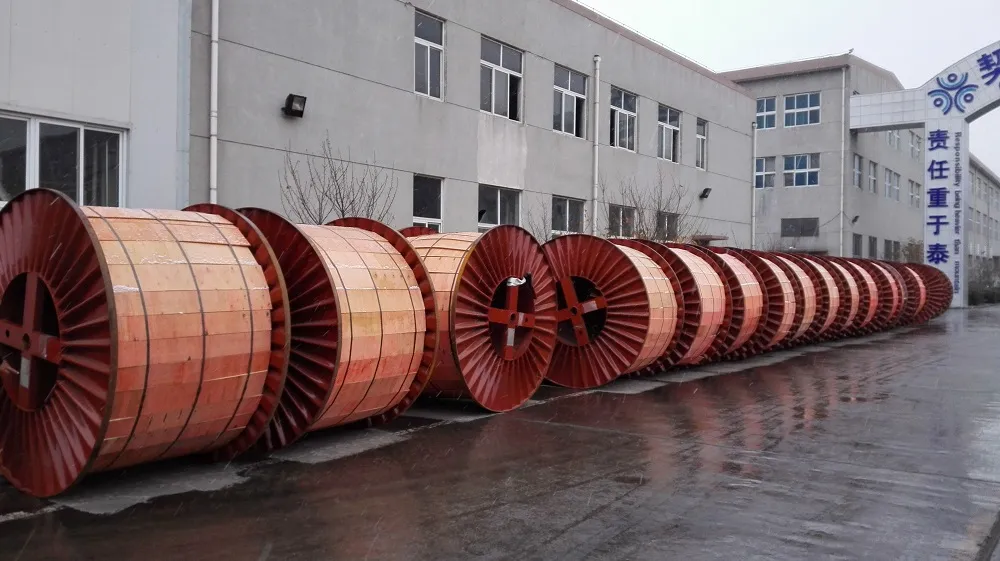

Packing and shipping
Company information
HeBei huatong wires&cables Group Co.,ltd.

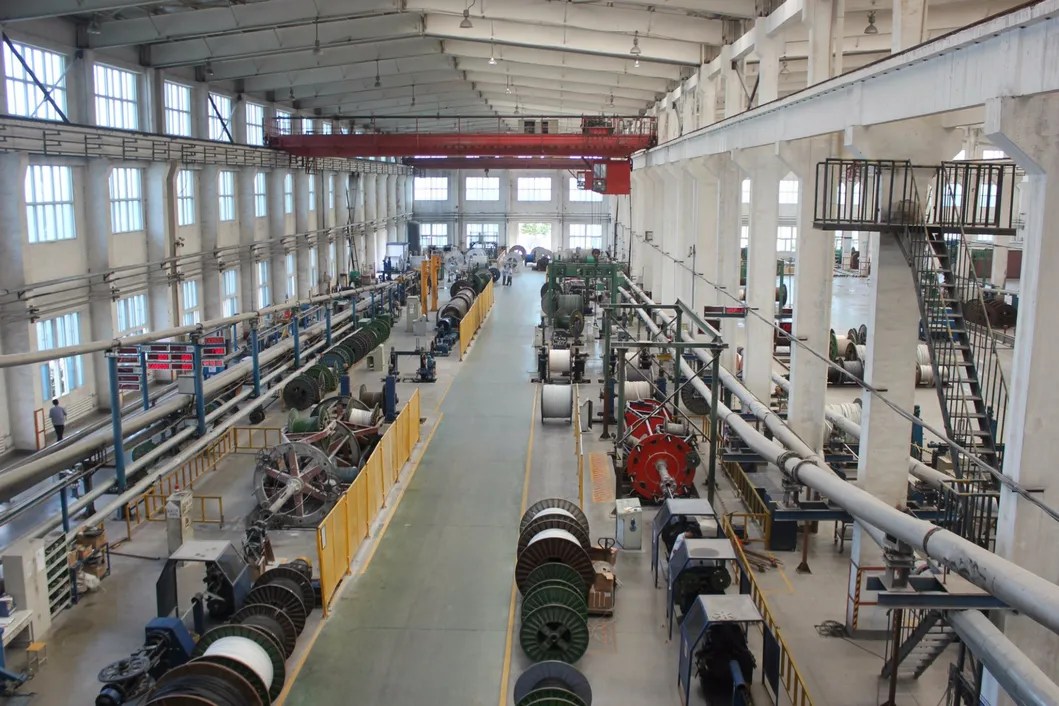

which founded in1993,covers 15,000 square meters.With 400 sets of manufacturing machines and 200 pieces of equipment available for testing and inspecting,the company's annual mannufacturi-ng capacity has reached 450 minllionUS dollars.
The enterprise has adapted international a-dvanced mannagement standards by fully implementing the accreditation of ISO9001Quality con-trol system, ISO1004 Envrionment management system,and OHSAS18001 Occupational health and safety management system.
Huatong's products which consist of 15 series of cables and tens of thousands of specifications are widely used in different key national projects and industries .Our products are well liked by domestic and international customers that they have been exported to various countries and areas including the US,Netherlands, Italy,Russia,UK,Australia,Ethiopia,Ghaha,congo,Middle East ,and Southeast Asia.
\
FQ
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week.
Conductor: copper
insulation: pvc-free lead
innersheath:Nylon (optional)
sheild: Aluminum tap(optional)
sheath:pvc
voltage :600v
ASTM - (All applicable standards)
UL 1277 - Electrical Power and Control Tray Cables
UL 1581 - Electrical Wires, Cables and Flexible Cords
ICEA S-58-679 - Control Cable Conductor Identification.
UL 1685 - UL Flame Exposure Test
ICEA T-30-250 - Vertical Cable Tray Flame Test
ICEA T-29-520 - Vertical Cable Tray Flame Test
IEEE 1202 - Flame Testing of Cables for Use in Cable Tray in Industrial and Commercial Occupancies
- Type TC Control Cable is for use in industrial power or control circuits where small diameter, flame retardant cables are desired
- Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire
- Type TC is also listed for direct burial and for use in Class 1, Division 2 hazardous locations and Class 1 control circuits
- Conductors may be used at temperatures not to exceed 75°C in wet locations or 90°C in dry locations
Type TC Control Cable is available in sizes 16 AWG through 10 AWG, with multiconductor constructions of 2 through 37 conductors. The product uses Type THHN or THWN conductors in sizes 14 AWG through 10 AWG. Individual conductors are bare annealed copper covered with a polyvinyl chloride (PVC) insulation over which a nylon (polyamide) or UL listed equal jacket is applied. The overall jacket consists of a heat, moisture and sunlight-resistant PVC. Non-halogen jacket is available upon request
Packing and shipping
Company information
HeBei huatong wires&cables Group Co.,ltd.
which founded in1993,covers 15,000 square meters.With 400 sets of manufacturing machines and 200 pieces of equipment available for testing and inspecting,the company's annual mannufacturi-ng capacity has reached 450 minllionUS dollars.
The enterprise has adapted international a-dvanced mannagement standards by fully implementing the accreditation of ISO9001Quality con-trol system, ISO1004 Envrionment management system,and OHSAS18001 Occupational health and safety management system.
Huatong's products which consist of 15 series of cables and tens of thousands of specifications are widely used in different key national projects and industries .Our products are well liked by domestic and international customers that they have been exported to various countries and areas including the US,Netherlands, Italy,Russia,UK,Australia,Ethiopia,Ghaha,congo,Middle East ,and Southeast Asia.
\FQ
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week.
