China 300V PVC 105 Degree UL1672 Double Insulated Awm Wire

Product Description

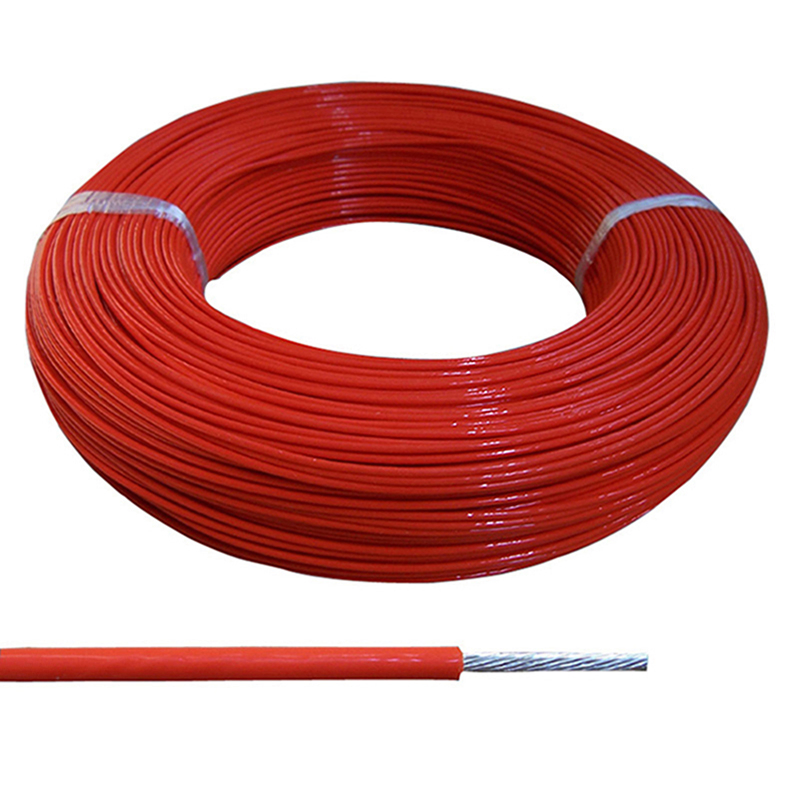

300V PVC 105 degree UL1672 Double Insulated awm wire

PRODUCT DESCRIPTION:
★Rated temperature:105ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2

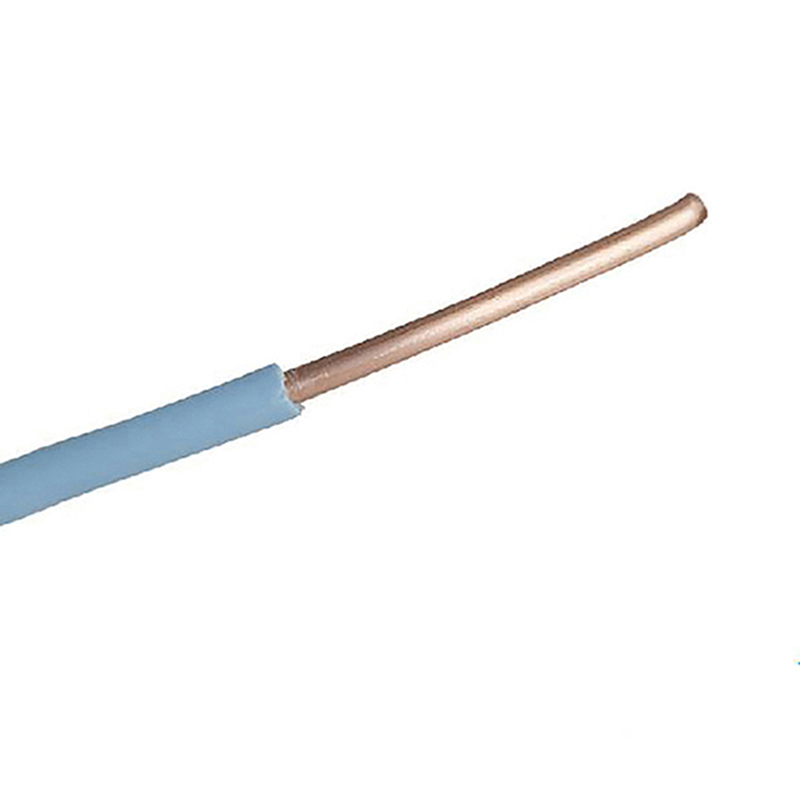

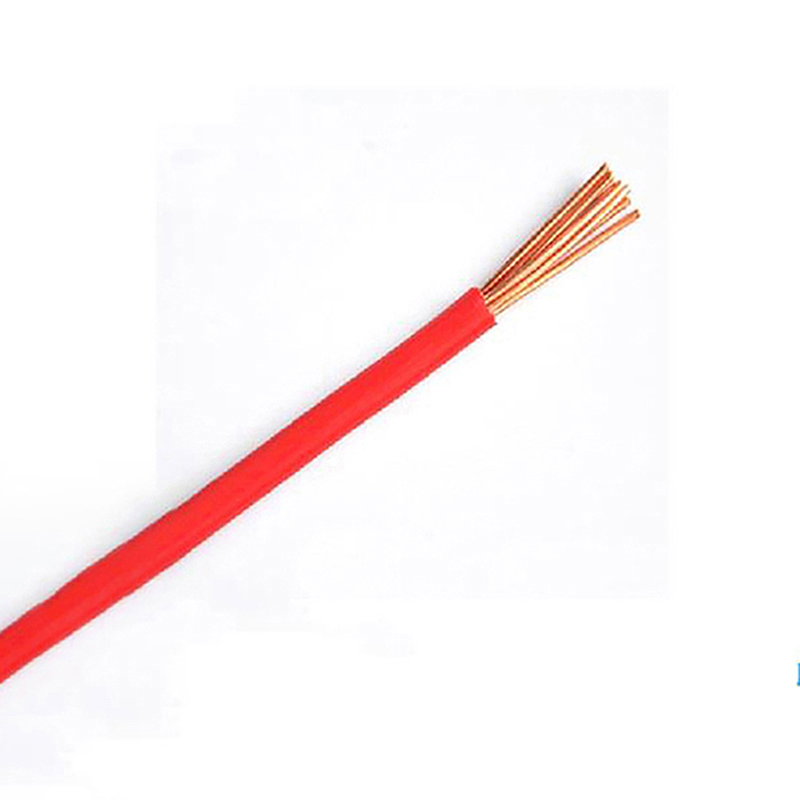

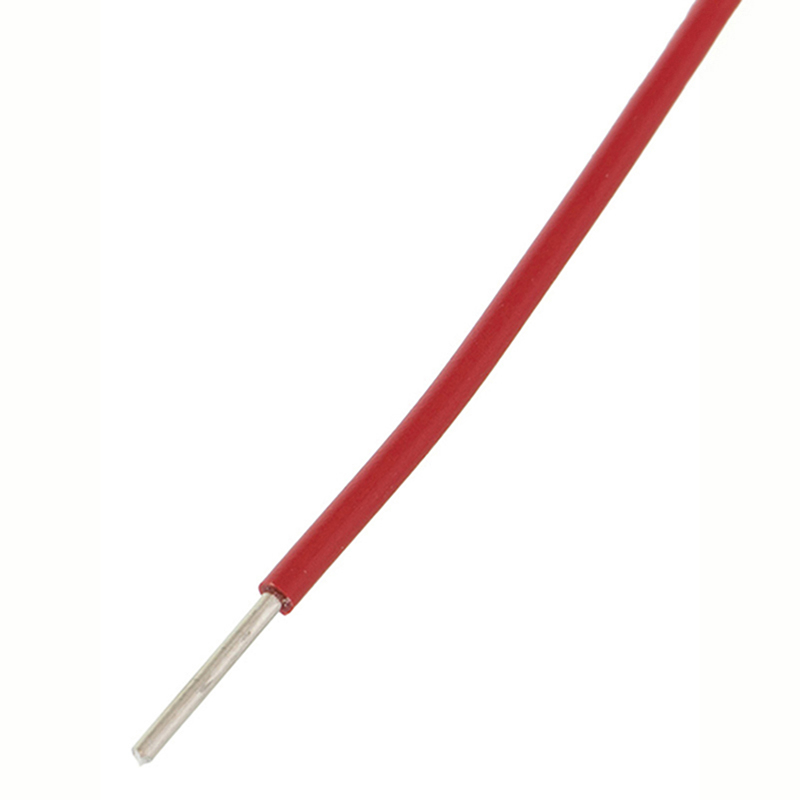

★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★PVC jacket
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★For internal wiring of appliance

Conductor		Finished product			Maximum Resistance at 20ºC
AWG	NO.of Cond	Insulation Thick.	Outside Thick.	Packing	Maximum Resistance at 20ºC
AWG	mm	mm	mm	m/r	Ω/mm
28	7/0.127	0.45	0.45	610.00	223.75
26	7/0.16	0.45	0.45	610.00	139.76
24	11/0.16	0.45	0.45	610.00	88.36
22	17/0.16	0.45	0.45	610.00	60.16
20	21/0.178	0.45	0.45	610.00	38.58
18	34/0.178	0.45	0.45	610.00	22.98
16	26/0.254	0.45	0.45	610.00	15.06
14	41/0.254	0.45	0.45	610.00	9.65
12	65/0.254	0.45	0.45	610.00	6.07
28	1/0.320	0.45	0.45	610.00	227.39
26	1/0.404	0.45	0.45	610.00	142.79
24	1/0.511	0.45	0.45	610.00	89.39
22	1/0.643	0.45	0.45	610.00	54.30
20	1/0.813	0.45	0.45	610.00	33.90
18	1/1.024	0.45	0.45	610.00	21.40
