350c Pure Nickel High Temperature Fiberglass Braided Cable
350C Pure Nickel High Temperature Fiberglass Braided CableDescription Name:350C Pure Nickel High Temperature Fiberglass Braided Cable Size:0.5~6mm2 Feature Ratings Voltage:500V ......
Send Inquiry
Product Description
Description
Name:350C Pure Nickel High Temperature Fiberglass Braided Cable
Size:0.5~6mm2
Feature
Ratings Voltage:500V
Rated temperature: -60ºC~+350ºC

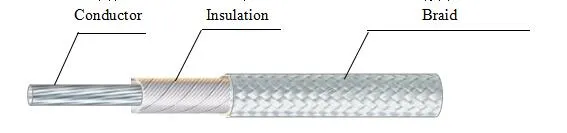

Structure
Conductor:Stranded Nickel
Insulation:Fiberglass Wrapping
Jacket:Fiberglass Braid
Size mm2 | Conductor Structure | Insulation Thickness (mm) | Jacket Thickness (mm) | Diameter (mm) |
0.5 | 16/0.2 | 0.4 | 0.2 | 2.1±0.1 |
0.75 | 24/0.2 | 0.4 | 0.2 | 2.4±0.1 |
1.0 | 32/0.2 | 0.4 | 0.2 | 2.5±0.1 |
1.5 | 30/0.25 | 0.45 | 0.2 | 2.9±0.1 |
2.5 | 49/0.25 | 0.45 | 0.2 | 3.3±0.2 |
4 | 56/0.3 | 0.45 | 0.2 | 3.9±0.2 |
6 | 84/0.3 | 0.45 | 0.2 | 4.5±0.2 |
Application
Used for internal wiring of
household ovens,
appliances,
lighting fixtures
and electronic equipment
as high-temperature lead wire.
3. Advantages:
Unique insulation system offers outstanding heat-aged flexibility for longer service life.
Excellent cutting and stripping characteristics, making it ideal for high volume manufacturing and assembly.
Provides dimensional consistency and uniformity.
Suitable for applications to -60°C
Resists braid pushback.

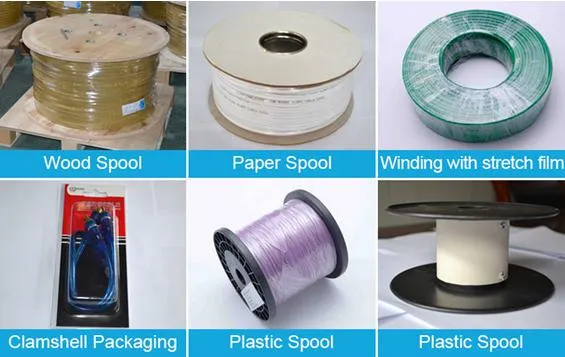

4. Packing Methods

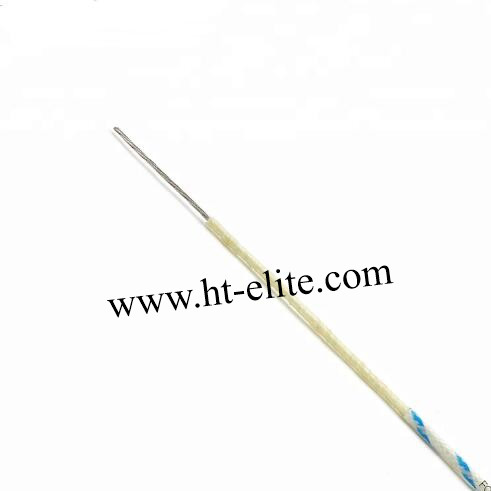

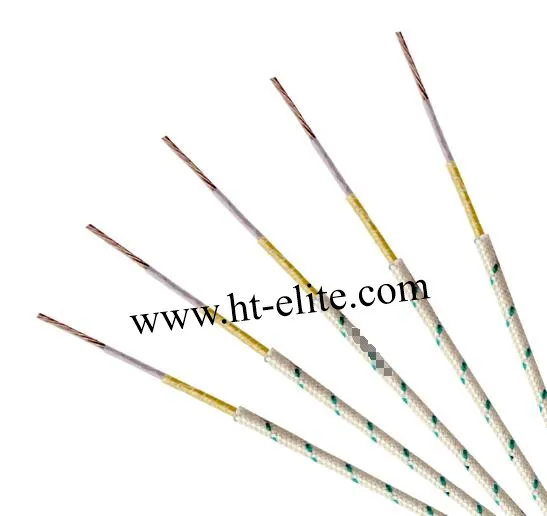

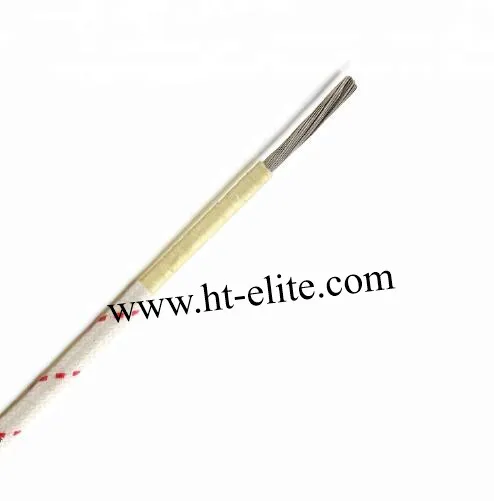

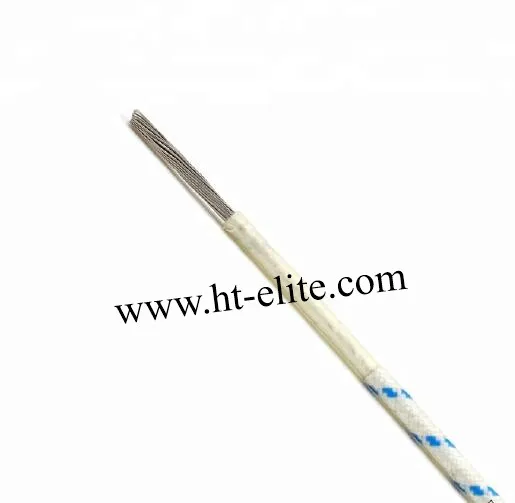

5. Photos for Reference
