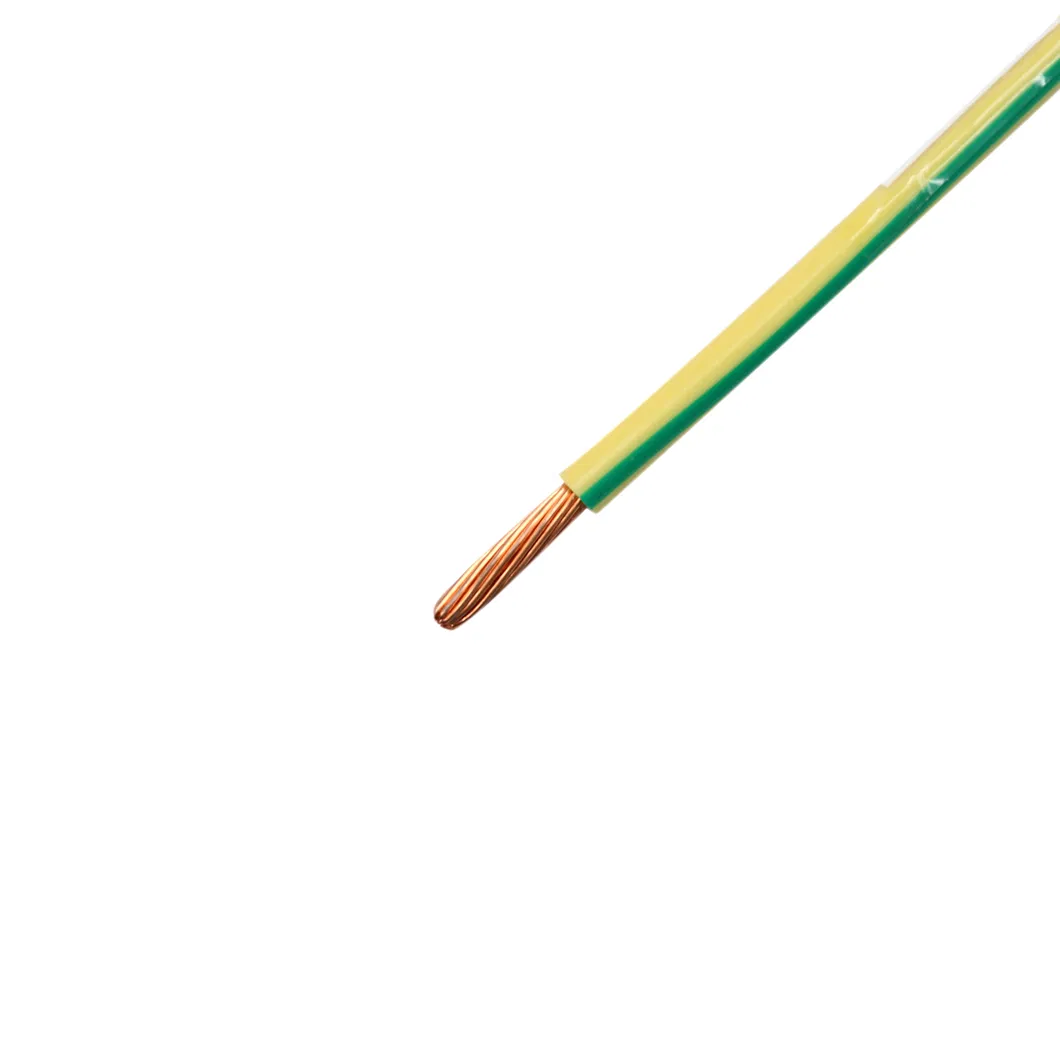

450/750V 1core X 6sqmm Copper Conductor PVC Insulated Electrical Wire for Home and Office
Key Technical Parameter60227 IEC 01(BV) GB/T5023-2008Nominalcross- sectionmm2 Conductor TypeUpper limit Of O.D. mmMax.D.C. resistance at 20ºCΩ/km Min.insulation resistance at 70ºCMΩ·km Approx. ampacity A Reference weight of cablekg/......
Send Inquiry
Product Description
Key Technical Parameter
60227 IEC 01(BV) GB/T5023-2008
| Nominal cross- section mm2 | Conductor Type | Upper limit Of O.D. mm | Max.D.C. resistance at 20ºC Ω/km | Min.insulation resistance at 70ºC MΩ·km | Approx. ampacity A | Reference weight of cable kg/km |
| 1.50 | 1 | 3.2 | 12.1 | 0.011 | 25 | 20.0 |
| 1.50 | 2 | 3.3 | 12.1 | 0.010 | 25 | 21.5 |
| 2.50 | 1 | 3.9 | 7.41 | 0.010 | 34 | 31.8 |
| 2.50 | 2 | 4.0 | 7.41 | 0.009 | 34 | 34.8 |
| 4.00 | 1 | 4.4 | 4.61 | 0.0085 | 44 | 46.8 |
| 4.00 | 2 | 4.6 | 4.61 | 0.0077 | 44 | 50.3 |
| 6.00 | 1 | 5.0 | 3.08 | 0.0070 | 58 | 66.50 |
| 6.00 | 2 | 5.2 | 3.08 | 0.0065 | 58 | 71.00 |
| 10 | 2 | 6.7 | 1.83 | 0.0065 | 79 | 116.0 |
| 16 | 2 | 7.8 | 1.15 | 0.0050 | 111 | 180 |
| 25 | 2 | 9.7 | 0.727 | 0.0050 | 146 | 277 |
| 35 | 2 | 10.9 | 0.524 | 0.0040 | 180 | 375 |
| 50 | 2 | 12.8 | 0.387 | 0.0045 | 282 | 536 |
| 70 | 2 | 14.6 | 0.268 | 0.0035 | 281 | 706 |
| 95 | 2 | 17.1 | 0.193 | 0.0035 | 344 | 977 |
| 120 | 2 | 18.8 | 0.153 | 0.0032 | 397 | 1231 |
| 150 | 2 | 20.9 | 0.124 | 0.0032 | 456 | 1503 |
| 185 | 2 | 23.3 | 0.0991 | 0.0032 | 519 | 1870 |
| 240 | 2 | 26.6 | 0.0754 | 0.0032 | 592 | 2457 |
| 300 | 2 | 29.6 | 0.0601 | 0.0030 | 685 | 3053 |
| 400 | 2 | 33.2 | 0.0470 | 0.0028 | 799 | 3948 |
Why choose Vango Cable CO.?
As the leading supplier in power acble& electric wire industry for more than 30 years, we have our own excellent production facilities such as casting equipments, wire-drawing machines and wire-twisting machines and endruters and 540 employees including over 116 intermediate and senior technical personnel with 9 senior titles which contributes strong power of scientific research, management and innovation. In order to achieve strict source control, we purchase high-purity copper and aluminum ingot and adopt advanced processing technique.Our ambition is provide high quality products at competitive price to our customers.
Our success is a result of quality, safer and caring for people and the environment. We have excellent sewage treatment system and industrial waste gas processing equipment. As a responsible enterprise, we've dedicatded in create a healthy environment and contribute to the construction of environmental-friendly society
FAQ:
1. Are you a trading company or manufacture?
We are a wire and cable Manufacturer with 30 years history almostly, our factory located in Qingyuan, Guangdong Province, China.
2. What is your main product?
As one of leading cable manufacturers in China, we are specialized in power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.
3. Can you offer me a free sample?
Yes, sample is free but the freight charge should be borne by you.
4.How is the payment?
T/T, L/C is acceptable.
5. What is the lead time for mass production?
It depends on the order quantity and the season you place the order. Normally within 1 month.
6.Do you accept OEM or ODM?
Yes, we accept OEM and ODM. Your logo and company name can be printed on our products.
7.Do you have after-sale service?
Yes, 12 months warranty.
