500V 350c Fiberglass Wire 0.25mm2
Product:Fiberglass Insulated Wire Description Name:Fiberglass Insulated Wire Model:GW04-C Size:0.5~6mm2 Feature Ratings Voltage:500V Rated tempera......
Send Inquiry
Product Description

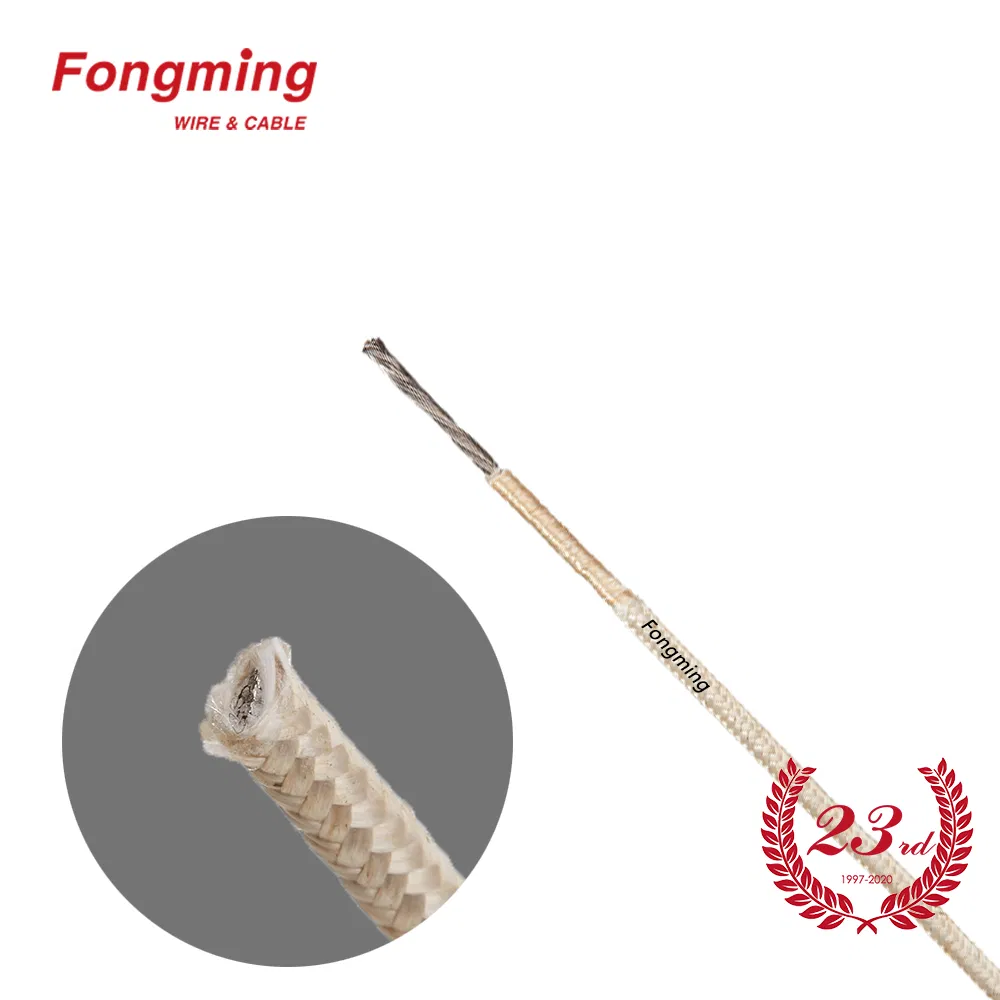

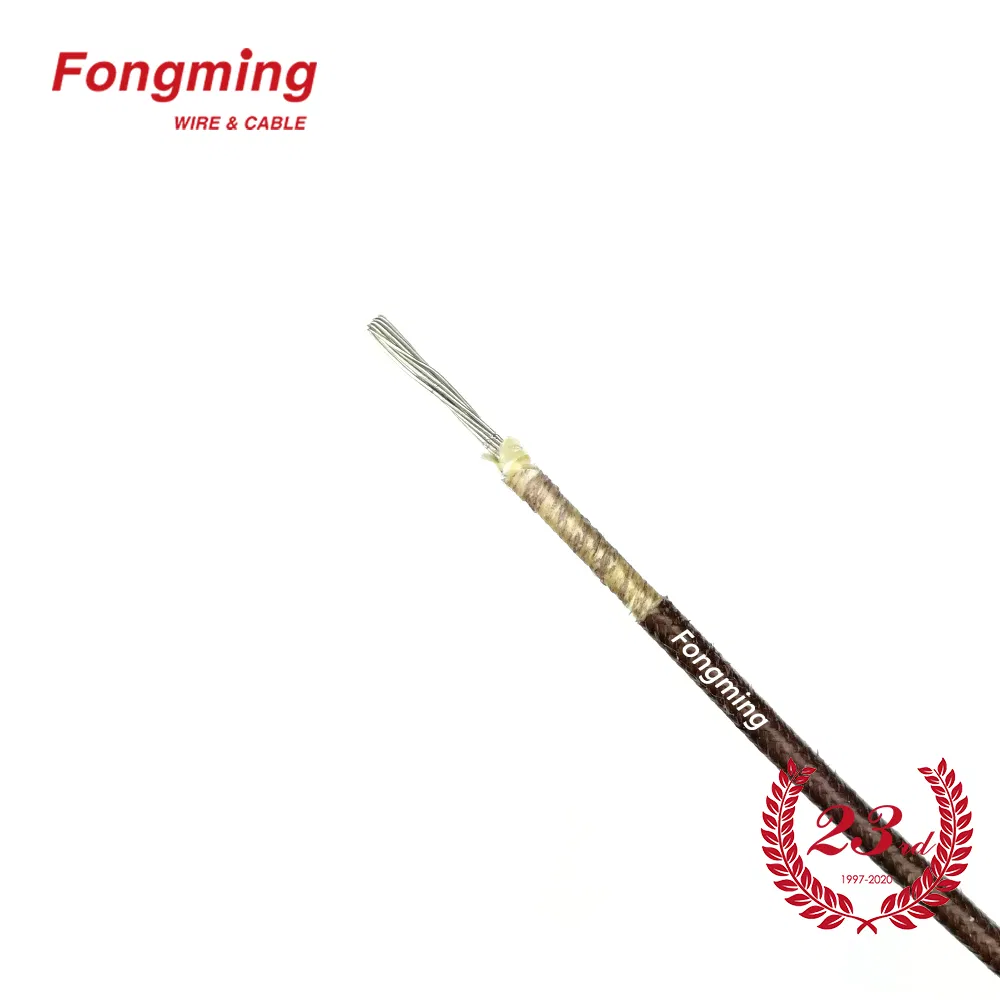

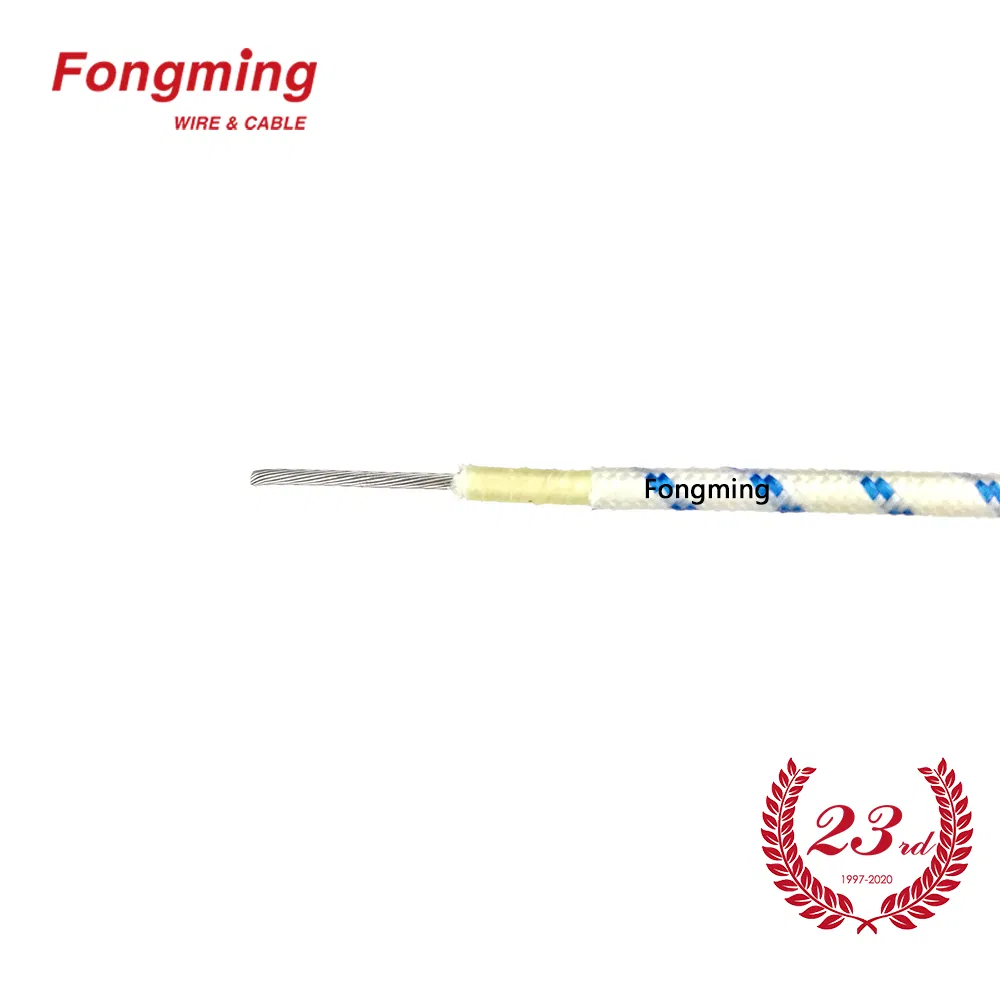

Fiberglass Insulated Wire
Description
Name:Fiberglass Insulated Wire
Model:GW04-C
Size:0.5~6mm2
Feature
Ratings Voltage:500V
Rated temperature: -60ºC~+350ºC

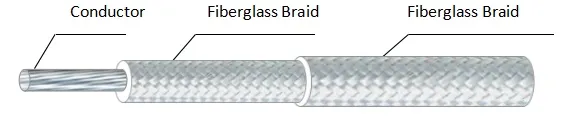

Structure
Conductor:Stranded Nickel
Insulation:Fiberglass Wrapping
Jacket:Fiberglass Braid
| Size mm2 | Conductor Structure | Insulation Thickness (mm) | Jacket Thickness (mm) | Diameter (mm) |
| 0.5 | 16/0.2 | 0.4 | 0.2 | 2.1±0.1 |
| 0.75 | 24/0.2 | 0.4 | 0.2 | 2.4±0.1 |
| 1.0 | 32/0.2 | 0.4 | 0.2 | 2.5±0.1 |
| 1.5 | 30/0.25 | 0.45 | 0.2 | 2.9±0.1 |
| 2.5 | 49/0.25 | 0.45 | 0.2 | 3.3±0.2 |
| 4 | 56/0.3 | 0.45 | 0.2 | 3.9±0.2 |
| 6 | 84/0.3 | 0.45 | 0.2 | 4.5±0.2 |
Packaging&Shipping:
Packing: Rolls , spools or according to customers' requirements.
Shipping: by sea or by air.
Port: Shanghai Port, Ningbo Port or any other ports of China (Mainland)
Yangzhou Fongming Cable Factory is a professional manufacturer producing universal and special cables & wires. We have gained certificates for China Compulsory Product Certification(CCC), ISD9001 International Quality System Certification, American UL, CSA, SGS and CTI. With an experienced and professional team, our products have been covered to many regions in the world.
Relying on a wealth of production experience, advanced production equipment, scientific and strict production process and constant pursuit of technological advances to ensure the product quality.
We will serve for new and existing customers sincerely with good quality, reasonable prices and superior after-service.
Factory Size (Sq.meters): | 35000 square meters |
Factory Location: | Industrial Avenue,Industrial Center,Xiaji Town, Baoying County ,Yangzhou City,Jiangsu, China |
Number of Production Lines: | 30 |
Staff: | 148 People |
Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |
Certificates
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
