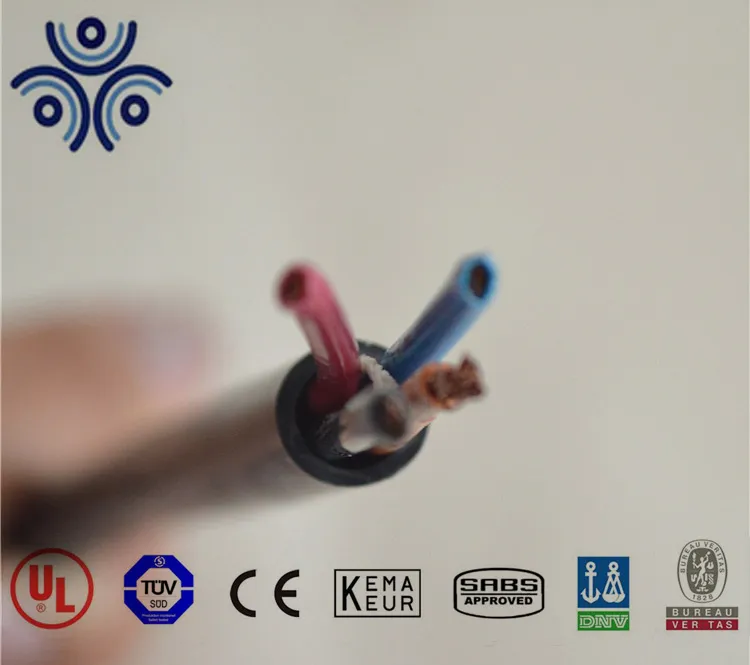

600volts 6*12AWG Power and Control Cable Type Tc Cable

Control Cable-THHN
 Type TC Control Cable. 600 Volt. Copper Conductors.

 PVC/Nylon Insulated Singles Sizes 14 AWG through 10 AWG.

 Overall PVC Jacket. Heat, Moisture and Sunlight Resistant

 1. Application

Type TC Control Cable is for use in industrial power or control circuits where small diameter, flame retardant cables are desired. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Conductors may be used at temperatures not to exceed 75°C in wet locations or 90°C in dry locations

 2 SPECIFICATIONS

 Type TC Control Cable meets or exceeds the applicable requirements of the following standards and specifications:
   • ASTM - (All applicable standards)

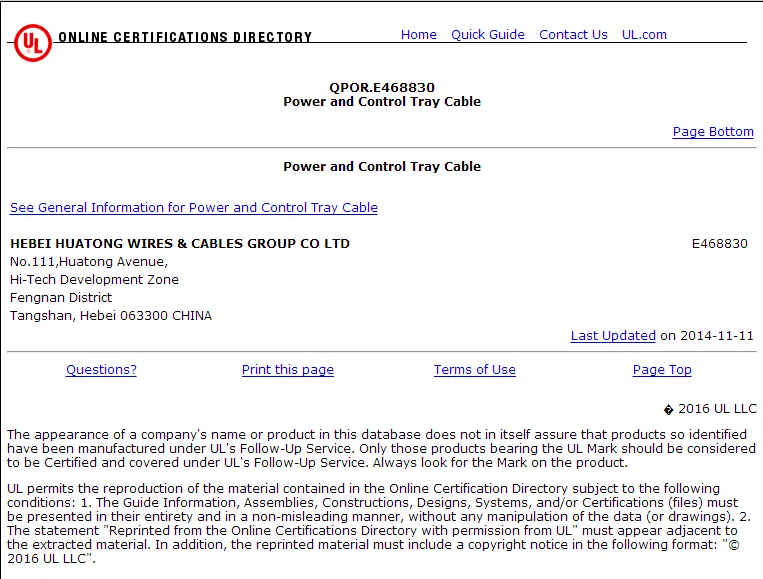

   • UL 1277 Electrical Power and Control Tray Cables
   • NFPA 70 (NEC)
   • ICEA S-58-679 - Control Cable Conductor Identification Method 1, Table 2

3 CONSTRUCTION

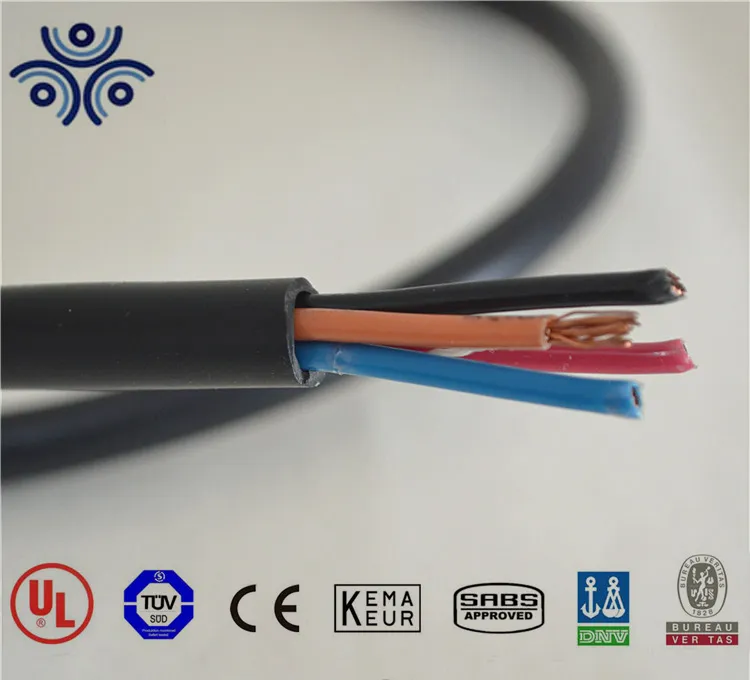

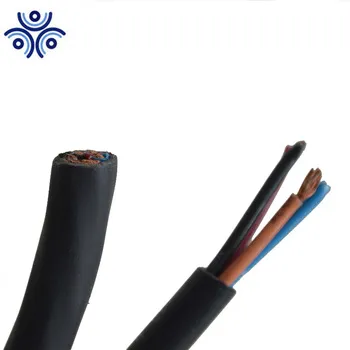

Type TC Control Cable is available in sizes 14 AWG through 10 AWG, with multi-conductor constructions of two through 37 conductors. The product uses Type THHN or THWN conductors in sizes 14 AWG through 10 AWG. Individual conductors are bare annealed copper covered with polyvinyl chloride (PVC) insulation over which a nylon (polyamide) or UL listed equal jacket is applied. The overall jacket consists of a heat, moisture and sunlight resistant PVC. The non-halogen jacket is available upon request.

4 Option

 Large size from 8AWG to 750MCM

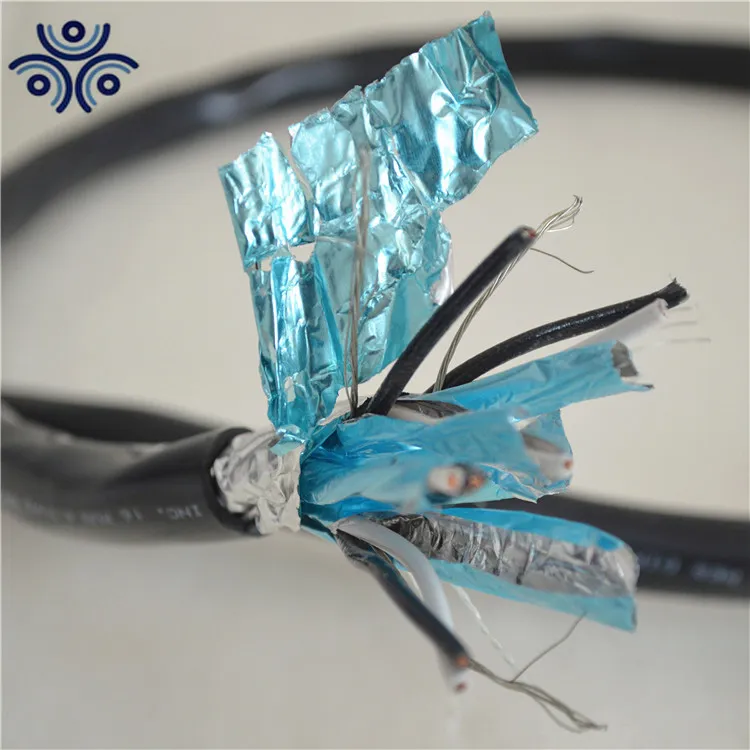

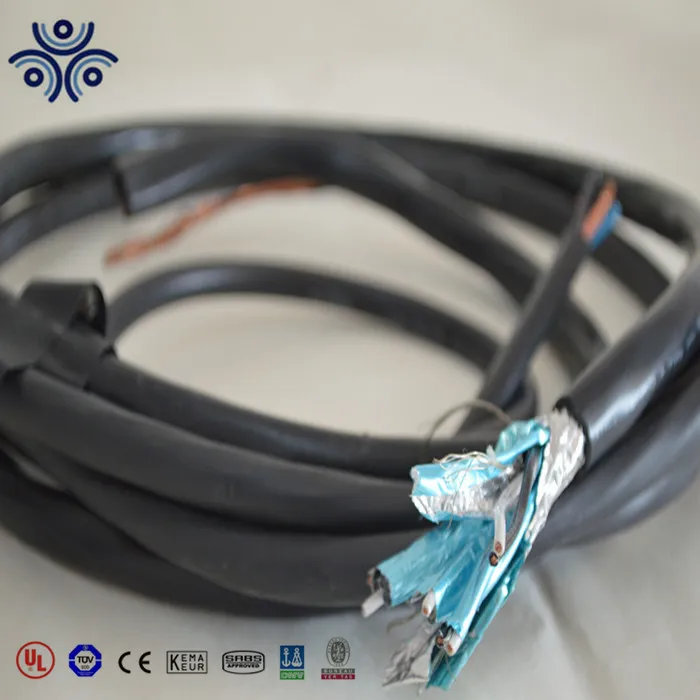

Shield structure -Aluminum-plastic composite tape or copper/tinned-copper braid

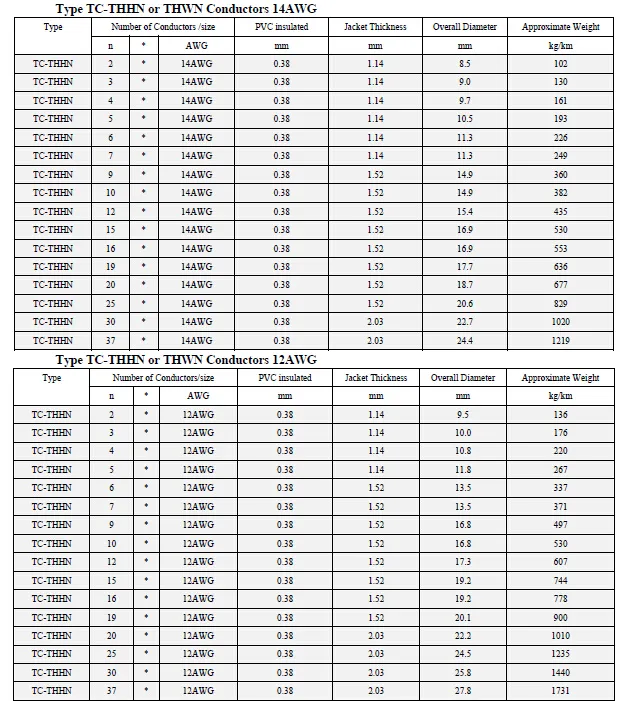

5 Date sheet of Type TC cable:
