Product Description

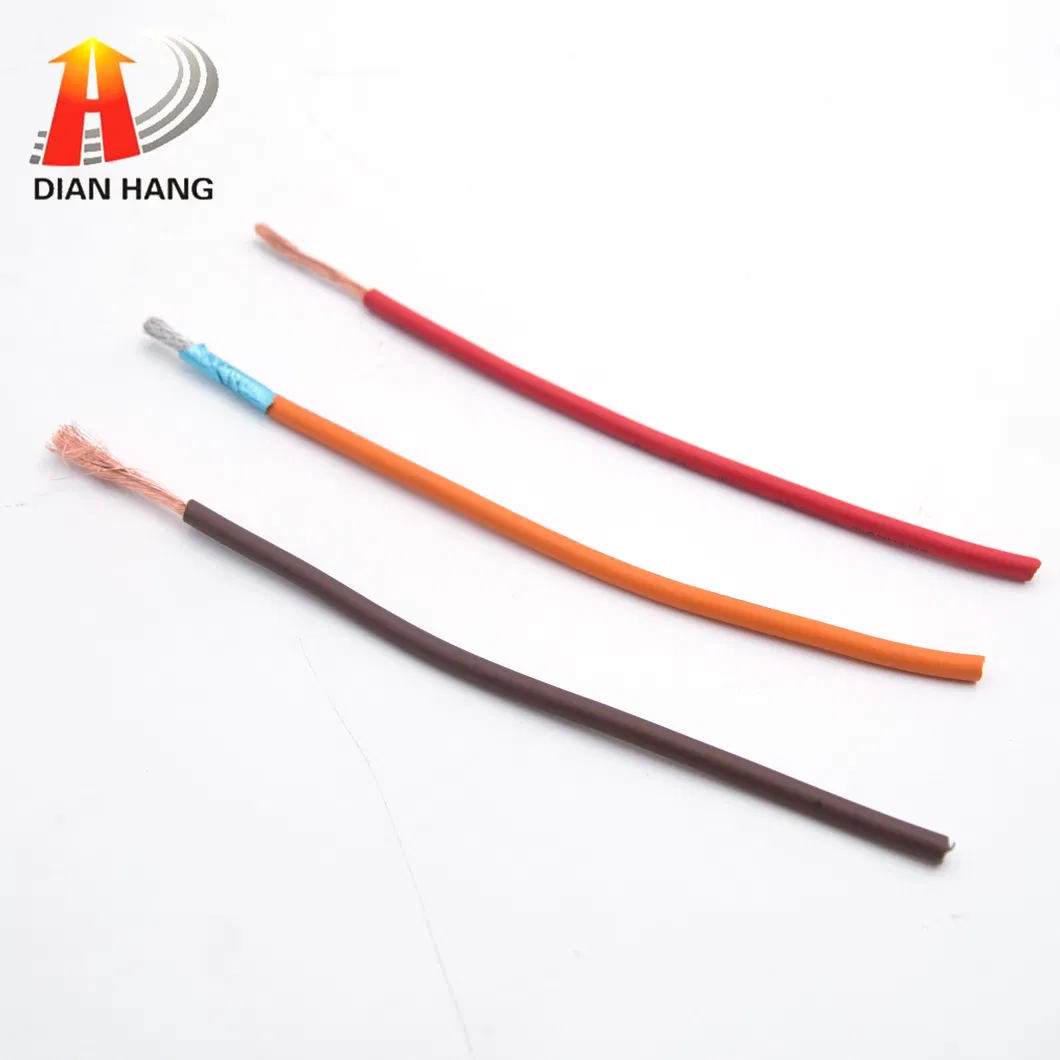

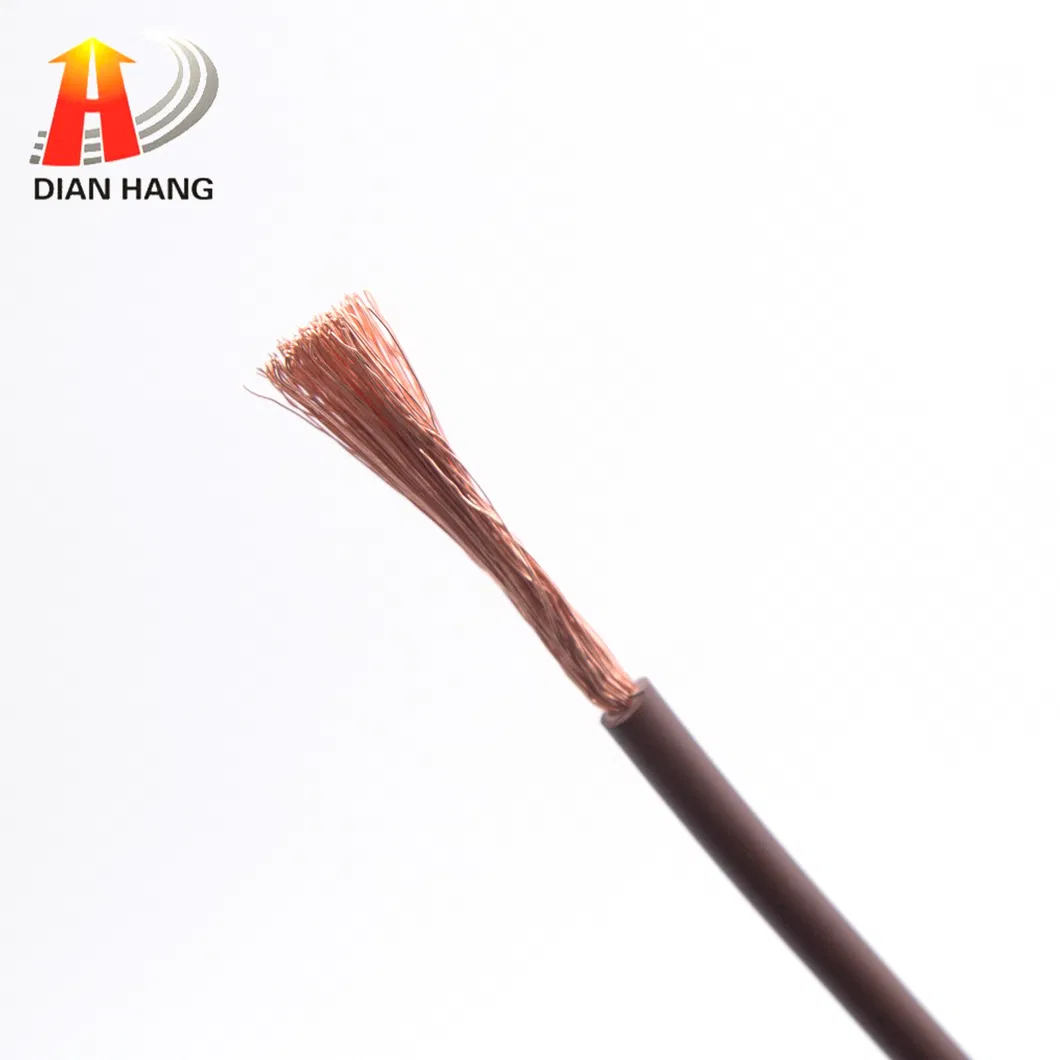

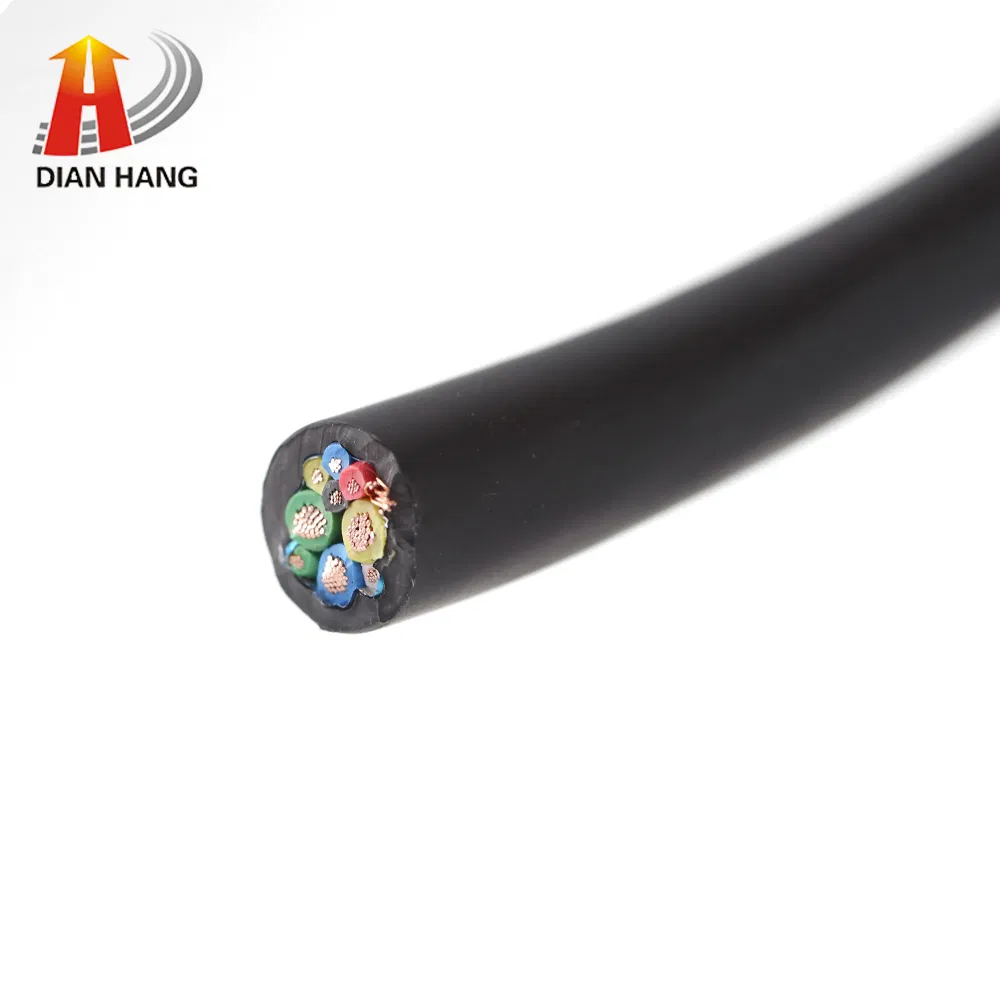

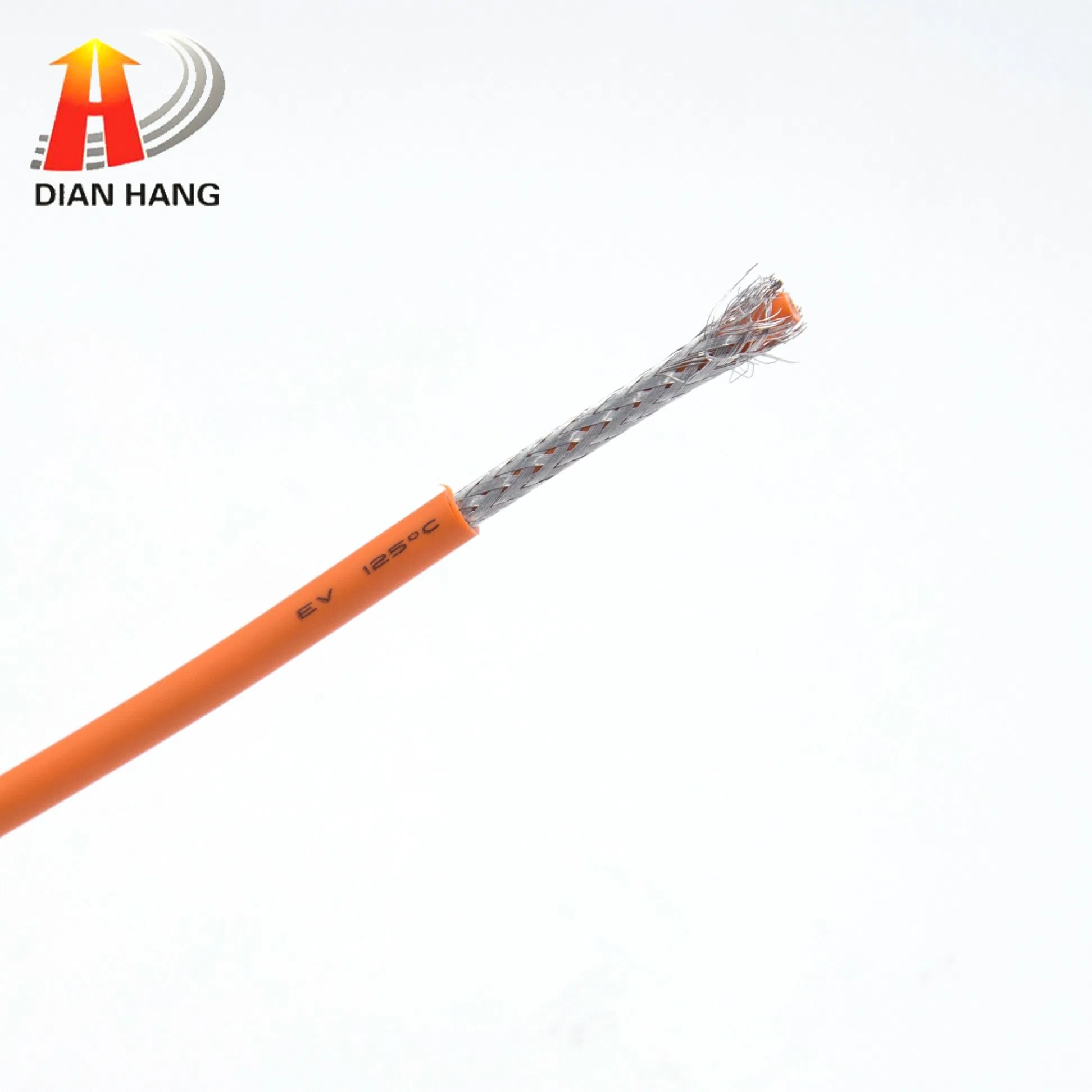

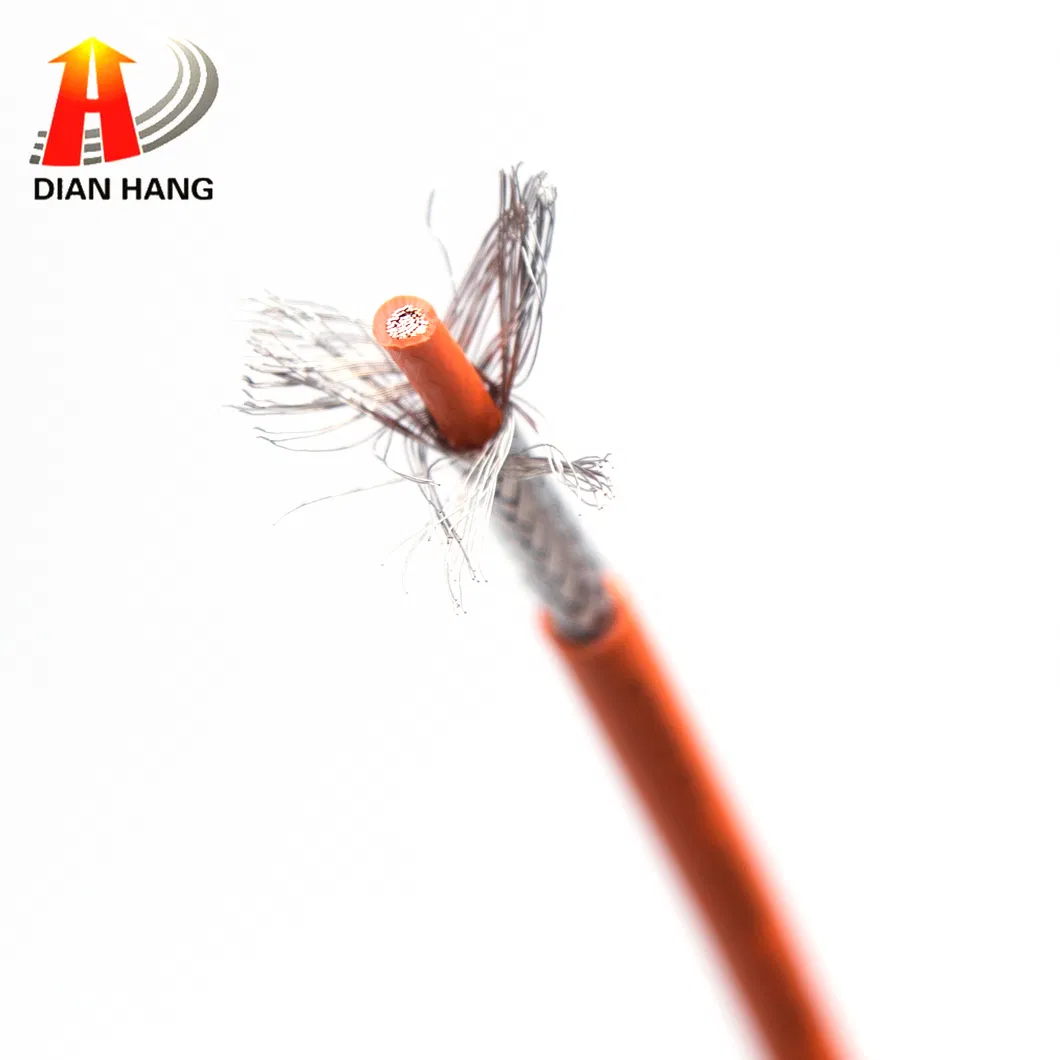

EV charging pile cable, shielded cable
Temperature:-40~+125ºC
Rated voltage:300V/600V/1500v
Halogen: Halogen free
Insulated: XLPE
Jacket: XLPE
Flame retardant: FT2
This wire has good resistance to scratching and hydrolysis.
EV electric vehicle high voltage line is suitable for battery power output, controller connection, motor connection, charging pile, car charger and so on.
Product Type | Conductor | Insulation | Jacket | Max.cond. Resistance | |||
EV shielded | mm2 | Construction (No./mm) | OD (mm) | Shielded | Material | OD (mm) | (Ω/Km,20ºC,Dc)
|
0.5 | 16/0.20 | 2.90 | Shield braid | AL-Mylar | 5.50 | 37.1 | |
0.75 | 24/0.20 | 3.10 | Shield braid | AL-Mylar | 5.70 | 24.2 | |
1.0 | 32/0.20 | 3.70 | Shield braid | AL-Mylar | 6.30 | 18.5 | |
| 1.5 | 49/0.20 | 4.00 | Shield braid | AL-Mylar | 6.60 | 12.7 | |
| 2.0 | 64/0.20 | 4.10 | Shield braid | AL-Mylar | 6.80 | 9.42 | |
2.5 | 79/0.20 | 4.30 | Shield braid | AL-Mylar | 7.00 | 7.60 | |
3.0 | 7/14/0.20 | 4.90 | Shield braid | AL-Mylar | 7.50 | 6.15 | |
| 4.0 | 7/18/0.20 | 5.20 | Shield braid | AL-Mylar | 7.80 | 4.71 | |
| 5.0 | 7/23/0.20 | 5.40 | Shield braid | AL-Mylar | 8.00 | 3.70 |
6.0 | 7/27/0.20 | 5.60 | Shield braid | AL-Mylar | 8.30 | 3.14 | |
8.0 | 7/37/0.20 | 6.50 | Shield braid | AL-Mylar | 9.30 | 2.52 | |
