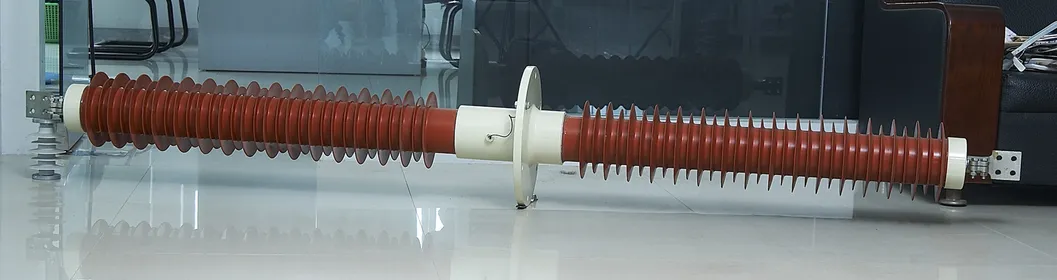

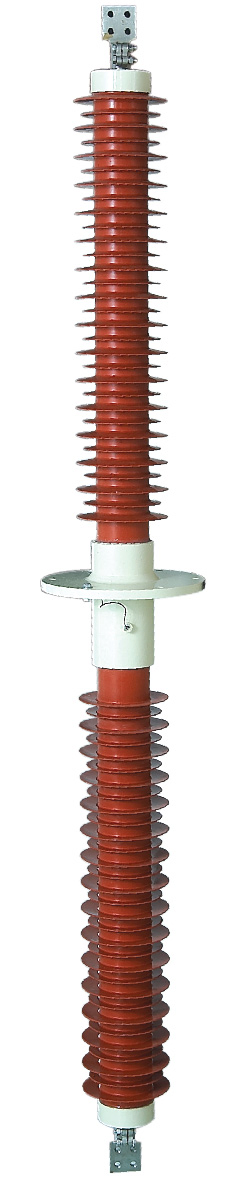

72.5kv 2000A Wall Silicon Rubber Bushing
1.Service conditionsAmbient air temperature: -50 centigrade ~ +50 centigradeThe altitude ≤ 1000m, if higher, amend according to IEC 60137The creepage ratio20mm/kV, 25mm/kV or 31mm/kV2. Technical indexesRated voltage ( Ur ): 33kV, 52kV, 72.5kV, 123kV, 145kV, 170kV, 245kVRated current ( IR ): &......
Send Inquiry
Product Description
1.Service conditions
Ambient air temperature: -50 centigrade ~ +50 centigrade
The altitude ≤ 1000m, if higher, amend according to IEC 60137
The creepage ratio20mm/kV, 25mm/kV or 31mm/kV

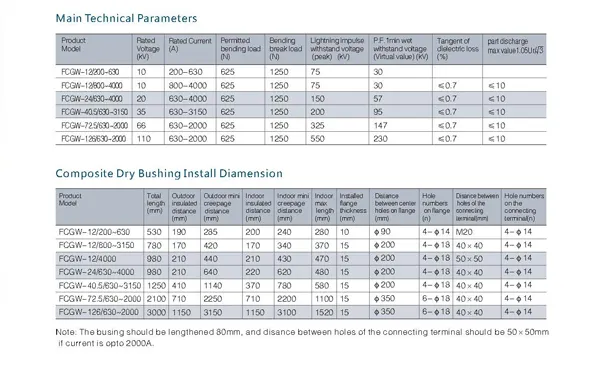

2. Technical indexes
Rated voltage ( Ur ): 33kV, 52kV, 72.5kV, 123kV, 145kV, 170kV, 245kV
Rated current ( IR ): ≤ 4000A
Partial discharge: ≤ 5PC
Dielectric dissipation factor: ≤ 0.004
Ith: 25IR
All parameters are in accordance with IEC 60137
