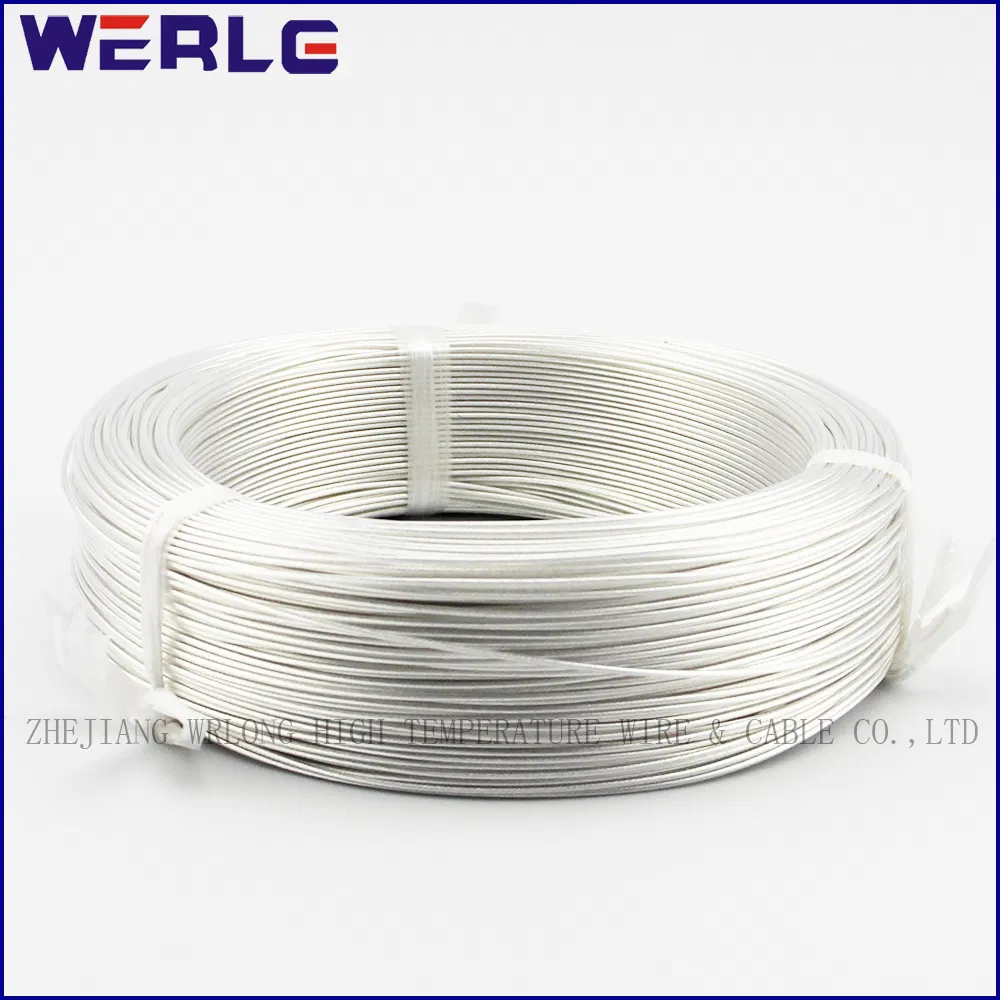

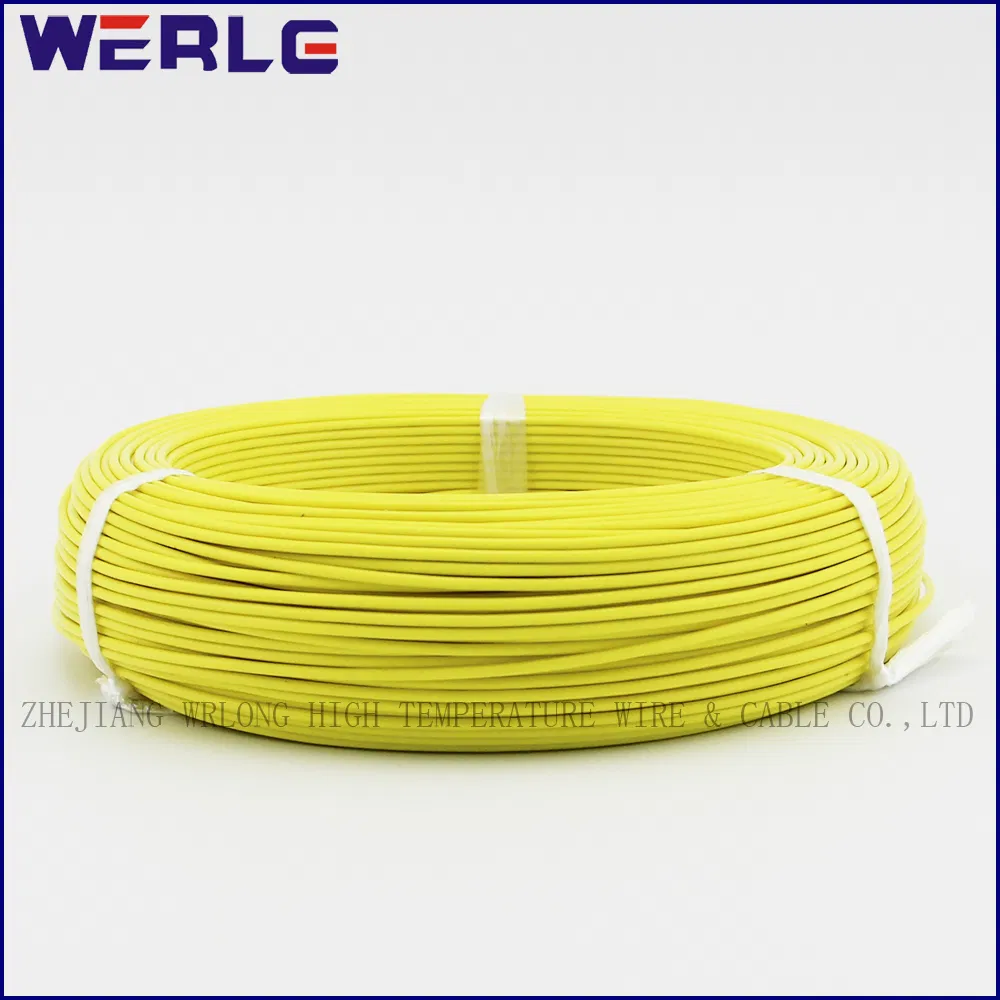

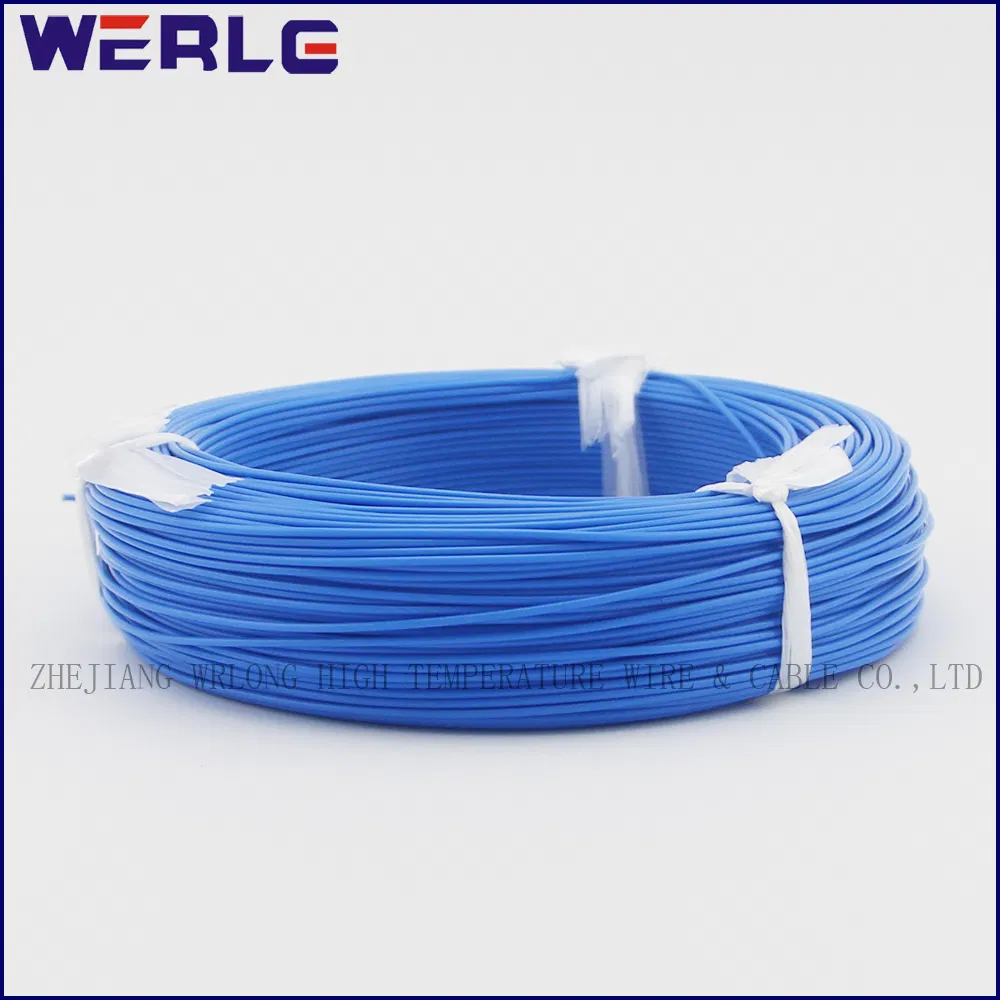

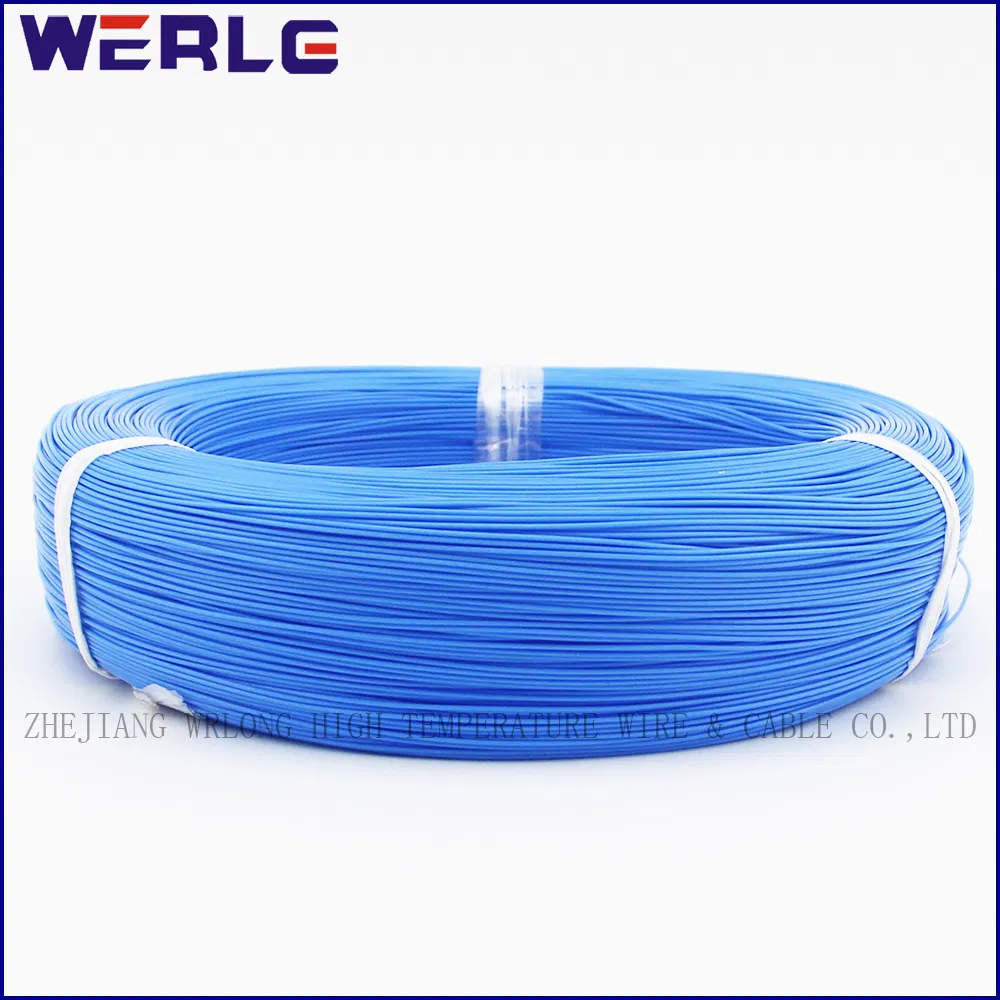

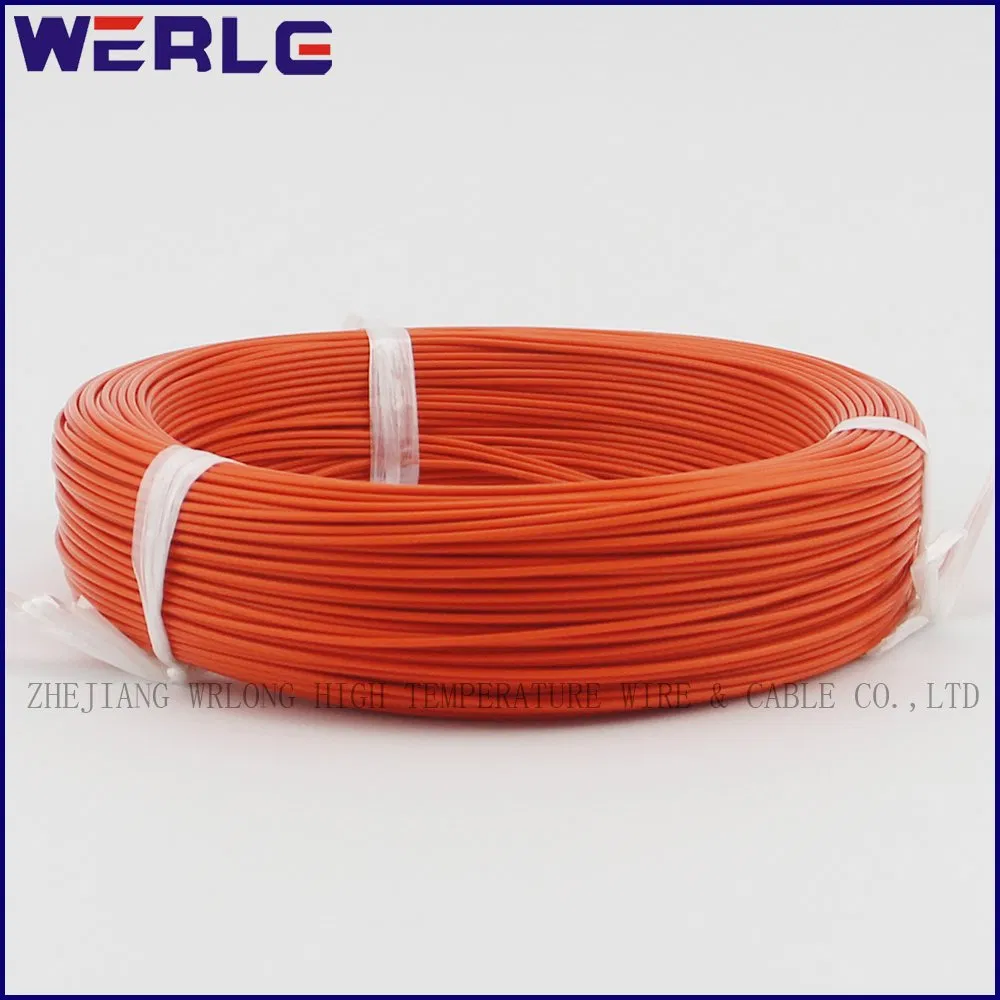

Af200 Teflon Insulated Tinned Copper Wire

Product Description

Teflon insulated tinned copper wire

RoHS, CCC
GB/T19001, ISO9001
Rated temperature: 200oC
AC rated voltage: 300V/600V
Conductor: Solid or stranded wire (0.014~95mm2 ) of tin-plated, silver or bare copper.
Insulator: FEP(F46)

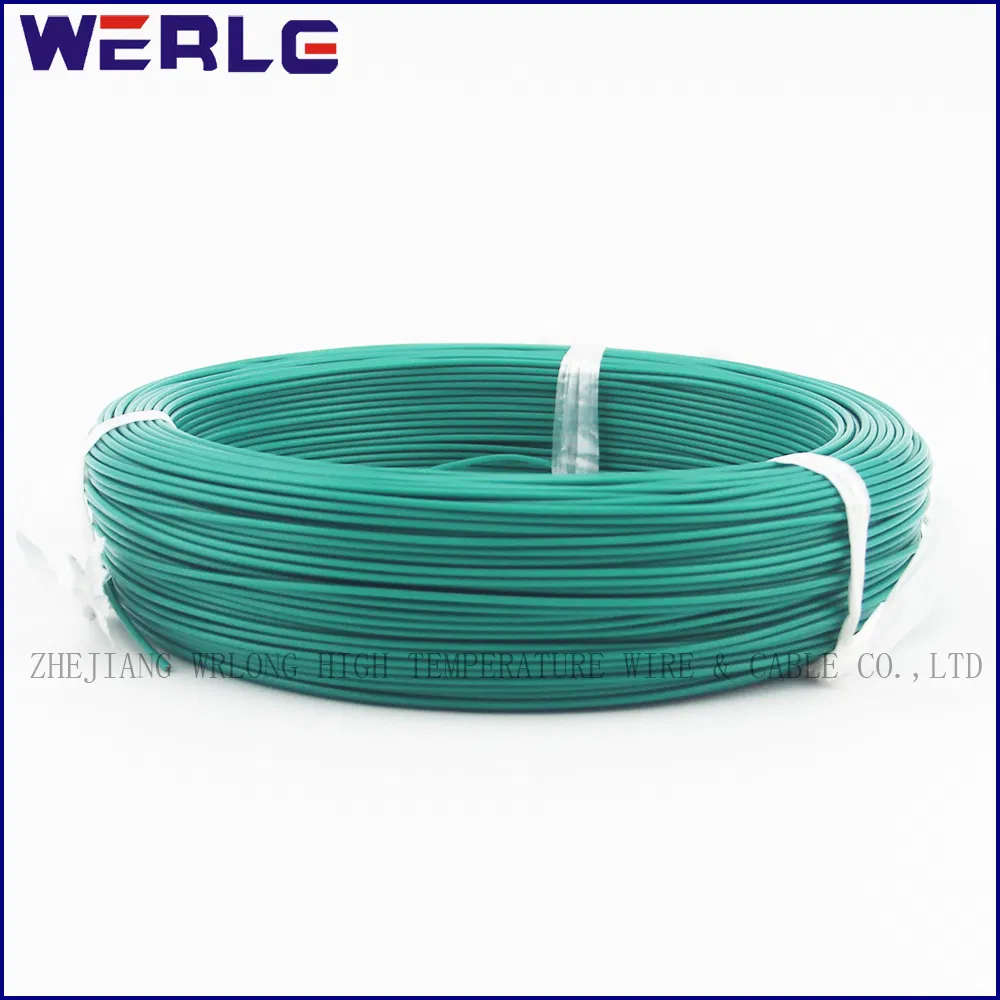

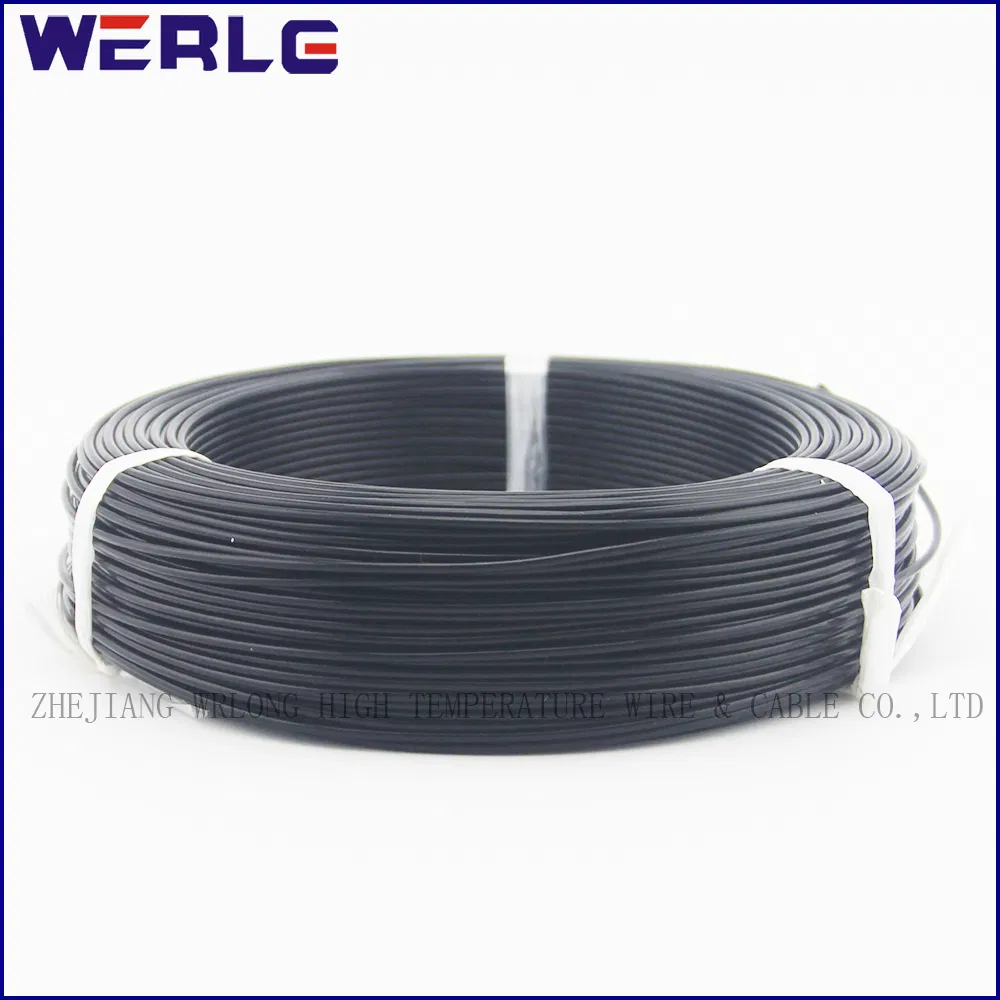

Color: Red\blue\white \ yellow \green\brown\black\grey \transparent
It is corrosion-resistant and almost impossibly soluble in any organic solvent and it is oil-resistant, less high-frequency loss, moisture-proof and has big insulation resistance. Also, it is incombustible, non-aging and durable.
The length of delivery should not be less than 8 meters and the quantity of short delivery should not be more than the quantity of 20% of all delivery.
Use Range
It is used in air-conditioner, microwave oven, electric products, lighting sets, electric heater, oven, electric factory, various motors and so on.

AF200-1	Conductor			Over Diamter ±0.03mm²	Insulator			Technical Data		Packing(m/roll)
Size mm²	material	Conductor Construction No./mm	Diameter mm	Over Diamter ±0.03mm²	Material	Average Thickness mm	Colour	Temperature Range(ºC)	Nominal voltage	Packing(m/roll)
0.08	tinned copper	7/0.12	0.3667	0.65	FEP Teflon	0.142	red, yellow, blue green, black, white, purple, brown, orange, yellow-green, transparent	:-65ºC~+200ºC	300V/ 500V	185/ 500
0.12	tinned copper	7/0.15	0.4584	0.79	FEP Teflon	0.166
0.2	tinned copper	7/0.20	0.6112	0.97	FEP Teflon	0.179
0.3	tinned copper	19/0.14	0.7028	1.1	FEP Teflon	0.189
0.35	tinned copper	19/0.15	0.7552	1.15	FEP Teflon	0.197
0.5	tinned copper	19/0.18	0.9062	1.32	FEP Teflon	0.207
0.75	tinned copper	19/0.23	1.1579	1.59	FEP Teflon	0.216
1.0	tinned copper	19/0.25	1.2586	1.78	FEP Teflon	0.261
1.2	tinned copper	19/0.28	1.40967	1.88	FEP Teflon	0.235
1.5	tinned copper	19/0.32	1.611	2.08	FEP Teflon	0.234
2.0	tinned copper	19/0.37	1.8628	2.34	FEP Teflon	0.239
2.5	tinned copper	19/0.40	2.0138	2.55	FEP Teflon	0.268
3.0	tinned copper	19/0.45	2.266	2.81	FEP Teflon	0.272
4.0	tinned copper	37/0.37	2.5995	3.2	FEP Teflon	0.3
6.0	tinned copper	37/0.45	3.162	3.9	FEP Teflon	0.369
8.0	tinned copper	37/0.52	3.653	4.35	FEP Teflon	0.348
