Product Description

======================================================
*Product Description*
======================================================
Specifications
* Standard: National Standard IEC and ASTM
* Rated Voltage: 0.6/1KV, 11KV, 33KV
* Construction: Phase conductor: Aluminum stranded(AAC)
* Neutral conductor: Aluminum stranded(AAC), aluminum alloy stranded(AAAC), aluminum conductor steel   reinforced(ACSR)
* Insulation: XLPE or PE
* Application: The cables are designed for aerial power lines and room-entrance wires with voltage up to and including 0.6/1KV.
* Uesd for overhead service application such as street linghting, outdoor lighting and temporary service for cunstruction. Which improves the safety and reliance of electrified wire netting.

Type: Duplex Service Drop, Triplex Service Drop, Quadruplex Service Drop
A Duplex Service Drop
Applications: To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75 maximum.
B Triplex Service Drop
Applications: To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation.
C Quadruplex Service Drop
Applications: Used to supply 3 phase power, usually from a pole-mounted transformer to the use`s servic head where connection to the service entance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.

Construction
A Phase Conductor construction: The phase conductor is aluminum alloy 1350-H19 hard-drawn, compressed concentric-lay-stranded.
B Neutral Conductor Construction
Cable assemblies are available with the following neutral conductors:
Aluminum conductors, coated-steel reinforced (ACSR), concentric-lay-stranded
Aluminum alloy 1350-H19 hard-drawn, concentric-lay-stranded
Aluminum alloy 6201-T81, concentric-lay-stranded
C Insulation Material
The standard insulation on the phase conductor is black low-density crosslinked polyethylene (XLPE)
Alternatively, black linear low-density polyethylene (LDPE) insulation with a 75° C temperature rating is available upon request.

BS 7870-5: Polymeric insulated aerial bundled conductors (ABC) of rated voltage 0.6/1 kV

ABC Cables without Street Lighting
1+1 Structure
Phase Conductor			Neutral Conductor			Completed Cable
Section	Insulation Thickness	Electrical Resistance	Section	Insulation Thickness	Electrical Resistance	Overall Diameter	Cable Weight
Section	Insulation Thickness	DC.20°C	Section	Insulation Thickness	DC.20°C
No.xmm2	mm	Ω/km	mm2	mm	Ω/km	mm	kg/km
1x25	1.3	1.20	25	1.3	1.20	17.6	210
1x35	1.3	0.868	35	1.3	0.868	19.6	270
1x50	1.5	0.641	50	1.5	0.641	23	360
1x70	1.5	0.443	70	1.5	0.443	26.4	500
1x95	1.7	0.320	95	1.7	0.320	30.6	680

3+1 Structure
Phase Conductor			Neutral Conductor			Completed Cable
Section	Insulation Thickness	Electrical Resistance	Section	Insulation Thickness	Electrical Resistance	Overall Diameter	Cable Weight
Section	Insulation Thickness	DC.20°C	Section	Insulation Thickness	DC.20°C
No.xmm2	mm	Ω/km	mm2	mm	Ω/km	mm	kg/km
3x25	1.3	1.20	25	1.3	1.20	21.2	410
3x35	1.3	0.868	35	1.3	0.868	23.7	550
3x50	1.5	0.641	50	1.5	0.641	27.8	730
3x70	1.5	0.443	70	1.5	0.443	31.9	1000
3x95	1.7	0.320	95	1.7	0.320	36.9	1370
3x120	1.7	0.253	120	1.7	0.253	40.6	1690
ABC Cables with Street Lighting
3+1+1 Structure
Phase Conductor		Neutral Conductor		Street Lighting Conductor		Completed Cable
Section	Insulation Thickness	Section	Insulation Thickness	Section	Insulation Thickness	Overall Diameter	Cable Weight
Section	Insulation Thickness	Section	Insulation Thickness	Section	Insulation Thickness	Overall Diameter	Cable Weight
No.xmm2	mm	mm2	mm	mm2	mm	mm	kg/km
3x50	1.5	50	1.5	25	1.3	29.8	830
3x70	1.5	70	1.5	25	1.3	33.6	1100
3x95	1.7	95	1.7	25	1.3	38.2	1470

Other standard and sizes can also be produced as you required.

======================================================
*Company Description*

======================================================
Zhengzhou Jinshui Industry & Commerce Co.Ltd is located in the national class Zhengzhou high and new technology industries zone in Zhengzhou ,Henan province. We have owned a number of exclusive essential manufacture technologies and has pass ISO 9001 Quality Management Systerm ,ISO 14001 Environmental Management Systerm ,OHSAS18001 occupational Heath Management Systerm ,ISO 10012 Measurement Management Systerm and others from China and abroad.

We have been engaged in producing electric cable and wire for nearly 20 years, and we are also 12 year gold supplier. And we are confident that we can offer the best service and quality for you .

Our product range is as following:
*Bare conductors(AAC, AAAC, ACSR, Galvanized steel wire)
*Aerial Bounded Cable (Duplex, Triplex,Quadruplex)
* PVC insulated wire (Rated voltage to 450/750V)
*THHN/THWN wire
*PVC insulated Power Cable
*XLPE insulated Power Cable
*Rubber sheathed Cable
*Control Cable
*Welding Cable
*Cable Accessories

We take part in many fairs and exhibitions in China and abroad . Our aim is to be our customer's factory in Zhengzhou ,China .
We are here to help you placing orders of cost-effective electric cable and keep tracking your products and shipment.
Aluminum/Copper ASTM B801 Concentric Cables

===========================================================

                               * Our Factory *
==========================================================

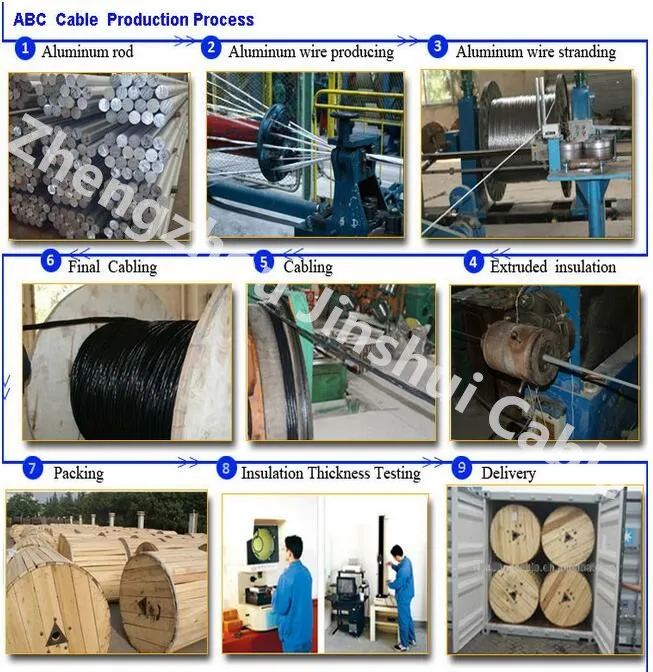

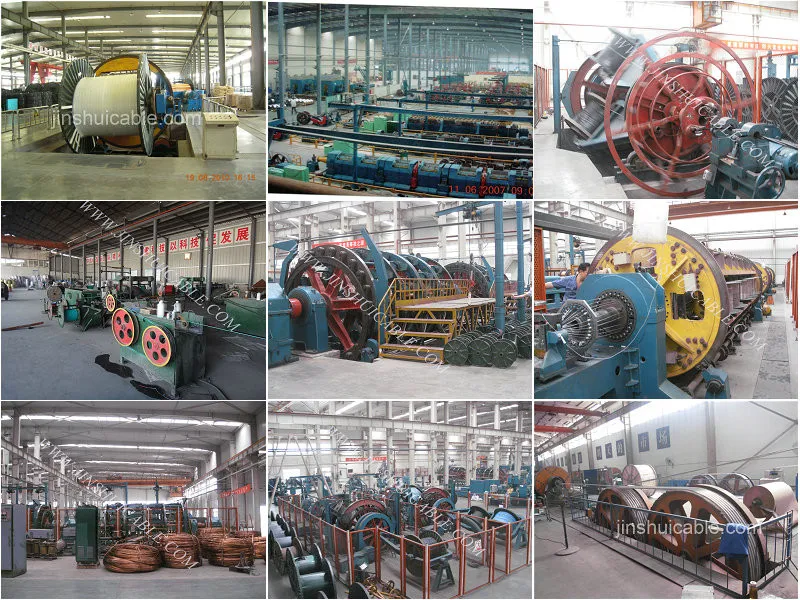

1,Professional production lines, experienced worker, ensure the production of every thing is fine and accurate.
Aluminum/Copper ASTM B801 Concentric Cables

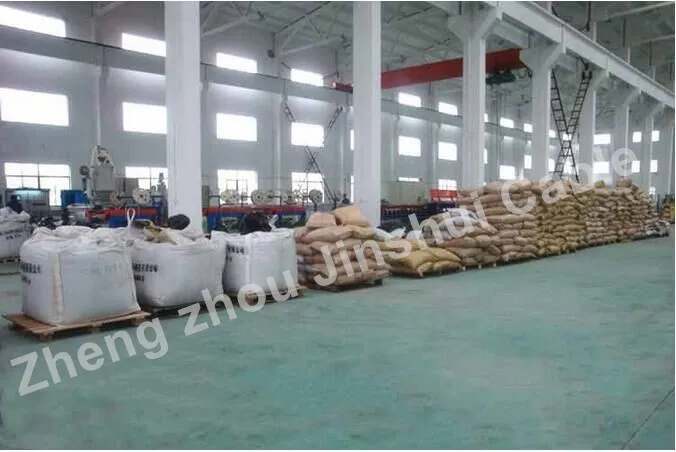

2,We choose excellent raw materials carefully to ensure the quality and meet the need of customers.

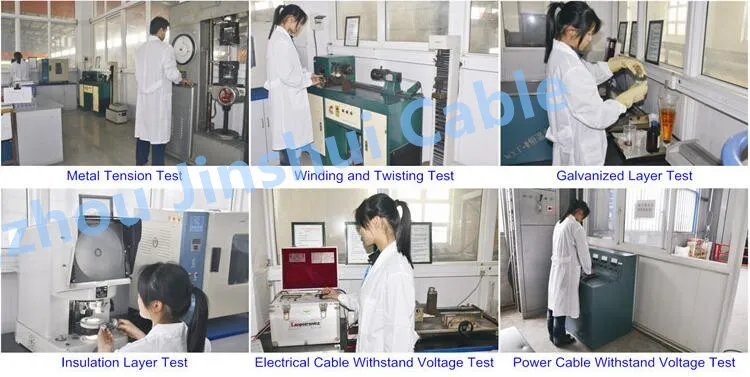

3,Mechanical testing of Cables is done to determine the quality and mechanical characteristics  before delivery.

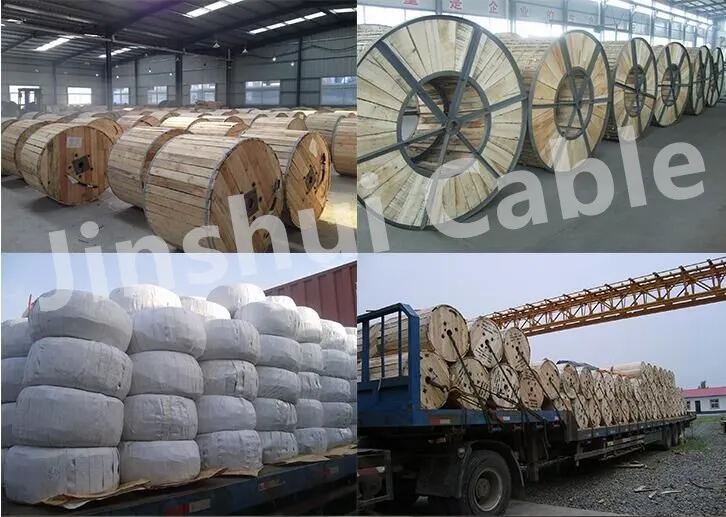

4,Packaging and Shipping
We have a professional handling equipment to ensure the delivery of products.
Inner packing: wooden drum, iron wooden drum and iron drum.
Outer packing: 20',40' container
Other packages are available according to client's request
We always pack and load the products according to the customers' demand, and we have rich experience on it.

======================================================
                                     *FAQ*
======================================================
(1)Are  you the factory or trading company?
We are the manufacturer and 12 years gold supplier on alibaba.We are engaged in exporting cables for nearly 15 years.
(2).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(3).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(4). What is the payment terms?
30% deposit by T/T,70% T/T after checking the copy of B/L. Or irrevocable L/C at sight .
(5).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

Welcome your kind enquiry!
