Aluminum Thhn Wire Home Application Building Wire 4AWG 6AWG 10AWG 12AWG Thhn Made in China Cable
Product DescriptionUL listed THHN or THWN-2 Electrical wire Cable 1 Standard:ul83. 2.Construction:Conductor: Annealed Copper, solid or stranded sizes 14AWG up to 1000MCMInsulation: Premium Grade Flame Retardant Polyvinyl Chloride( PVC)Jacket: Tough Polyamide (Nylon)3 Applications General purpose bu......
Send Inquiry
Product Description
Product Description

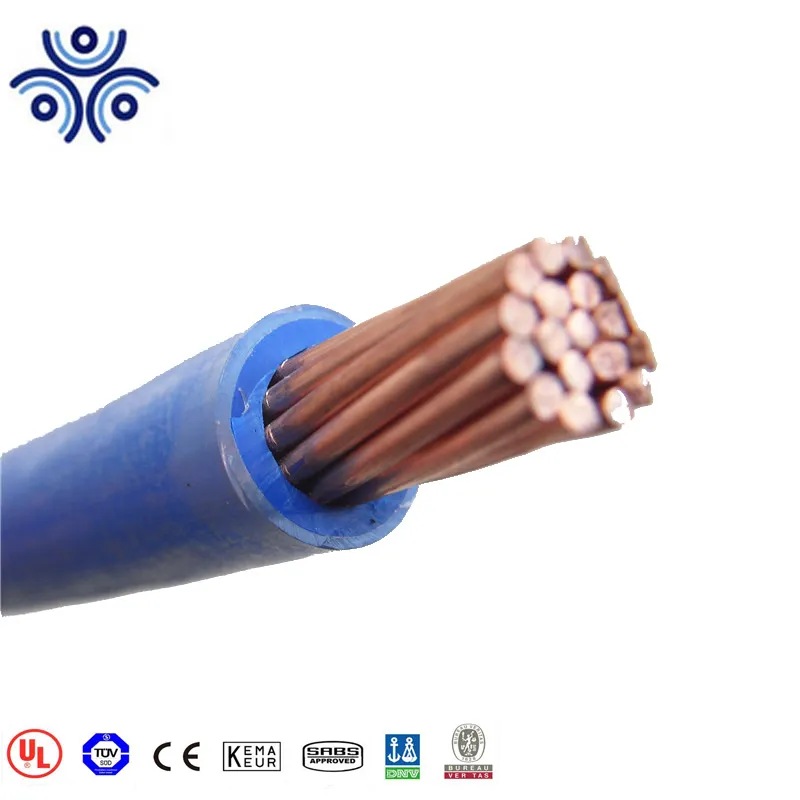

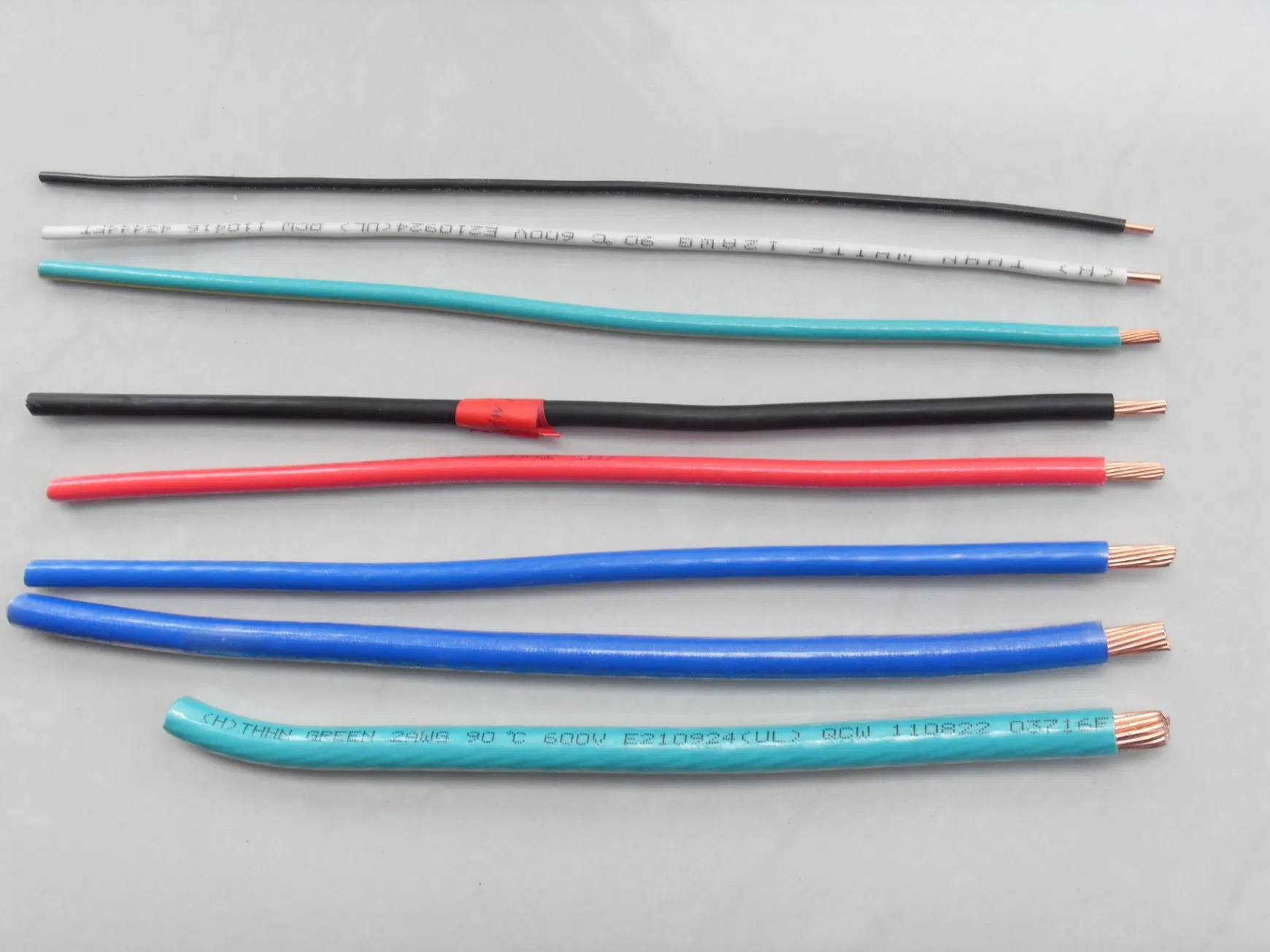

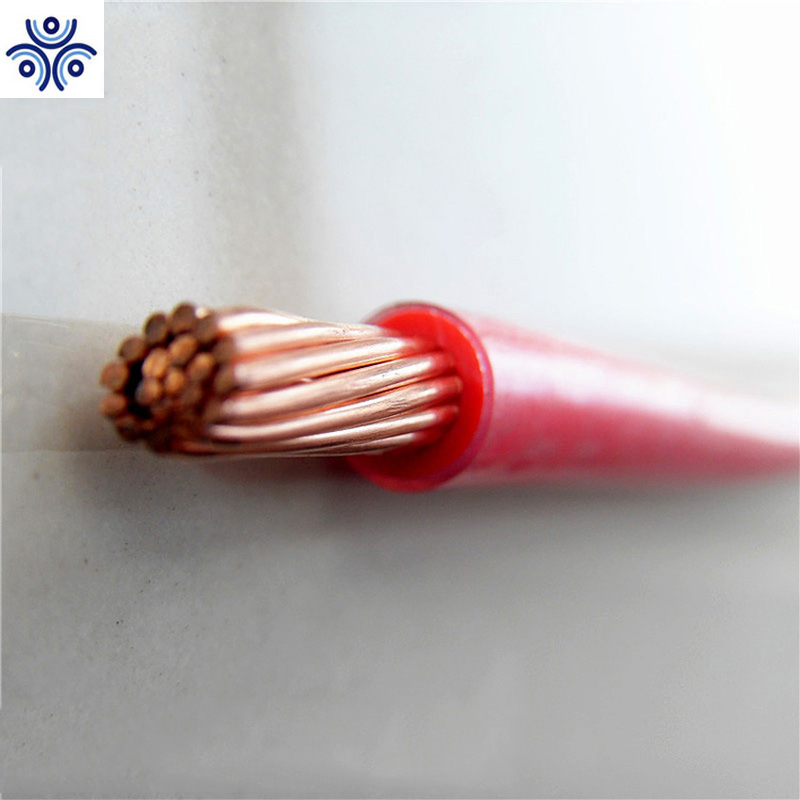

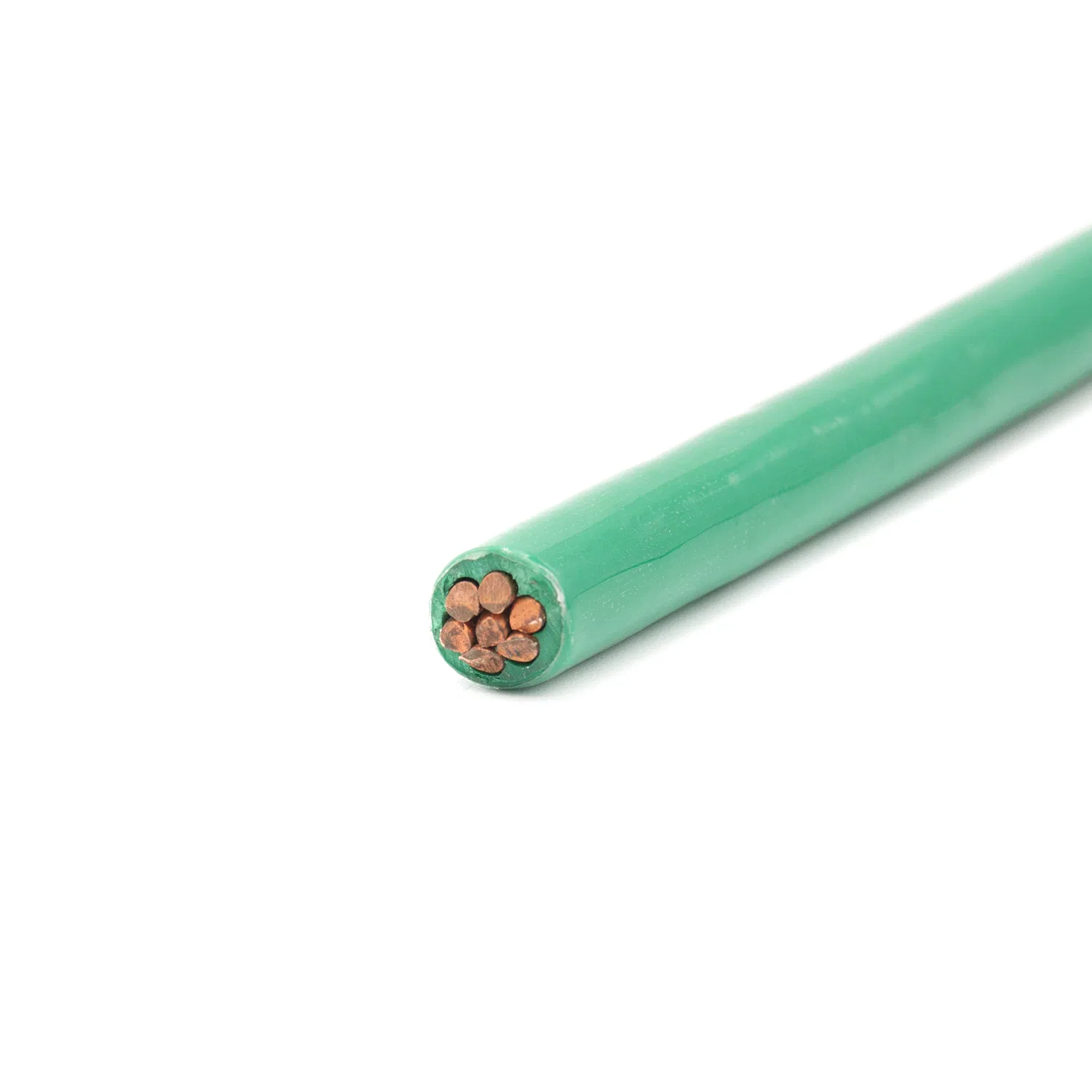

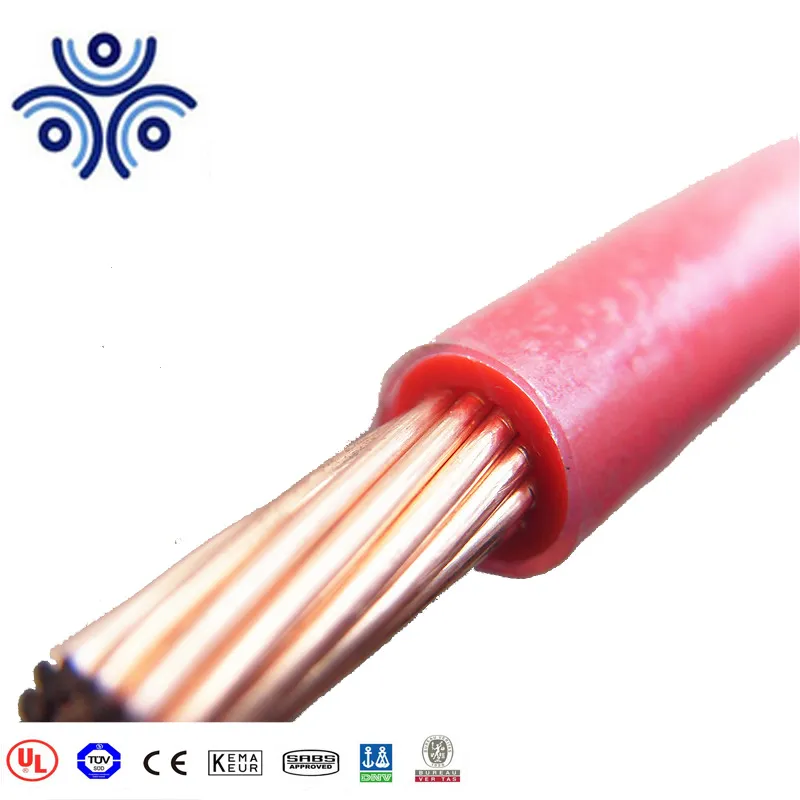

UL listed THHN or THWN-2 Electrical wire Cable
1 Standard:
ul83.
2.Construction:
Conductor: Annealed Copper, solid or stranded sizes 14AWG up to 1000MCM
Insulation: Premium Grade Flame Retardant Polyvinyl Chloride( PVC)
Jacket: Tough Polyamide (Nylon)
3 Applications
General purpose building wire for services, feeders and branch circuits.
Temperature rating not to exceed:
THHN/THWN: 90°C dry and dump, 600V
THHN/THWN: 75 °C wet or in oil, 600V
THWN-2: 90°C Dry, wet or in oil,600V
4. Standard&Test Specification:
THHN/THWN-2 Conforms to following standards:
UL83 for Thermoplastic Insulated Wire and Cables(THHN/THWN-2)
UL758 for Appliance Wiring Materials(AWM)
UL1063 for Machine Tool Wire(MTW)(Stranded Conductor Only).
5 Specification of Thhn cable:
Size | Section | Cu Cond. | Cond Dia. | PVC Thick | Nylon Thick | OD |
AWG /MCM | Mm2 | Wire no./mm | mm | mm | mm | mm |
14 | 2.08 | 1/1.63 | 1.63 | 0.38 | 0.1 | 2.59 |
12 | 3.31 | 1/2.05 | 2.05 | 0.38 | 0.1 | 3.01 |
10 | 5.26 | 1/2.59 | 2.59 | 0.51 | 0.1 | 3.81 |
14 | 2.08 | 19/0.38 | 1.9 | 0.38 | 0.1 | 2.86 |
12 | 3.31 | 19/0.47 | 2.35 | 0.38 | 0.1 | 3.31 |
10 | 5.26 | 19/0.6 | 3.00 | 0.51 | 0.1 | 4.22 |
8 | 8.37 | 19/0.75 | 3.75 | 0.76 | 0.13 | 5.53 |
6 | 13.3 | 19/0.95 | 4.75 | 0.76 | 0.13 | 6.53 |
4 | 21.2 | 19/1.19 | 5.95 | 1.02 | 0.15 | 8.29 |
3 | 26.7 | 19/1.33 | 6.65 | 1.02 | 0.15 | 8.99 |
2 | 33.6 | 19/1.5 | 7.5 | 1.02 | 0.15 | 9.84 |
1 | 42.4 | 19/1.68 | 8.4 | 1.27 | 0.18 | 11.3 |
1/0 | 53.5 | 19/1.89 | 9.45 | 1.27 | 0.18 | 12.35 |
2/0 | 67.4 | 19/2.12 | 10.6 | 1.27 | 0.18 | 13.5 |
3/0 | 85 | 19/2.38 | 11.9 | 1.27 | 0.18 | 14.8 |
4/0 | 107 | 19/2.67 | 13.35 | 1.27 | 0.18 | 16.25 |
250 | 127 | 37/2.09 | 14.63 | 1.52 | 0.2 | 18.07 |
300 | 152 | 37/2.29 | 16.03 | 1.52 | 0.2 | 19.47 |
350 | 177 | 37/2.47 | 17.29 | 1.52 | 0.2 | 20.73 |
400 | 203 | 37/2.64 | 18.48 | 1.52 | 0.2 | 21.92 |
500 | 253 | 37/2.95 | 20.65 | 1.52 | 0.2 | 24.09 |
600 | 304 | 61/2.52 | 22.68 | 1.78 | 0.23 | 26.70 |
750 | 380 | 61/2.82 | 25.38 | 1.78 | 0.23 | 29.40 |
1000 | 507 | 61/3.25 | 29.25 | 1.78 | 0.23 | 33.27
|
Certifications
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.

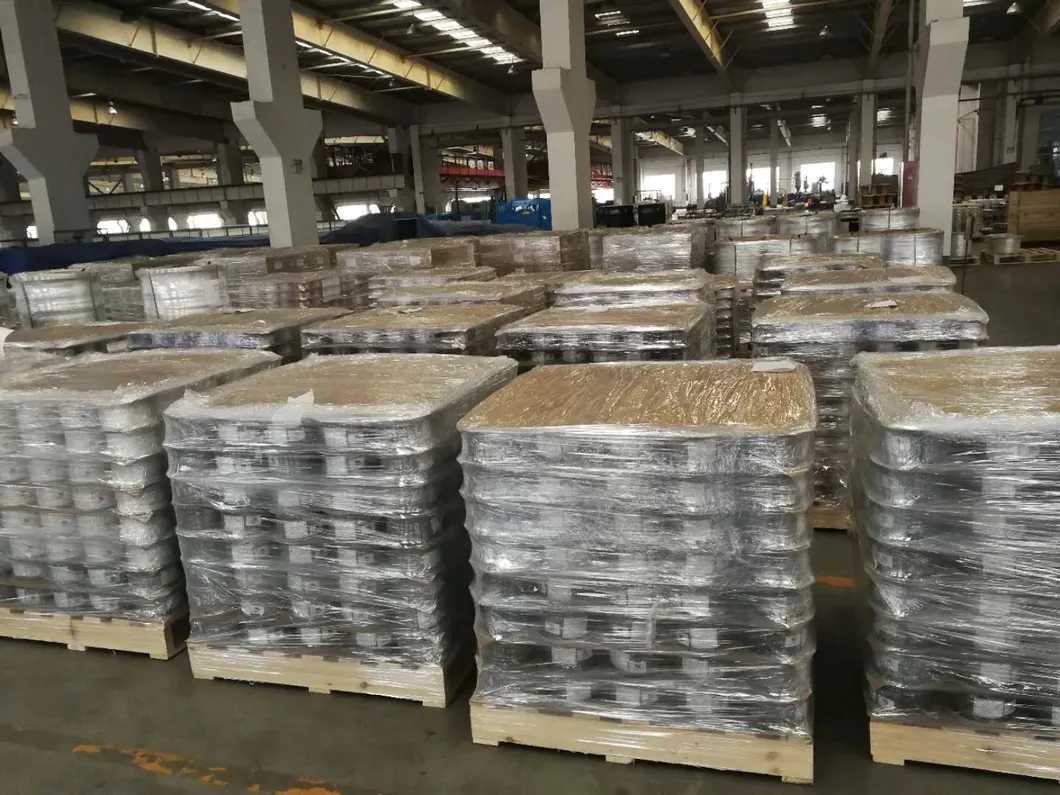

Packaging & Shipping
Company Information

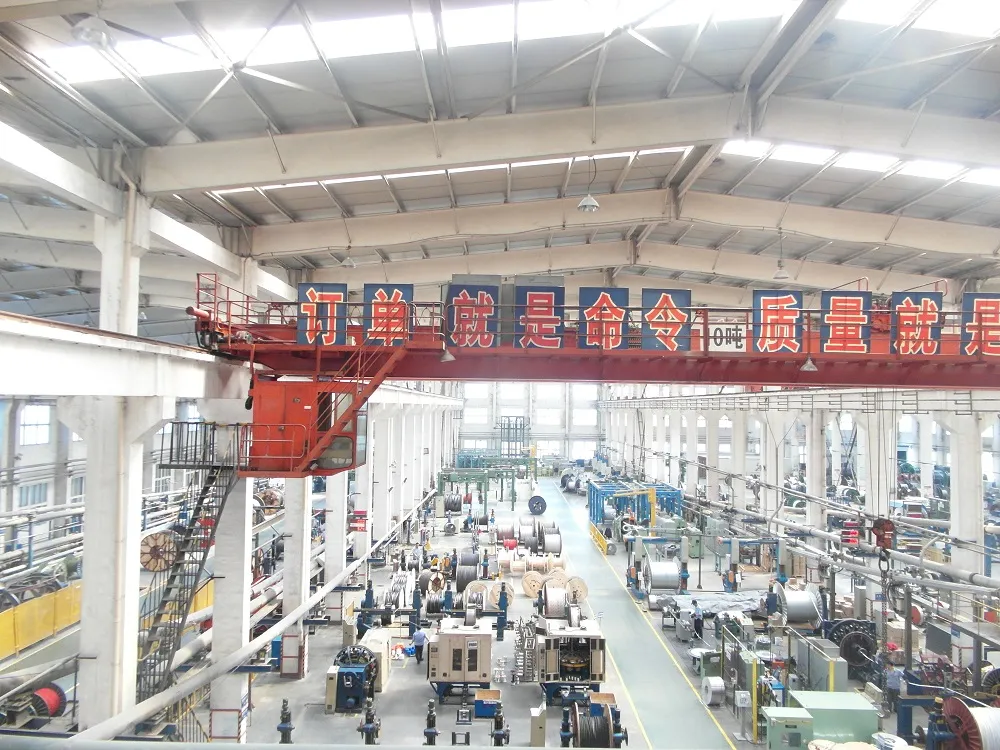

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.
FAQ
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is
delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country.
