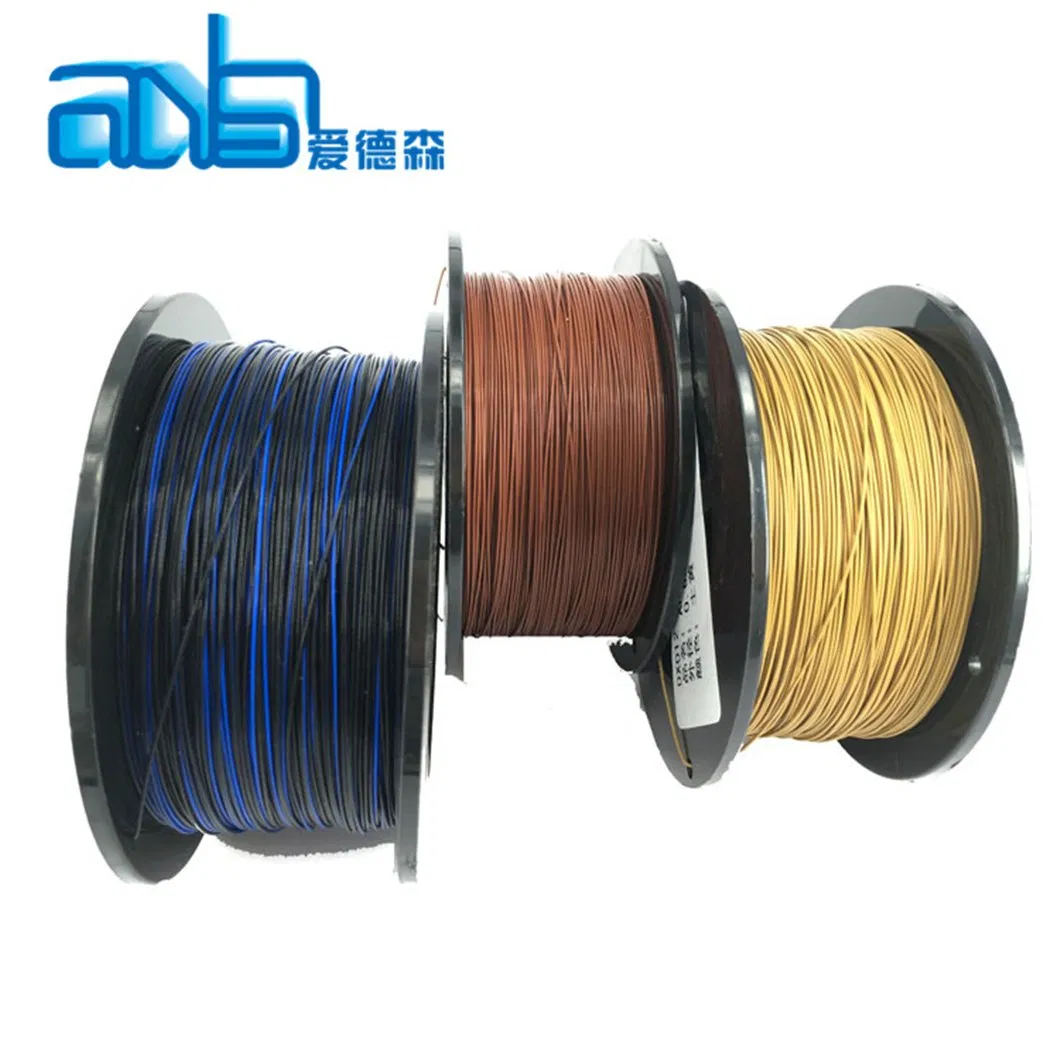

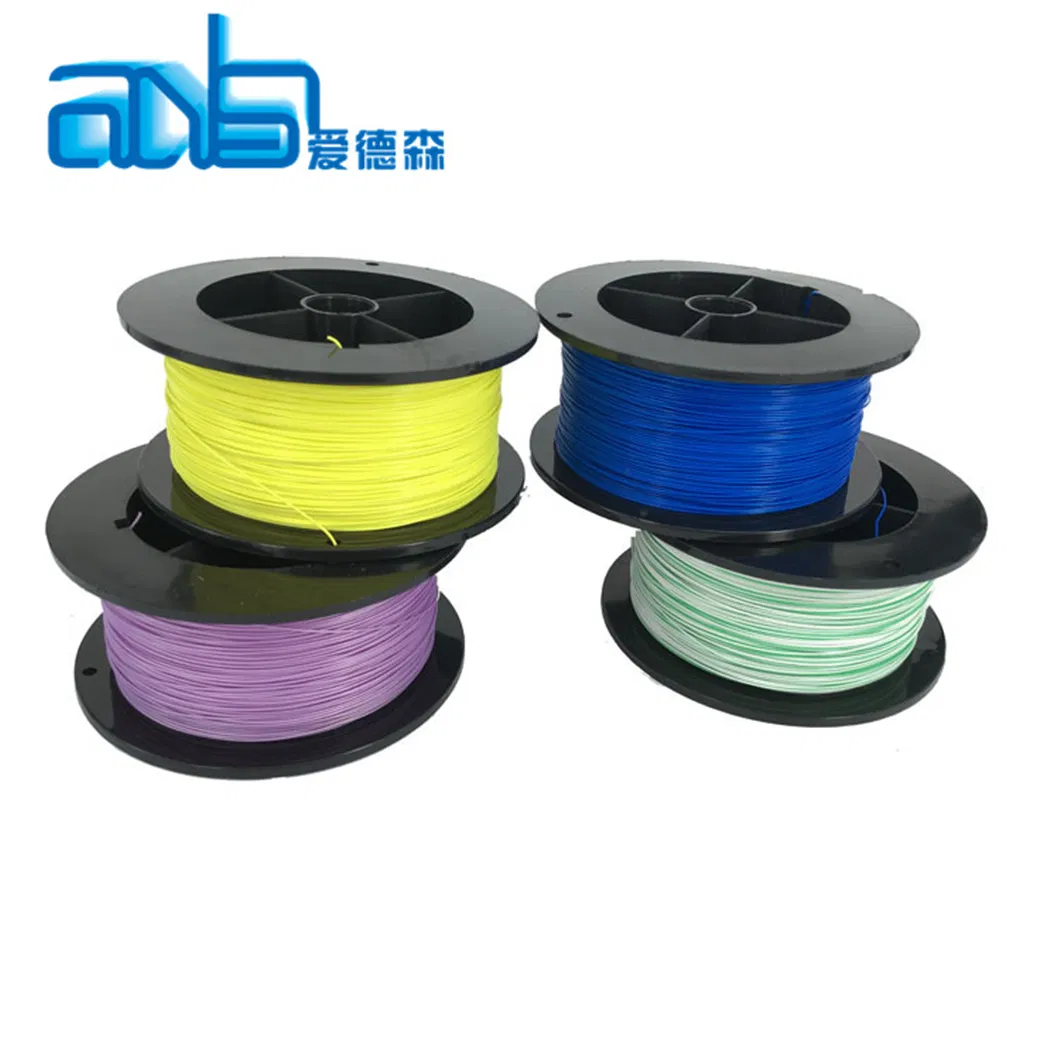

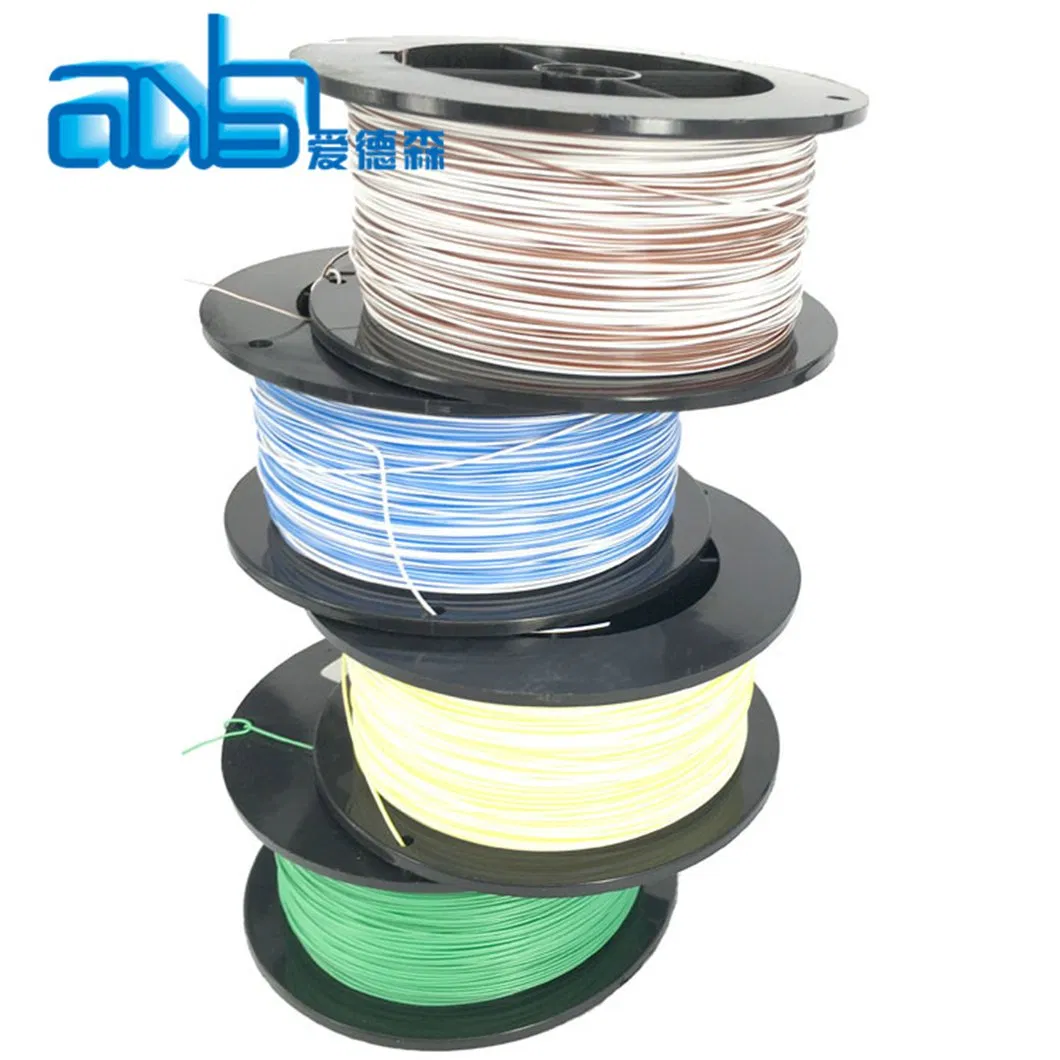

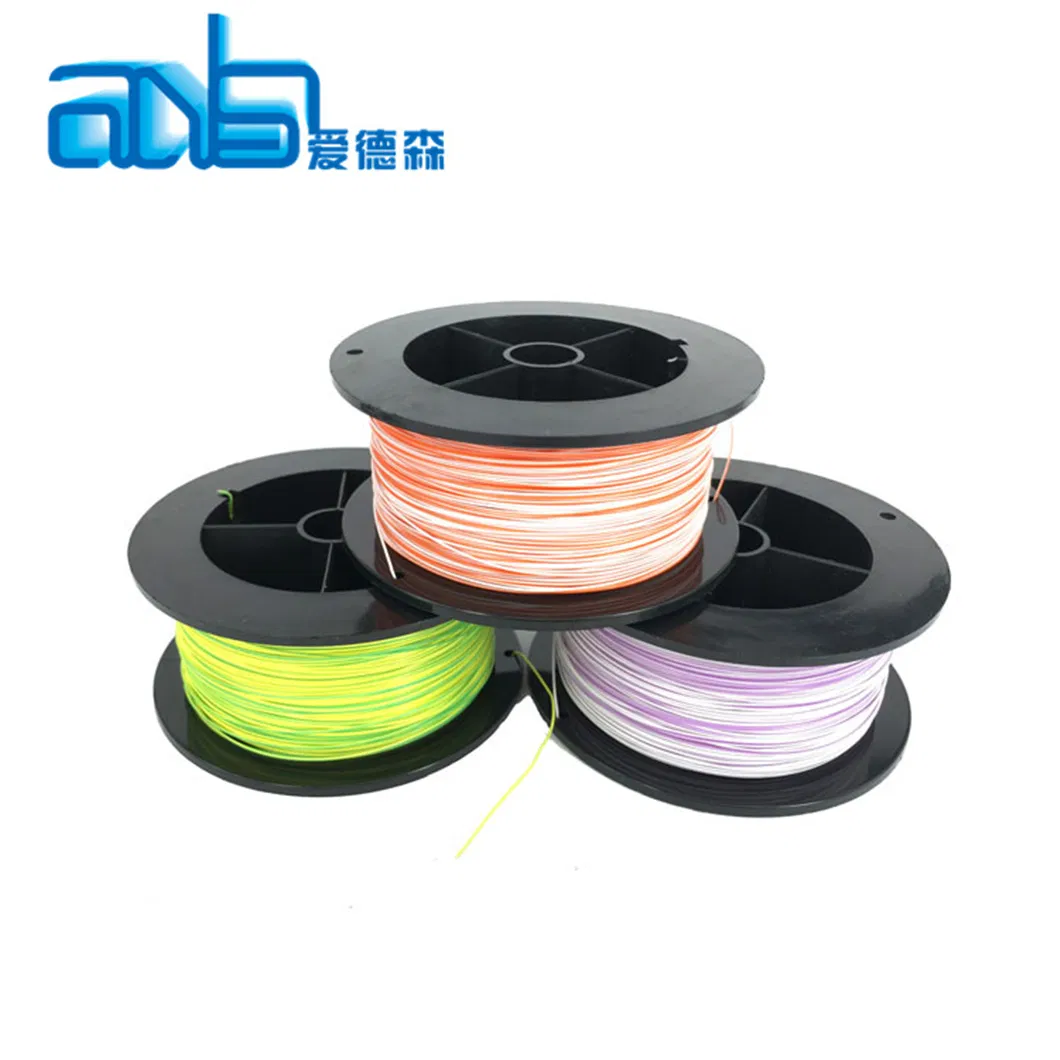

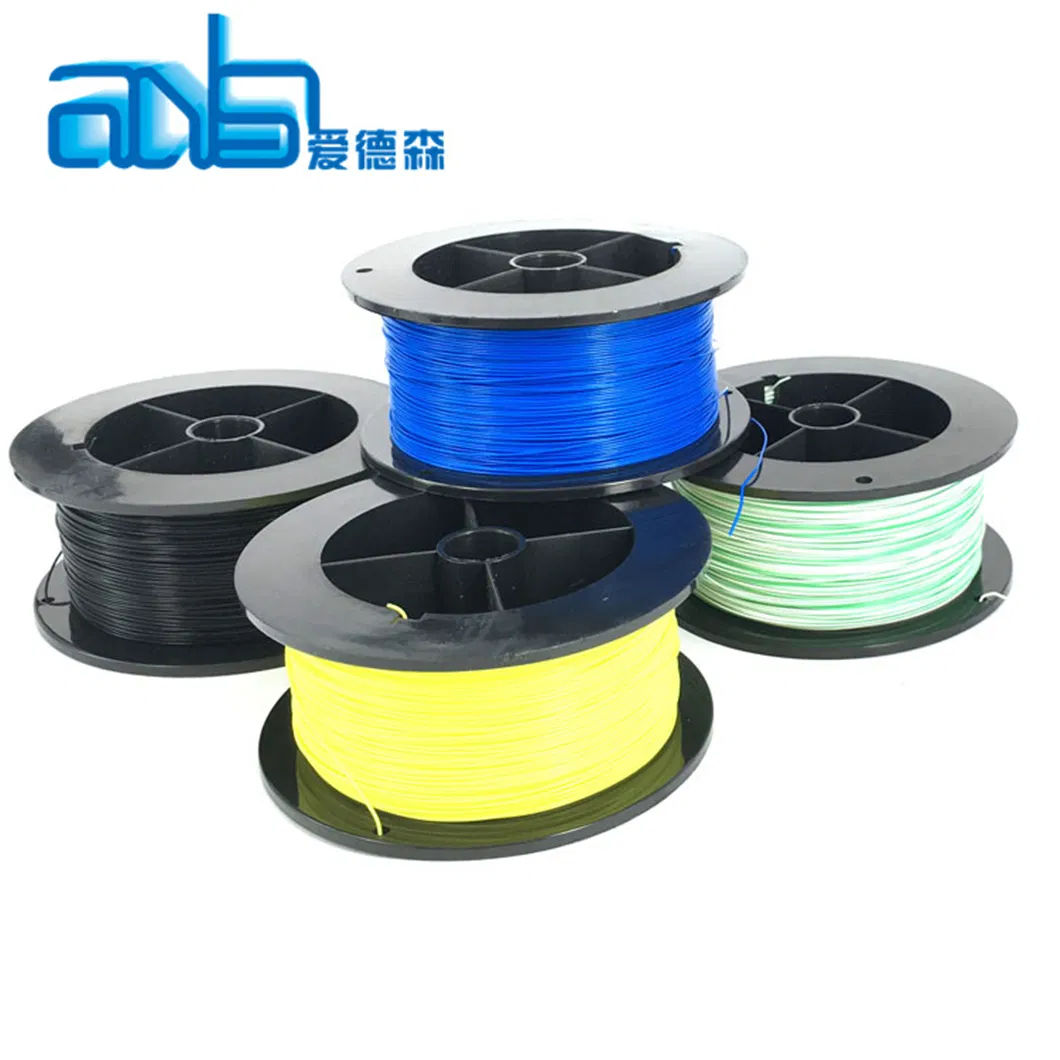

Awm UL1333 28AWG FEP PFA ETFE Coated Stranded Wire

Product Description

Product Specification

Awm UL1333 28AWG FEP PFA ETFE Coated Stranded Wire

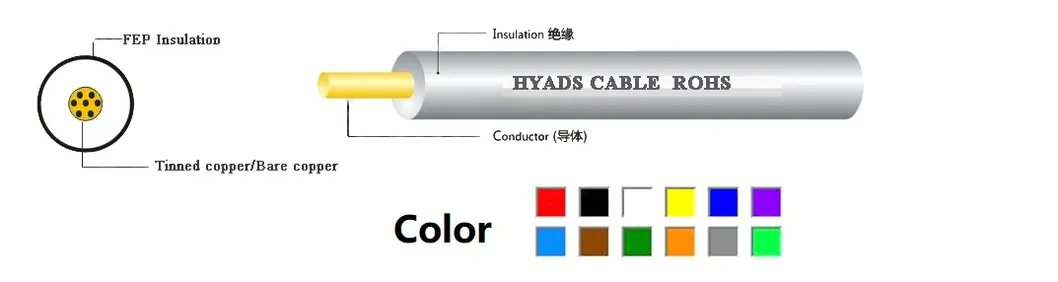

Style 1333 Single conductor with extruded insulation

Rating: 150 deg C, 300 Vac, Horizontal flame. Optional - 80 deg C Oil, Gasoline Resistant.
Conductor: 30-10 AWG, solid or stranded, or Litz cable magnet wire, as describled below. Litz cable conductor consisists of single strand magnet wire, R/C (OBMV2) magnet wire rated a minimum of 150 deg C. Each single magnet wire strand is a conductor. AWG size to be determined by the DC Resistance Test per 1581.
Insulation: Extruded FEP, 13 mils minimum average thickness, 12 mils minimum thickness at any point.
Covering: Optional - Extruded FEP, 10 mils minimum thickness at any point, or glass braid, 7 mils minimum thickness any point.
Standard Appliance Wiring Material UL 758.
Marking: General. Wires employing Litz conductors shall be plainly marked on the tag or reel as follows: "Litz conductors are manufactured using solderable magnet wire".
Usage: Internal wiring of Appliances. In addition, the tag may also indicate 600 Volts Peak for electronic use only.

Conductor			Insulation		Max.Conductor Resistance DC 20ºC Ω/km	Packing
AWG	Conductor Construction No./dia.(mm)	Diameter (mm)	Insulation Thickness (mm)	Out Diameter (mm)	Max.Conductor Resistance DC 20ºC Ω/km	m/coil /
30	1/0.254	0.25	0.33	0.92	361	305
	7/0.1	0.3	0.33	0.96	381.00
	19/0.06	0.30	0.33	0.96	381.00
28	1/0.32	0.32	0.33	0.98	227.0	305
	7/0.127	0.38	0.33	1.04	239.0
	19/0.08	0.40	0.33	1.06	239.0
26	1/0.404	0.4	0.33	1.07	143.0	305
	7/0.16	0.48	0.33	1.14	150.0
	19/0.1	0.50	0.33	1.16	150
24	7/0.02	0.60	0.33	1.26	94.2	305
24	19/0.12	0.60	0.33	1.26	94.2	305
22	7/0.254	0.76	0.33	1.42	59.4	610
22	19/0.15	0.75	0.33	1.42	59.4	610
20	7/0.32	0.96	0.33	1.62	36.7	610
20	19/0.19	0.95	0.33	1.62	36.7	610
18	7/0.404	1.21	0.33	1.87	23.2	610
18	19/0.235	1.18	0.33	1.87	23.2	610
16	19/0.3	1.50	0.33	2.16	14.6	610
14	19/0.37	1.85	0.35	2.54	8.96	610
12	19/0.475	2.38	0.33	3.04	5.64	610

OEM Specification Are Also Welcome!

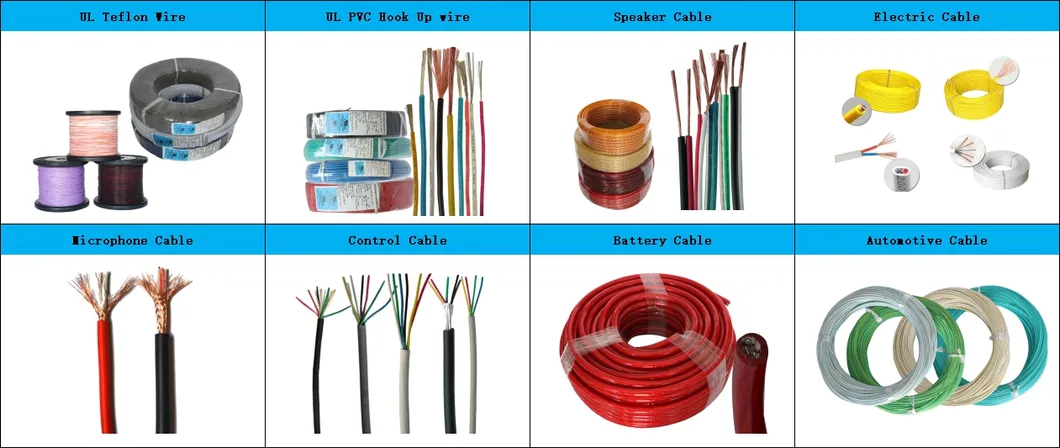

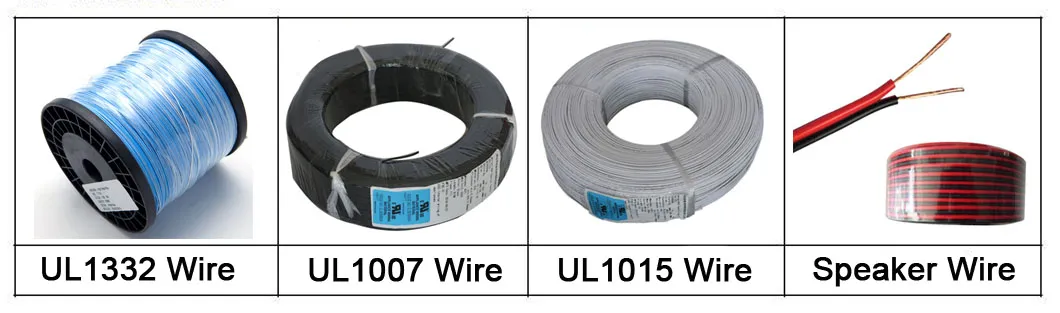

Main Product
Awm UL1333 28AWG FEP PFA ETFE Coated Stranded Wire

Hot Product

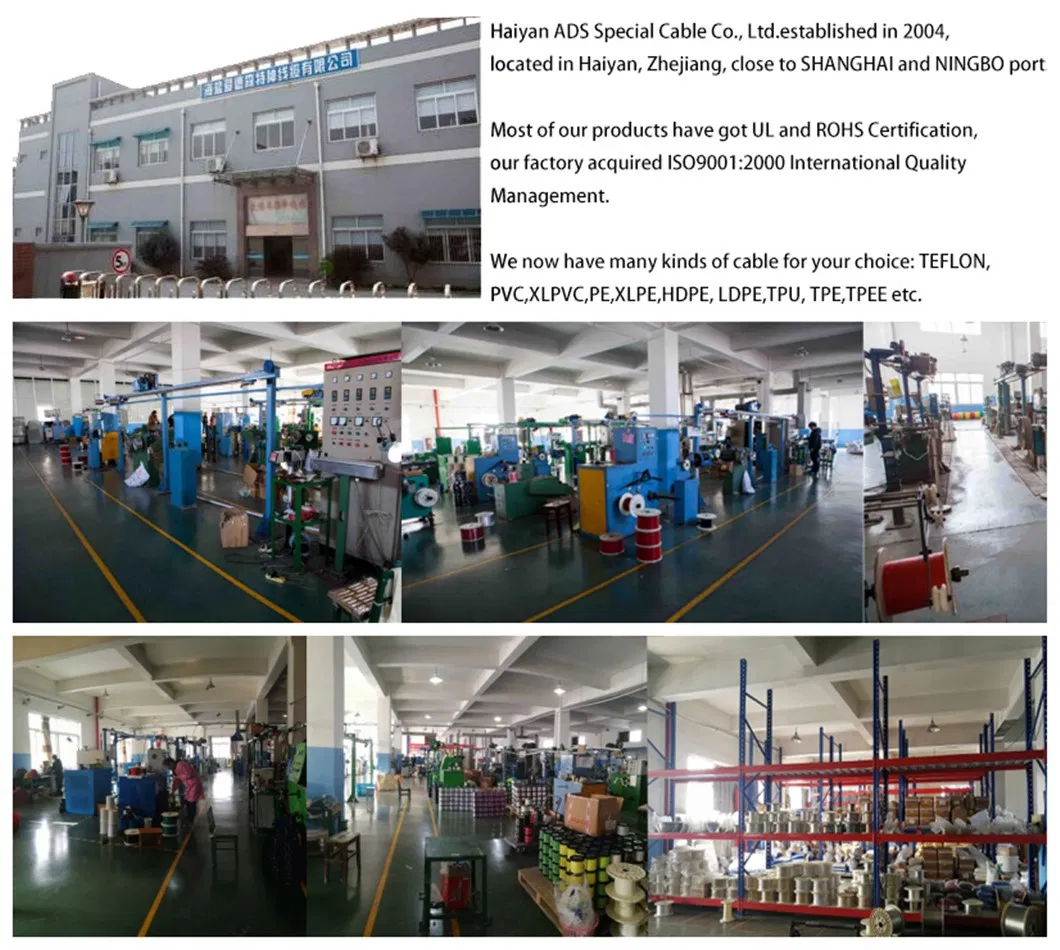

Company Intruction
Awm UL1333 28AWG FEP PFA ETFE Coated Stranded Wire

Certification
Awm UL1333 28AWG FEP PFA ETFE Coated Stranded Wire

UL Certification
E363968

Ul cables
Teflon Wire
1330	1332	10518		10064		10588		1371		1375		1589
1723	1886	1331		1333		1591		1592		1887		1901
Single-conductor, thermoplastic insulation.
1007	1032	1185		1284		1571		1283		1672		1569
1015	10198	10070
Multiple-conductor, thermoplastic insulation.
2464	2468	2725		20276		2835
Single-conductor, thermoset insulation.
3271	3321
Automotive Wires
German Standard
FLR2X-B	FLRY11Y/FLR4G11Y		FLRY-A		FLRY-B		FLRYW-A		FLRYW-B		FLRYY/FLR4GY
China Standard
QB-A/B/C/D	QFR		QVR		QVR-105
Japan Standard
AV	AVS		AVSS		AVSSX/AESSX			AVX/AEX		CAVS
America Standard
GPT	GXL		HDT		SXL			TWP		TXL

More Test report (Rohs,Reach,Flame Retardant),Pls contact us

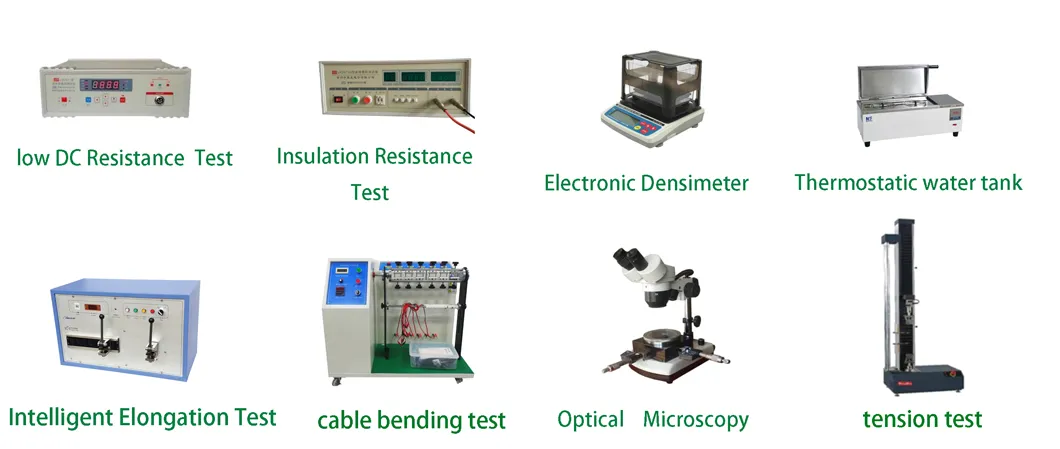

Test Equipment

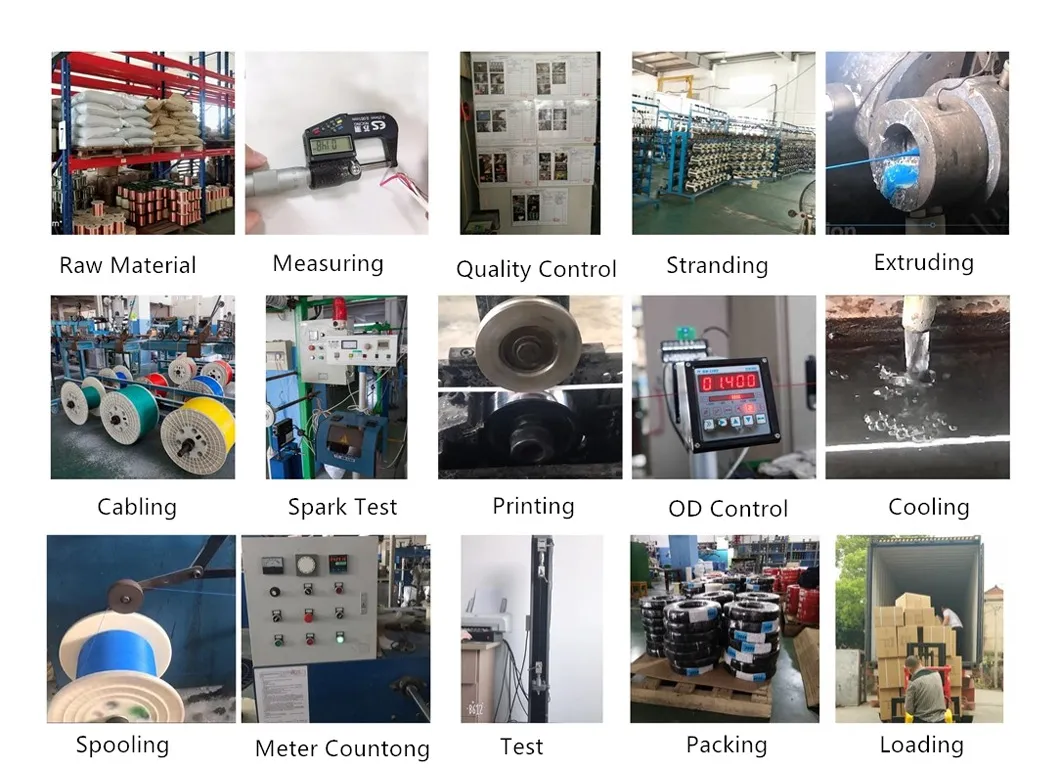

Production Process

Overseas Exibition

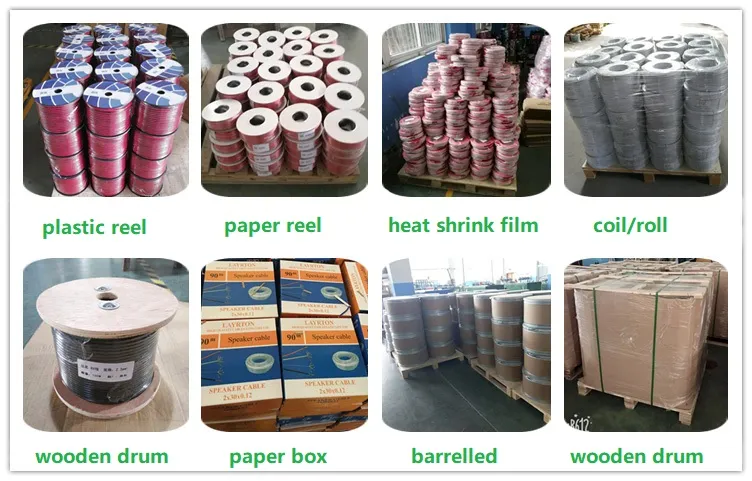

Packing

FAQ
Q:Are you a factory or a trading company
A:ADS company is a professional cable manufacturer with 15 years production experience.

Q:What's your company MOQ
A:Our company has MOQ requirements, but we also accept small quantity.

Q:Whether these products quality assured?
A:Most of cables are certificated. Also, we have strict QC, all products are 100% tested before delivery. Quality is assured.

Q:Can you send a sample for us to test?
A:1.If we have it in stock and the amount is small, it is free.
2.If we do not have it in stock, sample and freight cost have have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.

Q:If I want to purchase, how to pay?
A: Generally we do T/T in 30% deposit before production, 70% balance before loading. Also payment terms are negotiable depending on customer's request.
