ASTM/BS Standard Galvanized Steel Wire Gsw
Galvanized steel wire1.ApplicationThe galvanized single steel wires or stranded steel wires are suitable for cores of ACSR to improve its tensile strength. And they can also be used in the aerial transmission line as the line material of ground connection to avoid the lightning......
Send Inquiry
Product Description

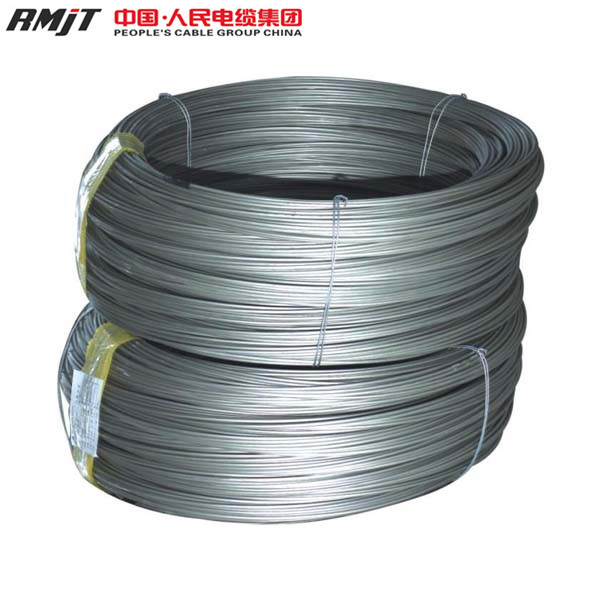

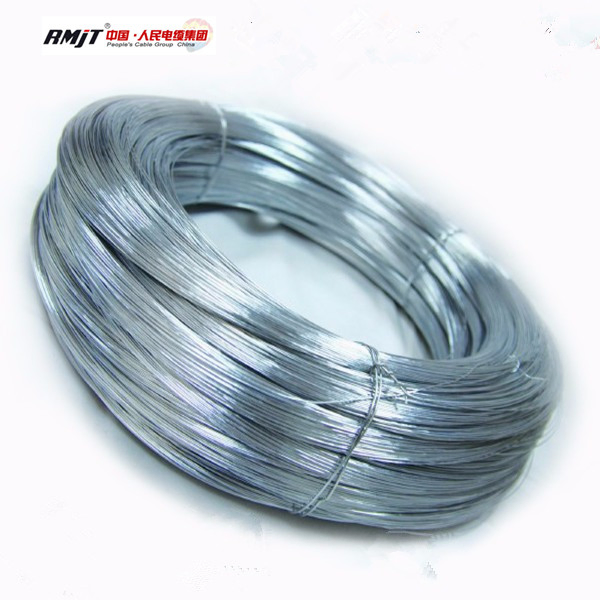

Galvanized steel wire
1.Application
The galvanized single steel wires or stranded steel wires are suitable for cores of ACSR to improve its tensile strength. And they can also be used in the aerial transmission line as the line material of ground connection to avoid the lightning strike. Messenger Wire, Overhead Ground or Static Wire, Guy Wire.
2.Construction

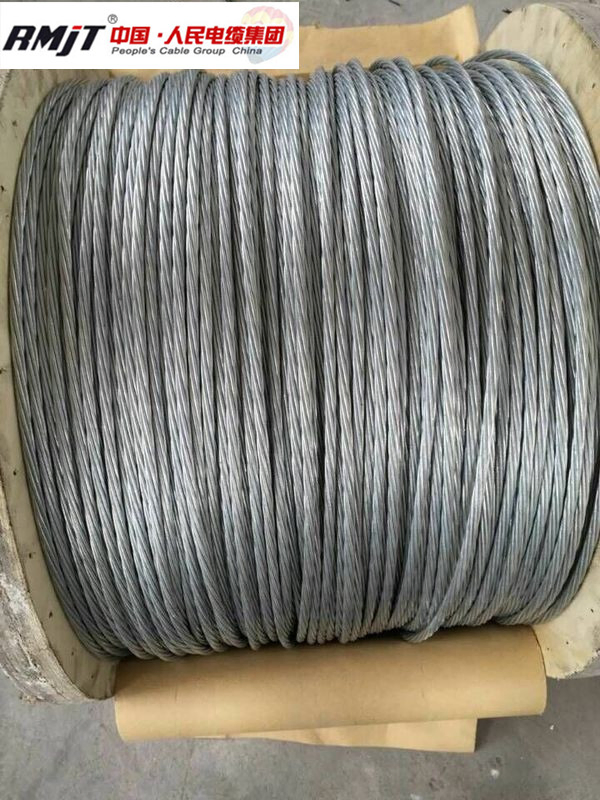

Stranded galvanized steel wire is made of carbon steel zinc plated. The single wires are concentrically stranded and wrapped helically around a central wire. The zinc coating offers corrosion resistance, allowing varied use for weaving of galvanized wire mesh, galvanized hardware cloth, welded iron wire mesh, etc.
3.Standard
ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
BS183: Specification for General Purpose Galvanized Steel Wire Strand
BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
IEC 60888: Zinc-coated steel wires for stranded conductors
DIN 48200: Wires for stranded conductors
JIS G 3537: Zinc-coated steel wire strands
AS 1222.1: Steel conductors and stays-Bare overhead
4.Specification
BS183:1972
ASTM A475
5.About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than USD 10 million , with total 500 staff members, 65 of which are professional and technical experts.
6.Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
7.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win relationship!
8.Contact us
Factory ADD:No.13th,YongDing Road, Goingyi,Zhengzhou city, Henan province, China.
TEL:+86-371-55632827
FAX: +86-371-55632837
Mobile:+86-13938408065
1.Application
The galvanized single steel wires or stranded steel wires are suitable for cores of ACSR to improve its tensile strength. And they can also be used in the aerial transmission line as the line material of ground connection to avoid the lightning strike. Messenger Wire, Overhead Ground or Static Wire, Guy Wire.
2.Construction
Stranded galvanized steel wire is made of carbon steel zinc plated. The single wires are concentrically stranded and wrapped helically around a central wire. The zinc coating offers corrosion resistance, allowing varied use for weaving of galvanized wire mesh, galvanized hardware cloth, welded iron wire mesh, etc.
3.Standard
ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
BS183: Specification for General Purpose Galvanized Steel Wire Strand
BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
IEC 60888: Zinc-coated steel wires for stranded conductors
DIN 48200: Wires for stranded conductors
JIS G 3537: Zinc-coated steel wire strands
AS 1222.1: Steel conductors and stays-Bare overhead
4.Specification
BS183:1972
| Number of wires/ Nominal dia. | Approx. strand dia. | Utilities grade | Common grade | Siemens- martingrade | High- strength grade | Extra high- strength grade | Approx. weight | |
| No./mm | Inch | mm | kN | kN | kN | kN | kN | kg |
| 3/2.64 | 7/32 | 5.56 | - | 6.228 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 14.012 | 8.274 | 13.523 | 21.040 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | 20.017 | - | - | - | - | 174 |
| 3/3.30 | 9/32 | 7.14 | - | 9.252 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 28.913 | 11.076 | 18.193 | 28.246 | 40.479 | 255 |
| 3/4.19 | 3/8 | 9.52 | 37.810 | 14.813 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | - | 2.402 | 4.048 | 5.916 | 8.140 | 48 |
| 7/1.32 | 5/32 | 3.97 | - | 3.870 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | - | 5.115 | 8.452 | 12.677 | 17.748 | 109 |
| 7/1.65 | 3/16 | 4.76 | 10.676 | - | - | - | 119 | |
| 7/1.83 | 7/32 | 5.56 | - | 6.850 | 11.387 | 17.126 | 24.020 | 146 |
| 7/2.03 | 1/4 | 6.35 | - | 8.452 | 14.012 | 21.129 | 29.581 | 180 |
| 7/2.36 | 9/32 | 7.14 | 20.462 | 11.432 | 18.905 | 28.469 | 39.812 | 244 |
| 7/2.64 | 5/16 | 7.94 | - | 14.234 | 23.798 | 35.586 | 49.820 | 305 |
| 7/2.77 | 5/16 | 7.94 | 26.689 | - | - | - | - | 335 |
| 7/3.05 | 3/8 | 9.52 | 51.155 | 18.905 | 30.915 | 48.040 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 80.068 | 25.355 | 41.591 | 64.499 | 92.523 | 595 |
| 7/4.19 | 1/2 | 12.70 | 111.206 | 32.917 | 53.823 | 83.627 | 119.657 | 770 |
| 7/4.78 | 9/16 | 14.29 | - | 42.703 | 69.837 | 108.981 | 155.688 | 1000 |
| 7/5.26 | 5/8 | 15.88 | - | 51.599 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.70 | - | 33.895 | 56.492 | 84.961 | 118.768 | 751 |
| 19/2.87 | 9/16 | 12.49 | - | 42.881 | 71.616 | 107.202 | 149.905 | 949 |
| 19/3.18 | 5/8 | 15.88 | - | 48.930 | 80.513 | 124.995 | 178.819 | 1186 |
| 19/3.81 | 3/4 | 19.05 | - | 71.172 | 116.543 | 181.487 | 259.331 | 1721 |
| 19/4.50 | 7/8 | 22.22 | - | 97.416 | 159.691 | 248.211 | 354.523 | 2356 |
| 19/5.08 | 1 | 25.40 | - | 127.664 | 209.066 | 325.610 | 464.839 | 3089 |
| 37/3.63 | 1 | 25.40 | - | 125.885 | 205.508 | 319.827 | 456.832 | 3065 |
| 37/4.09 | 28.58 | - | 160.136 | 262.000 | 407.457 | 581.827 | 4010 | |
| 37/4.55 | 1¼ | 31.75 | - | 198.391 | 324.720 | 505.318 | 721.502 | 4840 |
ASTM A475
| Number of wires/ Nominal dia. | Approx. strand dia. | Utilities grade | Common grade | Siemens- martingrade | High- strength grade | Extra high- strength grade | Approx. weight | |
| No./mm | Inch | mm | kN | kN | kN | kN | kN | kg |
| 3/2.64 | 7/32 | 5.56 | - | 6.228 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 14.012 | 8.274 | 13.523 | 21.040 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | 20.017 | - | - | - | - | 174 |
| 3/3.30 | 9/32 | 7.14 | - | 9.252 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 28.913 | 11.076 | 18.193 | 28.246 | 40.479 | 255 |
| 3/4.19 | 3/8 | 9.52 | 37.810 | 14.813 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | - | 2.402 | 4.048 | 5.916 | 8.140 | 48 |
| 7/1.32 | 5/32 | 3.97 | - | 3.870 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | - | 5.115 | 8.452 | 12.677 | 17.748 | 109 |
| 7/1.65 | 3/16 | 4.76 | 10.676 | - | - | - | 119 | |
| 7/1.83 | 7/32 | 5.56 | - | 6.850 | 11.387 | 17.126 | 24.020 | 146 |
| 7/2.03 | 1/4 | 6.35 | - | 8.452 | 14.012 | 21.129 | 29.581 | 180 |
| 7/2.36 | 9/32 | 7.14 | 20.462 | 11.432 | 18.905 | 28.469 | 39.812 | 244 |
| 7/2.64 | 5/16 | 7.94 | - | 14.234 | 23.798 | 35.586 | 49.820 | 305 |
| 7/2.77 | 5/16 | 7.94 | 26.689 | - | - | - | - | 335 |
| 7/3.05 | 3/8 | 9.52 | 51.155 | 18.905 | 30.915 | 48.040 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 80.068 | 25.355 | 41.591 | 64.499 | 92.523 | 595 |
| 7/4.19 | 1/2 | 12.70 | 111.206 | 32.917 | 53.823 | 83.627 | 119.657 | 770 |
| 7/4.78 | 9/16 | 14.29 | - | 42.703 | 69.837 | 108.981 | 155.688 | 1000 |
| 7/5.26 | 5/8 | 15.88 | - | 51.599 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.70 | - | 33.895 | 56.492 | 84.961 | 118.768 | 751 |
| 19/2.87 | 9/16 | 12.49 | - | 42.881 | 71.616 | 107.202 | 149.905 | 949 |
| 19/3.18 | 5/8 | 15.88 | - | 48.930 | 80.513 | 124.995 | 178.819 | 1186 |
| 19/3.81 | 3/4 | 19.05 | - | 71.172 | 116.543 | 181.487 | 259.331 | 1721 |
| 19/4.50 | 7/8 | 22.22 | - | 97.416 | 159.691 | 248.211 | 354.523 | 2356 |
| 19/5.08 | 1 | 25.40 | - | 127.664 | 209.066 | 325.610 | 464.839 | 3089 |
| 37/3.63 | 1 | 25.40 | - | 125.885 | 205.508 | 319.827 | 456.832 | 3065 |
| 37/4.09 | 28.58 | - | 160.136 | 262.000 | 407.457 | 581.827 | 4010 | |
| 37/4.55 | 1¼ | 31.75 | - | 198.391 | 324.720 | 505.318 | 721.502 | 4840 |
5.About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than USD 10 million , with total 500 staff members, 65 of which are professional and technical experts.
6.Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
7.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win relationship!
8.Contact us
Factory ADD:No.13th,YongDing Road, Goingyi,Zhengzhou city, Henan province, China.
TEL:+86-371-55632827
FAX: +86-371-55632837
Mobile:+86-13938408065
