Awm 1887 20 AWG Internal Wire for Equipment

Product Description

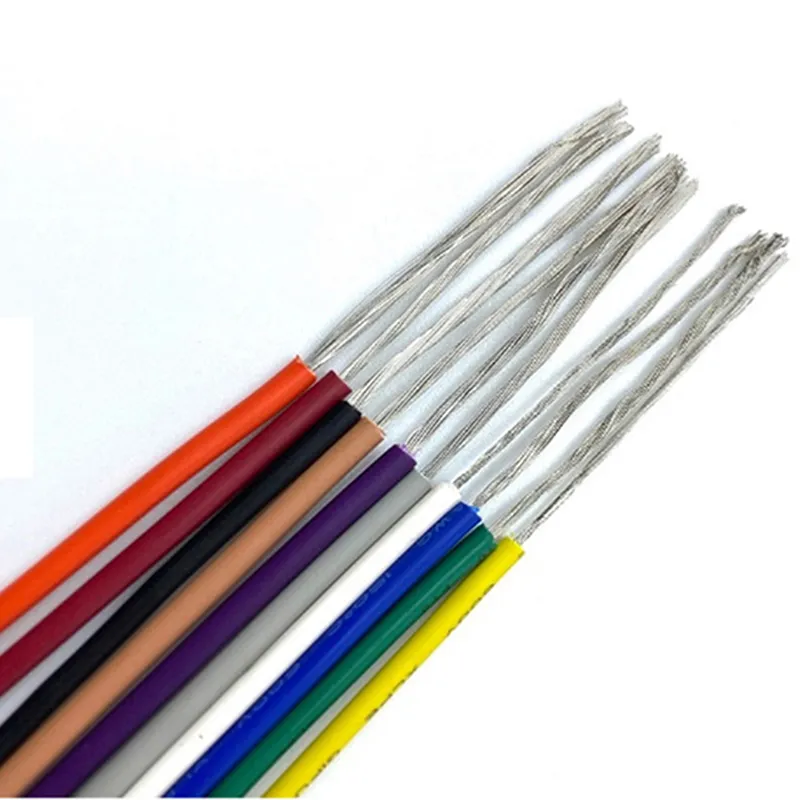

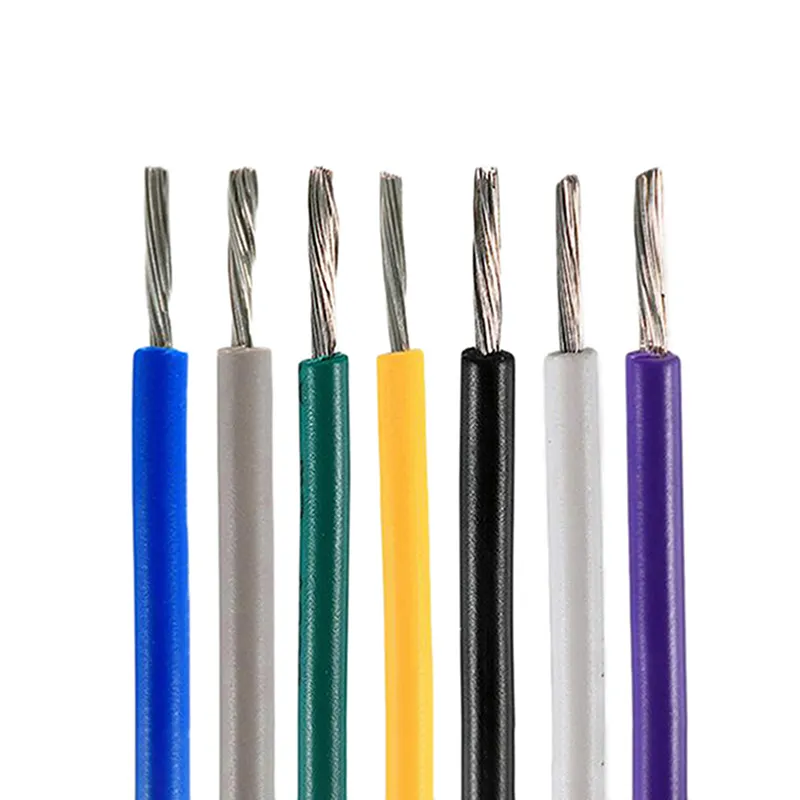

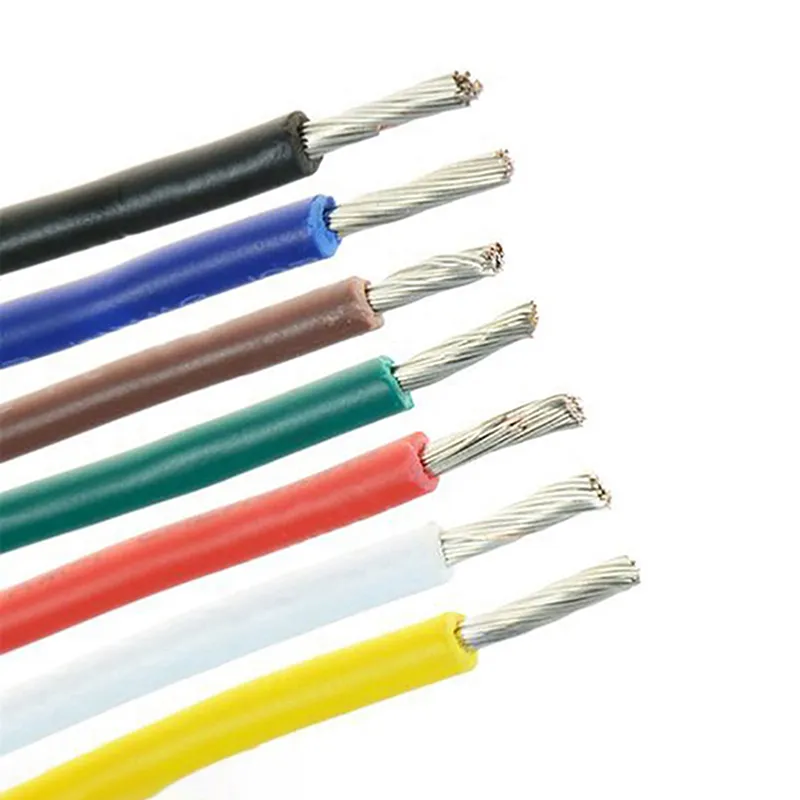

AWM 1887 20 AWG internal wire for equipment

PRODUCT DESCRIPTION:
★Rated temperature:150ºC
★Rated voltage:600V
★According to:UL Subject758,UL1581,C22.2
★ Nickel plating or tin/bare copper conductor
★FEP Insulation
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★For general purpose internal wiring of appliance

AWG	NO.of Cond (mm)	Conductor resistance 20ºC (Ω/KM)	Conductor Dia (mm)	Insulation Thickness (mm)		Overall Diameter (mm)
AWG	NO.of Cond (mm)	Conductor resistance 20ºC (Ω/KM)	Conductor Dia (mm)	Nom.	Min.	Nom.	Tol.
10	37/0.42	3.54	2.94	0.35	0.33	3.60	±0.15
12	37/0.374	5.64	2.62	0.35	0.33	3.32	±0.15
14	19/0.361	8.96	1.85	0.35	0.33	2.60	±0.10
16	19/0.287	14.60	1.50	0.35	0.33	2.20	±0.10
18	19/0.235	23.20	1.18	0.35	0.33	1.90	±0.10
20	19/0.19	36.70	0.95	0.35	0.33	1.65	±0.10
22	19/0.15	59.40	0.76	0.35	0.33	1.45	±0.10
24	7/0.2	94.20	0.61	0.35	0.33	1.30	±0.10
26	7/0.16	150.00	0.48	0.35	0.33	1.20	±0.10
28	1/0.32	227.00	0.320	0.35	0.33	1.02	±0.10
30	1/0.254	361.00	0.254	0.35	0.33	0.96	±0.10
