Product Description
Best Price PVC Electronic Wire Electrical Cable Wire UL2547
1.Rated temperature:80 ºC
2.Rated voltage:Not Specified
3.According to:UL subject 758,UL 1581
4.Solid or Stranded,tinned or bare copper conductor 30-16AWG
5.PVC insulation,PVC jacket
6.AL-foil,tinned copper for shield braided
7.Passes UL VW-1 & CSA FT1 Vertical flame test
8.Uniform insulation thickness of wire to ensure easy stripping and cutting
9.Environmental testing pass RoHS
10.Ground strap lead wire for the computer and,internal wiring of electronic equipment
| UL TYPE | Conductor | Insulation | Shield | Jacket | Max Cond Resistance (Ω/kft,20ºC) | |||||
| Gauge (AWG) | Construction (no/mm) | Outer (mm) | No. | Thickness (mm) | Outer (mm) | Construction (no/mm) | Thickness (mm) | Outer (mm) | ||
| UL2547 | 30 | 7/0.10 | 0.3 | 2 | 0.23 | 0.70 | 45/0.10 | 0.40 | 2.60 | 116.0 |
| 3 | 48/0.10 | 2.80 | ||||||||
| 28 | 7/0.127 | 0.38 | 2 | 0.85 | 50/0.10 | 2.80 | 72.8 | |||
| 3 | 56/0.10 | 3.00 | ||||||||
| 26 | 7/0.16 | 0.48 | 2 | 1.00 | 58/0.10 | 3.00 | 45.8 | |||
| 3 | 52/0.10 | 3.20 | ||||||||
| 24 | 11/0.16 | 0.61 | 2 | 1.10 | 51/0.10 | 3.30 | 28.7 | |||
| 3 | 57/0.10 | 3.50 | ||||||||
| 22 | 17/0.16 | 0.76 | 2 | 1.30 | 60/0.12 | 3.70 | 18.1 | |||
| 3 | 64/0.14 | 3.90 | ||||||||
| 20 | 26/0.16 | 0.94 | 2 | 1.50 | 69/0.12 | 4.10 | 11.2 | |||
| 3 | 74/0.12 | 4.30 | ||||||||
| 18 | 41/0.16 | 1.18 | 2 | 1.80 | 82/0.12 | 0.55 | 5.00 | 7.06 | ||
| 3 | 88/0.12 | 5.30 | ||||||||
Hot sale products
Exhibition:
Certificates

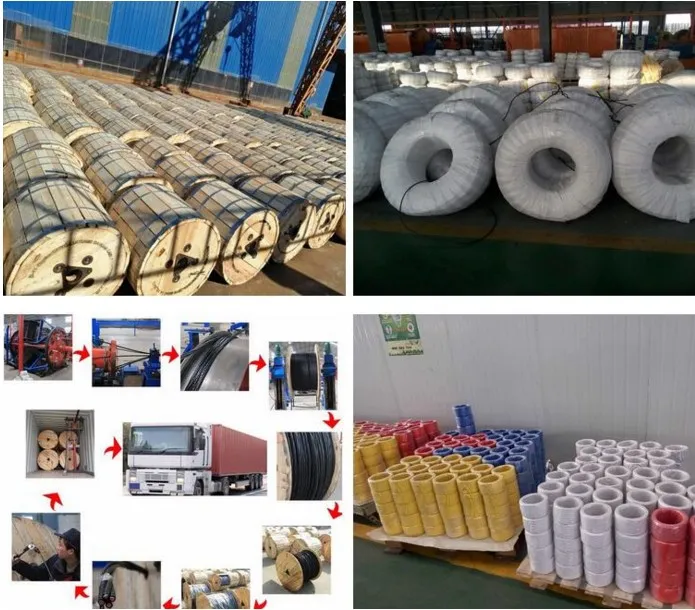

Packaging & Shipping
All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.The packing material is depended on the weight and size of cable.The good information, manufacture information, and the client's information is firmly printed on each size of drum.
After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.
The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
