Product Description

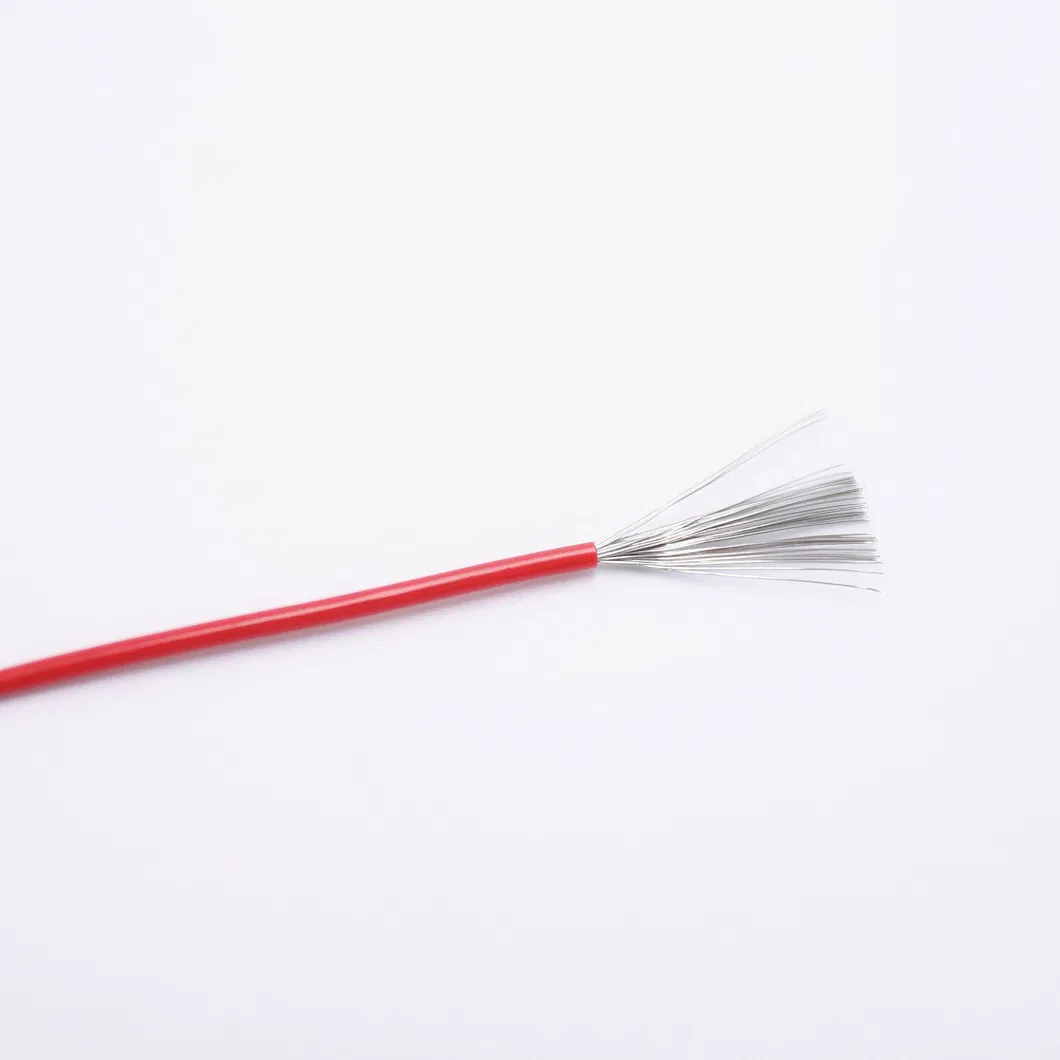

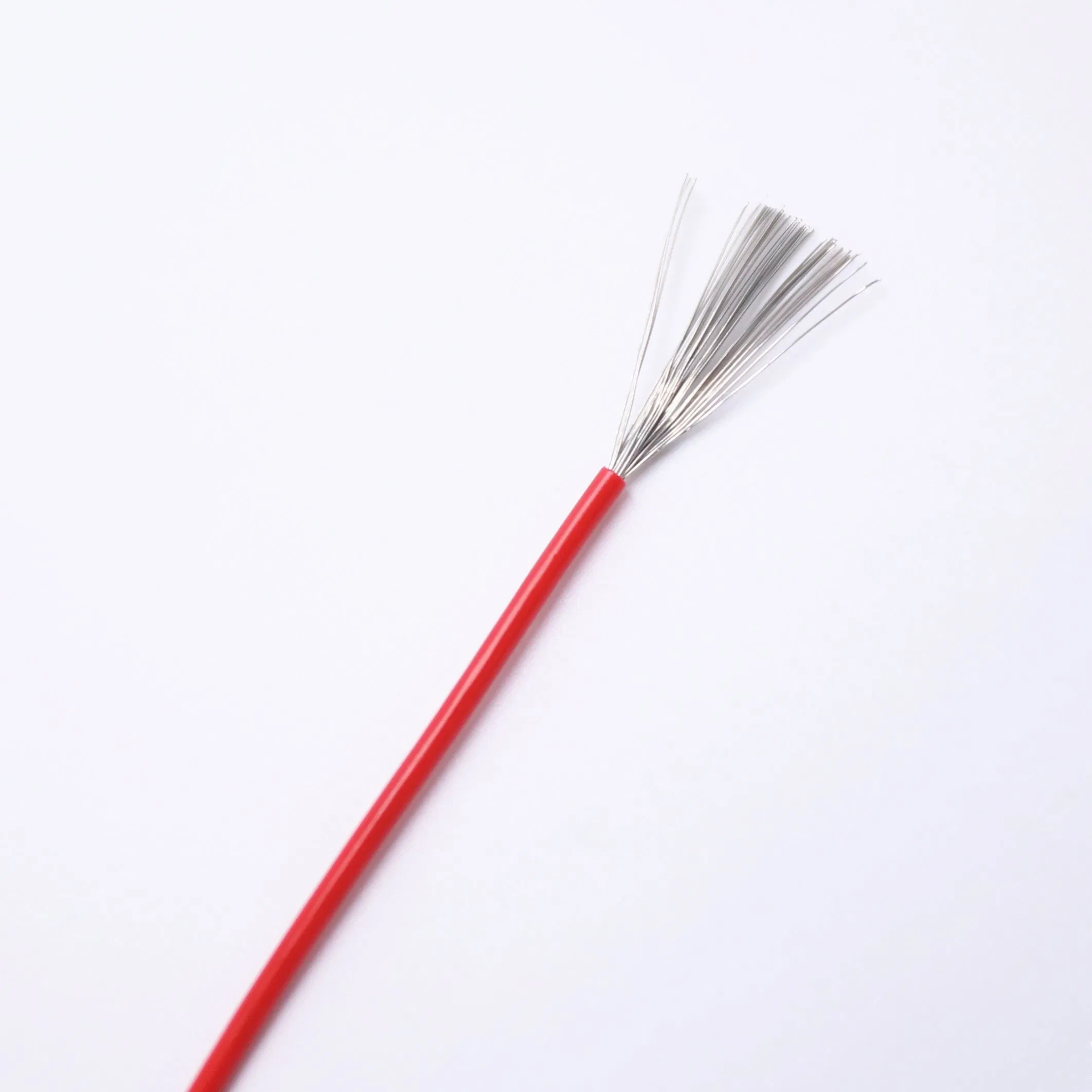

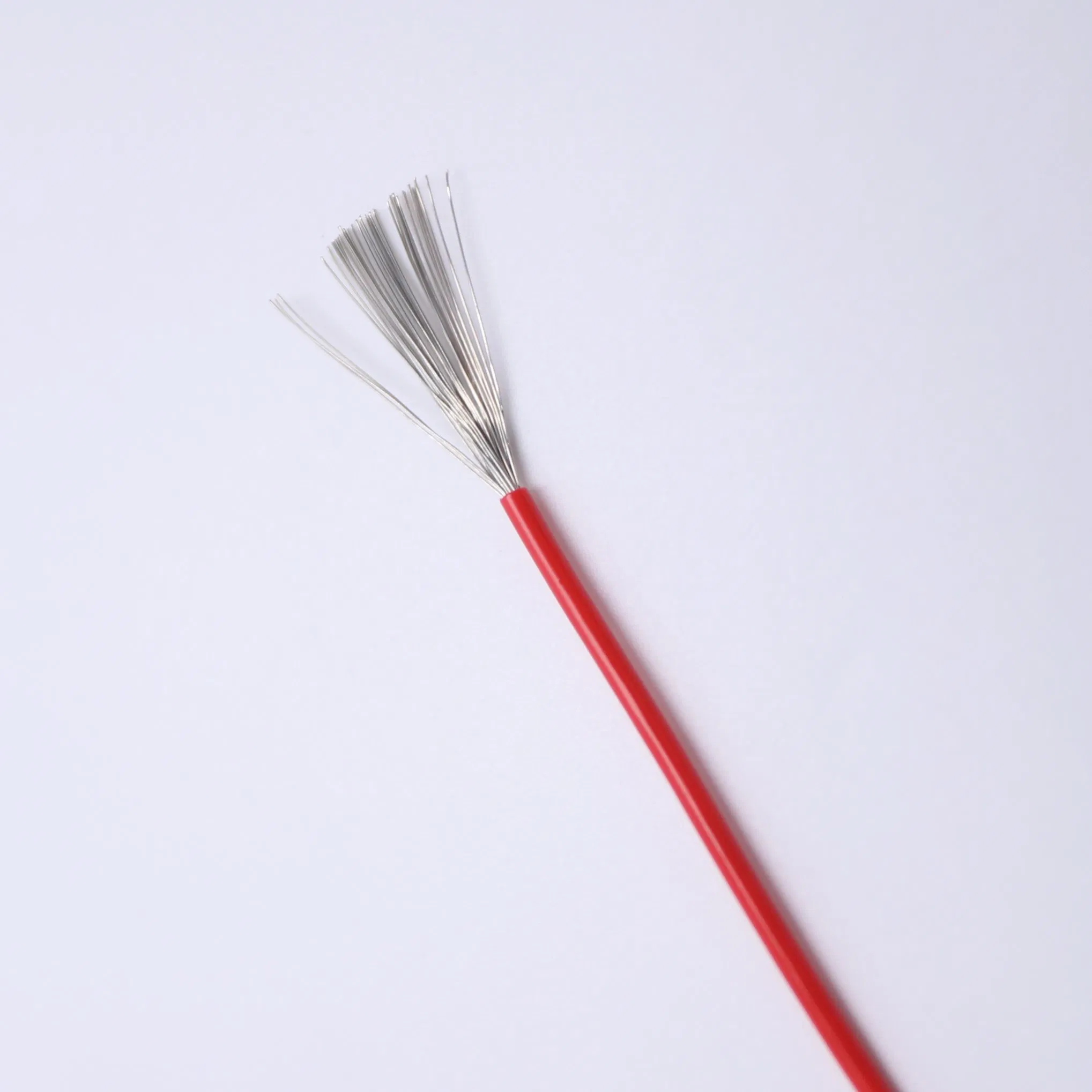

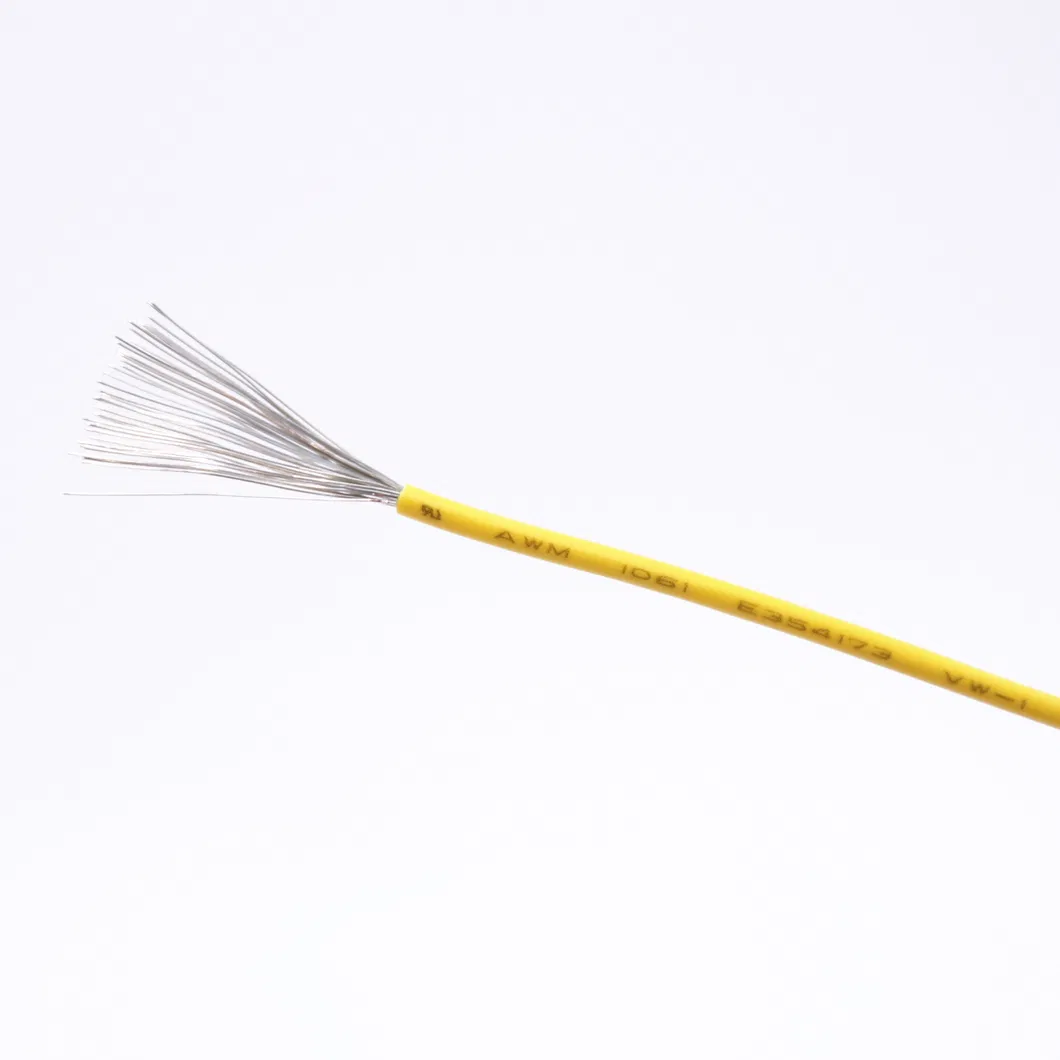

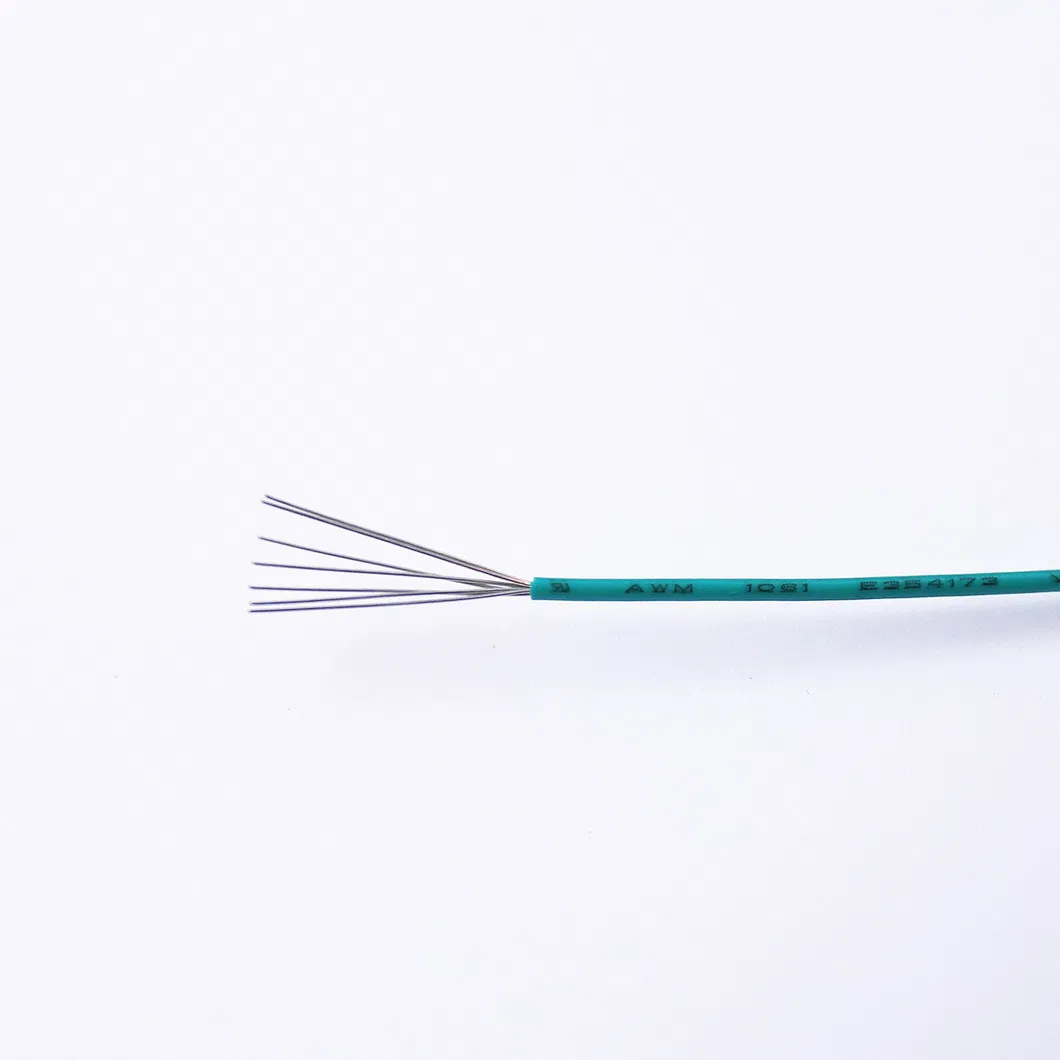

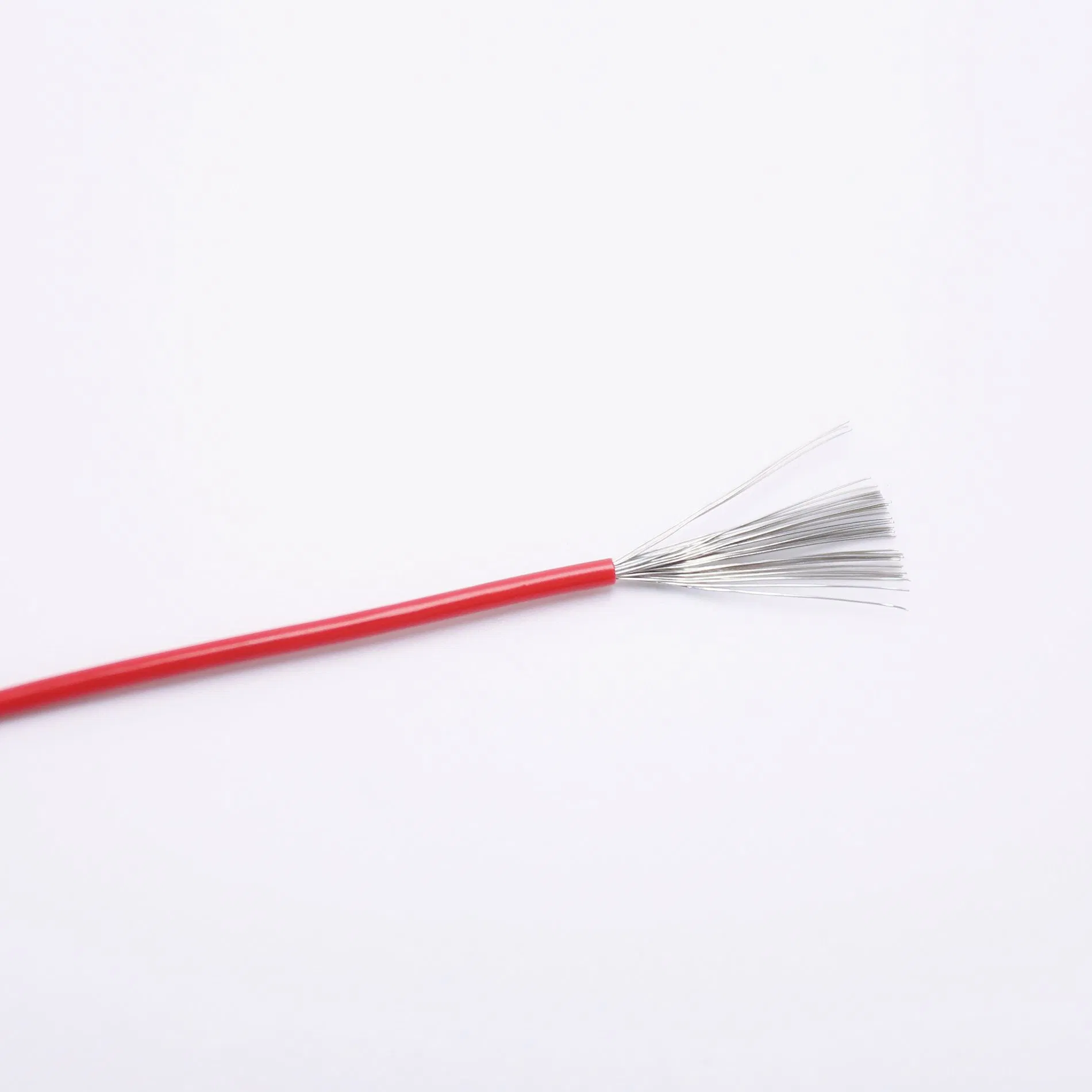

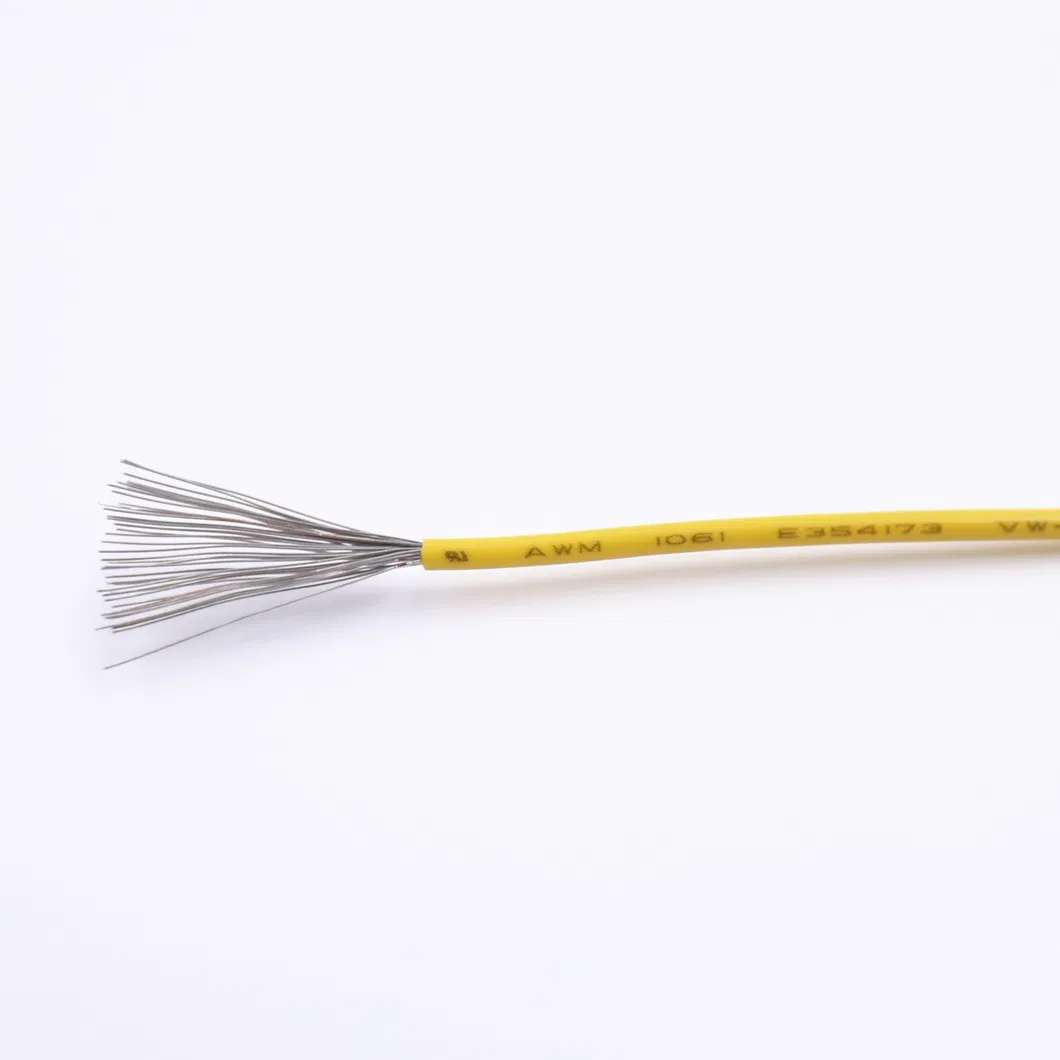

UL 1061 pvc wire
Rated temperature:105ºC
Rated voltage:300V
Reference standard:UL758,UL1581,CSA C22.2No.210.2
Solid or stranded, tinned or bare copper conductor 32~16AWG
SR-PVC insulation, comply with ROHS, REACH environmental standard
Passes UL VW-1, CSA FTI and JQA F-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting
Application:For general purpose internal wiring of appliance
UL type | Conductor | Insulation | Max.cond. Resistance | (Dielectric Strength) | |||
1061 | AWG | Construction (No./mm) | OD (mm) | Thickness (mm) | OD (mm) | (Ω/Km,20ºC,Dc)
| (Vac,1min)
|
30 | 7/0.10 | 0.30 | 0.25 | 0.80 | 381 | 2000 | |
28 | 7/0.127 | 0.38 | 0.26 | 0.90 | 239 | 2000 | |
26 | 7/0.16 | 0.48 | 0.26 | 1.00 | 150 | 2000 | |
24 | 7/0.20 | 0.60 | 0.25 | 1.10 | 94.2 | 2000 | |
22 | 7/0.254 | 0.76 | 0.27 | 1.30 | 59.4 | 2000 | |
20 | 7/0.32 | 0.96 | 0.27 | 1.50 | 36.7 | 2000 | |
18 | 16/0.254 | 1.17 | 0.31 | 1.80 | 23.2 | 2000 | |
16 | 26/0.254 | 1.49 | 0.31 | 2.10 | 14.6 | 2000 | |
