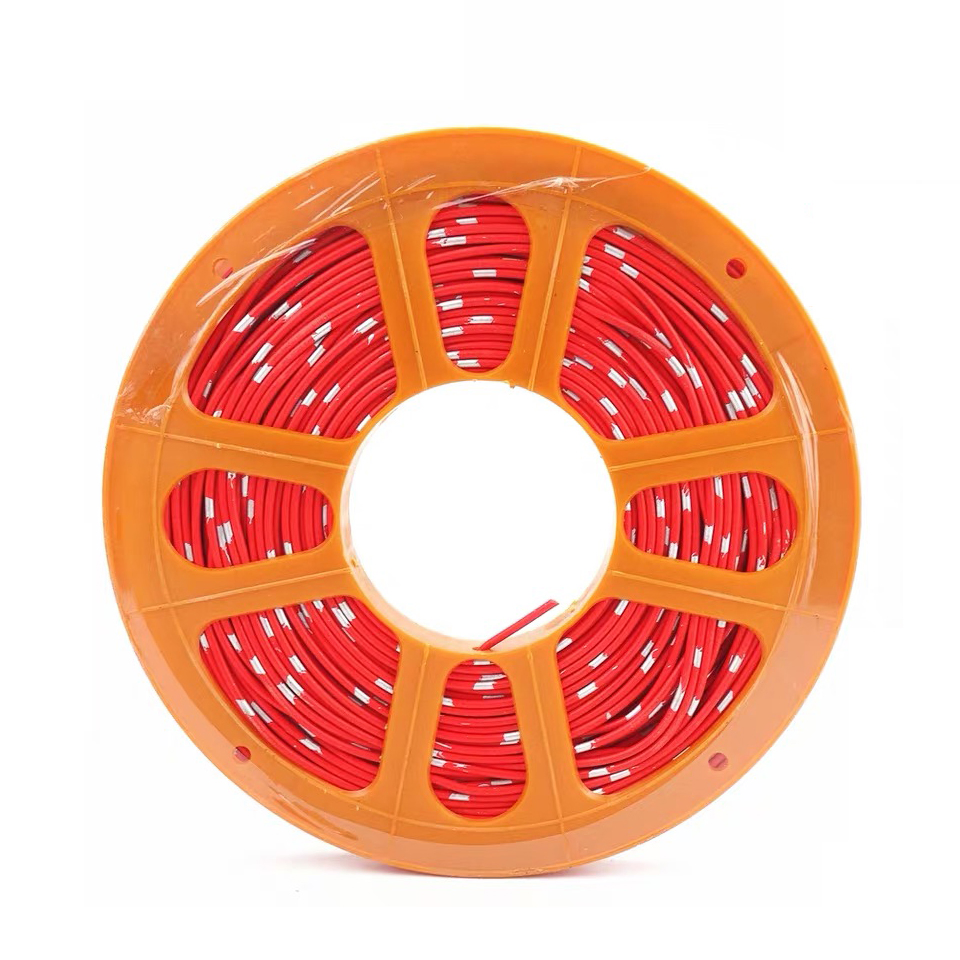

China Chromatic Circle Printing ISO 6722 DIN 72551 Flryby Flrycy Automotive Wire

Product Description

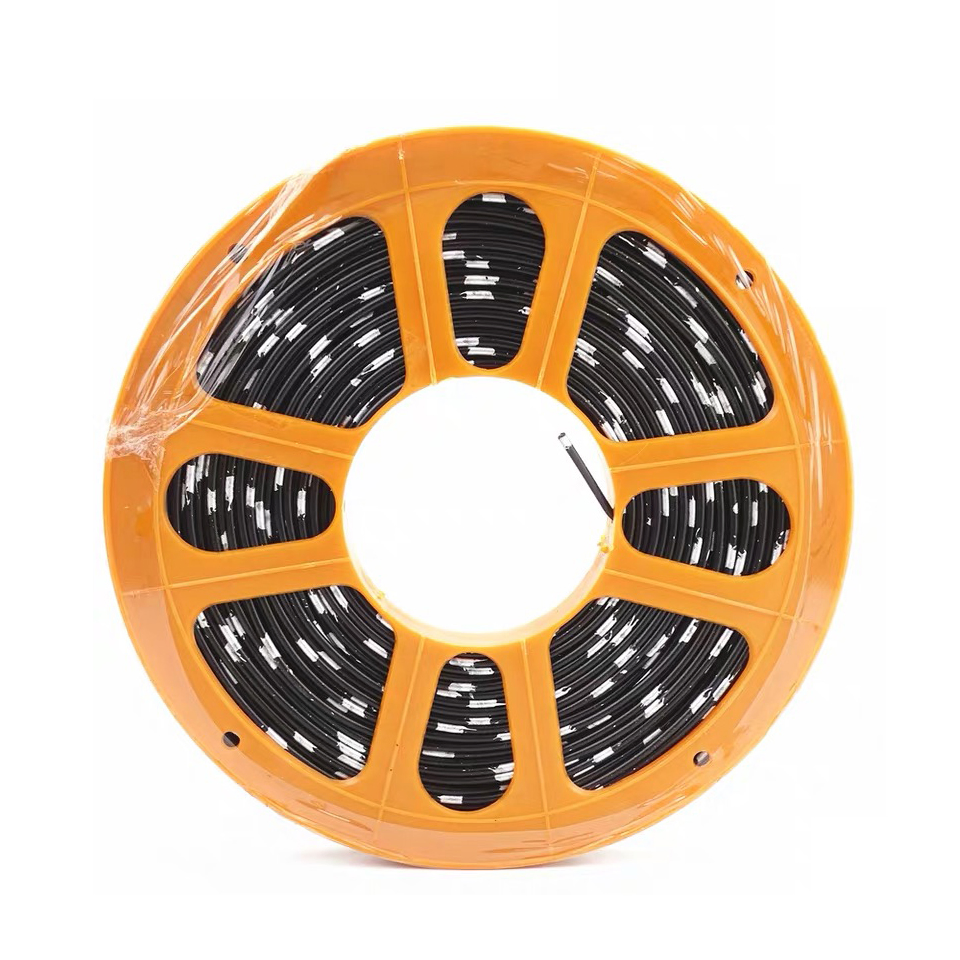

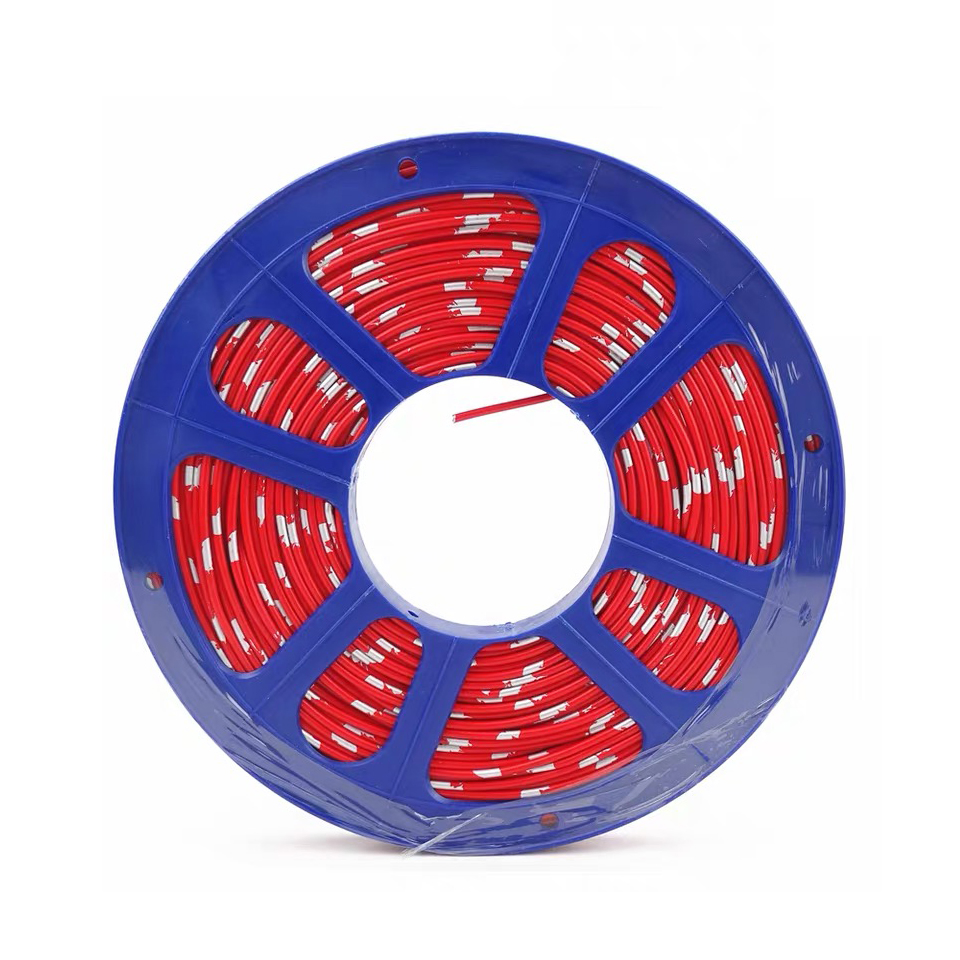

Product Description Chromatic Circle Printing ISO 6722 DIN 72551 Flryby Flrycy Automotive Wire

Application and Description

This XLPE insulated single-core cable is used for automobiles, motorcycles and other motor vehicles.

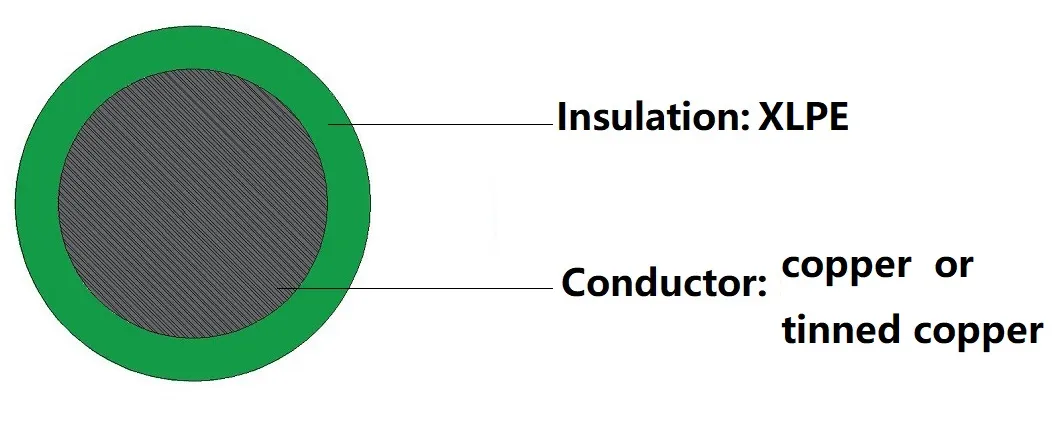

Construction

Conductor: PURE COPPER
Insulation: XLPE (AEX)
Crosslinked PVC (AVX)
Standard Compliance: JASO D 608-92

Technical Parameters

Operating temperature:-40 °C to +120 °C (AEX)
Operating temperature:-40 °C to +100 °C (AVX)

Conductor			Insulation		Max Cond. resistance (Ω/km,20ºC,DC)	Dielectric Strength (VAC,30min)
Cross Section (mm2)	Construction (No./mm)	Dia.(mm)	Thickness (mm)	O.D.(mm)	Max Cond. resistance (Ω/km,20ºC,DC)	Dielectric Strength (VAC,30min)
0.5f	20/0.18	0.93	0.59	2.10	36.70	1000.00
0.5	7/0.32	0.96	0.57	2.10	32.70	1000.00
0.75f	30/0.18	1.14	0.58	2.30	24.40	1000.00
0.85	11/0.32	1.22	0.54	2.30	20.80	1000.00
1.25f	50/0.18	1.47	0.67	2.80	14.70	1000.00
1.25	16/0.32	1.48	0.66	2.80	14.30	1000.00
2	26/0.32	1.88	0.66	3.20	8.81	1000.00
3	41/0.32	2.36	0.77	3.90	5.59	1000.00
5	65/0.32	2.98	0.86	4.70	3.52	1000.00
8	50/0.45	3.67	0.87	5.40	2.32	1000.00

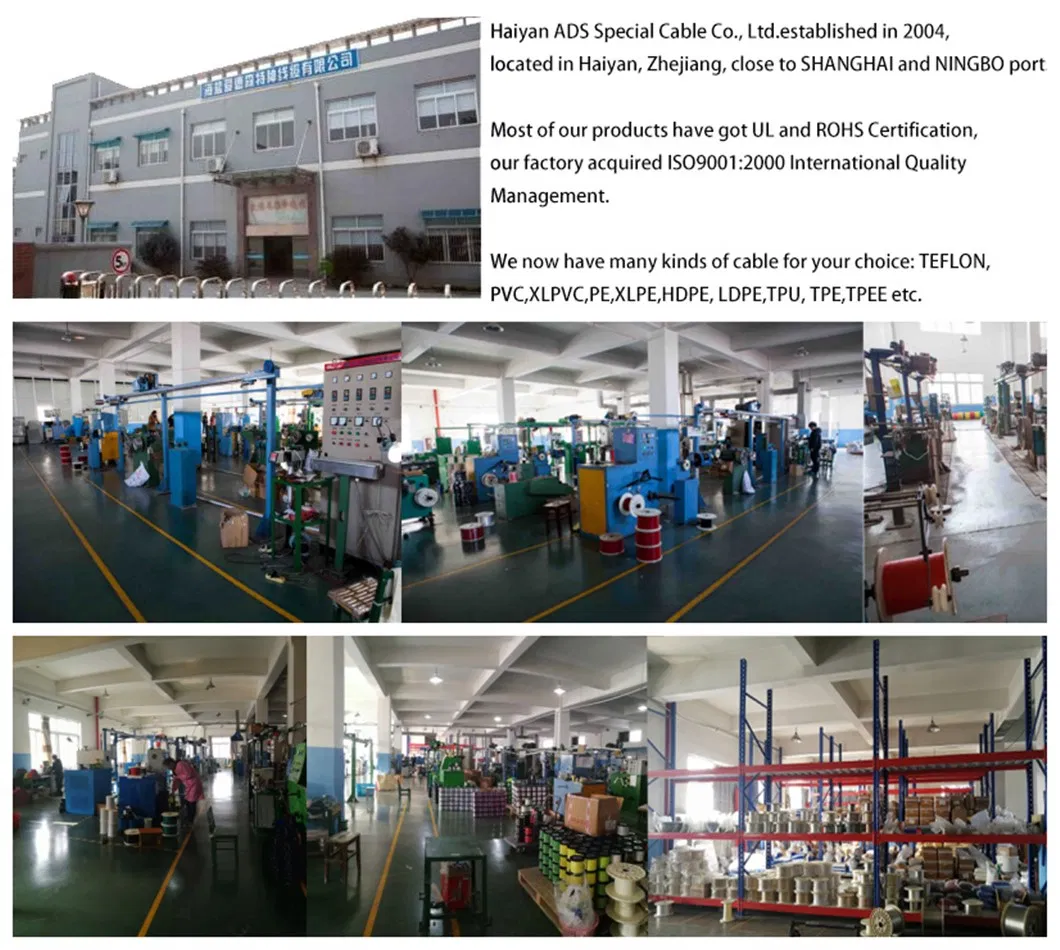

Company Introduction
Chromatic Circle Printing ISO 6722 DIN 72551 Flryby Flrycy Automotive Wire

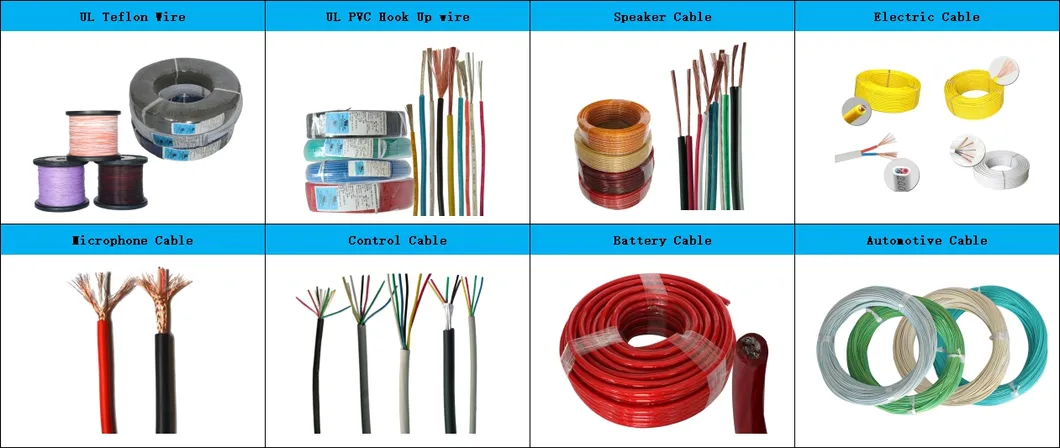

Our Main Product

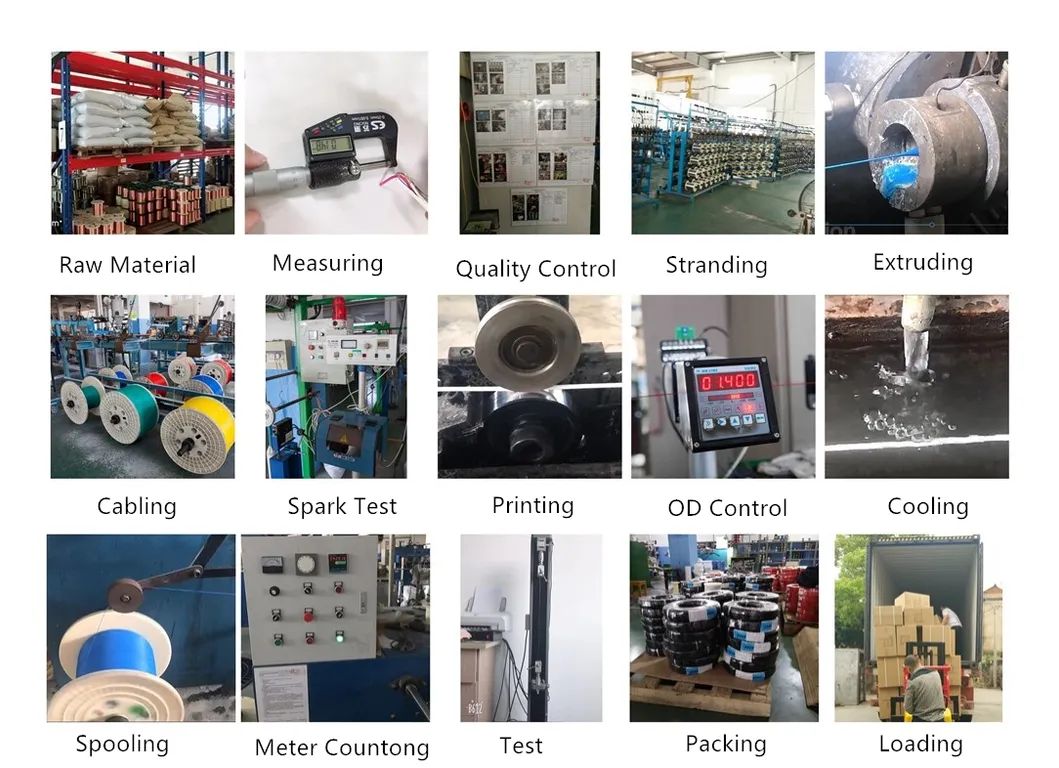

Production Process
Chromatic Circle Printing ISO 6722 DIN 72551 Flryby Flrycy Automotive Wire

Exhibition
Chromatic Circle Printing ISO 6722 DIN 72551 Flryby Flrycy Automotive Wire

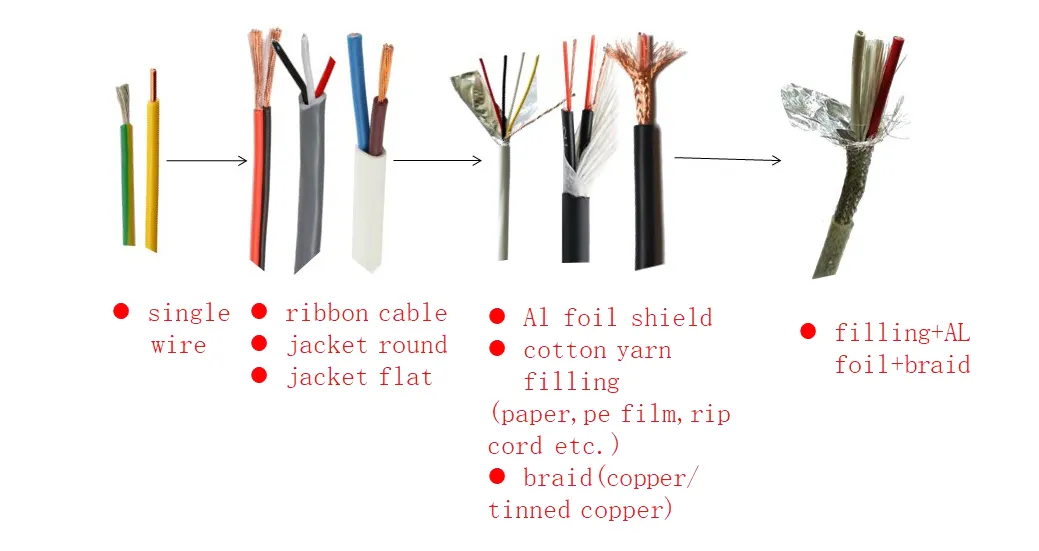

What construction of cables we can make
Chromatic Circle Printing ISO 6722 DIN 72551 Flryby Flrycy Automotive Wire

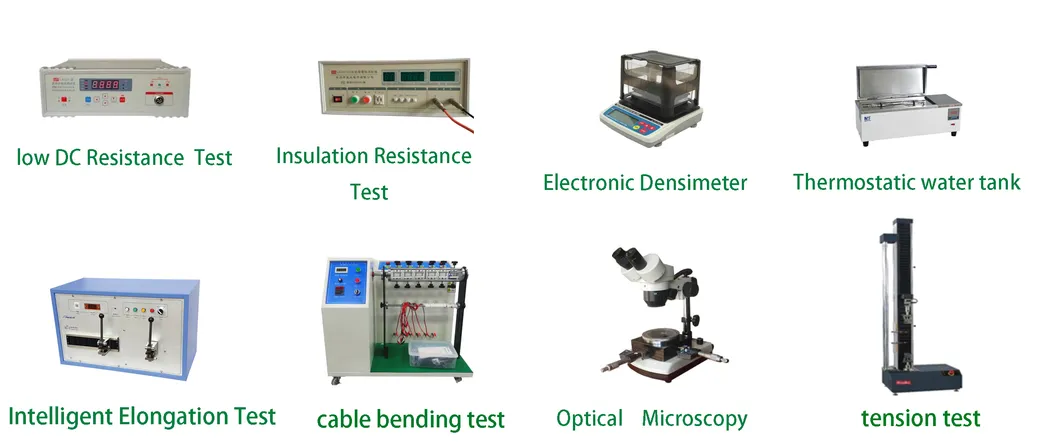

Test Equipment
Chromatic Circle Printing ISO 6722 DIN 72551 Flryby Flrycy Automotive Wire

Certificate
Chromatic Circle Printing ISO 6722 DIN 72551 Flryby Flrycy Automotive Wire

UL List

Ul cables
Teflon Wire
1330	1332	10518		10064		10588		1371		1375		1589
1723	1886	1331		1333		1591		1592		1887		1901
Single-conductor, thermoplastic insulation.
1007	1032	1185		1284		1571		1283		1672		1569
1015	10198	10070
Multiple-conductor, thermoplastic insulation.
2464	2468	2725		20276		2835
Single-conductor, thermoset insulation.
3271	3321
Automotive Wires
German Standard
FLR2X-B	FLRY11Y/FLR4G11Y		FLRY-A		FLRY-B		FLRYW-A		FLRYW-B		FLRYY/FLR4GY
China Standard
QB-A/B/C/D	QFR		QVR		QVR-105
Japan Standard
AV	AVS		AVSS		AVSSX/AESSX			AVX/AEX		CAVS
America Standard
GPT	GXL		HDT		SXL			TWP		TXL

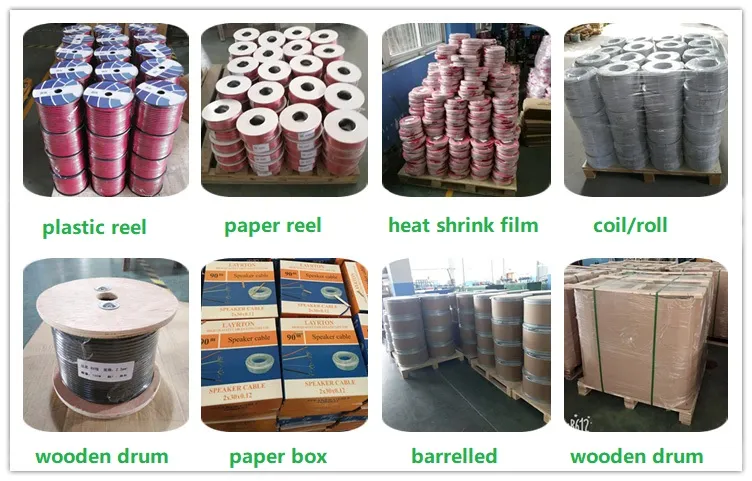

Packing
Chromatic Circle Printing ISO 6722 DIN 72551 Flryby Flrycy Automotive Wire

FAQ
1. Q; Are you factory or trading company?
A: We are factory has more than 10 years manufacturing experiences.

2.Q: What certifications do you have?
A: We have UL1330,UL1332,UL1007,UL1015,UL1571,UL1569,UL1672,UL2464 and ROHS

3.Q: Where is your factory located ?
A: Building1-2(No.88 Huxi Street), Shiquan Town, Haiyan County, Zhejiang, China

4 : Q: How can I get some samples?
A: If we have in stock, within 10 meters, it is free. Or we will charge sample fee.

5 : Q: Are samples free shipping?
A: Sorry, it should be on customer side.

6: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.

7: Q:What about the lead time for mass production?
A:Honestly, it depends on the order quantity.

8: Q:Is this wire in stock?
A:Pls check with our sales,for orders quantity reach 5000m can arrange production.
