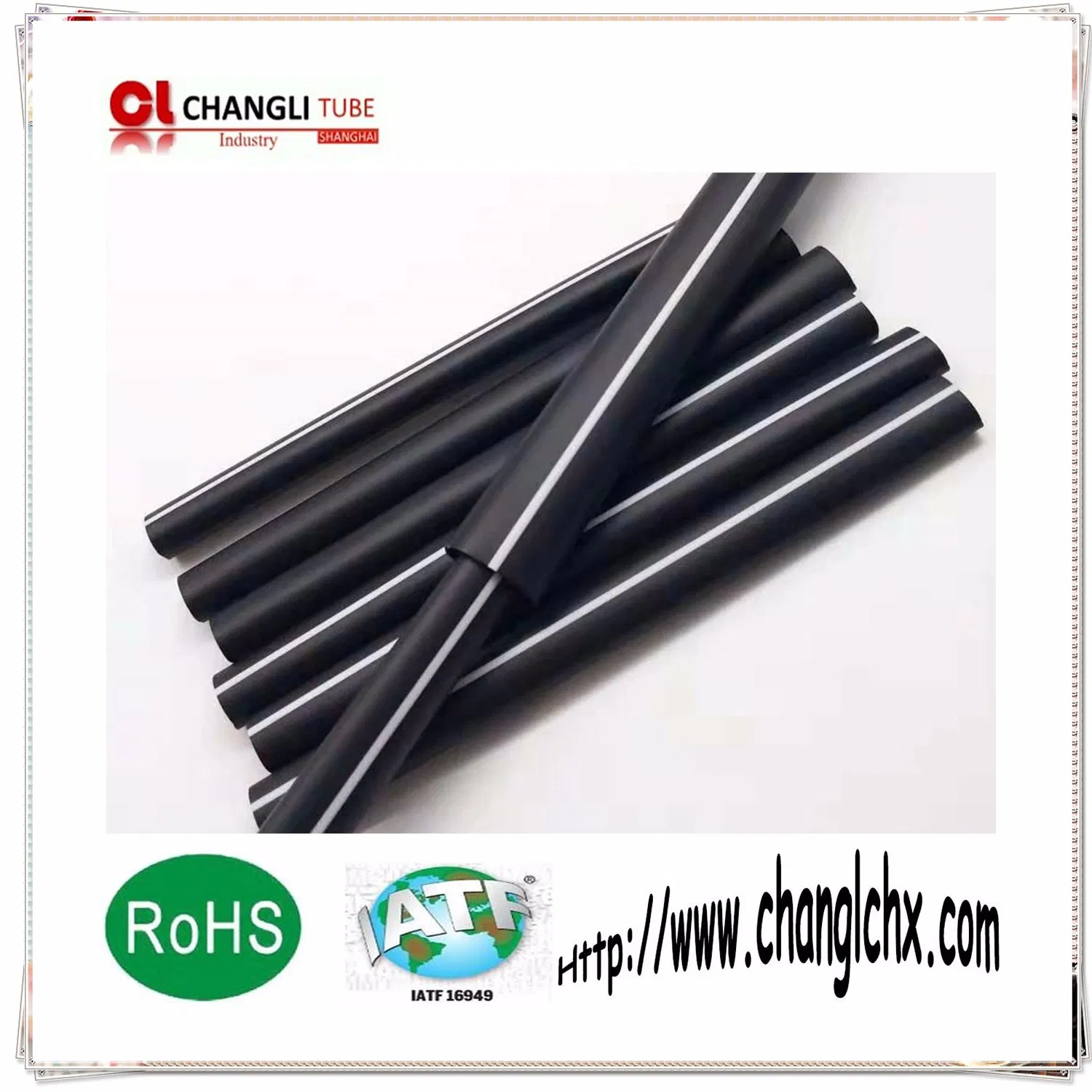

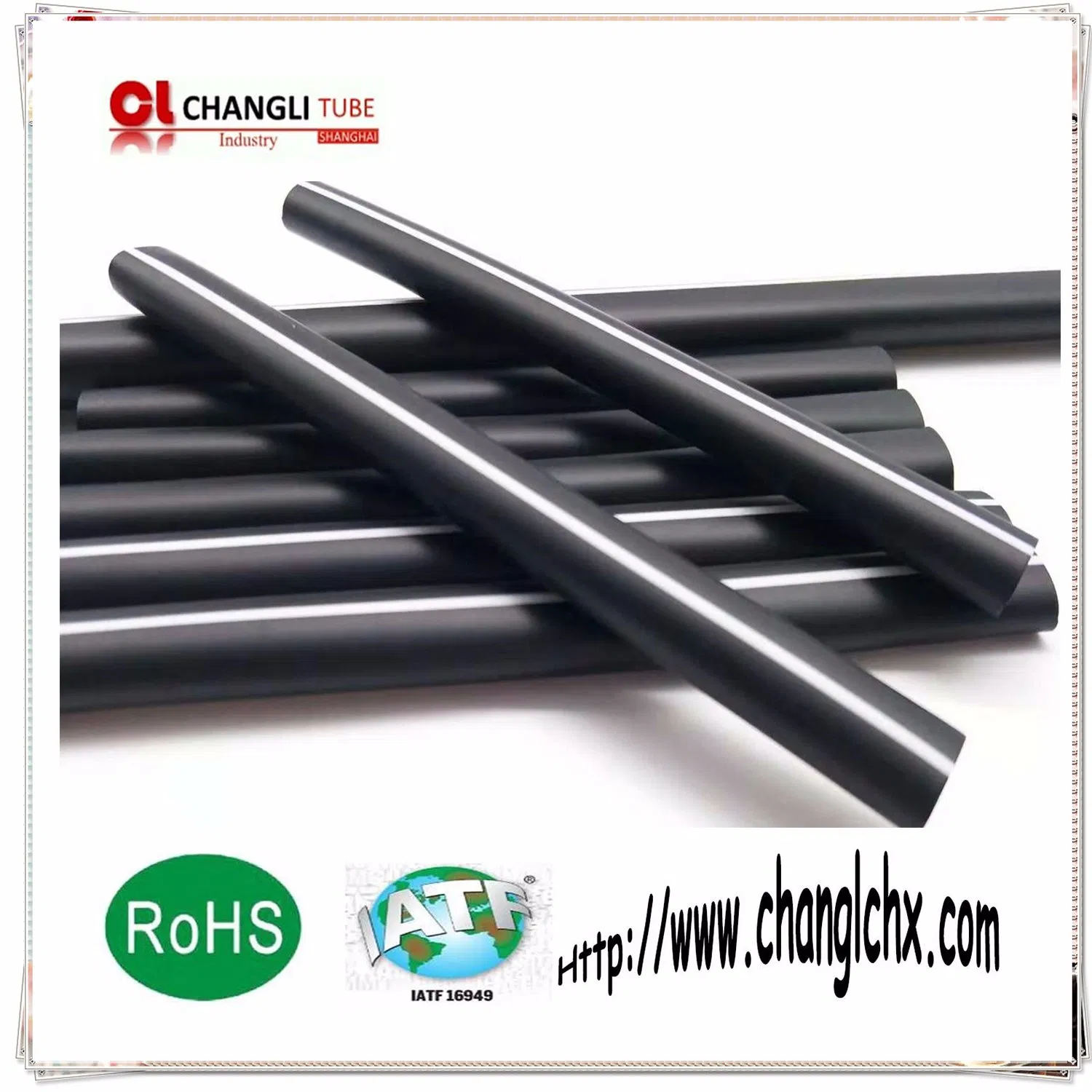

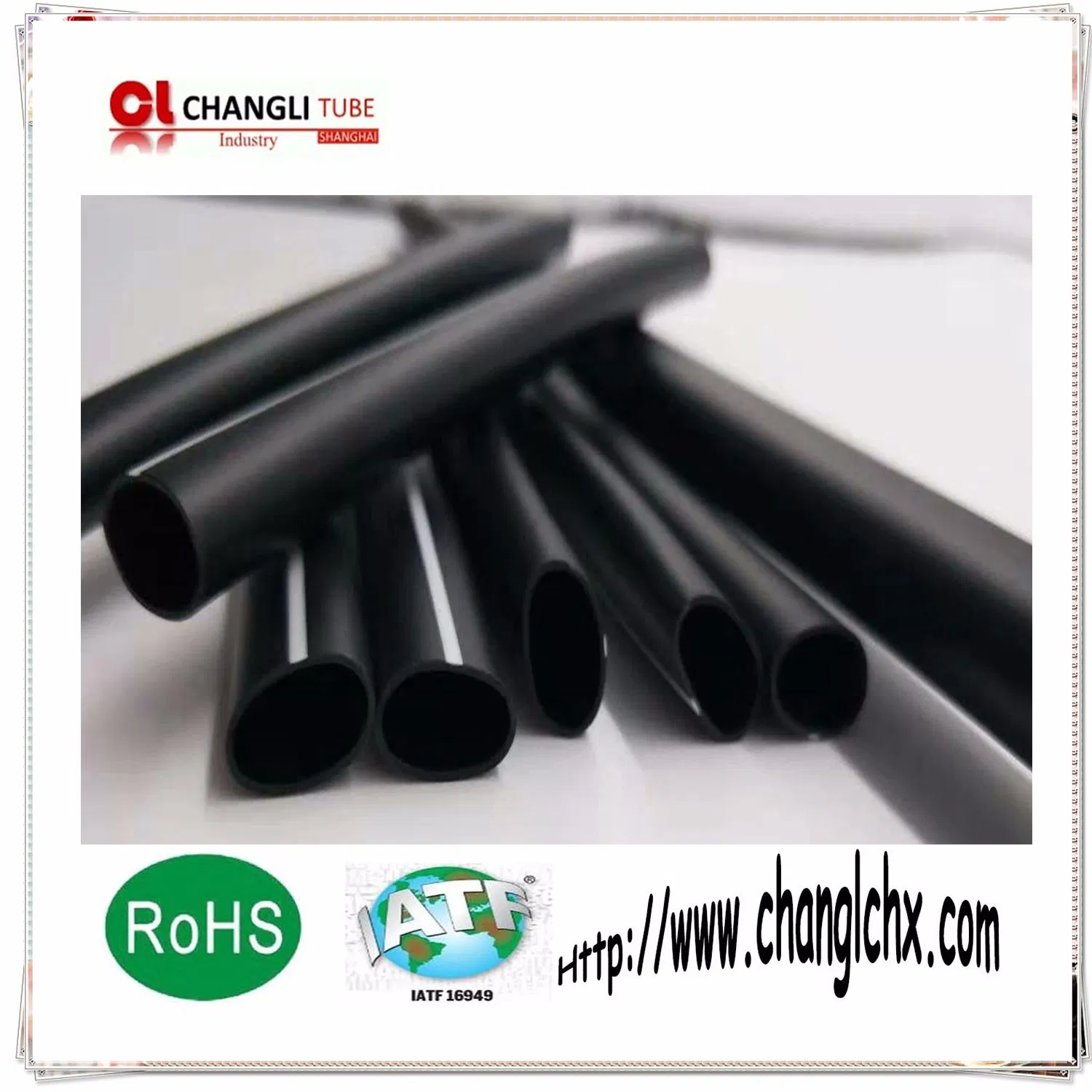

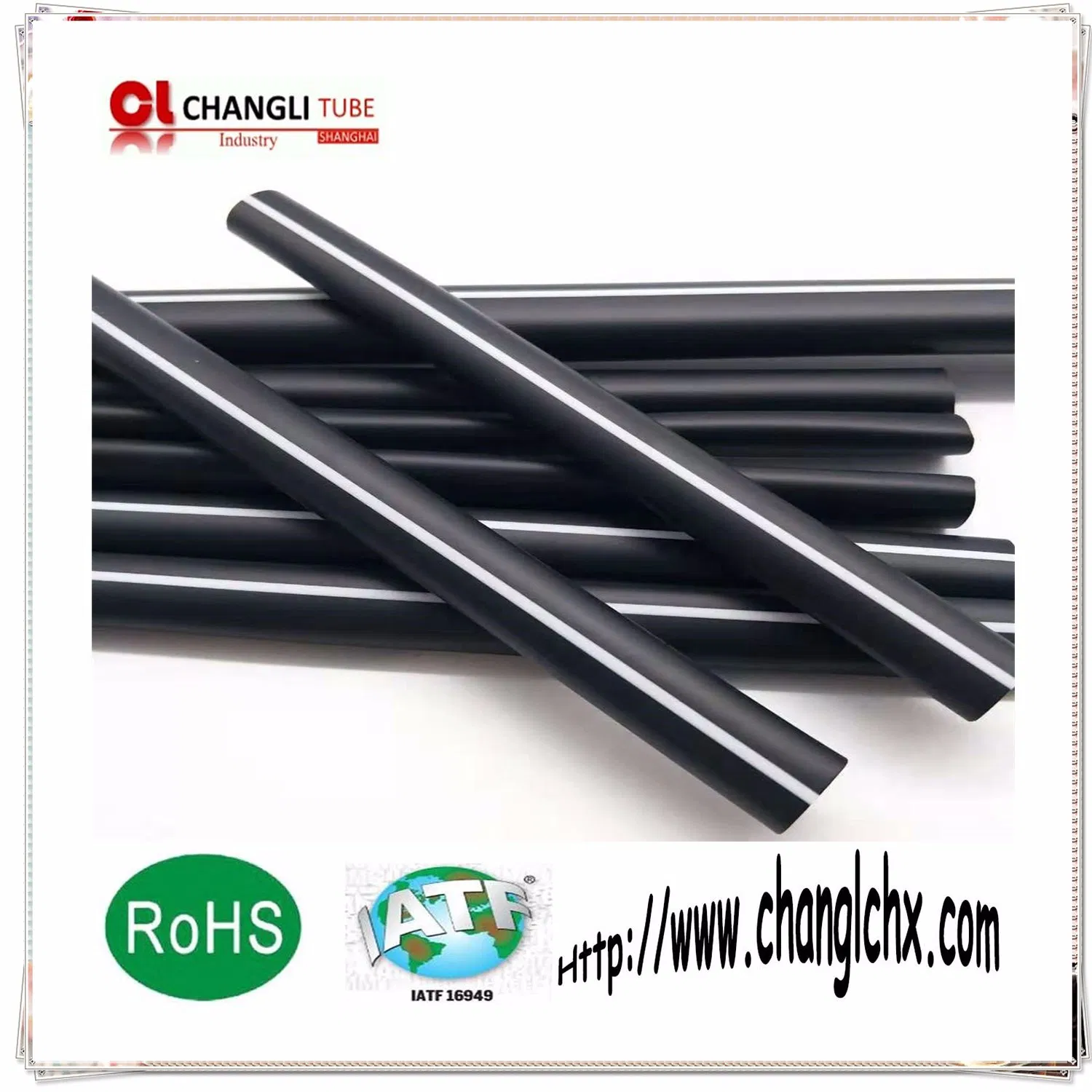

Colorful Water Use PVC Flexible PVC Hose/Tubing Supply

Product Description

Specifications (UL-224)
Continuous Operating Temperature:-30-105degrees
Tensile Strength:≥10.4MPa
Ultimate Elongation:≥200%
Tensile Strength after aging:≥7.3MPa
Ultimate Elongation after aging:100%
Potential Rating:300V 600V
Flammability:VW-1
PVC Tube Standart Sizes:1-20mm

CL-PVC	Inside diameter(mm)	Wall-thickness(mm)	CL-PVC	Inside diameter(mm)	Wall-thickness(mm)
CL-PVC	Inside diameter(mm)	Wall-thickness(mm)	CL-PVC	Inside diameter(mm)	Wall-thickness(mm)
13/16	20.0±0.80	0.80±0.03	8#	3.38±0.20	0.45±0.15
5/8	15.9±0.80	0.70±0.18	9#	3.00±0.20	0.45±0.15
9/16	14.3±0.80	0.70±0.18	10#	2.69±0.20	0.35±0.10
1/2	12.7±0.80	0.57±0.15	11#	2.41±0.20	0.35±0.10
7/16	11.1±0.80	0.57±0.15	12#	2.16±0.20	0.35±0.10
3/8	9.53±0.50	0.57±0.15	13#	1.93±0.15	0.35±0.10
5/16	7.92±0.50	0.57±0.15	14#	1.68±0.15	0.35±0.10
0#	8.38±0.50	0.45±0.15	15#	1.50±0.15	0.35±0.10
1#	7.47±0.50	0.45±0.15	16#	1.34±0.15	0.35±0.10
2#	6.68±0.50	0.45±0.15	17#	1.19±0.15	0.35±0.10
3#	5.94±0.30	0.45±0.15	18#	1.07±0.15	0.35±0.10
4#	5.28±0.30	0.45±0.15	19#	0.96±0.15	0.35±0.10
5#	4.72±0.30	0.45±0.15	20#	0.86±0.15	0.35±0.10
6#	4.22±0.30	0.45±0.15	21#	0.79±0.15	0.35±0.10
7#	3.76±0.20	0.45±0.15
Special specification and thickness can be customized
