              Drain Wire Electrical Cable PVC Insulation Stranded Annealed Red Copper Conductor Compliant with UL 758 UL 1581 Standard

              UL2725 24AWG*2C+26AWG*4C+AE PVC Insulated Cable-Rated temperature: 80ºC-Rated voltage: 30V-Reference Standard: UL758, UL1581, C22.2 No.210-Passes UL VW-1 & CSA FT1 vertical flame test.-Uniform insulation thickness of wire to ensure easy stripping and cutting.-For internal wiring of elec......

              Send Inquiry

              Product Description

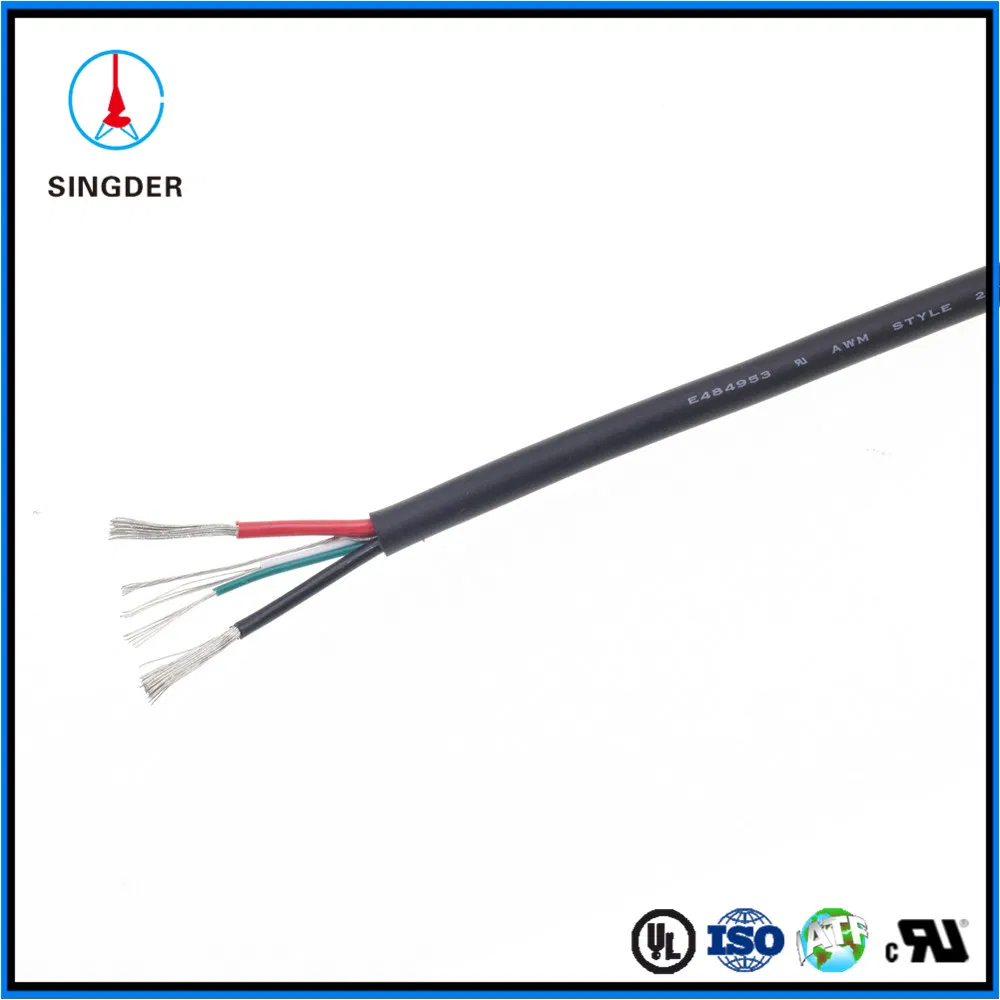

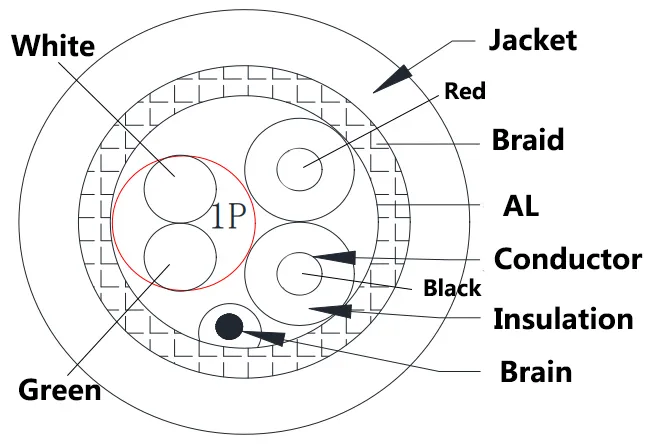

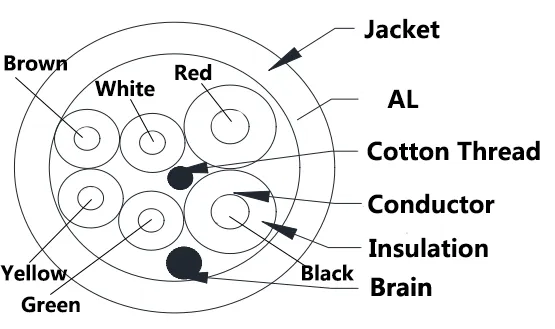

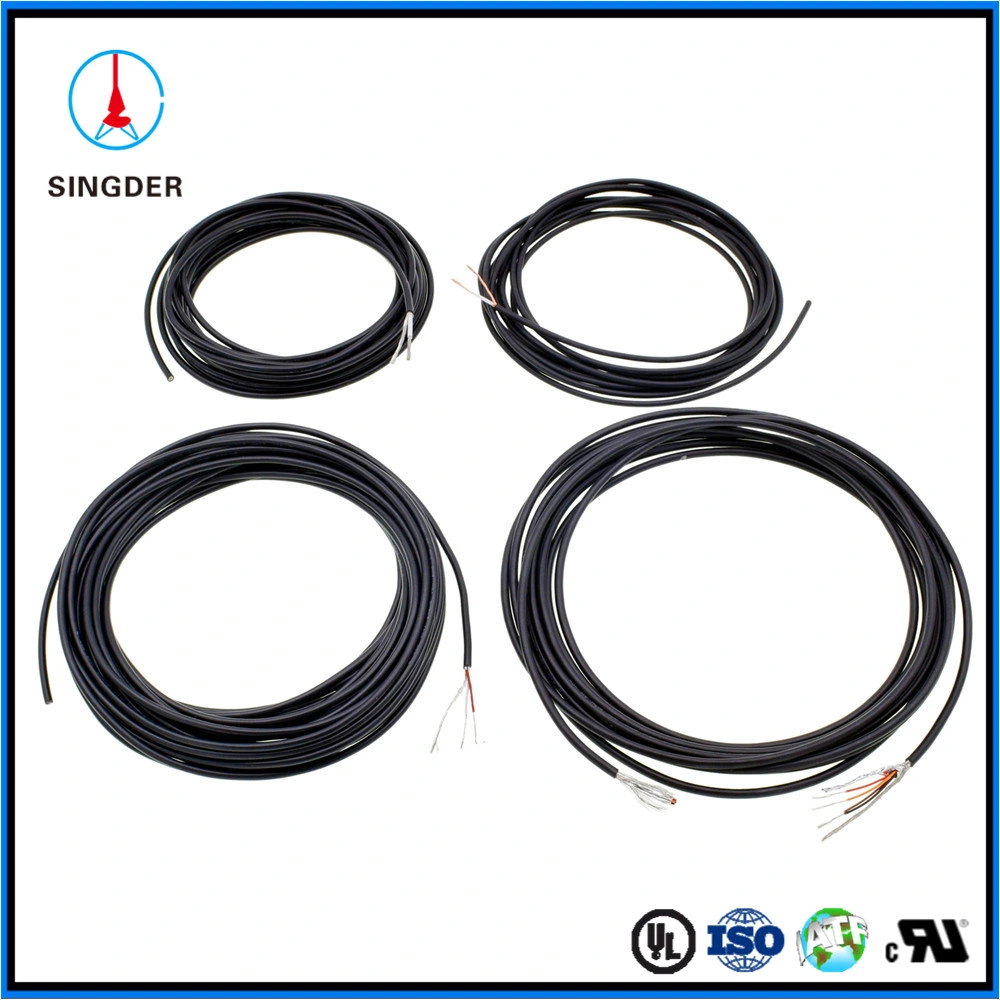

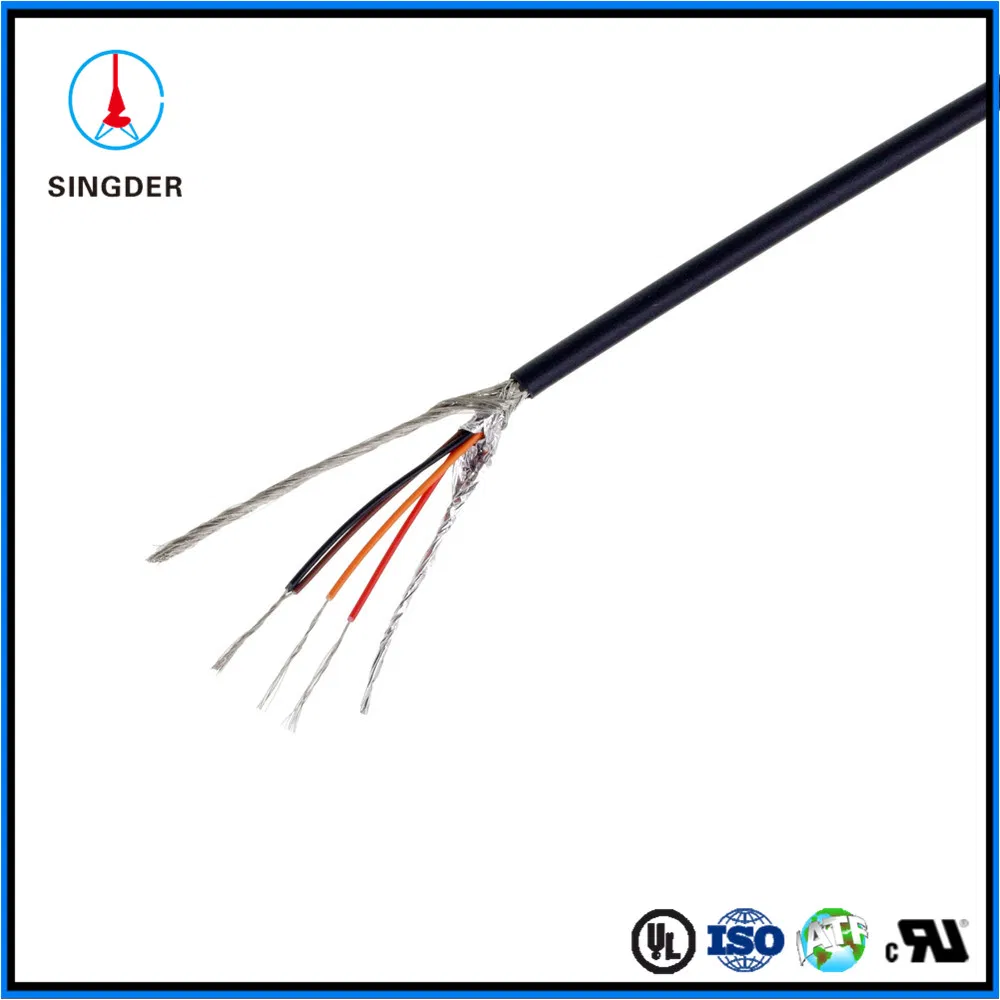

              UL2725 24AWG*2C+26AWG*4C+AE PVC Insulated Cable
              -Rated temperature: 80ºC
              -Rated voltage: 30V
              -Reference Standard: UL758, UL1581, C22.2 No.210
              -Passes UL VW-1 & CSA FT1 vertical flame test.
              -Uniform insulation thickness of wire to ensure easy stripping and cutting.
              -For internal wiring of electronic and electrical equipment and appliance.
              Drain Wire Electrical Cable PVC Insulation Stranded Annealed Red Copper Conductor Compliant with UL 758 UL 1581 Standard
              Drain Wire Electrical Cable PVC Insulation Stranded Annealed Red Copper Conductor Compliant with UL 758 UL 1581 Standard
              Drain Wire Electrical Cable PVC Insulation Stranded Annealed Red Copper Conductor Compliant with UL 758 UL 1581 Standard
              ConductorInsulationJacketMax. Cond Resistance at 20°C
              (Ω/km)
              No. of CoresAWGConstruction
              (No./mm)              		Diameter
              (mm)              		Diameter
              (mm)
              2307/0.100.802.70381
              4307/0.100.802.90381
              8307/0.100.563.50381
              22819/0.080.702.20239
              11287/0.1270.825.20239
              11287/0.1270.663.65239
              13287/0.1270.664.50239
              4267/0.161.005.00150

              Dongguan XSD Cable Technology Co., Ltd (subsidiary of Shenzhen Singder Insulation Materials Co., Ltd) is a Chinese professional manufacturer with "ISO9001, IATF16949, UL, cUL, CCC" approved in Dongguan city next to Shenzhen and Guangzhou.

              ★Main Products: UL/cUL AWM Wires&Cables, Automotive Wire, Industrial Wire, Hook-up&Lead Wire, Solar Cable(PV Wire), Heating Wire, FFC Wire, Flat Ribbon Cable, BV, RV, BVR, RVV, RVB, AVVR, RVVP, USB Cable, HDMI, DVI, VGA, Cable Assembly, Wire Harness and so on.

              ★Insulation Materials: PVC/PE/XLPE/LSZH/TEFLON/FEP/SILICONE RUBBER/TPU and so on.

              SHENZHEN SINGDER INSULATION MATERIALS CO LTD (E484953)
              Table of Recognized Styles
              Single-conductor, thermoplastic insulation.
              1007106113301332143015711026910702
              10151185133113331569158910368
              Multiple-conductor, thermoplastic insulation.
              246426482678200802101621513
              2468265127252027621370
              Single-conductor, thermoset insulation.
              31733271332133863656
              3266330233853619
              Multiple-conductor, thermoset insulation.
              4478

              DONGGUAN XSD CABLE TECHNOLOGY CO LTD (E506386)
              Table of Recognized Styles
              Single-conductor, thermoplastic insulation.
              10071015106115691007010368
              10131032118515711026911627
              Multiple-conductor, thermoplastic insulation.
              246424682517254726512725283520276
              Single-conductor, thermoset insulation.
              31733266328933213386
              31963271330233853656
