Electric Wire Cables Insulation Winding Wire Hook-up & Lead Wire with UL/cUL 1571/ 1061 /1007/1185
UL1571 22AWG*1C+SP PVC Insulated Wire-Rated temperature: 80ºC-Rated voltage: 30V-Reference Standard: UL758, UL1581, C22.2 No.210-Passes UL VW-1 & CSA FT1 vertical flame test.-Uniform insulation thickness of wire to ensure easy stripping and cutting.-For internal wiring of electronic and......
Send Inquiry
Product Description

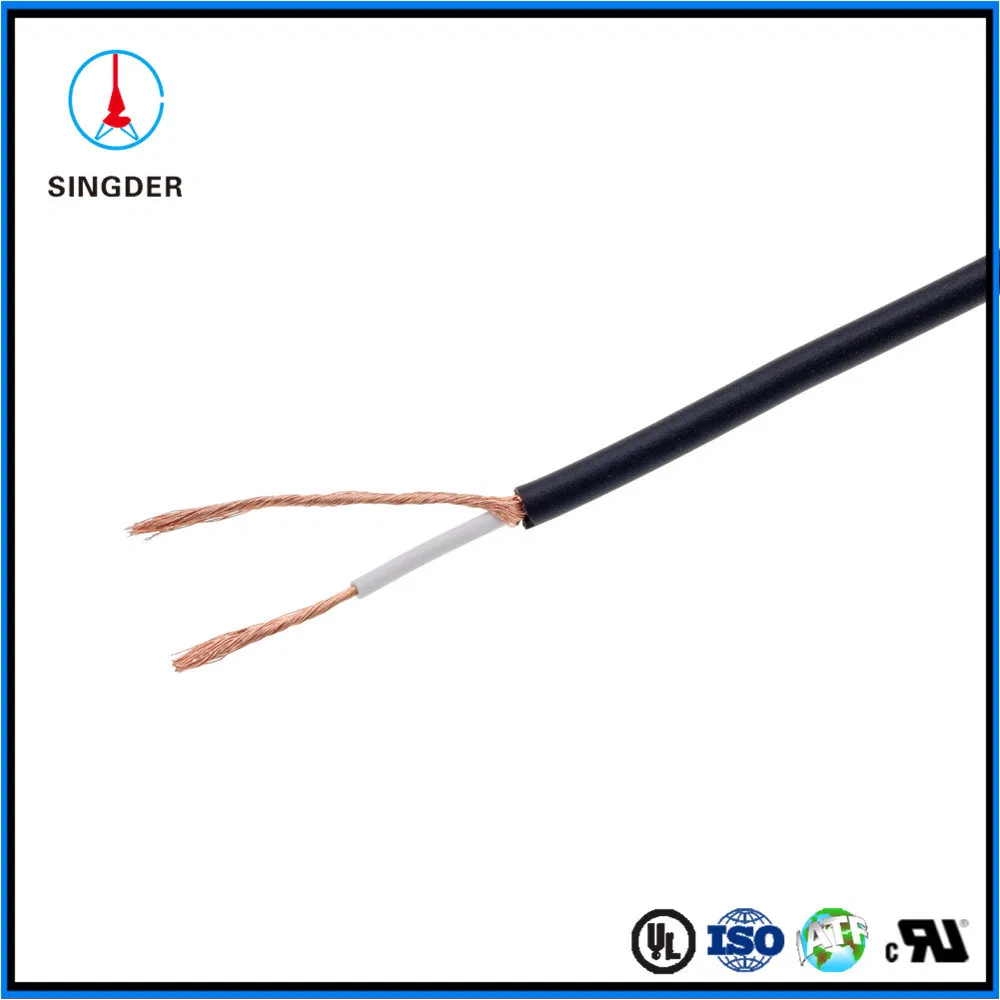

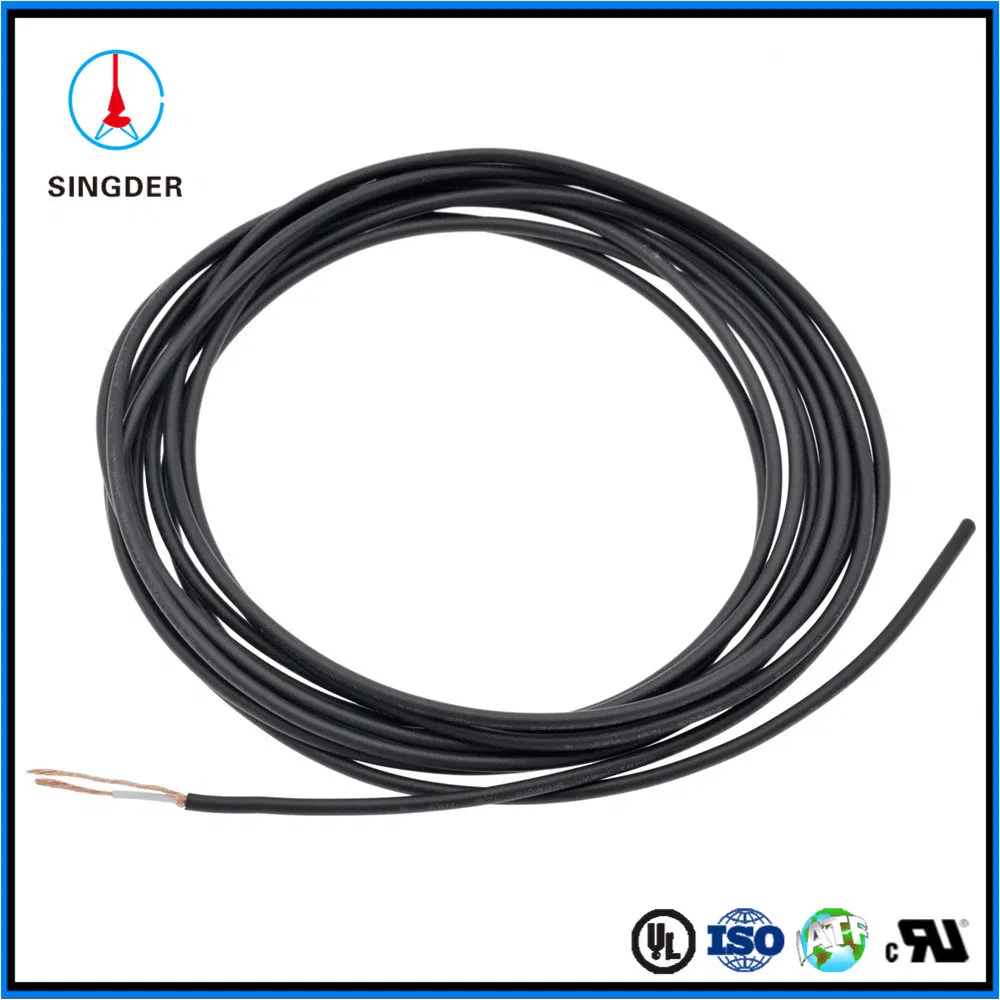

UL1571 22AWG*1C+SP PVC Insulated Wire
-Rated temperature: 80ºC
-Rated voltage: 30V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.
-Rated temperature: 80ºC
-Rated voltage: 30V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.
| Conductor | Insulation | Max. Cond Resistance at 20°C (Ω/km) | |||
| AWG | Construction (No./mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | |
| 32 | 7/0.08 | 0.24 | 0.23 | 0.70 | 597 |
| 30 | 7/0.10 | 0.30 | 0.30 | 0.90 | 381 |
| 28 | 7/0.127 | 0.38 | 0.26 | 0.90 | 239 |
| 26 | 7/0.16 | 0.48 | 0.26 | 1.00 | 150 |
| 24 | 11/0.16 | 0.61 | 0.25 | 1.10 | 94.2 |
| 22 | 17/0.16 | 0.76 | 0.32 | 1.40 | 59.4 |
| 20 | 26/0.16 | 0.94 | 0.43 | 1.80 | 36.7 |
| 18 | 41/0.16 | 1.18 | 0.30 | 1.78 | 23.2 |
| 16 | 26/0.254 | 1.49 | 0.32 | 2.15 | 14.6 |
