China Electrical FEP Insulated Wire None Sheathed Cable House Wire Cable

Product Description

View more about products :

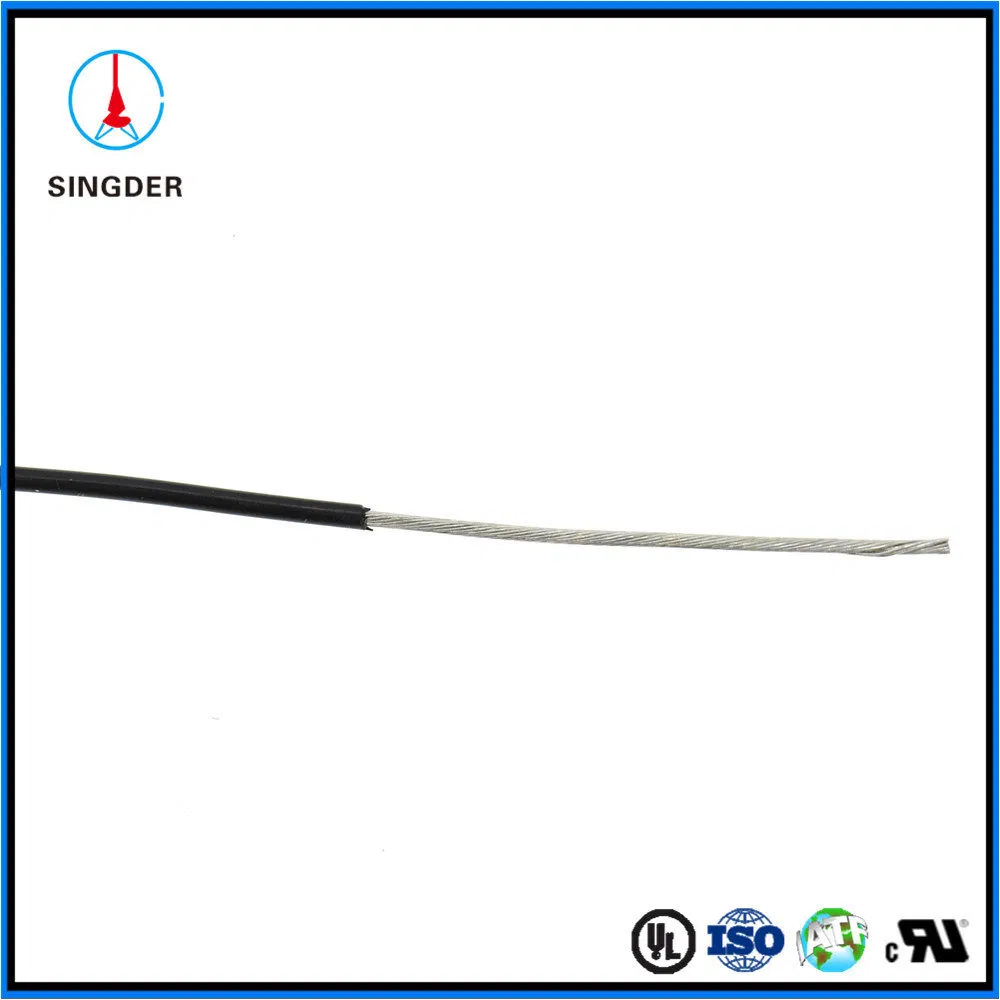

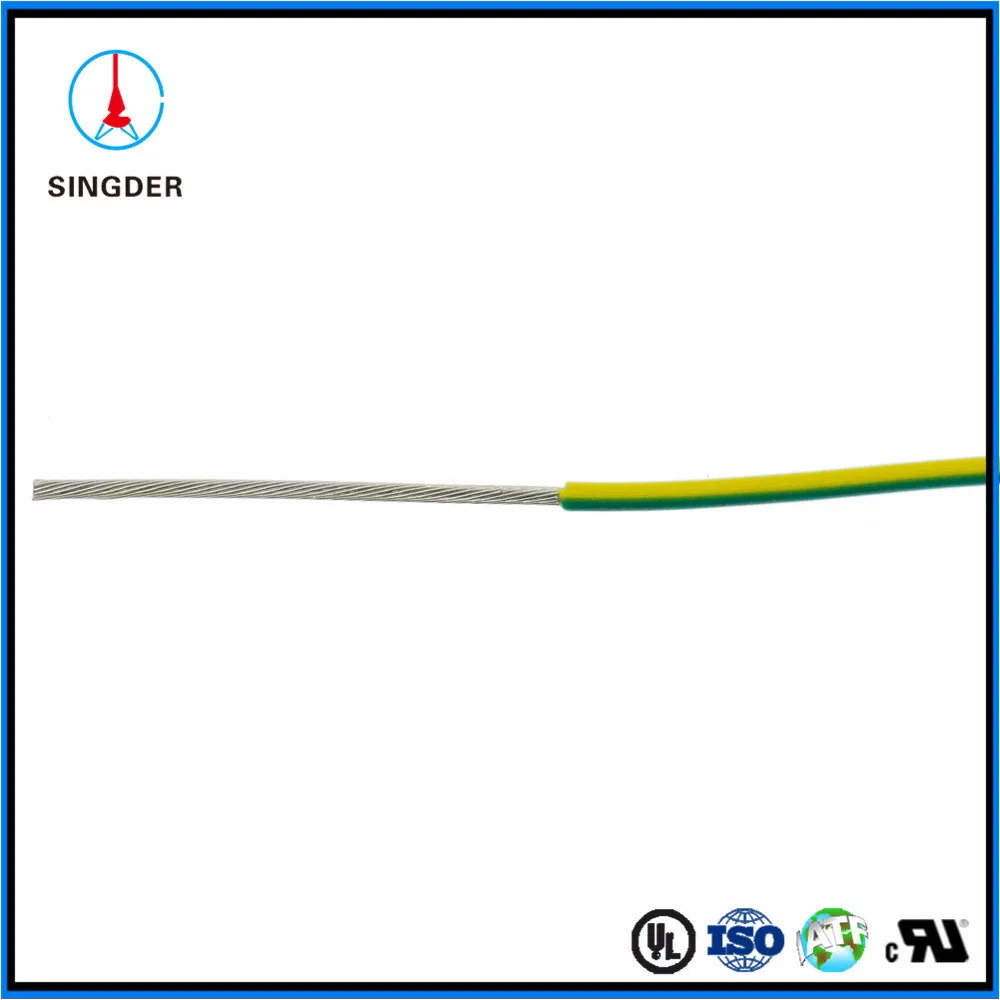

UL1333 FEP Insulated Wire
-Rated temperature: 150ºC
-Rated voltage: 300V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.

Electrical FEP Insulated Wire None Sheathed Cable House Wire Cable

Electrical FEP Insulated Wire None Sheathed Cable House Wire Cable

Conductor			Insulation		Max. Cond Resistance at 20°C (Ω/km)
AWG	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Max. Cond Resistance at 20°C (Ω/km)
24	1/0.50 7/0.20 19/0.12	0.50 0.60 0.60	0.20 0.20 0.20	1.32 1.42 1.42	93.3
22	1/0.65 7/0.254 19/0.15	0.65 0.76 0.75	0.20 0.20 0.20	1.47 1.58 1.57	56.1
20	1/0.81 7/0.31 19/0.19	0.81 0.96 0.93	0.20 0.20 0.20	1.63 1.75 1.75	34.6
18	1/1.02 7/0.39 19/0.235	1.02 1.17 1.30	0.20 0.20 0.20	1.84 1.99 1.99	22.2
16	1/1.30 7/0.49 19/0.30	1.30 1.47 1.50	0.20 0.20 0.20	2.12 2.29 2.32	16.6

Dongguan XSD Cable Technology Co., Ltd (subsidiary of Shenzhen Singder Insulation Materials Co., Ltd) is a Chinese professional manufacturer with "ISO9001, IATF16949, UL, cUL, CCC" approved in Dongguan city next to Shenzhen and Guangzhou.

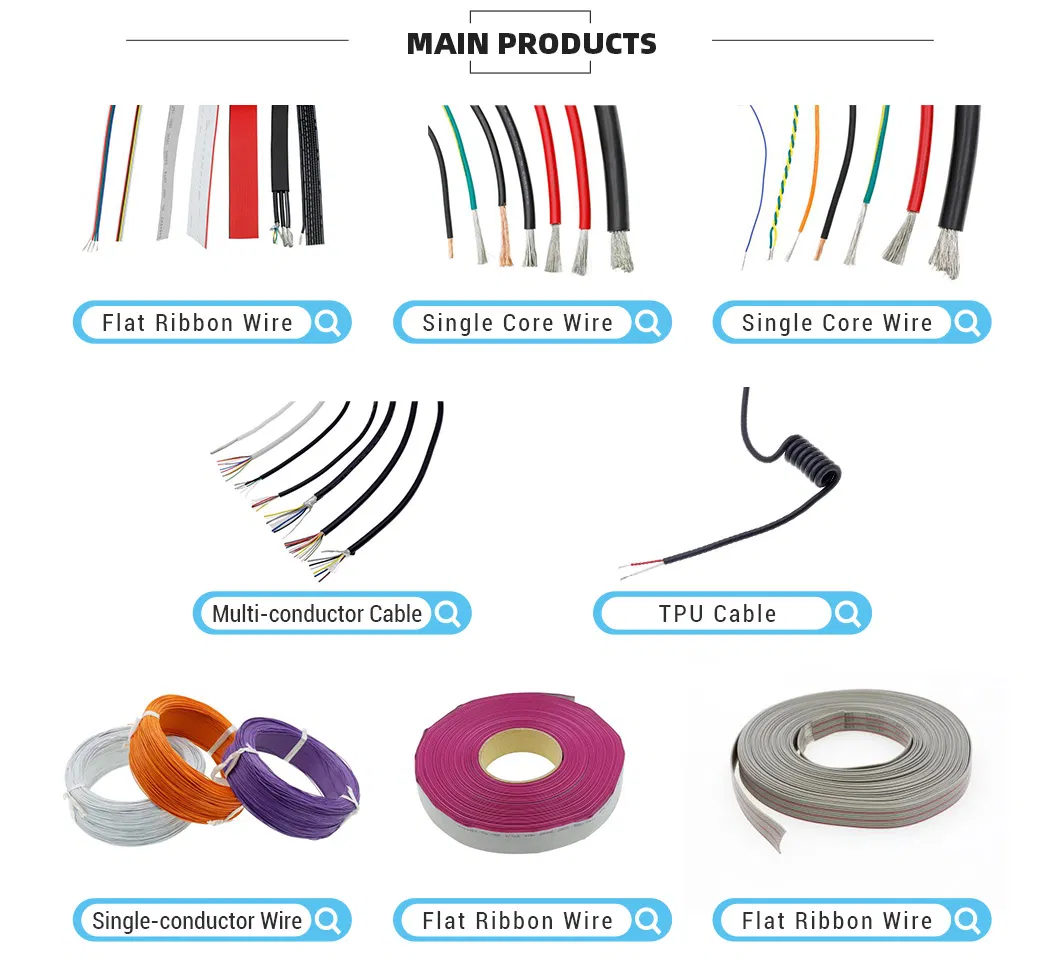

★Main Products: UL/cUL AWM Wires&Cables, Automotive Wire, Industrial Wire, Hook-up&Lead Wire, Solar Cable(PV Wire), Heating Wire, FFC Wire, Flat Ribbon Cable, BV, RV, BVR, RVV, RVB, AVVR, RVVP, USB Cable, HDMI, DVI, VGA, Cable Assembly, Wire Harness and so on.

★Insulation Materials: PVC/PE/XLPE/LSZH/FEP/SILICONE RUBBER/TPU and so on.

SHENZHEN SINGDER INSULATION MATERIALS CO LTD (E484953)
Table of UL AWM Recognized Styles
Single-conductor, thermoplastic insulation.
1007	1061	1331	1430	1589	10368
1013	1185	1332	1569	10070	10702
1015	1330	1333	1571	10269
Multiple-conductor, thermoplastic insulation.
2464	2517	2648	2678	2835	20276	21370
2468	2547	2651	2725	20080	21016	21513
Single-conductor, thermoset insulation.
3173	3266	3289	3321	3386	3656
3196	3271	3302	3385	3619
Multiple-conductor, thermoset insulation.
4478

DONGGUAN XSD CABLE TECHNOLOGY CO LTD (E506386)
Table of Recognized Styles
Single-conductor, thermoplastic insulation.
1007	1015	1061	1569	10070	10368
1013	1032	1185	1571	10269	11627
Multiple-conductor, thermoplastic insulation.
2464	2468	2517	2547	2651	2725	2835	20276
Single-conductor, thermoset insulation.
3173	3266	3289	3321	3386
3196	3271	3302	3385	3656
