Factory Price Best ACSR Duck 605 Mcm Conductor ACSR Electrical Power Cable for Overhead Transmission
Factory Price Best Acsr Duck 605 Mcm Conductor Acsr Electrical Power Cable For Overhead TransmissionApplications:ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the e......
Send Inquiry
Product Description
Factory Price Best Acsr Duck 605 Mcm Conductor Acsr Electrical Power Cable For Overhead Transmission
FAQ
Q:I didn't find the ACSR Bare Conductor Cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Just leave your message if you are interested in our products,We will contact you very soon!
-----------------------------------------------------
-----------------------------------------------------
Applications:

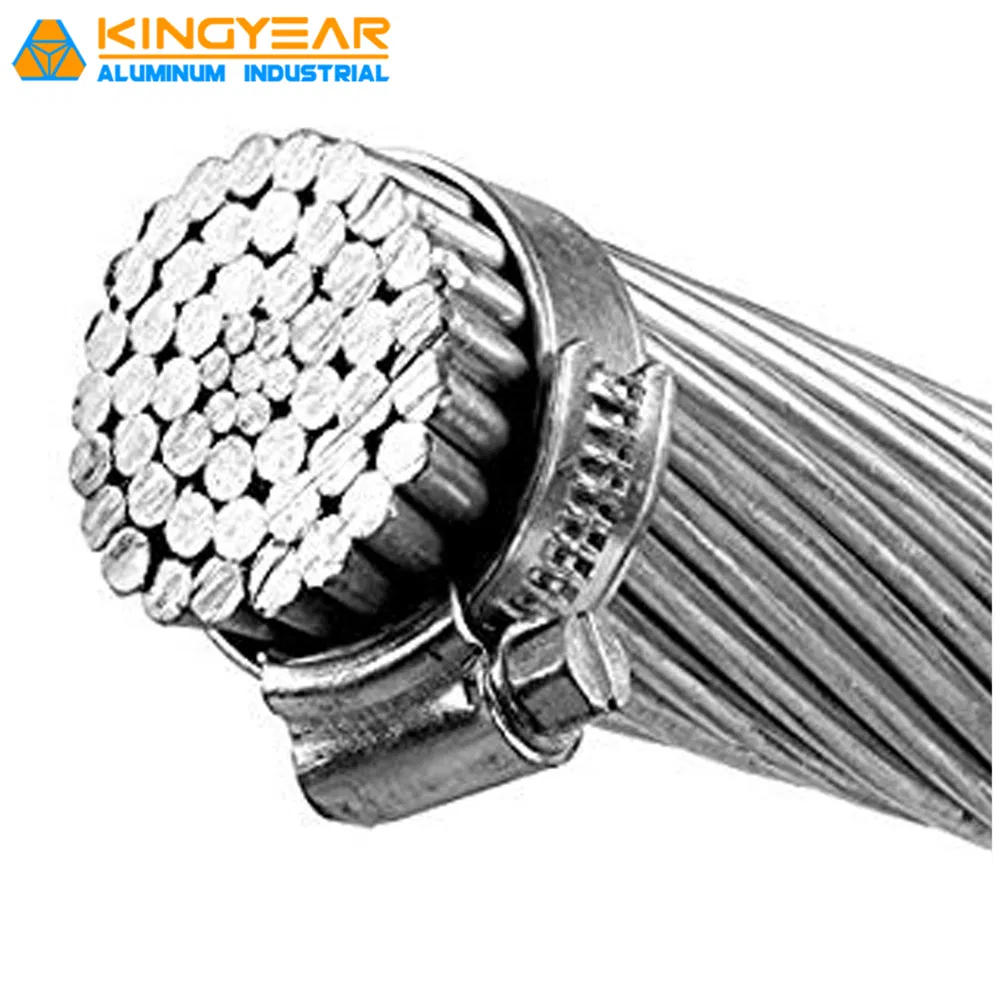

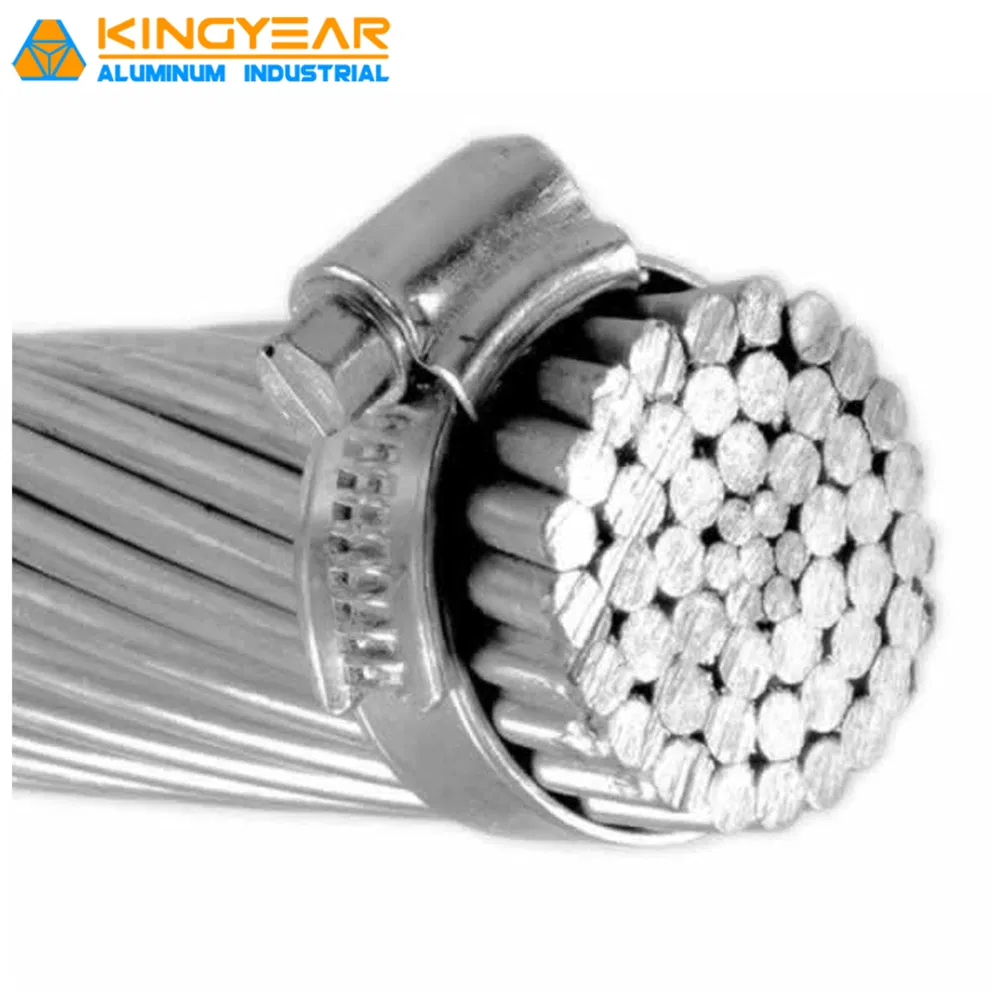

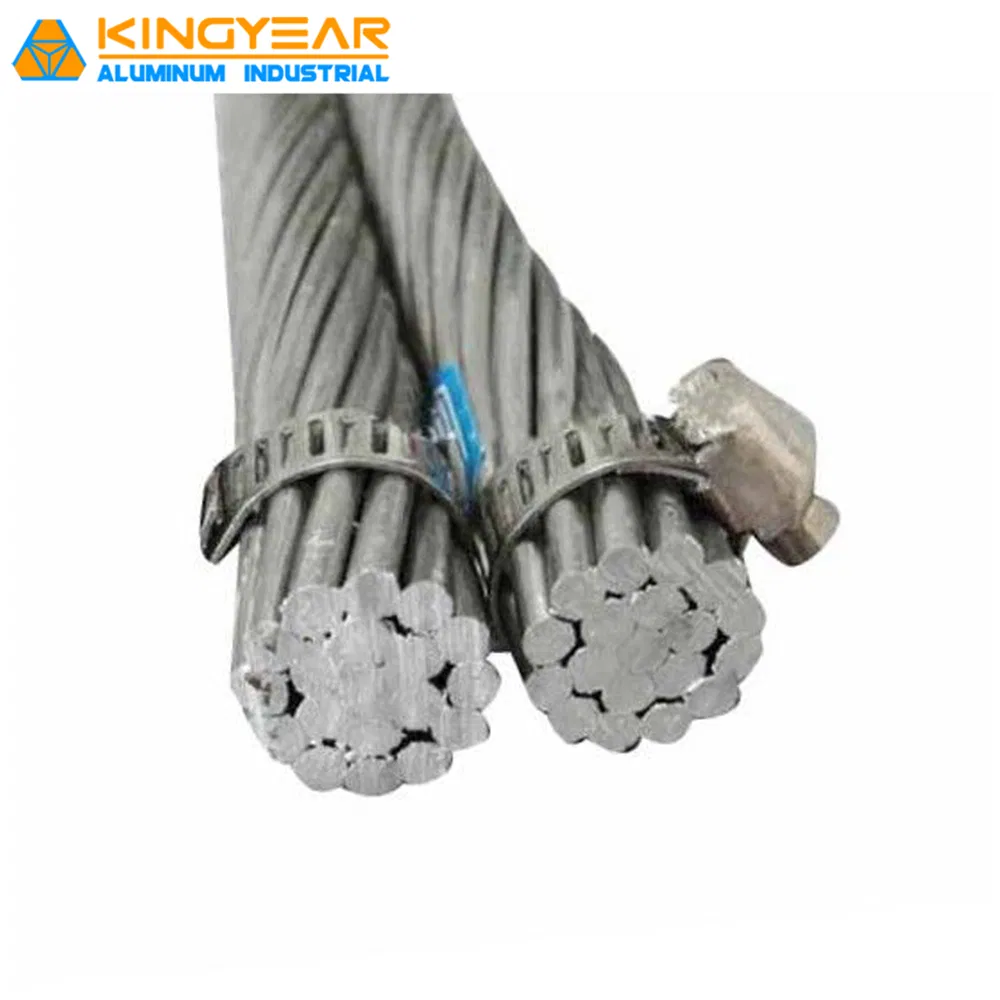

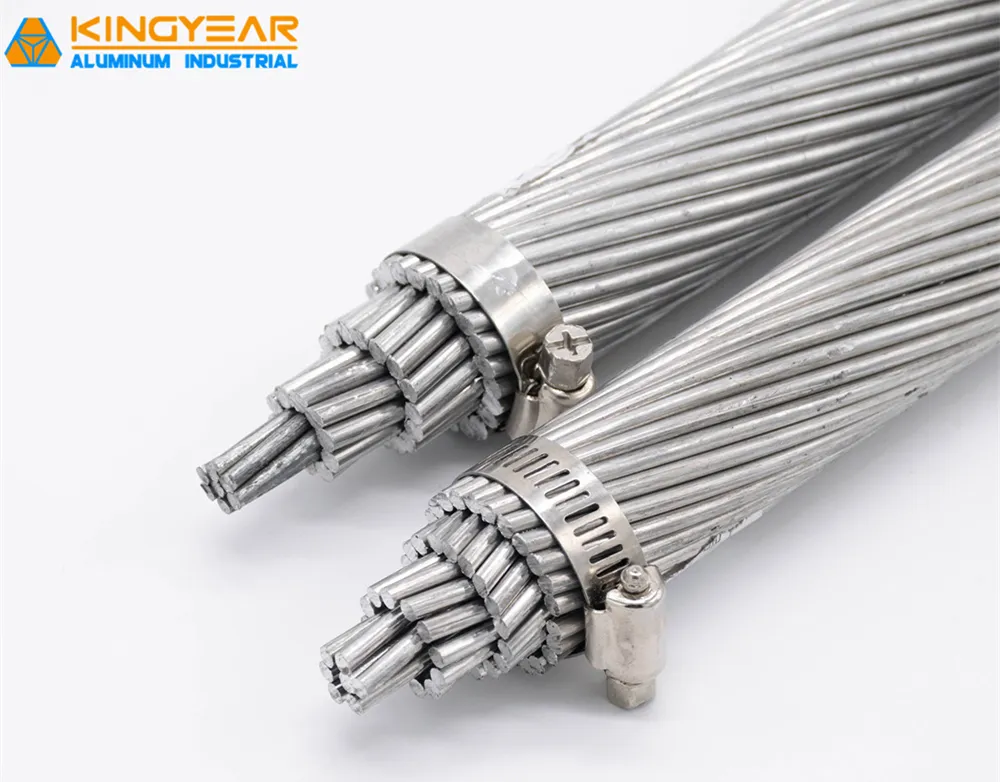

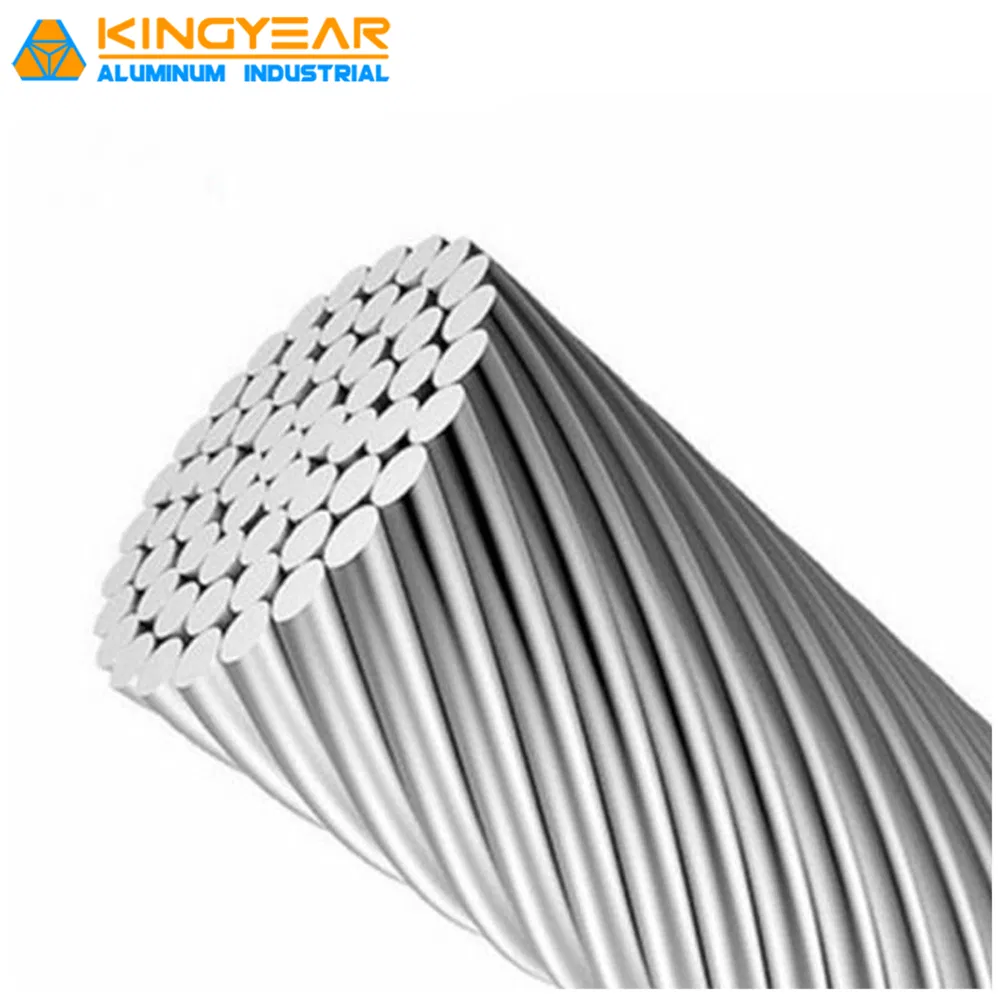

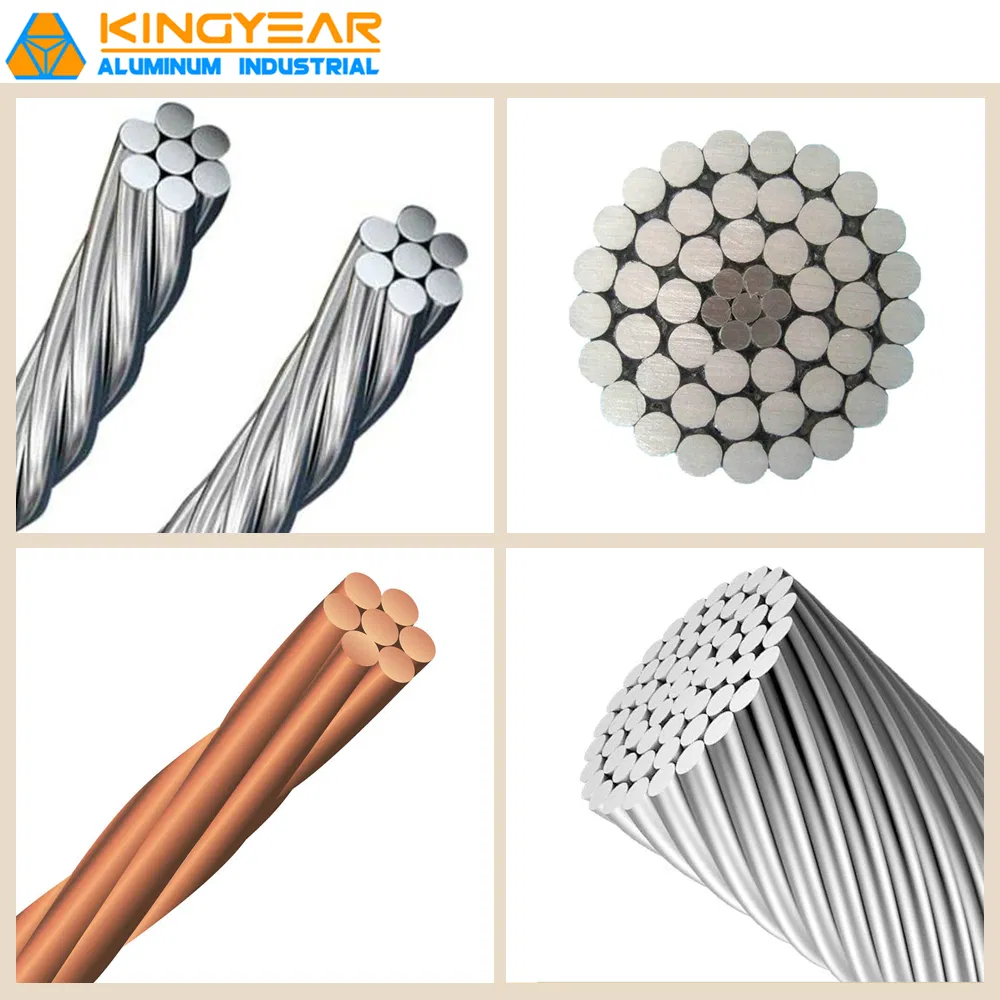

ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. Aluminum 1350 wires and the steel cores are concentrically stranded and wrapped helically around a central wire. The additional corrosion protection is available through the application of grease to the cores or infusion of the complete cable with grease.
Standard
IEC61089, BS 215, ASTM B232, CSA C49, DIN48204, JIS C3110
The technical data of ACSR(Aluminum Conductor Steel Reinforced) Bare Conductor Cable as below for reference,any customized is available.
| ASTM B 232 | |||||
| Code Name | Size | No./Dia.of Stranding Wires | Approx. Overall Dia. | Approx. Weight | |
| AWG or MGM | Alum. | ST. | |||
| No./mm | No./mm | mm | kg/km | ||
| Swanate | 4 | 7/1.96 | 1/2.61 | 6.53 | 93 |
| Sparrow | 2 | 6/2.67 | 1/2.67 | 8.01 | 129 |
| Sparate | 2 | 7/2.47 | 1/3.30 | 8.24 | 148 |
| Robin | 1 | 6/3.00 | 1/3.00 | 9 | 163 |
| Raven | 1/0 | 6/3.37 | 1/3.37 | 10.11 | 206 |
| Quail | 2/0 | 6/3.78 | 1/3.78 | 11.34 | 259 |
| Pigeon | 3/0 | 6/4.25 | 1/4.25 | 12.75 | 327 |
| Penguin | 4/0 | 6/4.77 | 1/4.77 | 14.31 | 412 |
| Waxwing | 266.8 | 18/3.09 | 1/3.09 | 15.45 | 422 |
| Merlin | 336.4 | 18/3.47 | 1/3.47 | 17.35 | 532 |
| Linnet | 336.4 | 26/2.89 | 7/2.25 | 18.31 | 656 |
| Oriole | 336.4 | 30/2.69 | 7/2.69 | 18.83 | 737 |
| Chickadee | 397.5 | 18/3.77 | 1/3.77 | 18.85 | 629 |
| Ibis | 397.5 | 26/3.14 | 7/2.44 | 19.88 | 775 |
| Lark | 397.5 | 30/2.92 | 7/2.92 | 20.44 | 871 |
| Pelican | 477 | 18/4.14 | 1/4.14 | 20.7 | 754 |
| Flicker | 477 | 24/3.58 | 7/2.39 | 21.49 | 877 |
| Hawk | 477 | 26/3.44 | 7/2.67 | 21.8 | 931 |
| Hen | 477 | 30/3.20 | 7/3.20 | 22.4 | 1044 |
| Osprey | 556.5 | 18/4.47 | 1/4.47 | 22.35 | 880 |
| Parakeet | 556.5 | 24/3.87 | 7/2.58 | 23.22 | 1023 |
| Dove | 556.5 | 26/3.72 | 7/2.89 | 23.55 | 1085 |
| Eagle | 556.5 | 30/3.46 | 7/3.46 | 24.21 | 1219 |
| Peacock | 605 | 24/4.03 | 7/2.69 | 24.2 | 1112 |
| Squab | 605 | 26/3.87 | 7/3.01 | 24.51 | 1180 |
| WoodDuck | 605 | 30/3.61 | 7/3.61 | 25.25 | 1325 |
| Kingbird | 636 | 18/4.78 | 1/4.78 | 23.88 | 1007 |
| Rook | 636 | 24/4.14 | 7/2.76 | 24.84 | 1170 |
| Grosbeak | 636 | 26/3.97 | 7/3.09 | 25.15 | 1240 |
| Scoter | 636 | 30/3.70 | 7/3.70 | 25.88 | 1393 |
| Swift | 636 | 36/3.38 | 1/3.38 | 23.62 | 947 |
| Flamingo | 666.6 | 24/4.23 | 7/2.82 | 25.4 | 1226 |
| Gannet | 666.6 | 26/4.07 | 7/3.16 | 25.76 | 1300 |
| Stilt | 715.5 | 24/4.39 | 7/2.92 | 26.31 | 1316 |
| Starling | 715.5 | 26/4.21 | 7/3.28 | 26.68 | 1396 |
| Redwing | 715.5 | 30/3.92 | 19/2.35 | 27.43 | 1553 |
| Tern | 795 | 45/3.38 | 7/2.25 | 27.03 | 1300 |
| Condor | 795 | 54/3.08 | 7/3.08 | 27.72 | 1461 |
| Cuckoo | 795 | 24/4.62 | 7/3.08 | 27.74 | 1461 |
| Drake | 795 | 26/4.44 | 7/3.45 | 28.11 | 1550 |
| Coot | 795 | 36/3.77 | 1/3.77 | 26.41 | 1184 |
| Mallard | 795 | 30/4.14 | 19/2.48 | 28.96 | 1728 |
| Ruddy | 900 | 45/3.59 | 7/2.40 | 28.73 | 1472 |
| Canary | 900 | 54/3.28 | 7/3.28 | 29.52 | 1554 |
| Rail | 954 | 45/3.70 | 7/2.47 | 29.61 | 1560 |
| Catbird | 954 | 36/4.14 | 1/4.14 | 28.95 | 1421 |
| Cardinal | 954 | 54/3.38 | 7/3.38 | 30.42 | 1753 |
| Ortlan | 1033.5 | 45/3.85 | 7/2.57 | 30.81 | 1690 |
| Tanager | 1033.5 | 36/4.30 | 1/4.30 | 30.12 | 1539 |
| Curlew | 1033.5 | 54/3.52 | 7/3.52 | 31.66 | 1900 |
| Bluejay | 1113 | 45/4.00 | 7/2.66 | 31.86 | 1821 |
| Bunting | 1192.5 | 45/4.14 | 7/2.76 | 33.12 | 1949 |
| Grackle | 1192.5 | 54/3.77 | 19/2.27 | 33.97 | 2190 |
| Bittern | 1272 | 45/4.27 | 7/2.85 | 34.17 | 2080 |
| Pheasant | 1272 | 54/3.90 | 19/2.34 | 35.1 | 2335 |
| Skylark | 1272 | 36/4.78 | 1/4.78 | 33.42 | 1895 |
| Dipper | 1351.5 | 45/4.40 | 7/2.92 | 35.16 | 2210 |
| Martin | 1351.5 | 54/4.02 | 19/2.41 | 36.17 | 2481 |
| Bobolink | 1431 | 45/4.53 | 7/3.02 | 36.24 | 2342 |
| Plover | 1431 | 54/4.14 | 19/2.48 | 37.24 | 2628 |
| Nuthatch | 1510.5 | 45/4.65 | 7/3.10 | 37.2 | 2470 |
| Parrot | 1510.5 | 54/4.25 | 19/2.55 | 38.25 | 2773 |
| Lapwing | 1590 | 45/4.77 | 7/3.18 | 38.16 | 2599 |
| High Strength Stranding | |||||
| Falcon | 1590 | 54/4.36 | 19/2.62 | 39.26 | 2920 |
| Grouse | 80 | 8/2.54 | 1/4.242 | 9.32 | 204 |
| Petrel | 101.6 | 12/2.339 | 7/2.339 | 11.7 | 342 |
| Minorca | 110.8 | 12/2.441 | 7/2.441 | 12.2 | 373 |
| Leghorn | 134.6 | 12/2.69 | 7/2.69 | 13.45 | 453 |
| Guinea | 159 | 12/2.924 | 7/2.924 | 14.62 | 535 |
| Dotterel | 176.9 | 12/3.084 | 7/3.084 | 15.42 | 595 |
| Dorking | 190.8 | 12/3.203 | 7/3.203 | 16.01 | 642 |
| Brahma | 203.2 | 16/2.863 | 19/2.482 | 18.13 | 900 |
| Cochin | 211.3 | 12/3.371 | 7/3.371 | 16.85 | 711 |
| ACSR BS 215 | ||||||||||||
| Code Name | Calculated Area | Stranding and Wire Diameter. | Overall Diameter | Weight | Nominal Breaking Load | Max. D.C Resistance at 20 ºC | ||||||
| Nominal Alum. | Alum. | Steel | Total | Alum. | Steel | Alum. | Steel. | Total | ||||
| mm² | mm² | mm² | mm² | mm | mm | mm | mm | kg/km | kg/km | kg/km | kn | ohm/km |
| Mole | 10 | 10.62 | 1.77 | 12.39 | 6/1.50 | 1/1.50 | 4.5 | 29 | 14 | 43 | 4.14 | 2.076 |
| Squirrel | 20 | 20.94 | 3.49 | 24.43 | 6/2.11 | 1/2.11 | 6.33 | 58 | 27 | 85 | 7.88 | 1.368 |
| Gopher | 25 | 26.25 | 4.37 | 30.62 | 6/2.36 | 1/2.36 | 7.08 | 72 | 34 | 106 | 9.61 | 1.093 |
| Weasel | 30 | 31.61 | 5.27 | 36.88 | 6/2.59 | 1/2.59 | 7.77 | 87 | 41 | 128 | 11.45 | 0.9077 |
| Fox | 35 | 36.66 | 6.11 | 42.77 | 6/2.79 | 1/2.79 | 8.37 | 101 | 48 | 149 | 13.2 | 0.7822 |
| Ferret | 40 | 42.41 | 7.07 | 49.48 | 6/3.00 | 1/3.00 | 9 | 117 | 55 | 172 | 15.2 | 0.6766 |
| Rabbit | 50 | 52.88 | 8.82 | 61.7 | 6/3.35 | 1/3.35 | 10.05 | 145 | 69 | 214 | 18.35 | 0.5426 |
| Mink | 60 | 63.18 | 10.53 | 73.71 | 6/3.66 | 1/3.66 | 10.98 | 173 | 82 | 255 | 21.8 | 0.4545 |
| Skunk | 60 | 63.27 | 36.93 | 100.3 | 12/2.59 | 7/2.59 | 12.95 | 175 | 290 | 465 | 53 | 0.4567 |
| Beaver | 70 | 74.82 | 12.47 | 87.29 | 6/3.99 | 1/3.99 | 11.97 | 205 | 97 | 302 | 25.7 | 0.3825 |
| Horse | 70 | 73.37 | 42.8 | 116.17 | 12/2.79 | 7/2.79 | 13.95 | 203 | 335 | 538 | 61.2 | 0.3936 |
| Racoon | 75 | 79.2 | 13.2 | 92.4 | 6/4.10 | 1/4.10 | 12.3 | 217 | 103 | 320 | 27.2 | 0.3622 |
| Otter | 80 | 83.88 | 13.98 | 97.86 | 6/4.22 | 1/4.22 | 12.66 | 230 | 109 | 339 | 28.8 | 0.3419 |
| Cat | 90 | 95.4 | 15.9 | 111.3 | 6/4.50 | 1/4.50 | 13.5 | 262 | 124 | 386 | 32.7 | 0.3007 |
| Hare | 100 | 105 | 17.5 | 122.5 | 6/4.72 | 1/4.72 | 14.16 | 288 | 137 | 425 | 36 | 0.2733 |
| Dog | 100 | 105 | 13.5 | 118.6 | 6/4.72 | 7/1.57 | 14.15 | 288 | 106 | 394 | 32.7 | 0.2733 |
| Hyena | 100 | 105.8 | 20.44 | 126.2 | 7/4.39 | 7/1.93 | 14.57 | 290 | 160 | 450 | 40.9 | 0.2712 |
| Leopard | 125 | 131.3 | 16.8 | 148.1 | 6/5.28 | 7/1.75 | 15.81 | 360 | 132 | 492 | 40.7 | 0.2184 |
| Cougar | 125 | 130.3 | 7.25 | 137.5 | 18/3.05 | 1/3.05 | 15.25 | 362 | 57 | 419 | 29.8 | 0.2189 |
| Tiger | 125 | 131.1 | 30.6 | 161.7 | 30/2.36 | 7/2.36 | 16.52 | 362 | 240 | 602 | 58 | 0.2202 |
| Wolf | 150 | 158 | 36.9 | 194.9 | 30/2.59 | 7/2.59 | 18.13 | 437 | 289 | 726 | 69.2 | 0.1828 |
| Dingo | 150 | 158.7 | 8.8 | 167.5 | 18/3.25 | 1/3.35 | 16.75 | 437 | 69 | 506 | 35.7 | 0.1815 |
| Lynx | 175 | 183.4 | 42.8 | 226.2 | 30/2.79 | 7/2.79 | 19.53 | 507 | 335 | 842 | 79.8 | 0.1576 |
| Caracal | 175 | 184.2 | 10.3 | 194.5 | 18/3.61 | 1/3.61 | 18.05 | 507 | 80 | 587 | 41.1 | 0.1563 |
| Lion | 225 | 238.3 | 55.6 | 294.2 | 30/3.18 | 7/3.18 | 22.26 | 659 | 436 | 1095 | 109.6 | 0.1212 |
| Bear | 250 | 264 | 61.6 | 325.6 | 30/3.35 | 7/3.55 | 23.45 | 730 | 483 | 1213 | 111.1 | 0.1093 |
| Goat | 300 | 324.3 | 75.7 | 400 | 30/3.71 | 7/3.71 | 25.97 | 896 | 593 | 1489 | 135.7 | 0.08911 |
| Sheep | 350 | 374.1 | 87.3 | 461.4 | 30/3.99 | 7/3.99 | 27.93 | 1034 | 684 | 1718 | 155.9 | 0.07704 |
| Antelope | 350 | 373.1 | 48.4 | 421.5 | 54/2.97 | 7/2.97 | 26.73 | 1032 | 379 | 1411 | 118.2 | 0.07727 |
| Bison | 350 | 381.8 | 49.5 | 431.3 | 54/3.00 | 7/3.00 | 27 | 1056 | 388 | 1444 | 120.9 | 0.07573 |
| Jaguar | 200 | 210.6 | 11.7 | 222.3 | 18/3.86 | 1/3.86 | 19.3 | 580 | 91 | 671 | 46.55 | 0.1367 |
| Deer | 400 | 429.3 | 100.2 | 529.5 | 30/4.27 | 7/4.27 | 29.89 | 1186 | 785 | 1971 | 178.5 | 0.06726 |
| Zebra | 400 | 428.9 | 55.6 | 484.5 | 54/3.18 | 7/3.18 | 28.62 | 1186 | 435 | 1621 | 131.9 | 0.0674 |
| Elk | 450 | 477 | 111.3 | 588.3 | 30/4.50 | 7/4.50 | 31.5 | 1318 | 872 | 2190 | 198.2 | 0.06056 |
| Camel | 450 | 475.2 | 61.6 | 536.8 | 54/3.35 | 7/3.35 | 30.15 | 1314 | 483 | 1797 | 145.7 | 0.06073 |
| Moose | 500 | 528.7 | 68.5 | 597.2 | 54/3.53 | 7/3.53 | 31.77 | 1462 | 537 | 1999 | 161.1 | 0.0547 |
