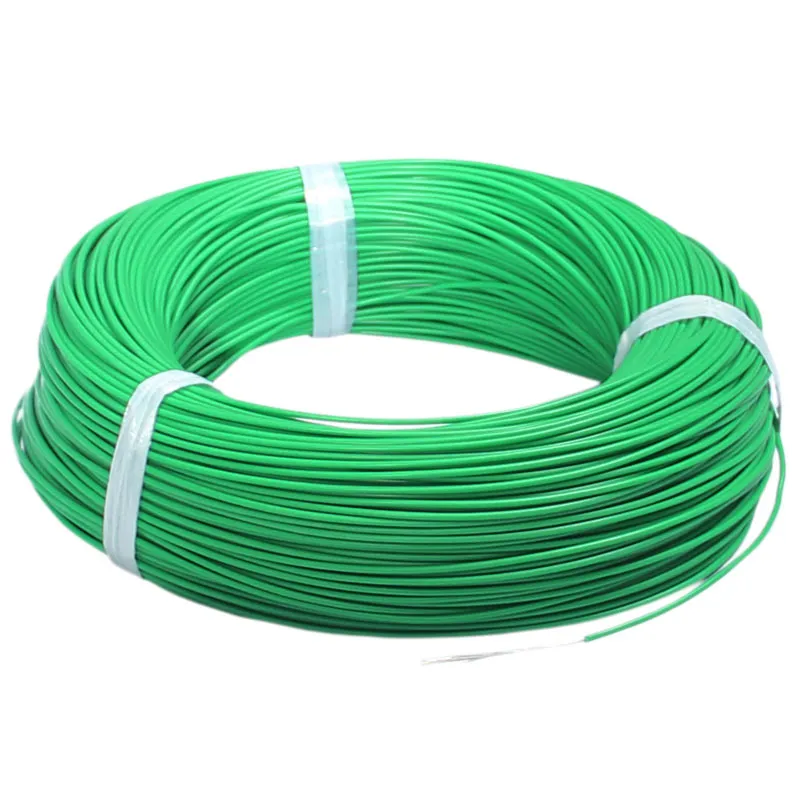

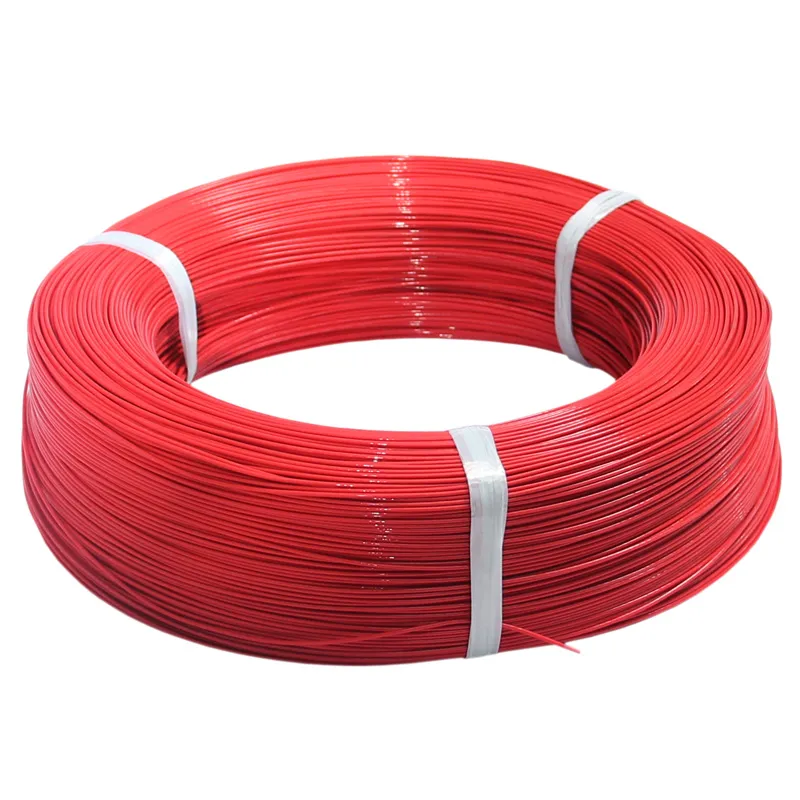

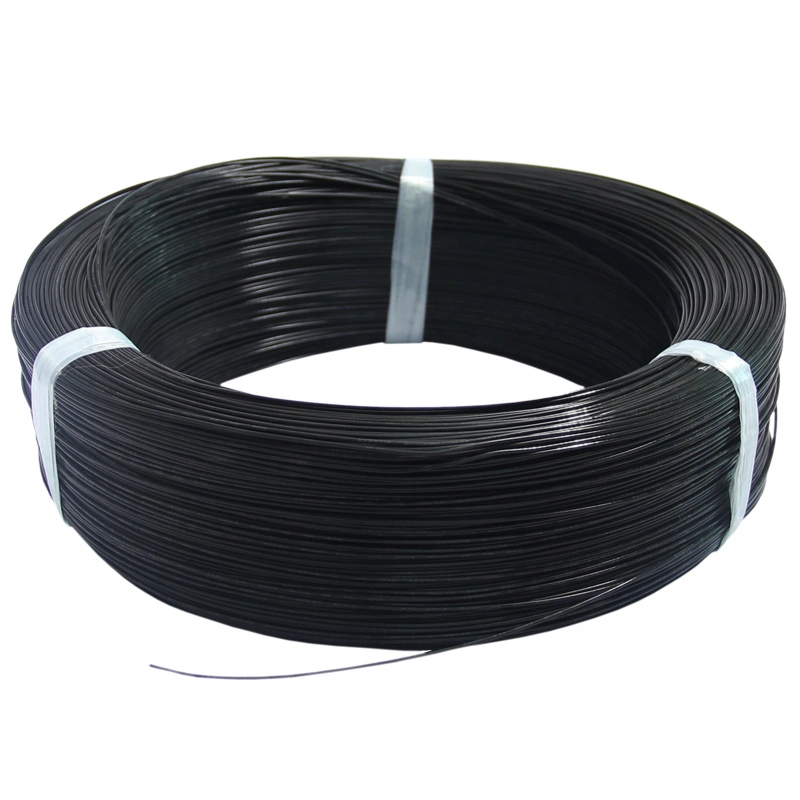

Fluoroplastic Wire 26AWG with UL10362
Fluoroplastic Wire 26AWG with UL10362Nominal Voltage:600VTemperature Range:-100ºC to 250ºCConductor:Tinned copperInsulator:PFAO.D.Tolerance:±0.10mmColor:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ectcon.of conductor.:7/0.16Diameter:0.48MMThi......
Send Inquiry
Product Description
Fluoroplastic Wire 26AWG with UL10362
Nominal Voltage:600V
Temperature Range:-100ºC to 250ºC
Conductor:Tinned copper
Insulator:PFA
O.D.Tolerance:±0.10mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect
con.of conductor.:7/0.16
Diameter:0.48MM
Thickness of insulator:0.3MM
over diameter:1.08MM
Packing:610m/coil
Nominal Voltage:600V
Temperature Range:-100ºC to 250ºC
Conductor:Tinned copper
Insulator:PFA
O.D.Tolerance:±0.10mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect
con.of conductor.:7/0.16
Diameter:0.48MM
Thickness of insulator:0.3MM
over diameter:1.08MM
Packing:610m/coil
