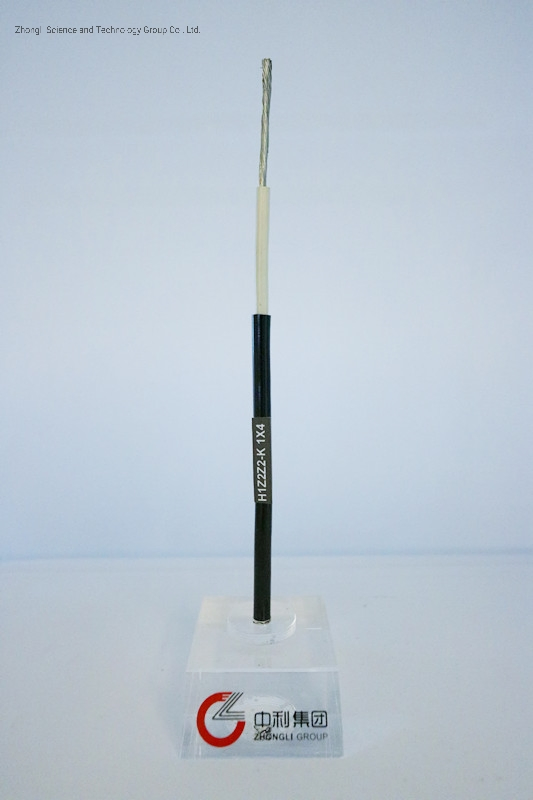

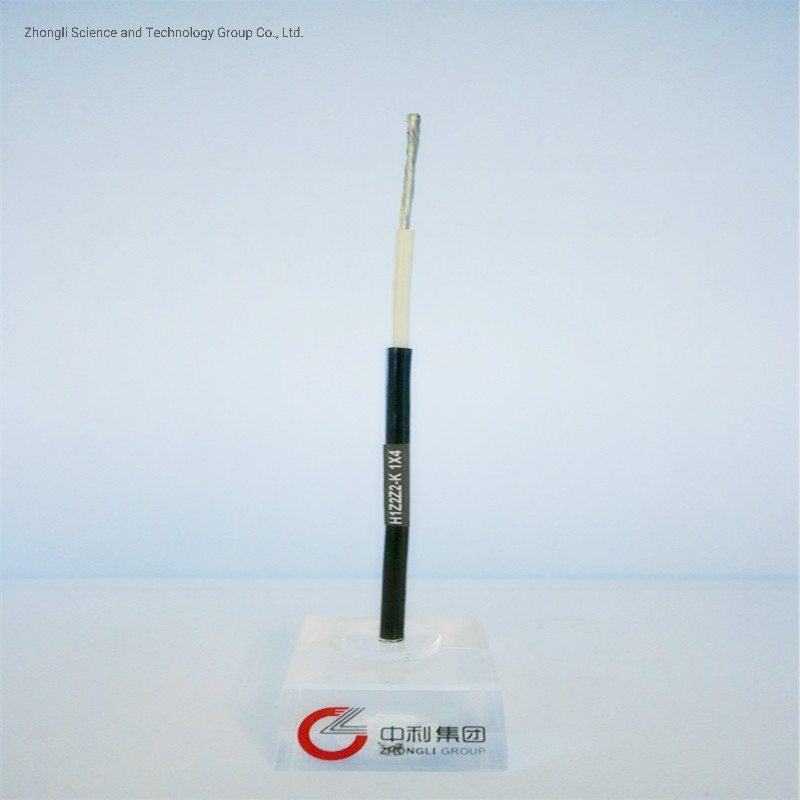

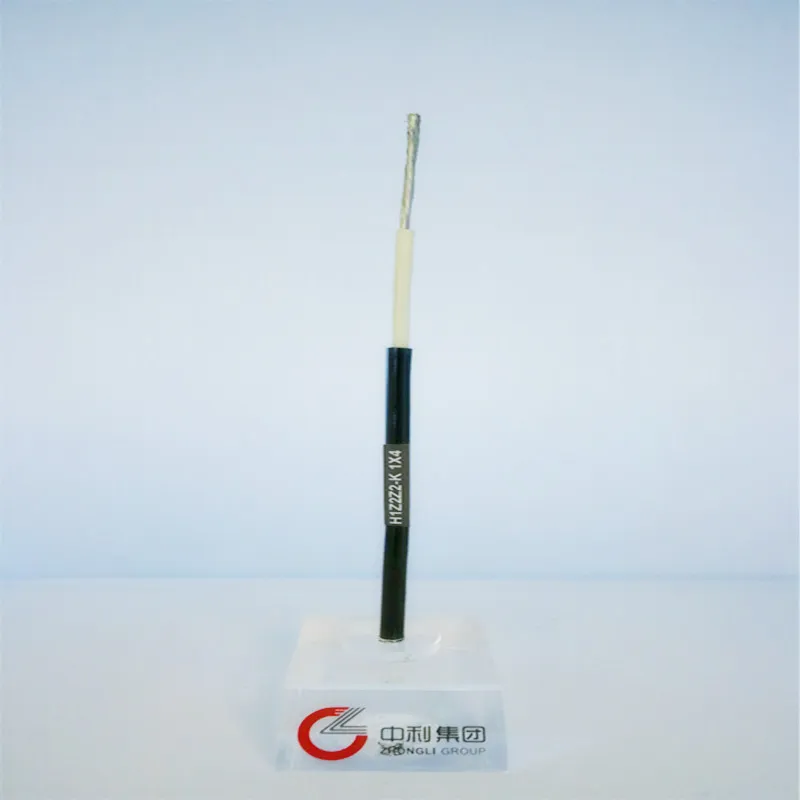

H1z2z2-K 1500V Black PV Cable with TUV Approved 4.0mm2 En50618

Structure Soft stranded tinned copper conductor XLPE insulation XLPE outer sheath Application Suited for connecting photovoltaic system components inside and outside of building and equipment Reference standard EN 50618 Customer requirements RoHS

Cable Permission Ambient temperature (ºC) 90 Max

imum rated temperature of cable conductor(ºC) 120 (for a maximum of 20 000 hours) Rating Voltage(V) DC 1500

Mechanical characteristics Test object Insulation Outer sheath Material XLPE XLPE Tensile strength-median, min (N/mm²) 8.0 8.0 Elongation at break-median, min (%) 125 125 Ageing condition (150±2)ºC*168h After tensile strength-variation, maximum (%) -30 -30 After elongation at break-variation, maximum (%) -30 -30
