Product Description
Description
Name:Heat Resistant Electrical Coated Silicone Rubber Cable Wire
Size:26~12AWG
Feature
Ratings Voltage:600V
Rated temperature: -60ºC~+200ºC

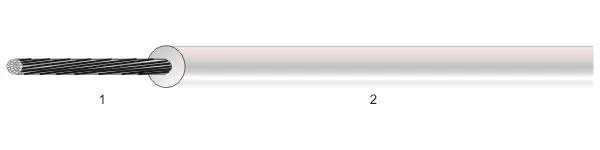

Structure
Conductor:Copper,Nickel plated Copper, Tinned Copper
Insulation:Extruded Silicone Rubber
Color:Blue,Brown,Black,White,Red,Green,Yellow
Standard:UL758,UL1581

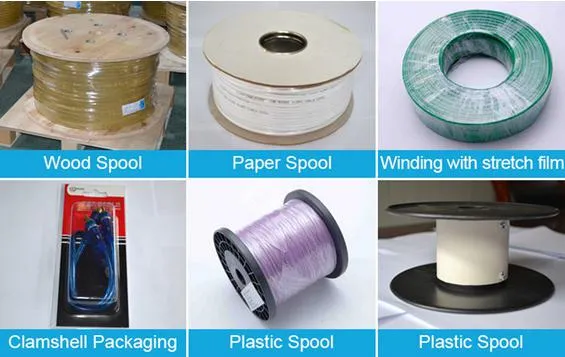

2. Packing
- Rolls
- Spools
- Drums
- Wiring of domestic electrical heating appliances.
- Lighting.
- Instrumentation engineering.
- Mechanical engineering.
- Continuous working temperatures:-60C to +180C peaks at +200C
- Applicable for internal wiring,Not for immersed applications.
- Superior flexibility.
- Good resistance to thermal shock and UV.
- Excellent ageing resistance.
Size | Conductor Structure | Insulation Thickness | Diameter | Max. Conductor Resistance (20ºC) (Ω/km) |
26 | 7/0.16 | ≥0.76 | 2.1±0.2 | 150 |
24 | 7/0.20 | 2.2±0.2 | 94.2 | |
22 | 7/0.254 | 2.4±0.2 | 59.4 | |
20 | 7/0.32 | 2.5±0.2 | 37.4 | |
18 | 16/0.254 | 2.8±0.2 | 23.5 | |
16 | 26/0.254 | 3.1±0.2 | 14.6 | |
14 | 41/0.254 | 3.6±0.2 | 8.96 | |
12 | 65/0.254 | 4.1±0.2 | 5.64 |
6. Packing Methods

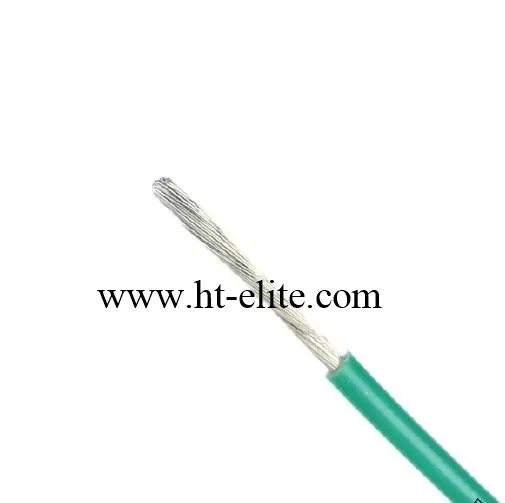

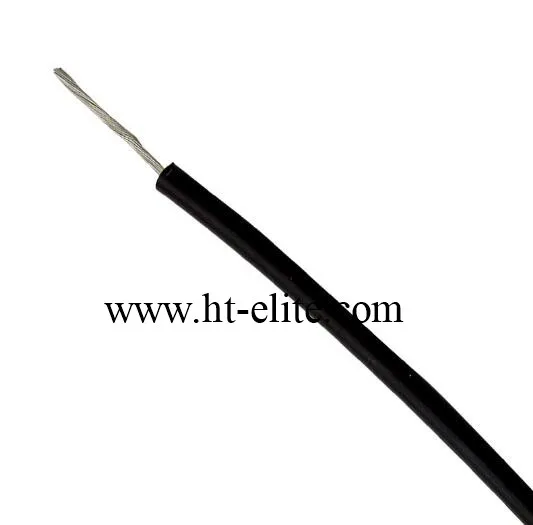

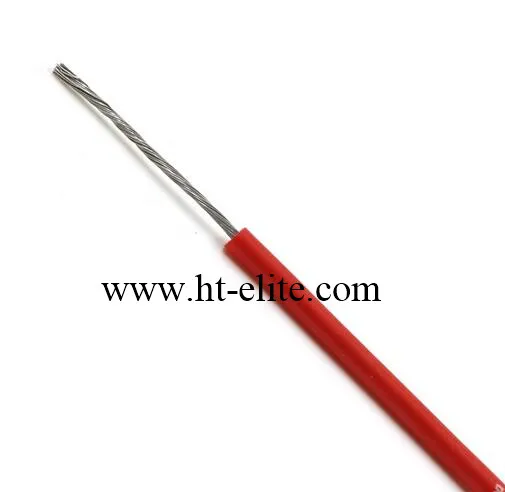

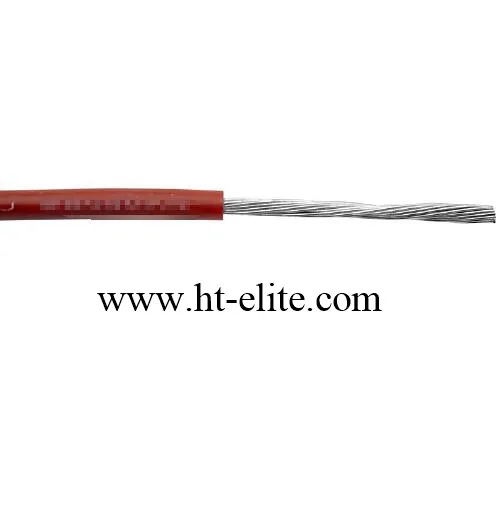

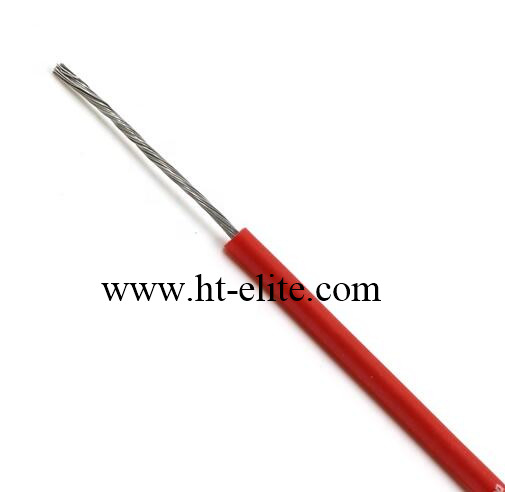

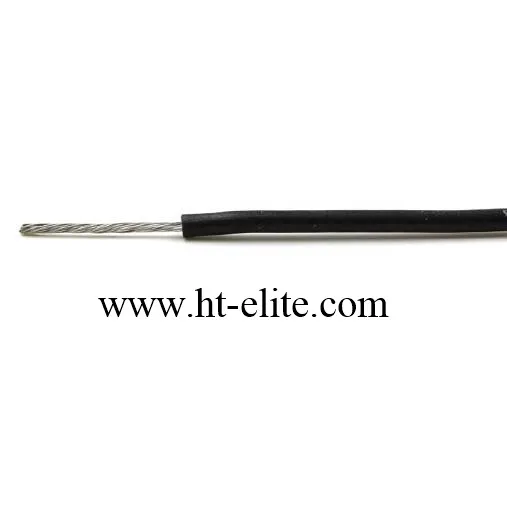

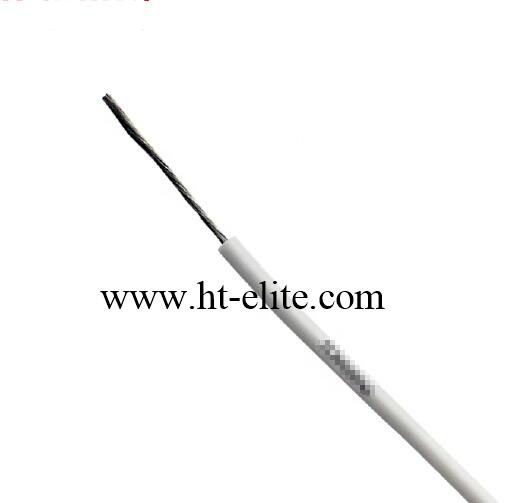

5. Photos for Reference
